Luxul SW-505-16P-R 1GB L2/L3 Managed Switch with Sixteen PoE+ Ethernet Ports/Two Combo RJ45/SFP Ports - US Power Cord

ITEM #: LUXU-SW-505-16PR MFG #: SW-505-16P-R

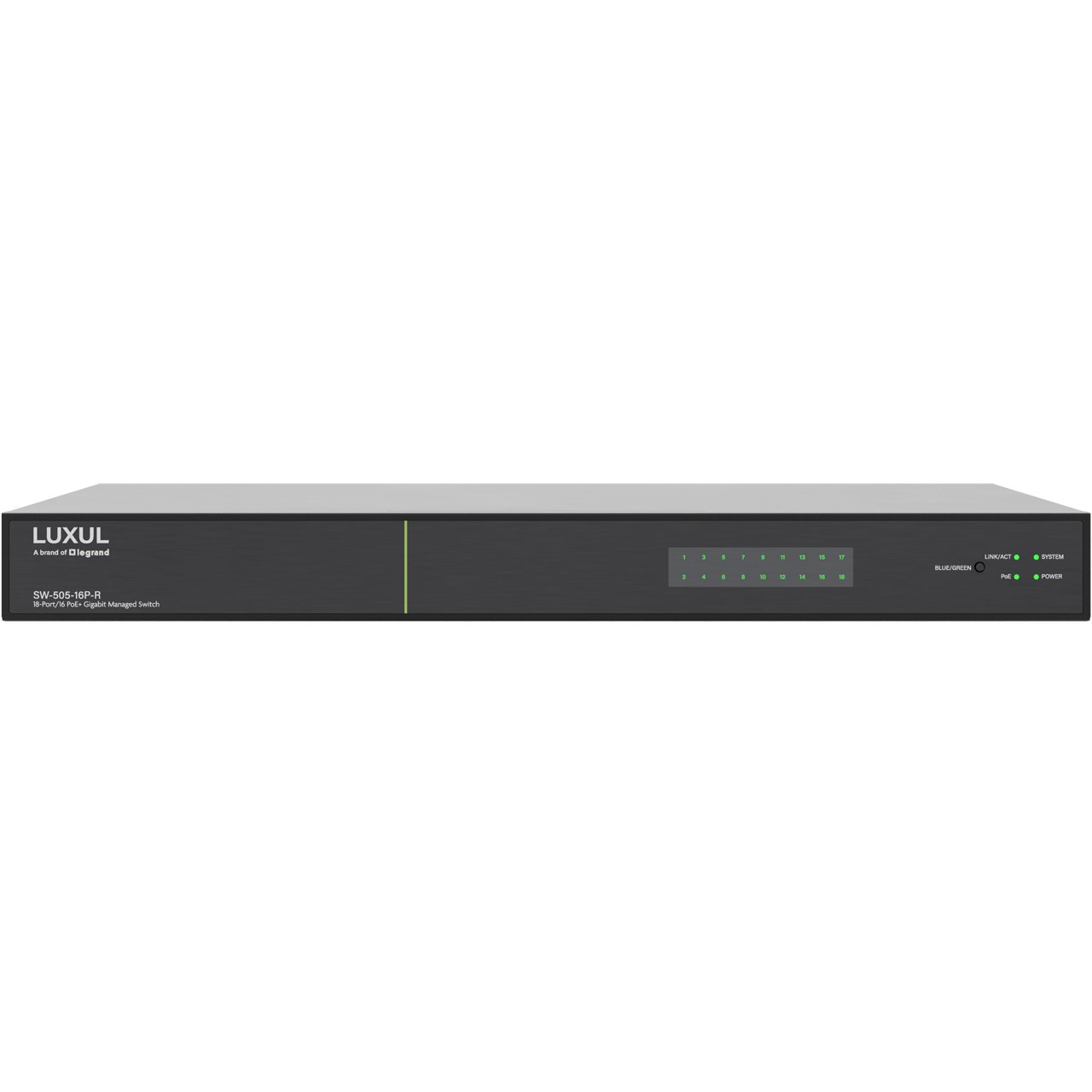

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Luxul
Free Shipping with $49 Minimum Order

Our Price:

$1,203.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

SW-505-16P-R - Overview

The Luxul SW-505-16P-R is a sixteen port PoE+ rear-facing single-space rackmount 1Gb switch with two RJ45/SFP 1Gb ports (aggregable up to 2Gbps) with a total PoE power budget of 185W. Each of the SFP ports can be used alone or aggregated together up to 2Gbps. This L2/L3 switch with 36Gbps switching capacity provides VLAN, QoS and other powerful management features. Up to 16 switches can be grouped in a single pane user-interface allowing easy and comprehensive administration. Variable speed fans for quiet operation.

  • Features:

    • Refreshed, simplified user interface >PoE Self-Healing with auto-recovery and power scheduling
    • Supports inbound (ingress) ACL filtering
    • Layer 2/Layer 3 capabilities (static routing included)
    • Multicast/IGMP snooping and querying feature
    • Per port unregistered flooding
    • 802.1Q VLAN and QoS support including DCSP
    • Dante and AES67 compatibility
    • AV-over-IP compatible
    • PoE Self-Healing with auto-recovery and power scheduling
    • Sixteen PoE+ powered capable ports
    • 185 Watt total PoE budget

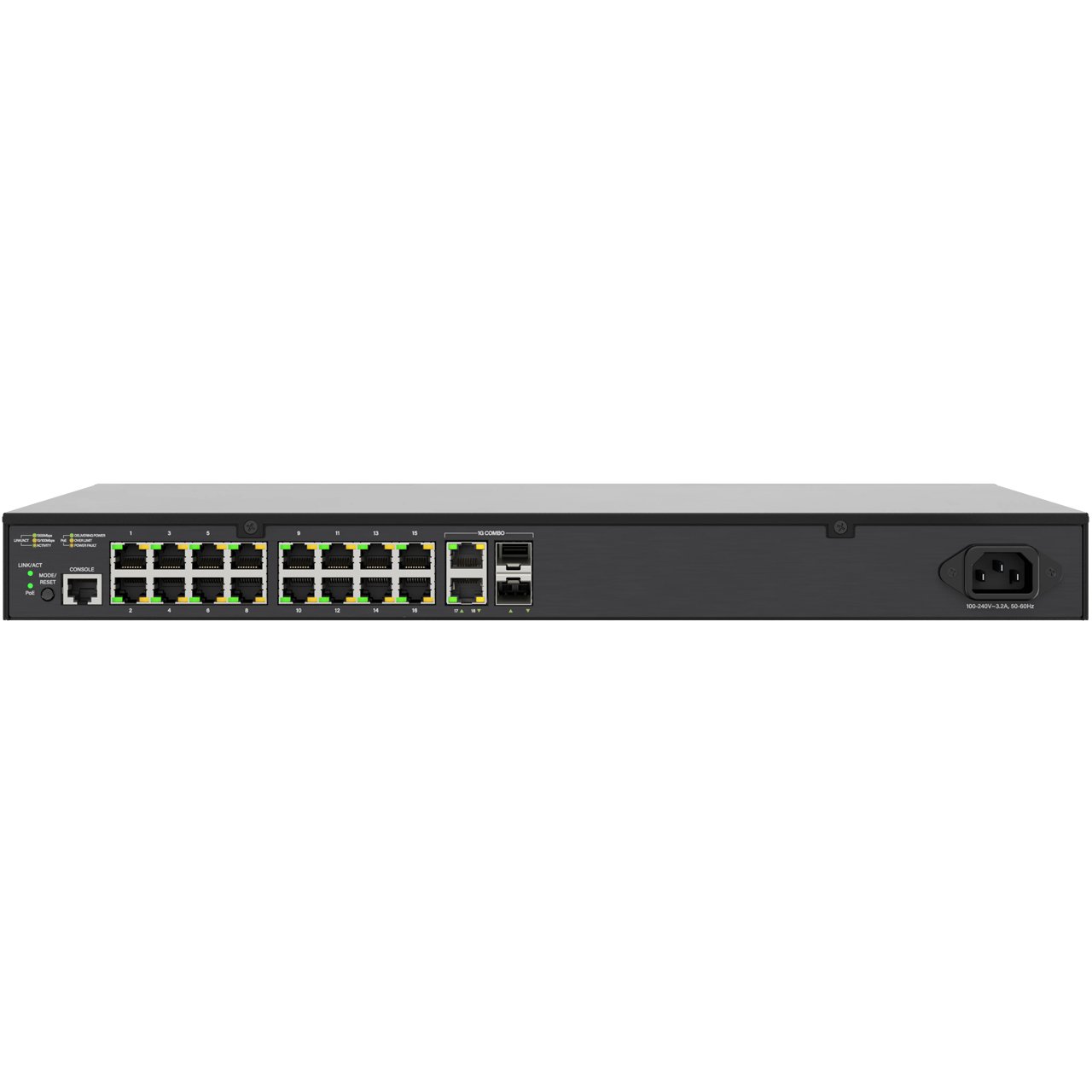

    • Rear-facing ports
    • Low noise, variable speed fans
    • Two RJ45/SFP Combo Ports
    • Dynamic PoE allocation
    • Rack Mountable


  • Specifications:

      Dimensions & Measurements
    • Height: 1.75" (4.4cm)
    • Length: 17.4" (44.2cm)
    • Width: 14.75" (37.5cm)
    • Max Power Consumption: 152W @ 100VAC
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • PoE Power Budget: 185W
    • Product Weight: 6.2lbs (2.8kg)
    • Shipping Dimensions: 21" x 12" x 4" (533.4mm x 304.8mm x 101.6mm)
    • Shipping Weight: 8.25lbs (3.7kg)
    • Switching Capacity: 36Gbps

      Characteristics & Features
    • Connection Type: Wired
    • Jumbo Frame Support: 9216 B
    • Layer Support: L2/L3
    • Multicast:
      - IGMP v1/2/3
      - Per Port Unregistered Flooding
      - Quierer
      - Snooping
    • Number of Fiber SFP Ports: 2
    • Number of Ports: 16
    • PoE Self Healing: Per Port Basis
    • Port Location: Rear
    • Power Cord: US Cord
    • Spanning Tree:
      - MSTP
      - RSTP
      - STP
    • Special Features: PoE Self Healing
    • SPF Port Type: 2 x 1 Gigabit
    • Switch Type:
      - Managed
      - PoE+
    • TAA Compliant: Yes
    • VLAN Compliance: 802.1Q max 4094 VIDs & VLAN trunking
    • VLAN ID: 4094
    • Wired Data Rate: 1Gbps
    • Certifications:
      - CB Report
      - CE
      - CE-EMC
      - CE-LVD
      - cUL
      - FCC
      - IC
      - NDAA 889
      - RCM
      - RoHS
      - TAA
      - UKCA
      - UL
      - VCCI


  • Item Includes:

    • 1x 16 PoE+ | 2 Combo RJ45/SFP Ports - 1 Gigabit L2/L3 Managed Switch
    • 1x Power Cord
    • 1x Rack Ears and Set of Four (4) Rubber Feet
    • 1x Quick Install Guide & Regulatory Documentation


  • Warranty:

    • 3 Year Warranty


  • GTIN:

    0655003923407
