Luxul SW-615-48P-F 1GB L2/L3 Managed Switch with 48 PoE+ Ethernet Ports/4 10G SFP+ Ports - US Power Cord

Name: Luxul SW-615-48P-F 1GB L2/L3 Managed Switch with 48 PoE+ Ethernet Ports/4 10G SFP+ Ports - US Power Cord
Brand: Luxul
SKU: LUXU-SW-615-48PF
Price: 3289.00 USD
Availability: PreSale

ITEM #: LUXU-SW-615-48PF MFG #: SW-615-48P-F

Luxul

Our Price:

$3,289.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

SW-615-48P-F - Overview

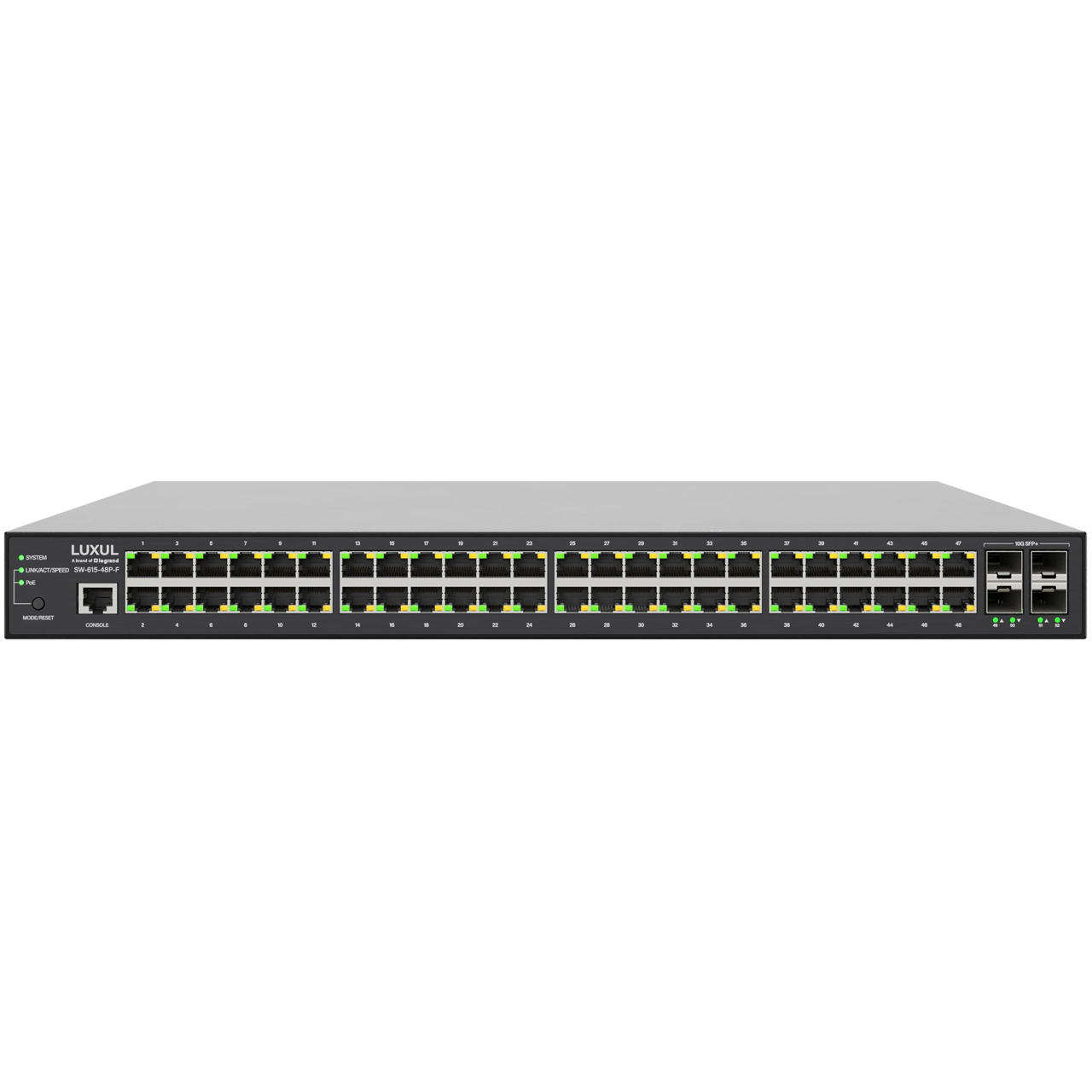

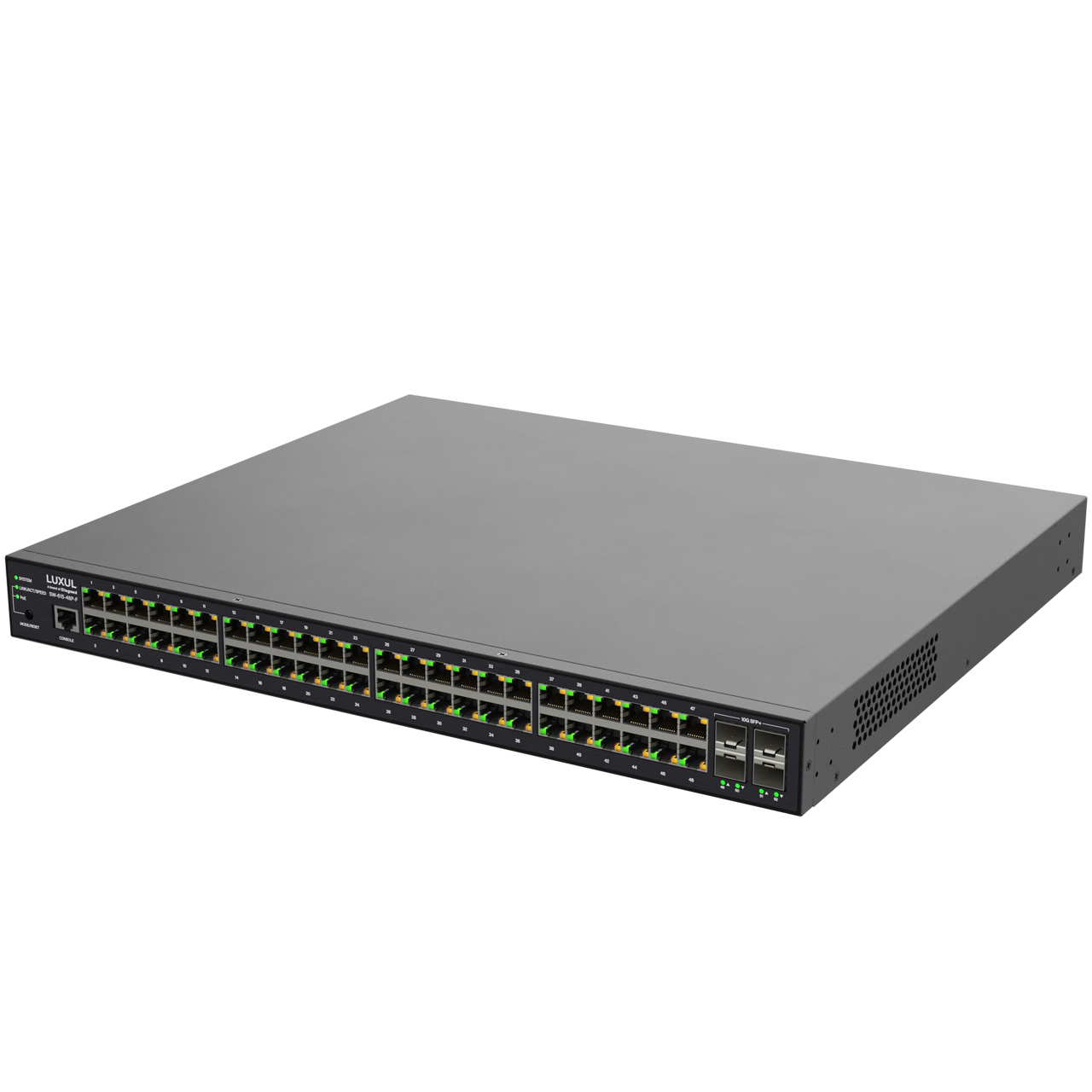

The Luxul SW-615-48P-F is a forty-eight port PoE+ front-facing single space rackmount 1Gb switch with four SFP+ 10Gb ports (aggregable up to 40Gbps) with a total PoE power budget of 740W. Each of the SFP+ ports can be used alone or aggregated together to allow 20 or 40Gbps throughput to another switch. This L2/L3 switch with 176Gbps switching capacity provides VLAN, QoS and other powerful management features. Up to 16 switches can be grouped in a single pane user-interface allowing easy and comprehensive administration. Variable speed fans for quiet operation. ProWatch Integrated for support of remote monitoring and management. ACL ingress and egress filtering.

Features:
- Refreshed, simplified user interface >PoE Self-Healing with auto-recovery and power scheduling
- Supports inbound and outbound (ingress and egress) ACL filtering
- Layer 2/Layer 3 capabilities (static routing included)
- Multicast/IGMP snooping and querying feature
- Per port unregistered flooding
- 802.1Q VLAN and QoS support including DCSP
- Dante and AES67 compatibility
- AV-over-IP compatible
- PoE Self-Healing with auto-recovery and power scheduling
- Forty-eight PoE+ 1Gb Ports
- 740 Watt total PoE budget
- Front-facing ports
- Low noise, variable speed fans
- Four SFP+ Ports
- Aggregable up to 40Gbps
- Rack Mountable
- ACL ingress and egress filtering
Specifications:
- Height: 1.75" (4.4cm)
- Length: 17.4" (44.2cm)
- Width: 14.75" (37.5cm)
- Max Power Consumption: 885W @ 100VAC
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- PoE Power Budget: 740W
- Product Weight: 6.2lbs (2.8kg)
- Shipping Dimensions: 21" x 19" x 4" (584.2mm x 457.2mm x 584.2mm)
- Shipping Weight: 15.1lbs (6.9kg)
- Switching Capacity: 176Gbps

  Characteristics & Features
- Connection Type: Wired
- Jumbo Frame Support: 10240 B
- Layer Support: L2/L3
- Multicast:
  - IGMP v1/2/3
  - Per Port Unregistered Flooding
  - Quierer
  - Snooping
- Number of Fiber SFP Ports: 4
- Number of Ports: 48
- PoE Self Healing: Per Port Basis
- Port Location: Front
- Power Cord: US Cord
- Spanning Tree:
  - MSTP
  - RSTP
  - STP
- Special Features: PoE Self Healing
- SPF Port Type: 4 x 10 Gigabit
- Switch Type:
  - Managed
  - PoE+
- TAA Compliant: Yes
- VLAN Compliance: 802.1Q max 4094 VIDs & VLAN trunking
- VLAN ID: 4094
- Wired Data Rate: 1Gbps
- Certifications:
  - CB Report
  - CE
  - CE-EMC
  - CE-LVD
  - cUL
  - FCC
  - IC
  - NDAA 889
  - RCM
  - RoHS
  - TAA
  - UKCA
  - UL
  - VCCI
Item Includes:
- 1x 48 PoE+ | 4 (10G) SFP + Ports - 1 Gigabit L2/L3 Managed Switch
- 1x Power and Console Cables
- 1x Rack Ears and Set of Four (4) Adhesive Feet
- 1x Quick Install Guide & Regulatory Documentation
Warranty:
- 3 Year Warranty
GTIN:
0655003923643
