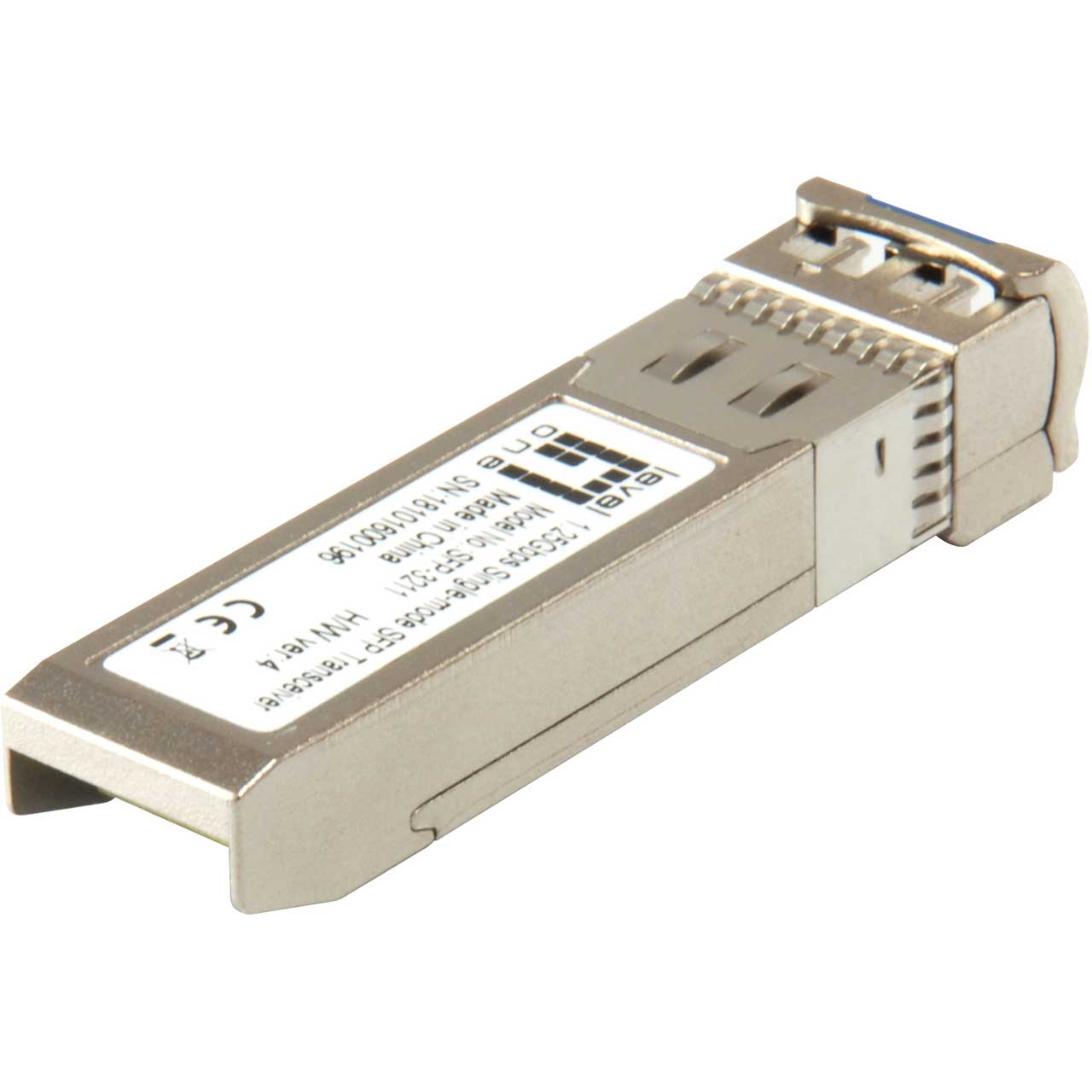

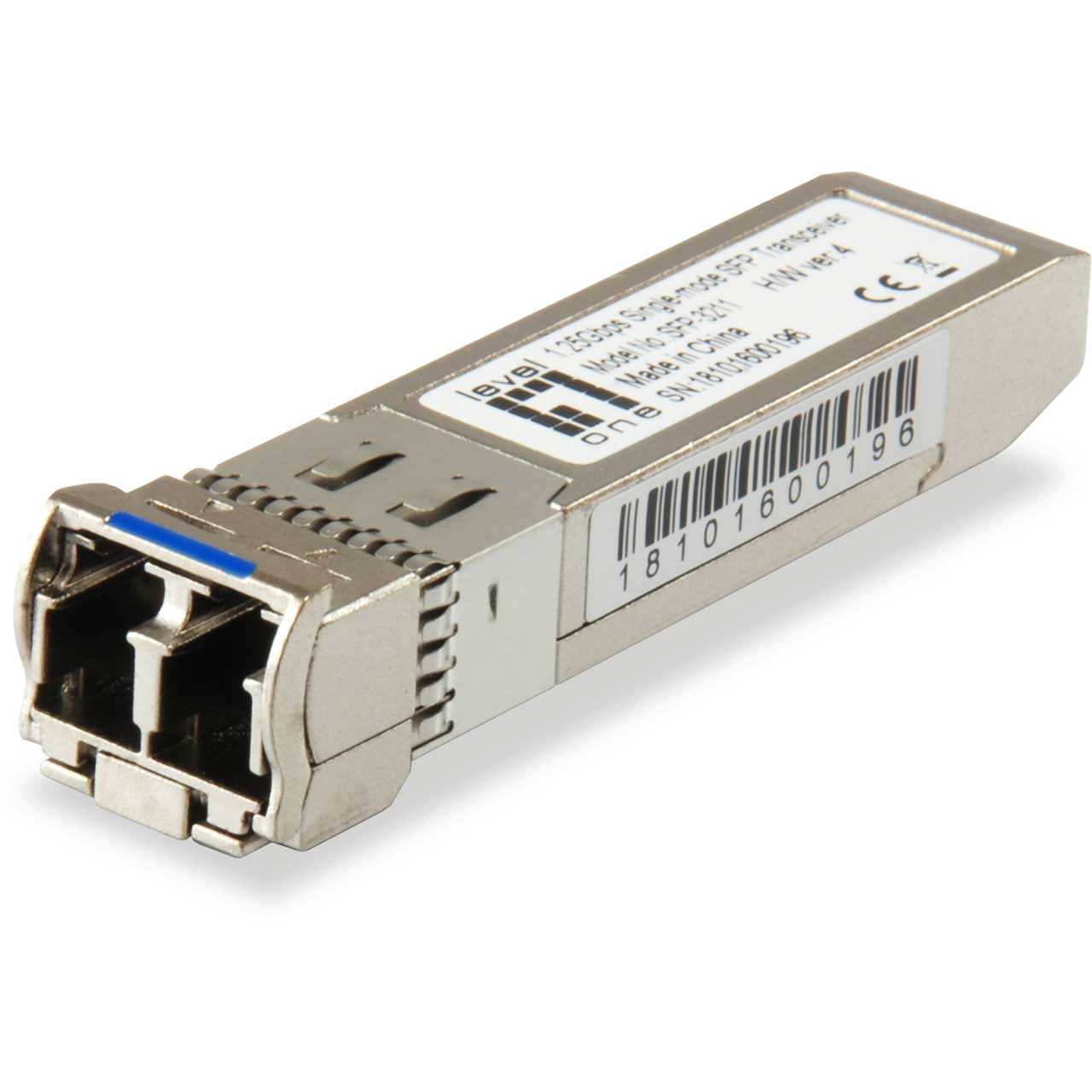

LevelOne SFP-3211 1.25Gbps Single-mode SFP Transceiver - 20km - 1310nm

SFP-3211 - Overview

• Features:

  • Compatible with SFP Multi-Sourcing Agreement (MSA) standards
  • Supports Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring
  • Hot-swappable providing non-stop service
  • Provides duplex LC connector
  • 3.3V Single power supply
  • IEEE 802.3z Gigabit Ethernet compliant
  • RoHS compliant and Lead Free
  • Operating temperature: 0°C to 70°C


• Specifications:

  • Standards: IEEE802.3z 1000BASE-LX
  • Port: Duplex LC Connector, 9/125 µm Single-mode Fiber
  • Wavelength (nm): 1310nm
  • Optical Receive Sensitivity: -25dBm
  • Optical Link Power Budget: 16dB
  • Power Input: 3.3V / 250mA
  • Power Consumption: 800mW 32° to 158°F (0° to 70°C), 1000mW -40° to 185°F (-40° to 85°C)
  • Data Rate: Up to 1.25Gb/s data links
  • Optical Transmission Power: -9 to -3 dBm
  • Operating Temperature:: 32° to 158°F (0° to 70°C)
  • Storage Temperature: -40° to 185°F (-40°~85°C)
  • Humidity (non-condensing): 0 to 85%

    Features
  • General: Hot-swappable
  • Management: DDMI (Digital Diagnostics Monitoring Interface)
  • Operating Distance: 20Km

    Physical Specifications
  • Dimensions (WxDxH): 0.55 x 2.24 x 0.33" (14 x 57 x 8.5mm)
  • Weight: 0.04Lbs (20g)

    Approval and Compliance
  • EMI/EMS:
    EMC Directive 2014/53/EU
    IEC 61000-4-3 / IEC 61000-4-2
  • Safety:
    EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B.
    Class 1 Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1,2
    Environmental Test: RoHS Directive 2011/65/EU
  • Others:
    Manufactured in ISO9001 and ISO14001 certified facility
    MIL-STD-883 Method 3015
    SFP Multi-Sourcing Agreement(MSA)
    SFP MSA SFF-8074i Compliant


• Item Includes:

  • x1 SFP-3211


• GTIN:

  0878742009144
