Atlona AT-HDR-CAT-4 Four-Output 4K HDR HDMI to HDBaseT Distribution Amplifier

ITEM #: ATNO-AT-HDR-CAT4 MFG #: AT-HDR-CAT-4

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Atlona Technologies
Free Shipping with $49 Minimum Order

Our Price:

$1,947.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    AT-HDR-CAT-4 - Overview

    Long Distance HDMI to HDBaseT Distribution

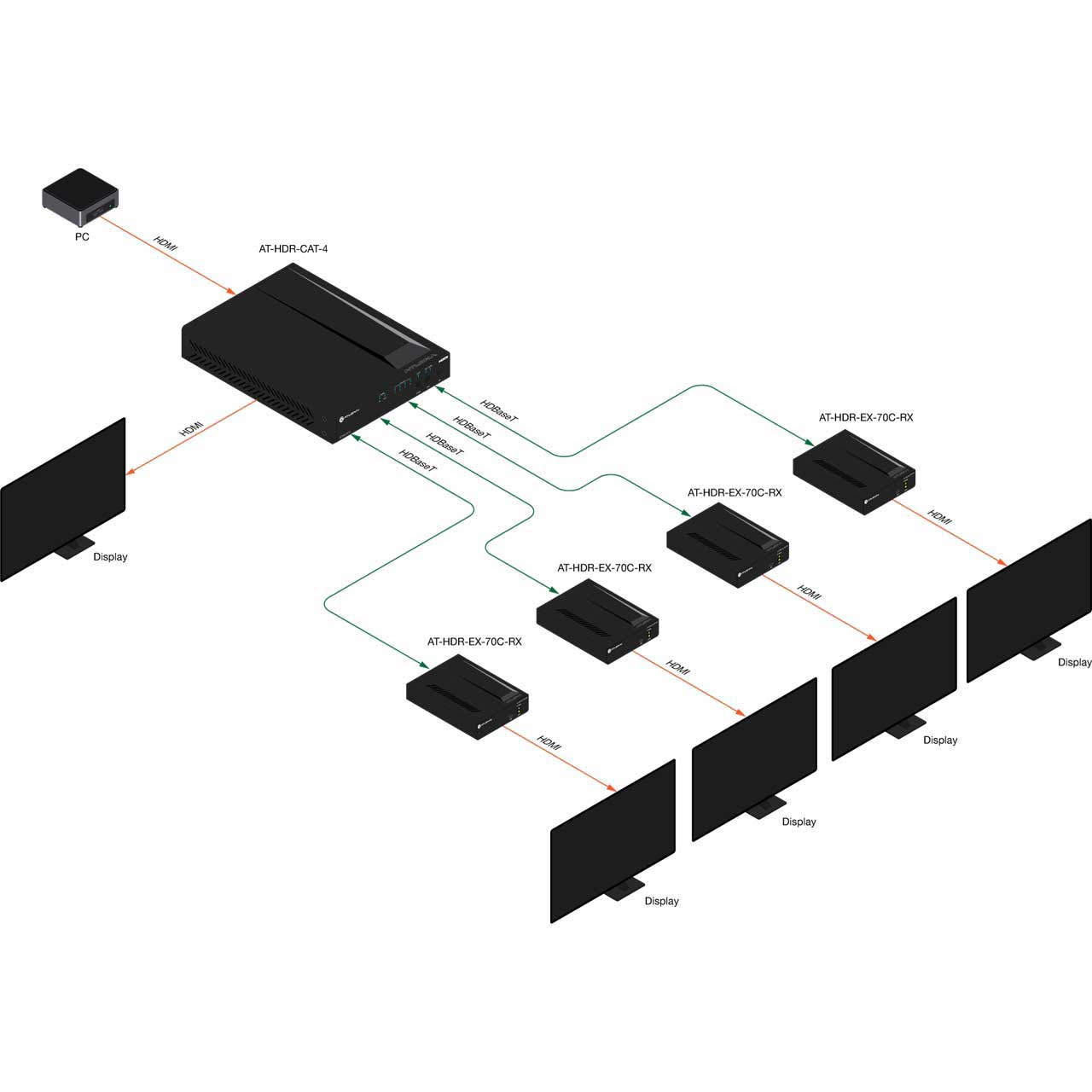

    Send a single 4K HDR source to four displays at distances up to 130' (40 m) for video distribution applications including hospitality and retail, commercial reception areas or warehouses, and educational AV systems that require multiple screens.

    4K HDR Support
    Provides 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats for very high, pristine image quality.

    Sophisticated Integration Capabilities
    Features and capabilities designed to ease integration in commercial AV distribution applications include HDMI pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing.

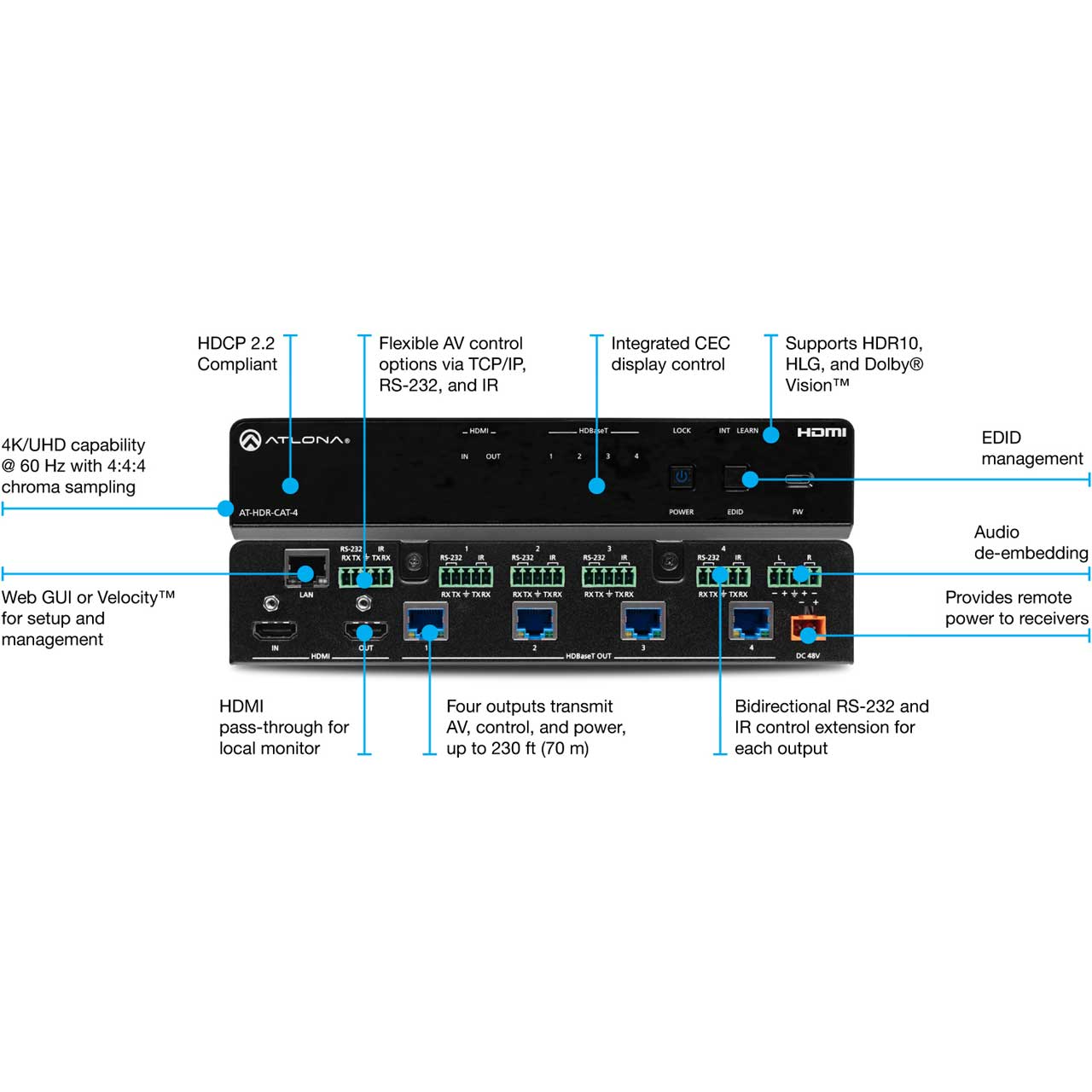

    Unique Features
    The Atlona AT-HDR-CAT-4 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and four HDBaseT™ outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats up to 130 ft. (40 m). Also includes integration capabilities designed for commercial AV distribution applications.

    4K HDR Support - 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling as well as HDR10, HLG, and Dolby® Vision™ HDR formats.
    Long Distance Extension - HDBaseT outputs extend 4K/60 HDR up to 130 feet (40 meters) or 1080p up to 230 feet (70 meters).
    Display Control - CEC display control sends display power on/off commands over HDBaseT using the power button, IP, or RS-232.
    Audio De-embedding - De-embed HDMI audio to a balanced analog output with volume control for integration with a separate audio system

    • Features:

      • One HDMI® input and four HDBaseT™ outputs
      • Extend 4K/60 4:4:4 up to 130' (40 m)
      • Supports HDR10, HLG, and Dolby® Vision™
      • Pass-through HDMI output
      • CEC display control on each output
      • Audio de-embedding with volume control


    • Specifications:

      • Video
      • Signal: Input - HDMI, Output - HDMI / HDBaseT
      • Copy Protection: HDCP 2.2
      • Pixel Clock: 600 MHz
      • UHD/HD/SD: 4096x2160 (DCI) @24/25/30/50/60Hz, 3840x2160 (UHD) @24/25/30/50/60Hz, 1920x1080p @23.97/24/25/29.97/30/50/60Hz, 1920x1080i @50/60Hz, 1280x720p @30/50/60Hz, 720x576p @50Hz, 720x576i @25/50Hz, 720x480p @60Hz, 640x480p @60Hz
      • VESA: 2560x1600 @60Hz (RB), 2048x1536 @60Hz, 2048x1200 @60Hz, 2048x1080 @60Hz, 1920x1200 @60Hz (RB), 1920x1080 @60Hz (RB), 1680x1050 @60Hz, 1600x1200 @60Hz, 1600x900 @60Hz, 1440x900 @60Hz, 1400x1050 @60Hz, 1366x768 @60Hz, 1360x768 @60Hz, 1280x1024 @60Hz, 1280x800 @60Hz, 1280x768 @60Hz, 1280x720 @60Hz, 1024x768 @60Hz, 800x600 @60Hz, 640x480i @29.97/30Hz
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit
      • HDR: HDR10, Hybrid-Log Gamma (HLG), and Dolby Vision @60Hz

        Audio
      • HDMI / HDBaseT
      • Pass-Through Formats: PCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X
      • Bit Depth: Up to 24 bits
      • Format: Stereo 2-Channel
      • Balanced Output: +4 dBu nominal gain, +19 dB headroom
      • Frequency Response: 20Hz to 20 kHz, ± 0.5 dB
      • THD+N: < 0.006% at 20Hz to 20 kHz
      • SNR: > 105 dB at 1 kHz, zero clipping @0 dBFS, unweighted
      • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

      • Ethernet
      • Port: 1x RJ45
      • Standards and Protocols: HTTP, HTTPS, Telnet, mDNS
      • Speeds: 10/100 Mbps
      • Addressing: DHCP, Static - selectable through front panel, IP & RS-232 commands, and built-in web server

        RS-232
      • Port: 5x 5-pin captive screw
      • Use: Unit and external device control and configuration
      • Baud Rates: 2400, 4800, 9600, 19200, 38400, 57600, 115200
      • Data Flow: Bidirectional

        IR
      • Port: 5x 5-pin captive screw
      • Use: Pass-through from control system to sink device
      • Pass-through from viewing location to source
      • Frequency Range: 30 kHz to 60 kHz

        CEC
      • Ports: 1x HDMI OUT, Type A, 19-pin female; 4x RJ45 (HDBaseT OUT)
      • Triggering: Through IP, RS-232, and built-in web server

        Buttons & Indicators
      • Buttons: POWER, EDID: 2 x momentary, tact-type
      • Indicators: HDMI IN/OUT, HDBaseT (1 - 4), LOCK, INT, LEARN: 9 x LED, blue

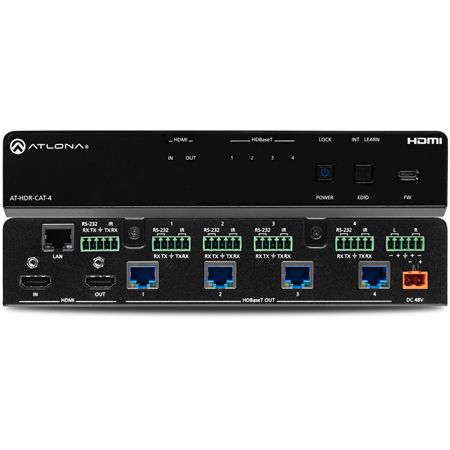

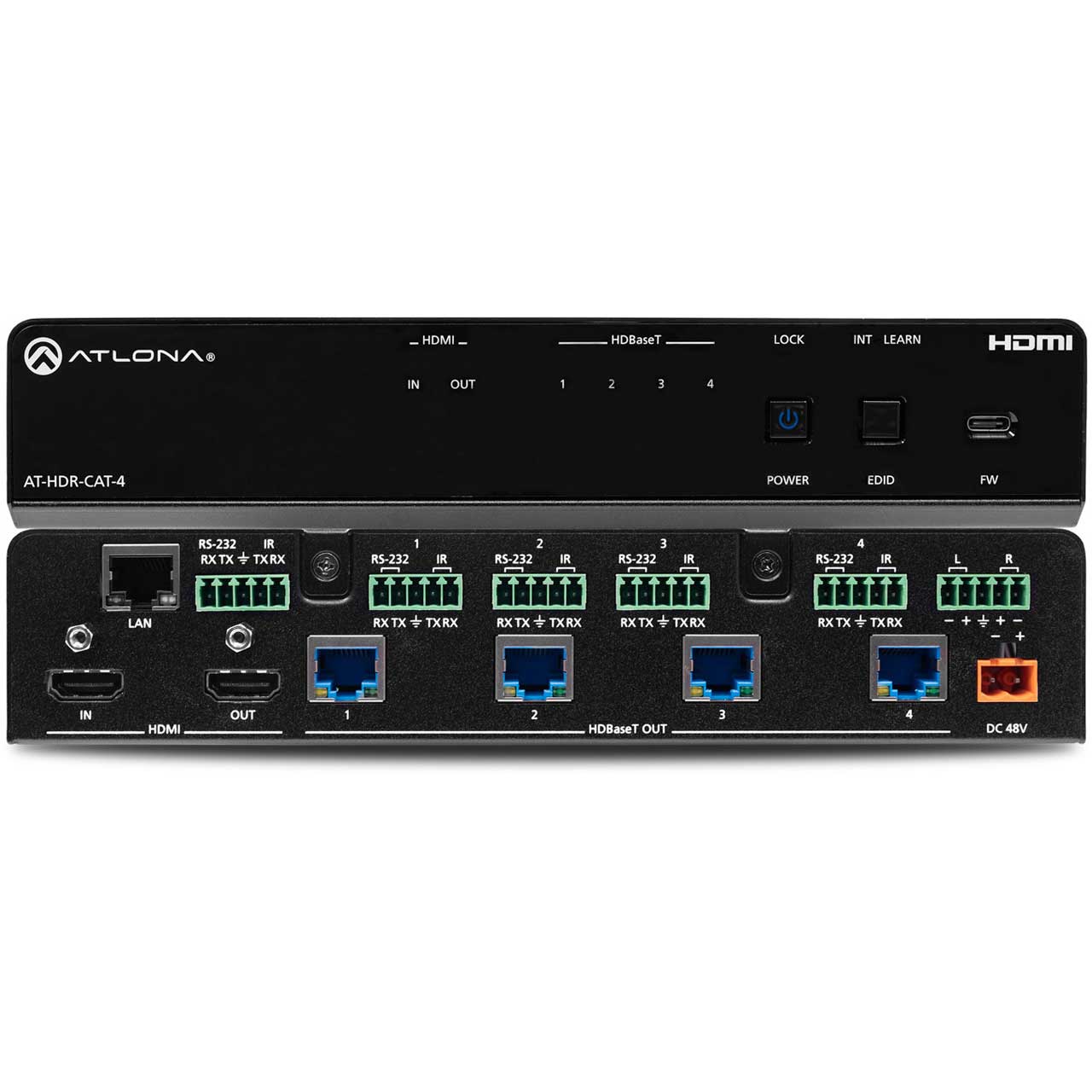

        Connectors
      • HDMI IN: 1x Type A, 19-pin female
      • HDMI OUT: 1x Type A, 19-pin female
      • HDBaseT OUT: 4x RJ45
      • LAN: 1x RJ45
      • AUDIO OUT: 1x 5-pin captive screw
      • RS-232 / IR: 5x 5-pin captive screw
      • FW: 1x USB-C
      • DC 48V: 1x 2-pin captive screw

        Environmental
      • Operating Temperature: +32 to +122
      • Storage Temperature: -4 to +140
      • Operating Humidity (RH)

        Power
      • Consumption (w/ 4 PoE): 70.6 W
      • Idle Consumption (no PoE): 10.6 W
      • BTU/h: 36.2
      • External Power Supply: 100 - 240 V AC, 50/60Hz
      • Output: 48 V / 2.08 A DC


    • Item Includes:

      • 1x Atlona AT-HDR-CAT-4 Four-Output 4K HDR HDMI to HDBaseT Distribution Amplifier
