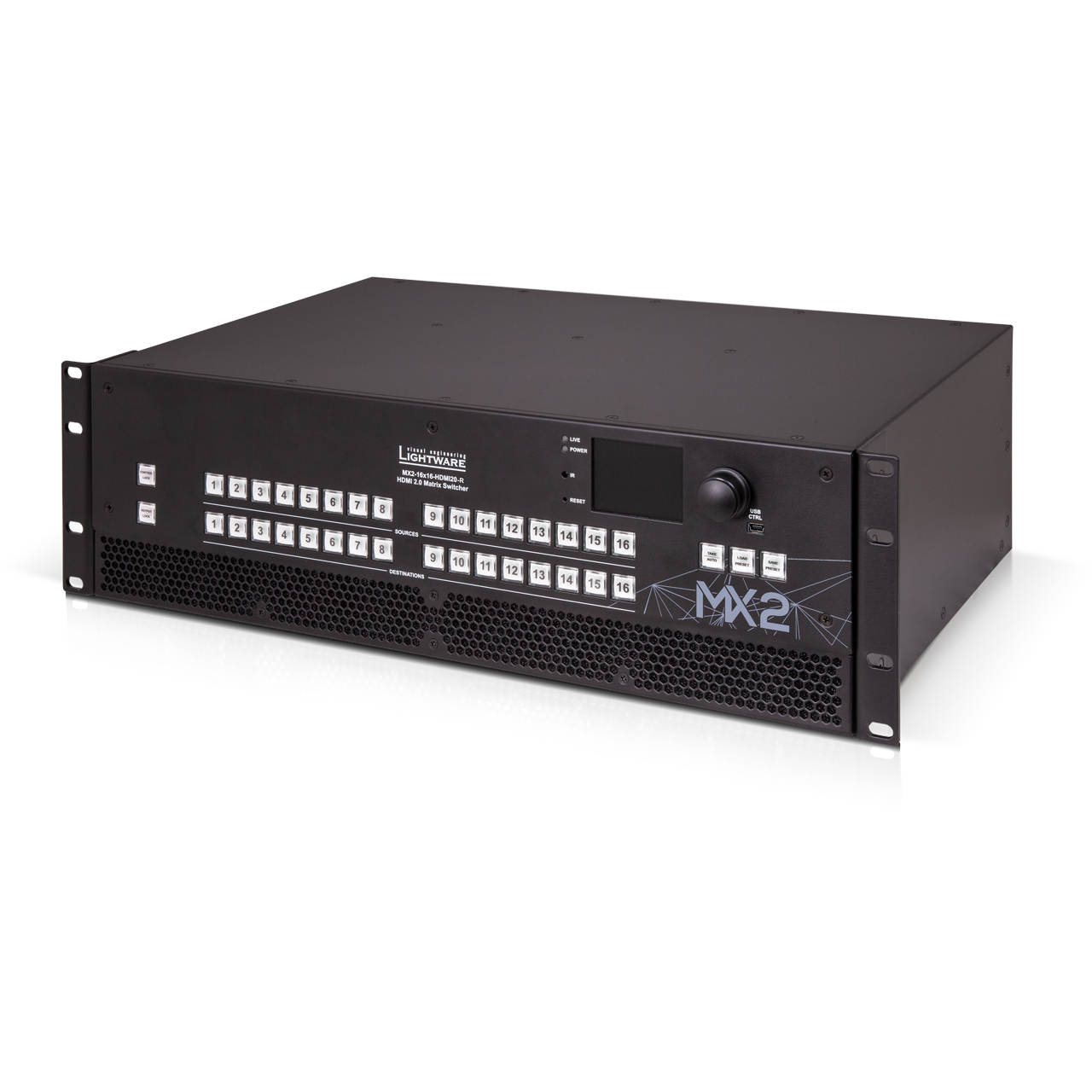

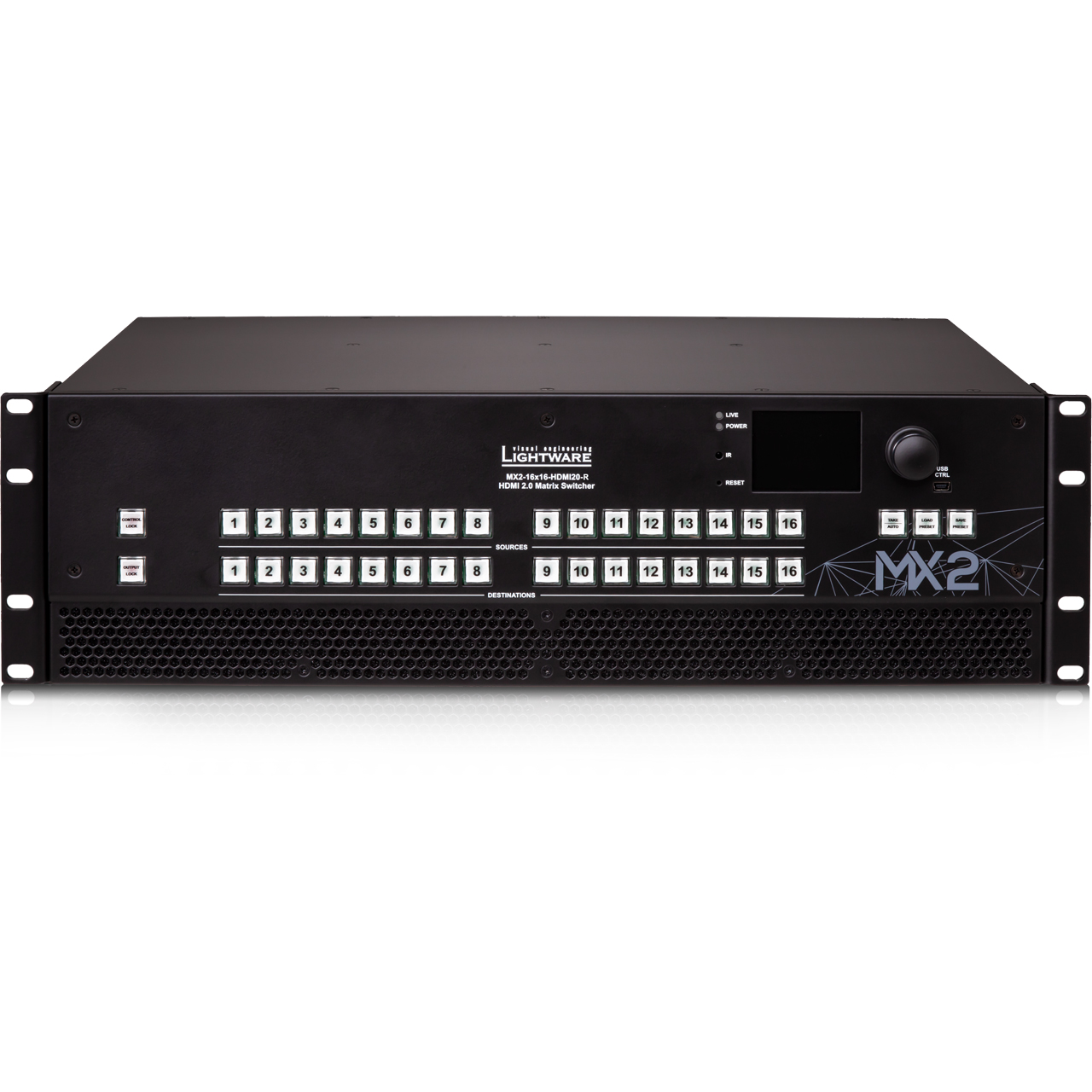

Lightware MX2-16x16-HDMI20-R Standalone 16x16 HDMI 2.0 Matrix Switcher - 4K Resolution with Dual Redundant Power Supply

ITEM #: LWE-MX216HDMI20R MFG #: 91310052

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$28,800.00

Our Price:

$26,985.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


91310052 - Overview

Lightware's MX2-16x16-HDMI20-R is a member of the HDMI 2.0 standalone matrix switcher family supporting uncompromised 4K UHD resolution at 60Hz 4:4:4. This device has an R type designation, signifying a dual redundant power source with two, independent, rugged power connectors and reinforced RS-232.

It has an outstanding port density that makes it particularly suitable for rental and fix install applications, as well as for future-proof operation centers. It is a perfect choice for installations where at most 16 HDMI 2.0 compliant input and output ports are required.

This standalone product has 16 HDMI 2.0 inputs and 16 HDMI 2.0 outputs transmitting up to 4K at 60Hz in 4:4:4 format, while supporting 3D, Dolby TrueHD and DTS-HD Master Audio.

  • Features:

    • HDCO 2.2 and HDCP 1.4 compliant, with cross conversion capabilities
    • Supports HDMI 4K signal formats - 4K UHD @60Hz RGB, 4:4:4 up to 18 Gbps
    • HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
    • HDR and Low Latency Dolby Vision support
    • High bitrate Audio Support, including Dolby Atmos, TrueHD, DTS-HD

  • Specifications:

    • Routing: Non-blocking architecture
    • Speed: 18Gbps per port
    • Resolutions: Up to 4096x2160 @ 60Hz at RGB or YCbCr 4:4:4 (up to 600MHz pixel clock)
    • Height: 3RU
    • Mounting: Rack mountable, removable rack ears
    • Power: 2x Neutrik Powercon True1, 110/220V

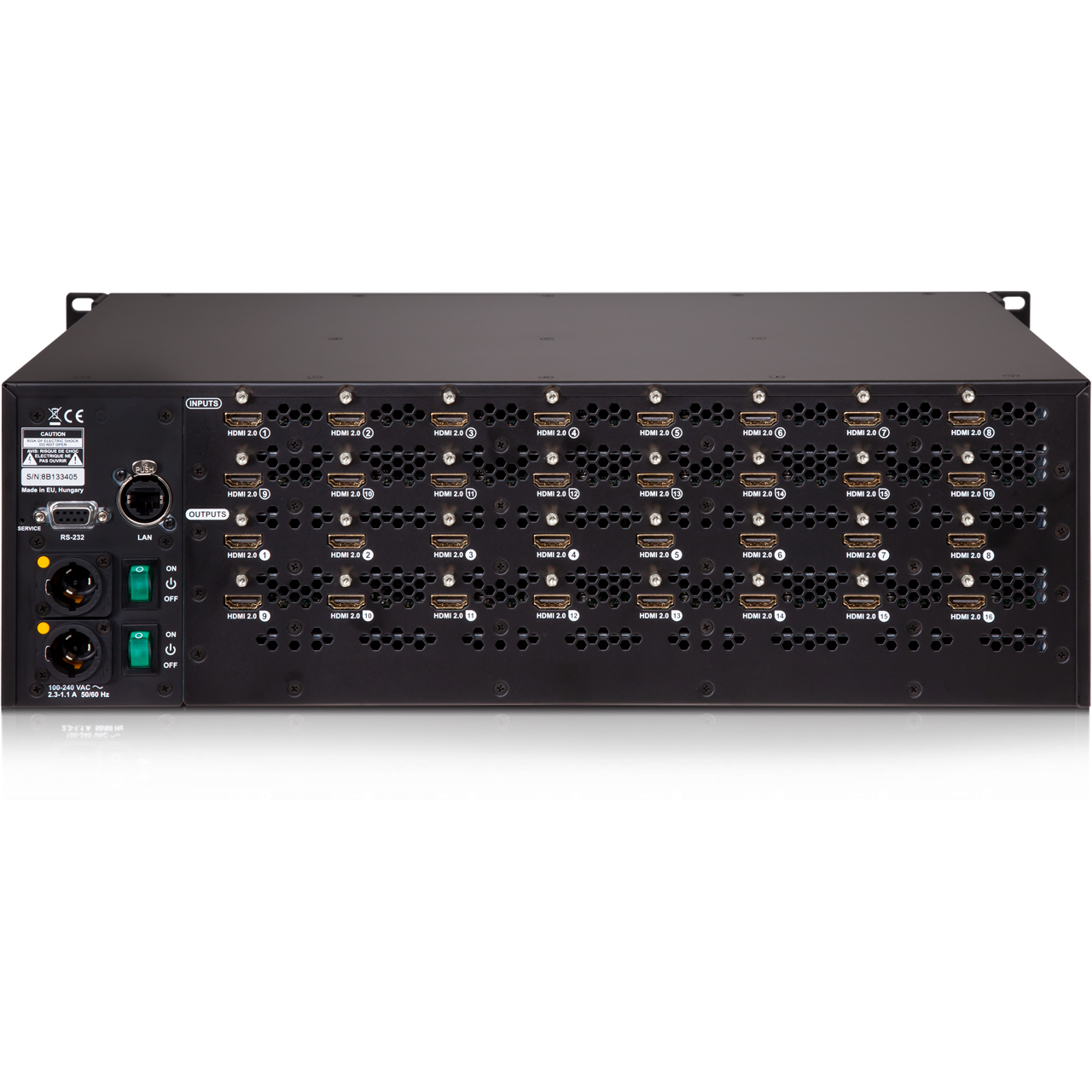

      Connections
    • Video Inputs: 16x 19-pole HDMI 2.0
    • Video Outputs: 16x 19-pole HDMI 2.0
    • Power Supply: 2x Redundant Neutrik powerCON power inputs
    • Serial Control: D-sub 9-pole
    • Ethernet: Neutrik etherCON input

    • Enclosure Size: 3RU
    • Weight: 18.8lbs (8540g)

  • Item Includes:

    • 1x Lightware MX2-16x16-HDMI20-R matrix switcher
    • 1x Safety and Warranty Info, QSG
    • 2x Neutrik powerCON power cable
    • 1x Serial data cable (male to female)
