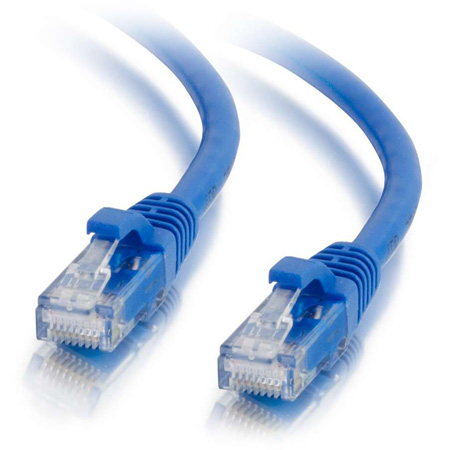

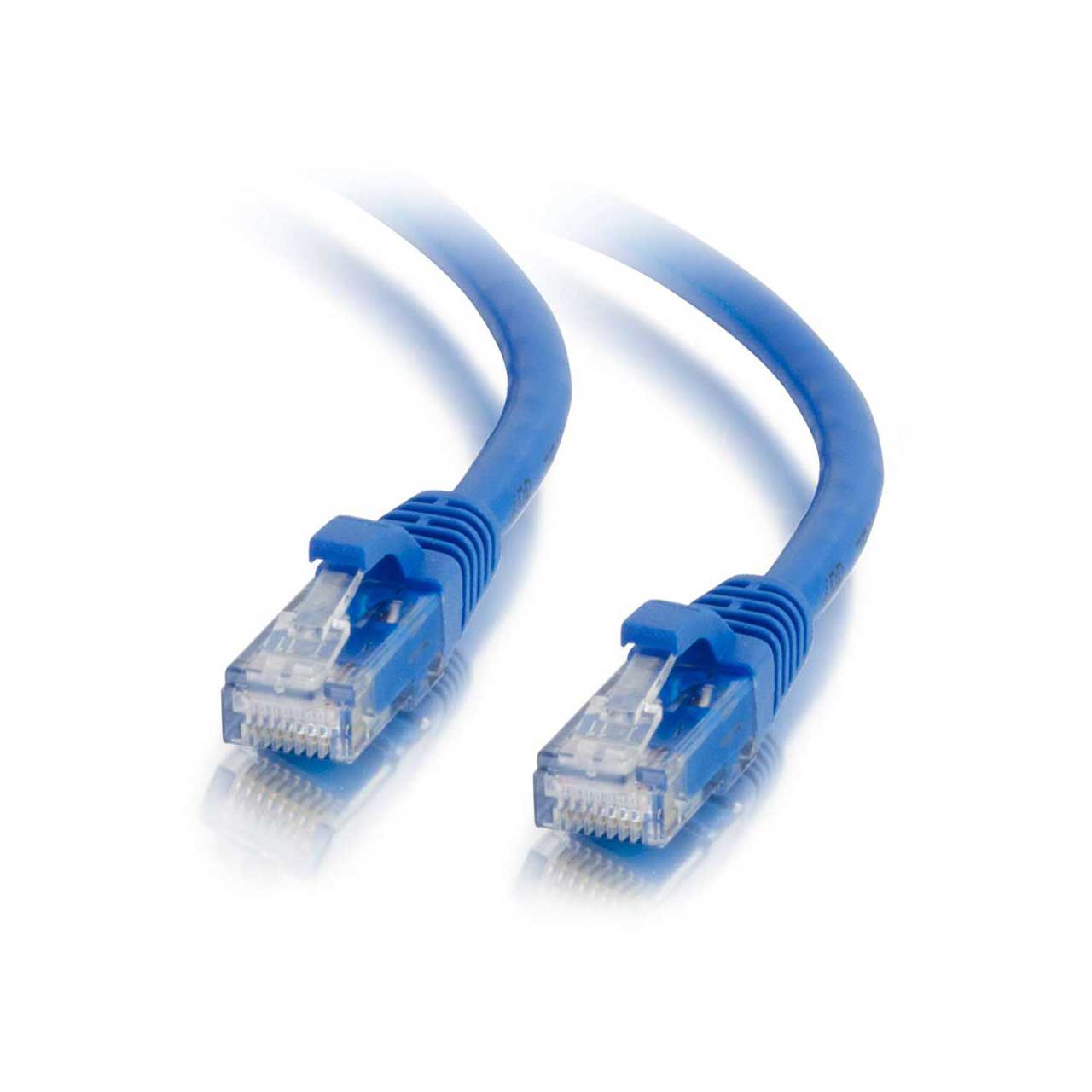

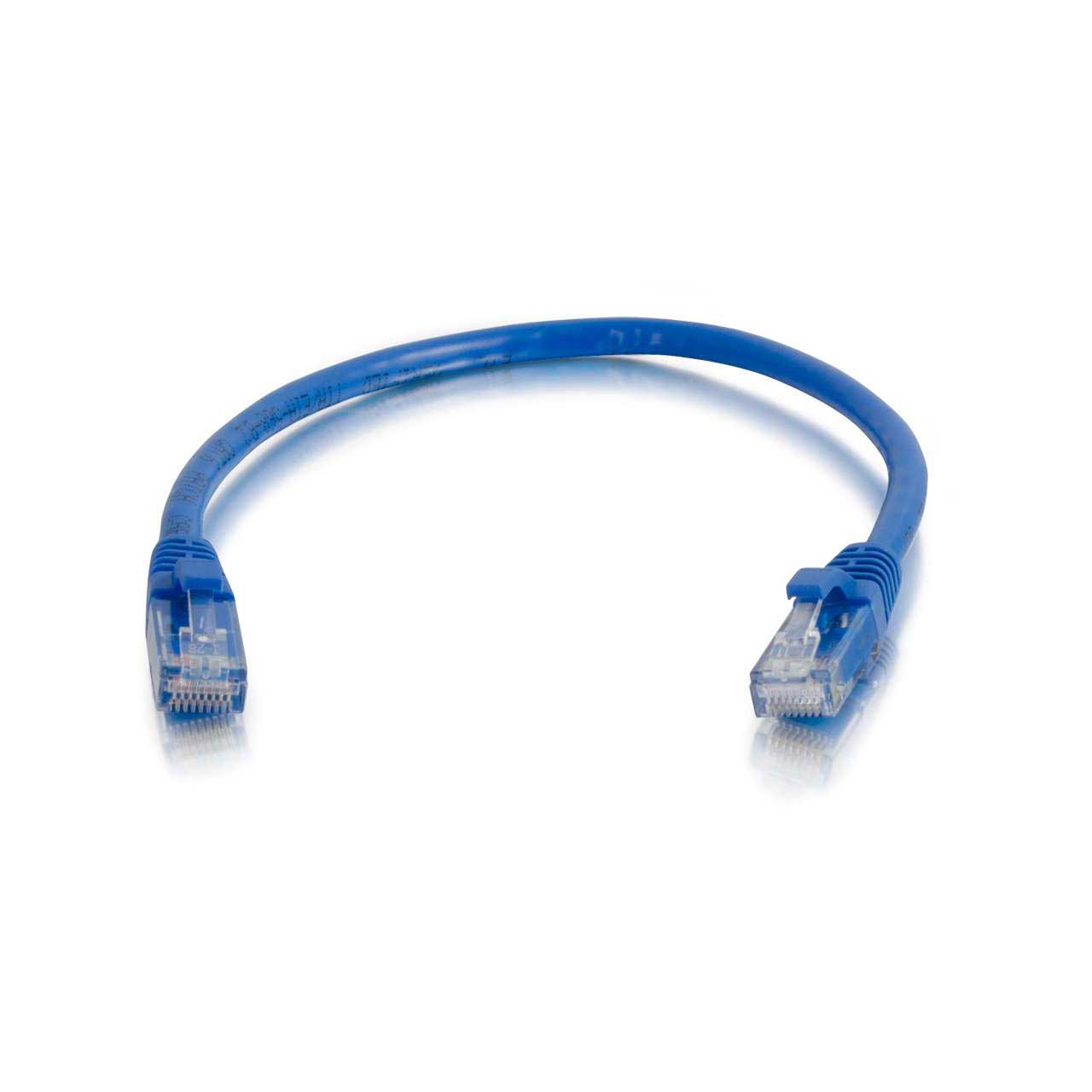

C2G CG00705 35 Foot Cat6 Snagless UTP Ethernet Network Patch Cable - Blue

ITEM #: MAP-CG00705 MFG #: CG00705

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$49.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    CG00705 - Overview

    C2G CG00705 is a 35 foot Cat6 Snagless UTP Ethernet network patch cable. For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

    • Features:

      • Snagless design protects clips when plugging and unplugging
      • Standard RJ45 connectors and unshielded twisted pair wires

    • Specifications:

      • General
      • Color: Blue
      • Length: 35'
      • Jacket Rating: Standard Non-Rated
      • Weight: 0.937Lbs

        Electrical Characteristics
      • Conductor DC Resistance: 9.38Ω100m (maximum)
      • Impedance: 100Ω
      • Capacitance: 5600pf/100m
      • Propagation Delay: 545ns/100m (maximum)
      • Delay Skew: 45ns/100m (maximum)

        Physical Characteristics
      • Wiring Scheme: T568B
      • Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
      • Connector: 50 micron gold-plated RJ45
      • Temperature Rating: 140°F (60°C)
      • Voltage Rating: 30V
      • Approvals: RoHS Compliant
      • Warranty: Lifetime
      • Package Type: Polybag

        Conductor (Qty. 4 twisted pair)
      • Conductor Type: 24AWG (7/0.20), Stranded Bare Copper
      • Insulation: H-D PE
      • Diameter: 0.98 ± 0.05mm
      • Colors: Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White

        Connector Type (Qty. 2)
      • Connector Type: 8P8C (RJ45)
      • Gender: Male
      • Connector Material: Polycarbonate
      • Contact Material: Copper Alloy, Gold Plating: 50æm
      • Hood Material: Molded PVC

        Overall Cable
      • Jacket: PVC
      • Minimum Average Thickness: 0.60mm
      • Outer Diameter: 6.20 ± 0.30mm

        Product Uses
      • Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
      • 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN
      • 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
      • Voice; T1

    • Warranty:

      • Lifetime

    • GTIN:

      0757120007050
