Middle Atlantic SR-40-28 SR Series 40RU Large Pivoting Rack - 28-Inch Depth/23.5-Inch Width - 500 Pound Load Capacity

Name: Middle Atlantic SR-40-28 SR Series 40RU Large Pivoting Rack - 28-Inch Depth/23.5-Inch Width - 500 Pound Load Capacity
Brand: Middle Atlantic Products
SKU: MAP-SR-40-28
Price: 2349.90 USD
Availability: InStock

ITEM #: MAP-SR-40-28 MFG #: SR-40-28

Middle Atlantic Products

List Price:

$2,611.00

Our Price:

$2,349.90

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Shipped truck freight.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

SR-40-28 - Overview

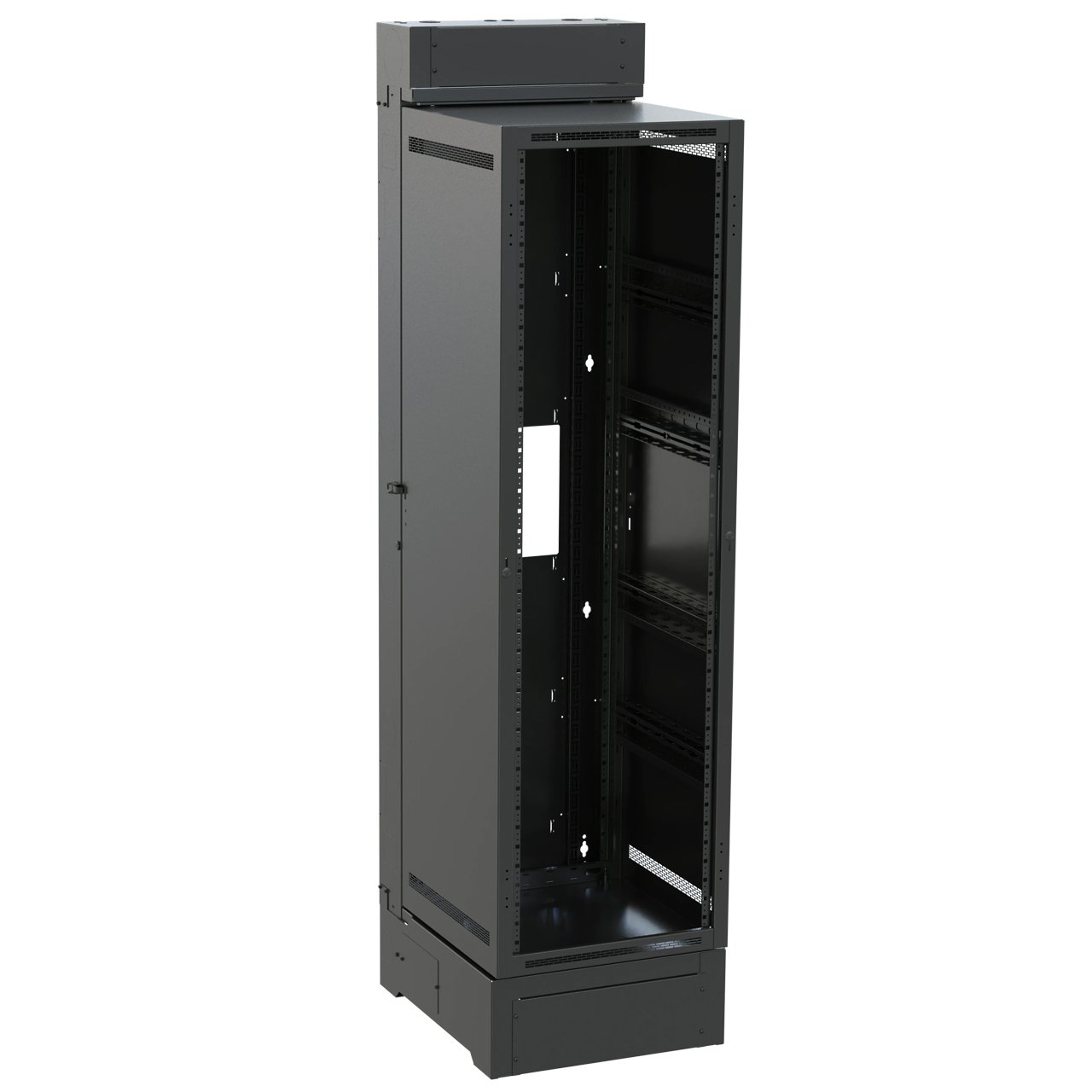

The innovative design of the Middle Atlantic SR-40-28 allows the rack to pivot open 90° on a floor base to provide quick and convenient access to rear equipment connections eliminating the need for an aisle behind the rack. Specify an SR Series enclosure when space savings is required for heavier installations that will connect to on-wall cabling or pull boxes, and when easy access to rear equipment connections is essential.

The SR Series Wall Mount Rack is now Forward and Lever Lock compatible providing maximum mounting capacity on and off the rail and a suite of tool-free accessories making rack installations 5Xs faster!

Features:
- 40RU
- 28" Overall Depth
- 23" Wide
- Now equipped with the revolutionary Forward rackrail giving you the ability to use Forward blank panels, vent panels and horizontal cable management.
- Now accepts patented Lever Lock tool free and hardware free internal device and cable management system accessories in the center section and the backpan (with LL-DWR/SR-BP)
- Installation ease with the patented Tool Free Quick-Mount™ system for center section mounting to the backpan
- "Bonus" 4 rackspaces in base for mounting a UPS or other equipment
- Additional 3 rackspaces at the top for patching and other small equipment mounting
- Center section rear channel accommodates optional slim power to save space, including Select Vertical PDU with RackLink™
- Industry's first seismic rated wall rack series, delivering tip and/or vibration resistance when its desired or required
- Flexible cable entry access at the top, bottom and sides of the rack with additional knockouts for electrical box and fans
- Sub plate allows mounting of 89D blocks and other connectivity accessories
- Up to 500lb UL load capacity rating and a 335lb Seismic load capacity rating
Specifications:
- Depth: 28" (71.12cm)
- Height: 90.75" (230.5cm)
- Width: 23.5" (59.69cm)
- Rack Units: 40 RU
- Shipping Weight: 227lbs (103kg)
- UL Load Capacity: 500lbs (226.8kg)
- Usable Depth: 26" (66cm)
- Usable Height: 70" (177.8cm)

  Characteristics & Features
- Forward Compatible: Yes
- Rack Rail Type: Forward Rackrail
- Seismic Rated: Yes
- Seismic Load Capacity: 335lbs (152kg)
- Certifications and Warranties:
  - ASCE
  - CSA Standard
  - TAA
  - UL Listed
Item Includes:
- 1x SR Series Large Pivoting Rack
Warranty:
- 3 Year Warranty
GTIN:
0656747040962
