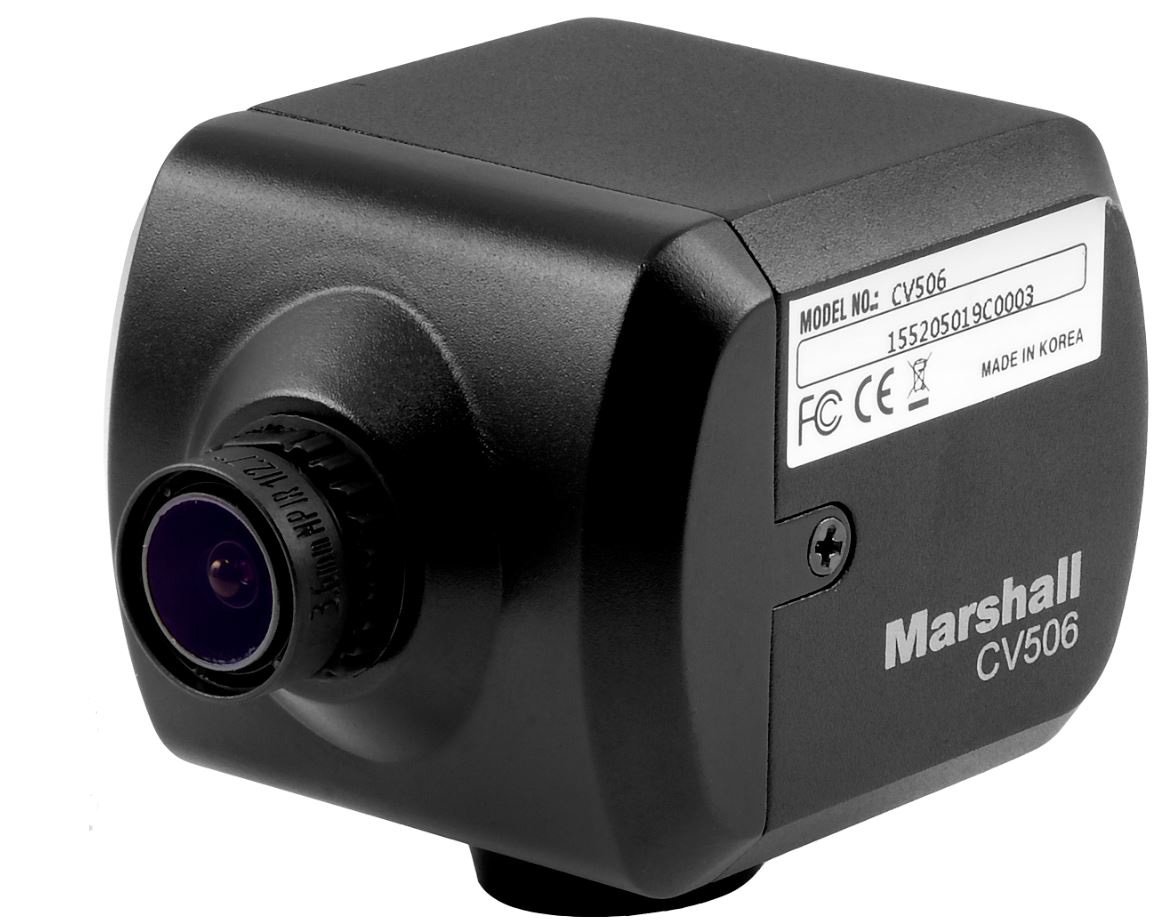

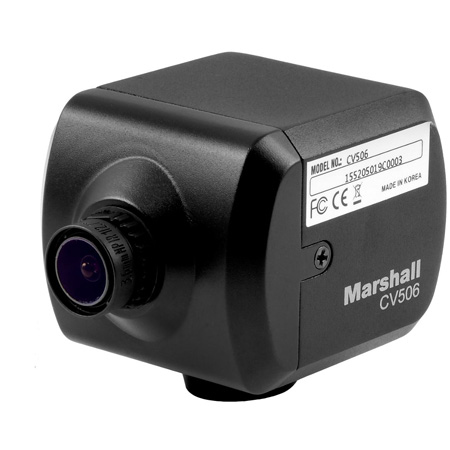

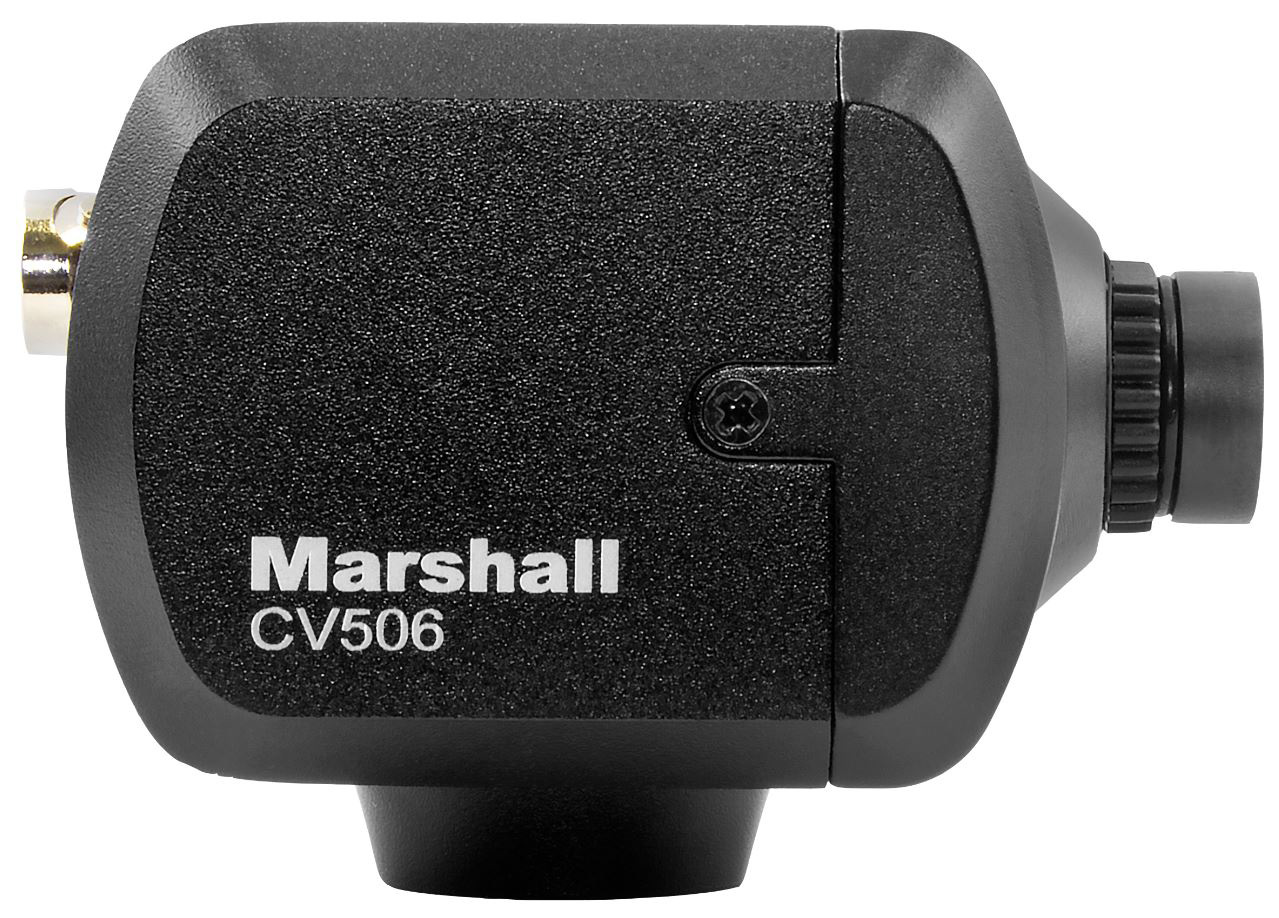

The Marshall CV506 Full-HD Miniature Camera with HDMI offers performance, flexibility, and value in a tiny form factor. Built around a next generation 2.5-Megapixel, 1/2.86-inch sensor, the CV506 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 59.94/50fps.

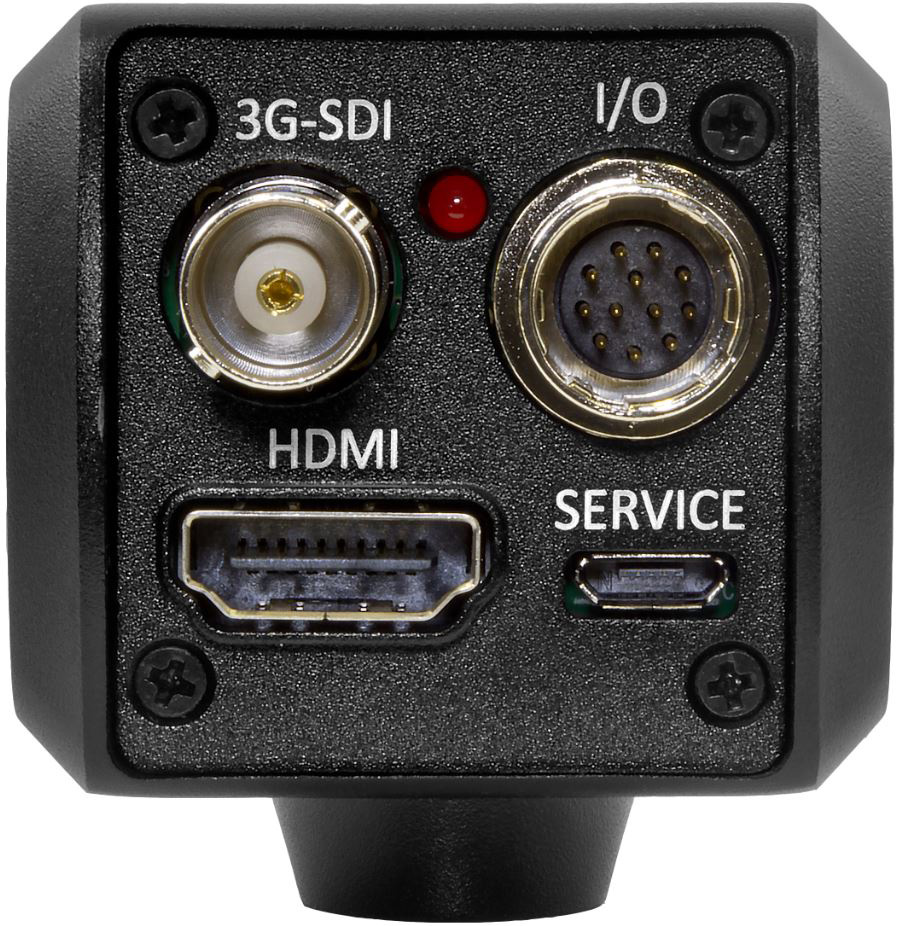

The CV506 utilizes full-sized BNC (3G/HDSDI) and HDMI outputs on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on 3G-SDI output). The CV506's threaded M12 lens mount offers a wide range of prime and varifocal lens options. Includes stock 3.6mm lens (72°H. AOV) Part# CV-4703.6-3MP.
The CV506 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.
Hirose Breakout Cable1. RS-485 wire (+/-) Input2. 12V Power 2.1 mm Plug (Center Contact)3. Hirose connector plugs into camera4. OSD Menu Control5. TRS Audio Mic/Line-level input
The CV506 is suitable for use in Full-HD broadcast and Pro AV workflows including live broadcast productions, sportscast, newscast, reality television, concerts, corporate, government, courtroom, house of worship, and many more.
Please note!1/4"-20 mount on bottom of Camera allows for easy and instant mounting to many surfaces for action and sports shots.
