Marshall CV605-BK Compact PTZ Camera with 5x Zoom and IP/3GSDI - Black

ITEM #: MAR-CV605-BK MFG #: CV605BK

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$699.99

Our Price:

$599.99

Availability: In Stock
iAvailability Description Popup


    CV605BK - Overview

    The CV605 5X optical zoom 3GSDI camera utilizes a professional grade 2 Megapixel sensor to capture crisp HD video starting at a wide-angle 85° and up to 1920x1080p resolution at 60fps. Multiple available outputs include 3GSDI and IP (H.265/H.264). Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of broadcast and professional A/V applications. CV605-BK/WH can be setup through the one-cable to camera setup which uses one Ethernet (CAT) cable to carry power, video, audio, and control over IP.

    Ultra-Wide 85° with 5x Optical Zoom Range
    The wide-angle optical zoom lens offers an impressive 85-degree angle-of-view through 20-degree (15mm) with smooth transition and an additional 10x digital zoom range.

    3GSDI + IP (Ethernet) Workflow Flexibility
    CV605 offers low latency 3GSDI (BNC) output as well as IP interface with multiple protocol supported. An IP interface provides easy one-cable setup with ethernet (Cat) cable handling video, audio, control and PoE (power).

    Low-light Sensitivity
    The CV605 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

    One Cable to Camera
    One cable to camera provides up to HD video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and 3GSDI simultaneous outputs with audio embedding.

    • Features:

      • 2 Megapixel (HD) sensor
      • 5X Optical Zoom (3~15mm) - starting at 85° AOV
      • HD Resolution: 1920x1080p, 1920x1080i & 1280x720p
      • Resolution/Framerate choices:
      • 1920x1080p at 60/59.94/50/30/29.97/25fps
      • 1920x1080i at 60/59.94/50fps
      • 1280x720p at 60/59.94/50/30/29.97/25fps
      • Low Illumination capability at 0.5Lux (F1.8) for challenging environments
      • 3G-SDI (BNC) and IP (H.265/H.264) with RS232 via RJ45
      • Ethernet IP supports video, audio, control, and PoE (IEEE802.3af) over one Cat cable
      • Control Options: VMS, GUI, VS-PTC-200 (RS232/RS422) and VS-PTC-IP (IP/RS232)
      • 3.5mm audio (Line or Mic level) input (AAC, MP3, G.711A compression)

    • Specifications:

      • Camera Specs:
      • Optical Zoom: 5X Optical Zoom (3~15.5mm)
      • Sensor: 1/2.8-inch-high quality HD CMOS sensor
      • Effective Pixels: Video Format
        16:9, 2 Megapixel
        3G/HD-SDI video formats
        1920x1080p @ 60/59.94/50/30/29.97/25 fps
        1920x1080i @ 60/59.94/50 fps
        1280x720p @ 60/59.94/50/30/29.97/25 fps
      • Viewing Angle: 85° (wide open) through 16° (telephoto)
      • Digital Zoom: 10X additional
      • Minimum Illumination: 0.5Lux (F1.8, AGC ON)
      • DNR: 2D & 3D DNR
      • White Balance: Auto / Manual/ One Push/ VAR
      • Focus: Auto/Manual/One Push
      • Iris: Close/F11/9.6/8.0/6.8/5.6/4.8/4.0/3.4/2.8/2.4/2.0/1.8
      • Electronic Shutter: Auto/Manual
      • BLC: ON/OFF
      • Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
      • SNR: >55dB

        Input/ Output Interface:

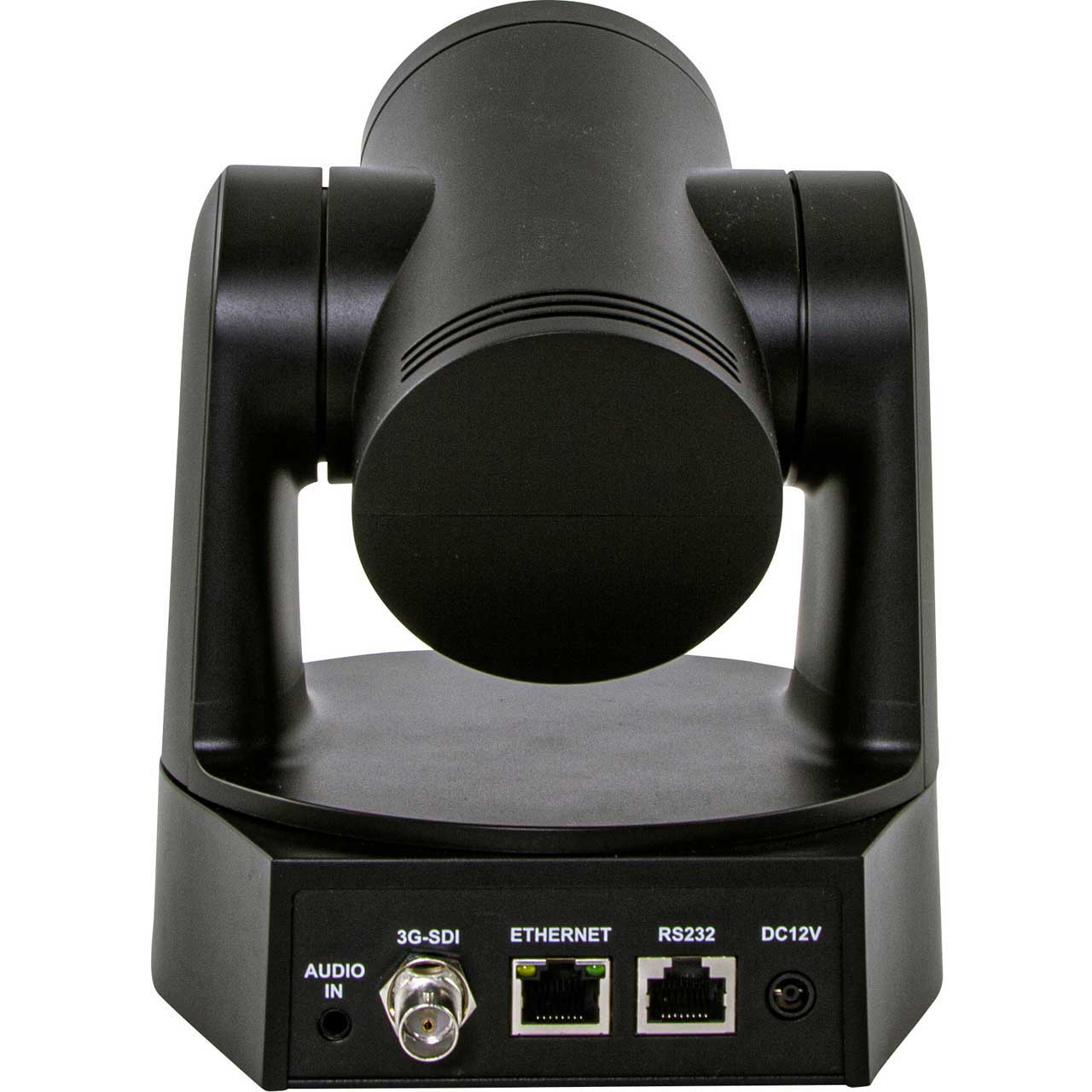

      • Available Video I/O: 3G/HD-SDI, LAN, RS232 (RJ45), Audio-IN
      • Image Output Multiple Code Source: Dual Code Source output (3GSDI, LAN)
      • Video Compression Format: H.264 & H.265
      • Audio Input Interface: Two-channel 3.5mm (Line or Mic level)
      • Audio Output: 3G/HD-SDI, LAN (IP) embedded
      • Audio Compression Format: AAC/MP3/G.711A
      • IP Interface: 100M IP port (100BASE-TX)
      • Network Protocol: RTSP/RTMP, ONVIF, GBT28181; Visca over IP control protocol
      • Control Interface: RS232
      • Control Protocol: VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/38400/9600/4800/2400
      • Power Interface: HEC380 outlet (DC12V), PoE (IEEE 802.3af)
      • Supply Adapter: AC110V-AC220V to DC12V/1.5A
      • Input Voltage: DC12V±10%
      • Input Current: 1A (Max)
      • Consumption: 12W (Max)

        PTZ Parameters:
      • Pan Rotation: 270 degrees of pan (+/-135°)
      • Tilt Rotation: 60 degrees of tilt (-30°~+30°)
      • Pan Control Speed Range: 0.1 -60°/sec
      • Tilt Control Speed Range: 0.1-30°/sec
      • Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
      • Preset Number: 255 presets (10 presets by remote controller)

        Other Parameters:
      • Store Temperature: -10°C-+60°C
      • Store Humidity: 20% - 95%
      • Working Temperature: -10°C-+50°C
      • Working Humidity: 20% - 80%
      • Dimension: 145.4mm x 147mm x 154mm
      • Weight 2.8 lbs (1.27 Kg)
      • Use Environment: Indoor
      • Accessories in Box: Power adapter, IR remote controller, Thank You Card, Warranty Card

    • Item Includes:

      • 1x CV605-BK
      • 1x Power Adapter
      • 1x IR Remote Controller
      • 1x Thank You Card
      • 1x Warranty Card

    • GTIN:

      0801813225259
