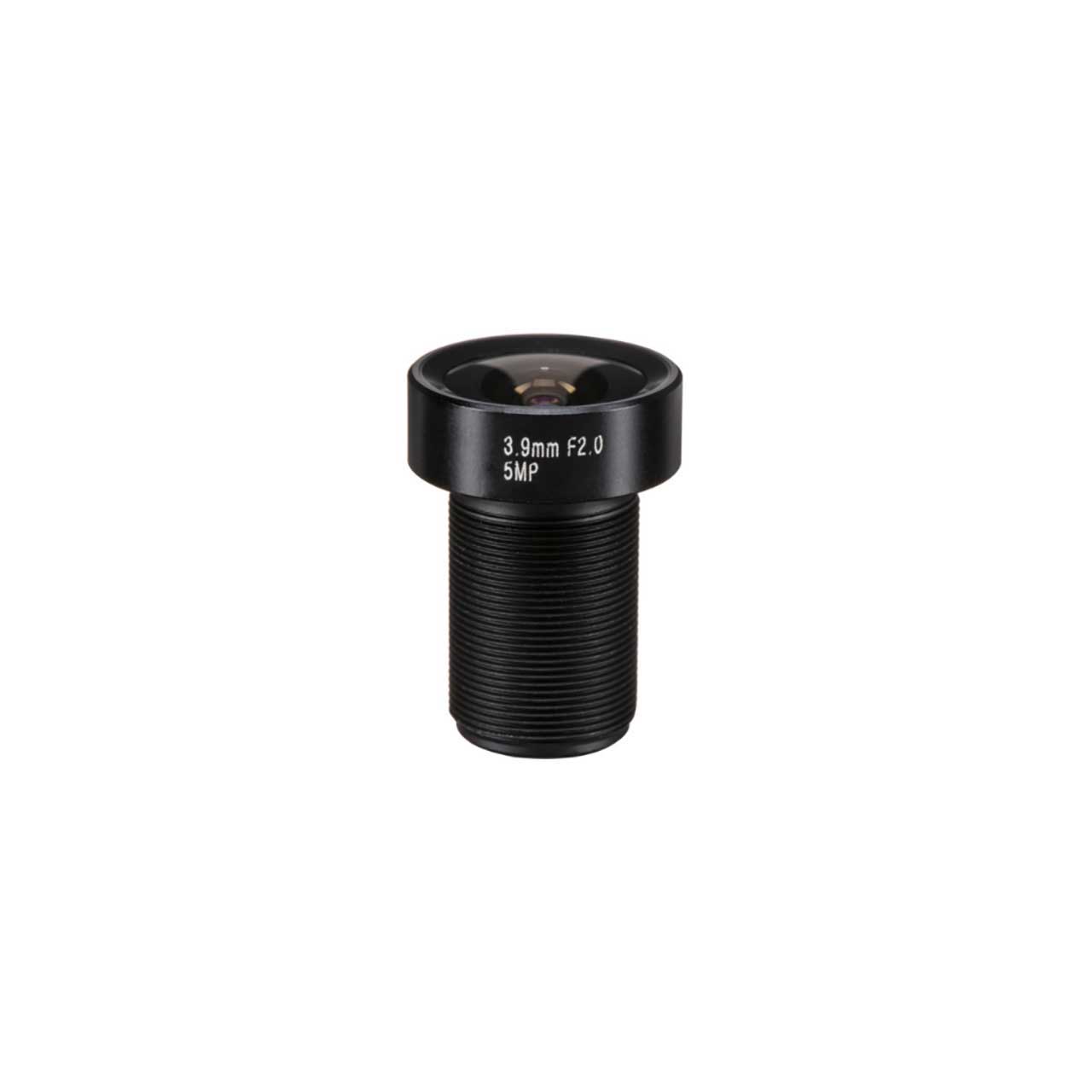

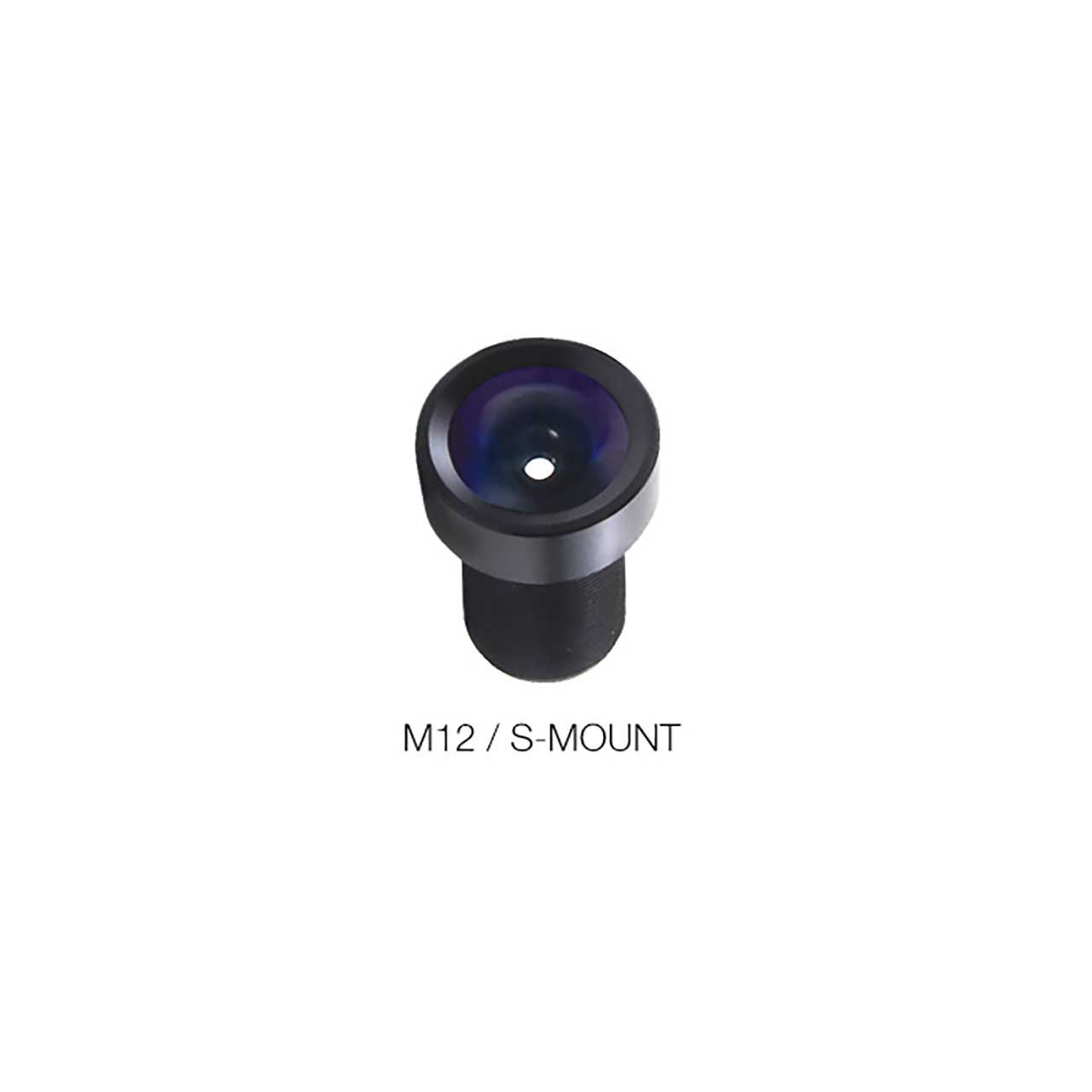

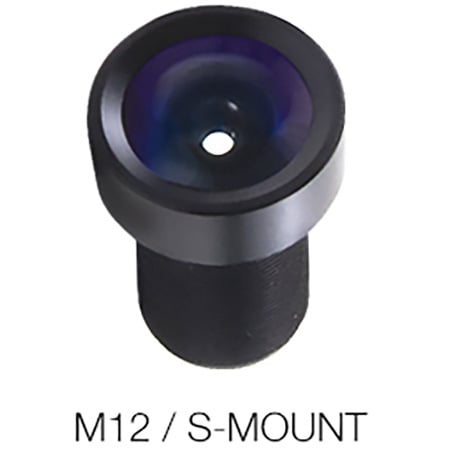

Marshall V-553.9-5MP-VIS-IR M12 3.9mm F2.0 1/2 Inch 5MP M12 Camera Lens

ITEM #: MAR-V-5539-5MP MFG #: V-553.9-5MP-VIS-IR M12

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$55.00

Our Price:

$43.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    V-553.9-5MP-VIS-IR M12 - Overview

    The Marshall V-553.9-5MP-VIS-IR M12 is a 3.9mm F2.0 1/2 Inch 5MP M12 Camera lens with a compact mechanical, smooth tactile adjustment. 3.9mm, 5.0mm, 7.6mm focal lengths Visible - IR Corrected performance and 5MP 1/2 sensor optical design.High performance 5MP image quality in visible to near zero light; broadcast, OEM, machine vision, security, med process applications. High performance Broadcast quality imaging and high performance MTF %gt; 70% at center field; > 63% at full field.

    • Features:

      • 3.9mm, 5.0mm, 7.6mm focal lengths Visible - IR Corrected performance
      • 5MP 1/2 sensor optical design
      • High performance 5MP image quality in visible to near zero light; broadcast, OEM, machine vision, security, med process applications
      • High performance Broadcast quality imaging
      • High performance MTF > 70% at center field; > 63% at full field

    • Specifications:

      • Focal Length (EFL): 3.9mm ± 0.1mm
      • Back Focal Length (BFL): 6.1mm ± 5%
      • Flange Back Length(FBL): 6.0mm ± 0.3mm
      • Full field Of View (FOV): 127.2°, 96.1°, 70.0°
      • F-number (F/#): 2.0 2.0 2.0 ± 5% (at, Infinite)
      • Sensor Model No.: IMX178LQJ (5M 4:3)
      • Sensor Model Size: 7.78mm(D) x 6.22mm(H) x 4.67mm(V)
      • Wavelengths: 486.1nm~656.3nm / 780nm, 850nm
      • M12 Total Track Length (TTL): 30.0mm
      • M12 Over All Length (OAL): 24.1mm
      • Barrel Thread / Mount Format: M12 X P0.5 & CS-Mount
      • Lens Number of Elements: 8 components 8 elements
      • Coating MgF2: Element 1~8 (SLAR Coating)
      • Reflectivity: <1% (400nm~700nm)
      • Image Circle Error: >=8.0mm
      • M12 Out diameter (OD): Ø17.0
      • Relative Illumination: 48.6% 63.0% 44.5% At full field angle
      • MTF as a Function Of Line pairs/mm: MTF≥0.755 at 100 (LP/mm), MTF(T)≥0.657 at 100 (LP/mm), MTF(S)≥0.694 at 100 (LP/mm)
      • Optical Distortion: < -51.0%

    • Item Includes:

      • 1x Marshall V-553.9-5MP-VIS-IR M12 3.9mm F2.0 1/2 Inch 5MP M12 Camera Lens

    • GTIN:

      0801813193114
