Marshall V-LCD173HR Economy Multiple Format HD 17-Inch Rack Mount Production Monitor

Name: Marshall V-LCD173HR Economy Multiple Format HD 17-Inch Rack Mount Production Monitor
Brand: Marshall Electronics
SKU: MAR-V-LCD173HR
Price: 1229.00 USD
Availability: Backorder

ITEM #: MAR-V-LCD173HR MFG #: V-LCD173HR

Marshall Electronics

List Price:

$1,256.55

Our Price:

$1,229.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

V-LCD173HR - Overview

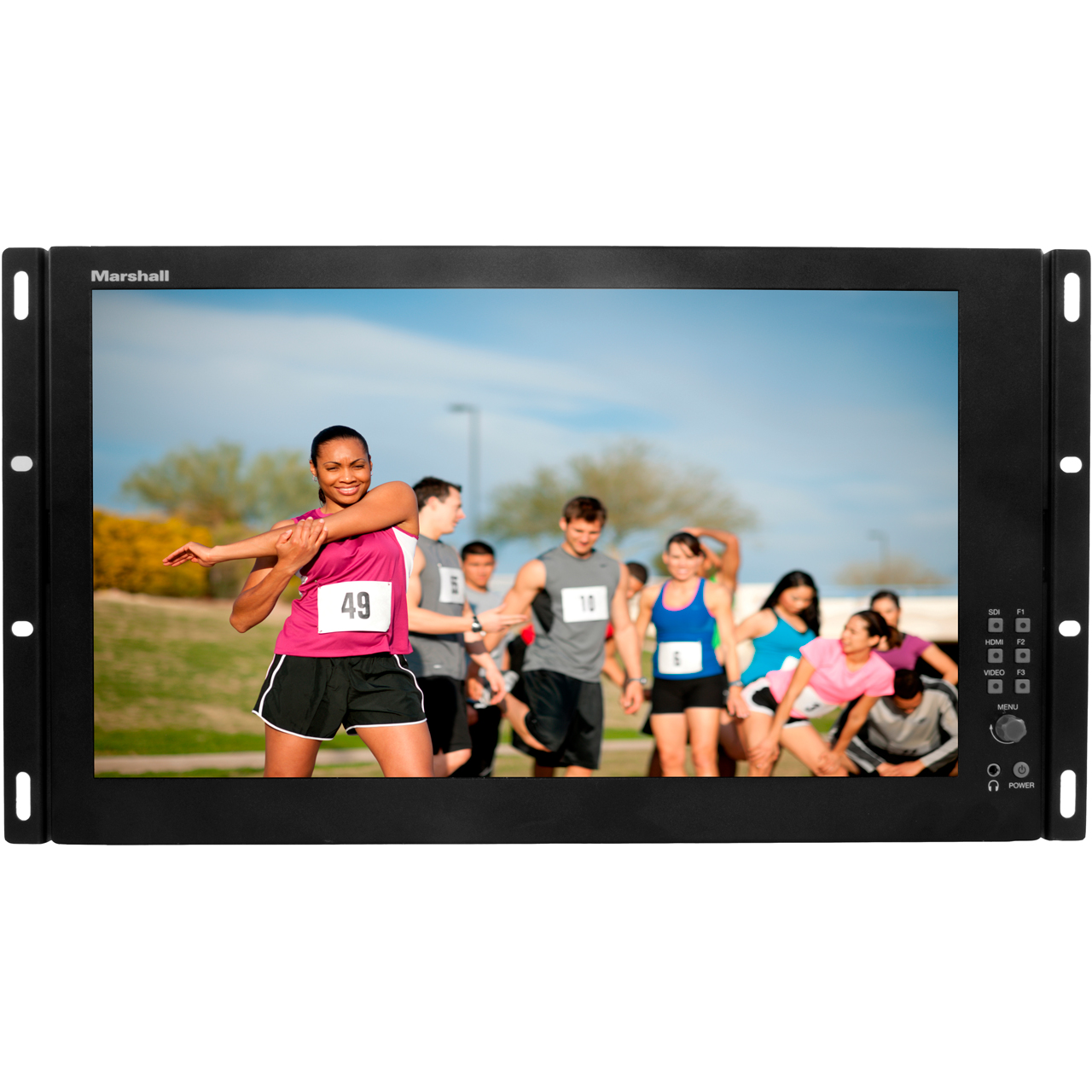

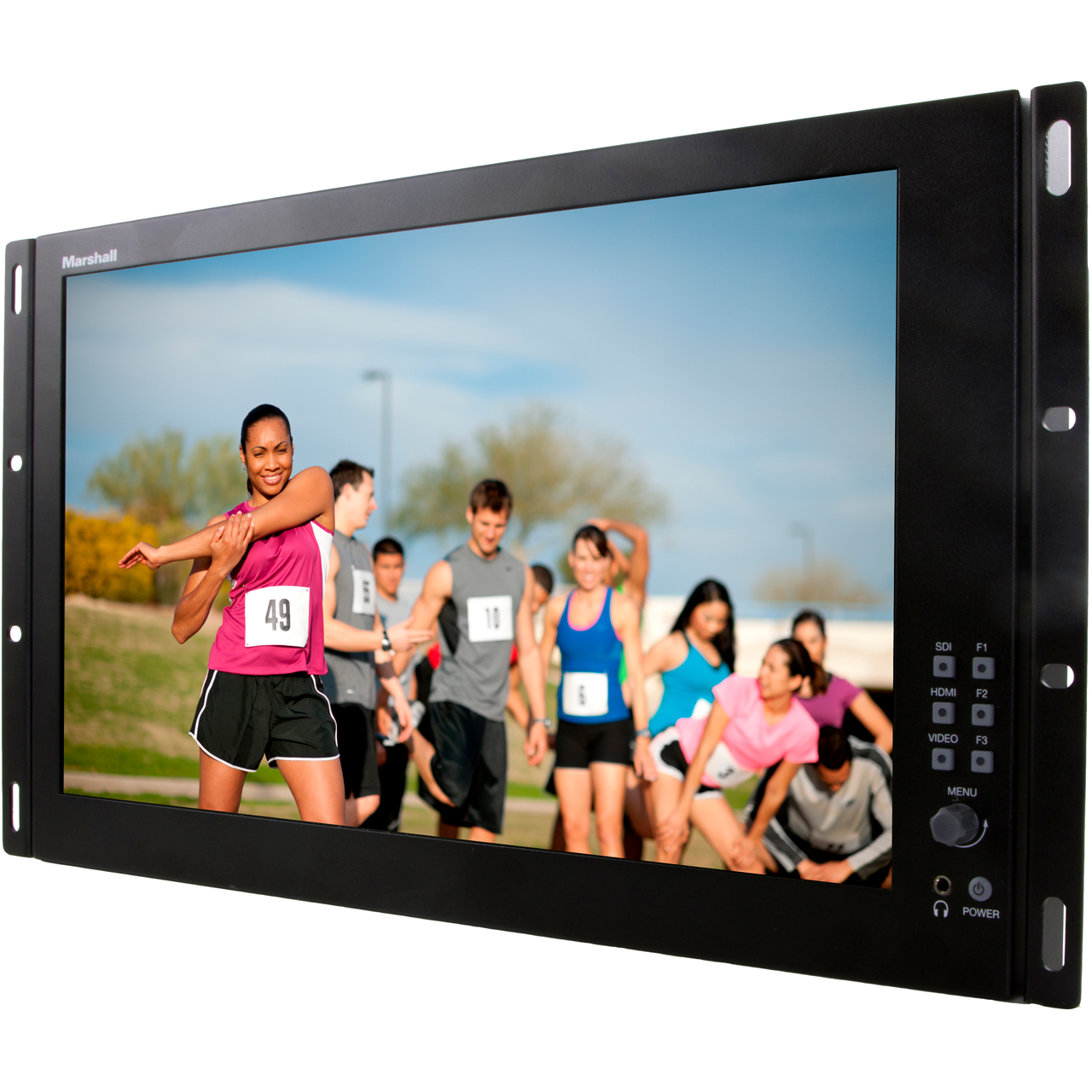

The Marshall V-LCD173HR 17.3-inch native resolution (1920 x 1080) production monitor comes with a range of professional adjustment settings and convenient HDMI/HDSDI inputs and outputs. The Marshall V-LCD173HR comes with built-in histogram, peaking, false color, exposure, adjustable safety markers, and more, and can monitor up to two audio channels as well.

The V-LCD173HR offers unprecedented value for the price and has a versatile 6RU frame that can be rack mounted or used on a desktop. The V-LCD173HR can also convert between HDMI and SDI signals.

Features:
- Rec 709 compliant
- LED Tally lights
- HDMI/HDSDI inputs and outputs with conversion ability
- Range of broadcast and production adjustment settings including markers, brightness, contrast, aspect ratio, peaking, false color, exposure, histogram, and more
- Rack ears or VESA mount options
- BNC connectors
- Two-channel audio monitoring
- Image flip ability
- Headphone jack
Specifications:

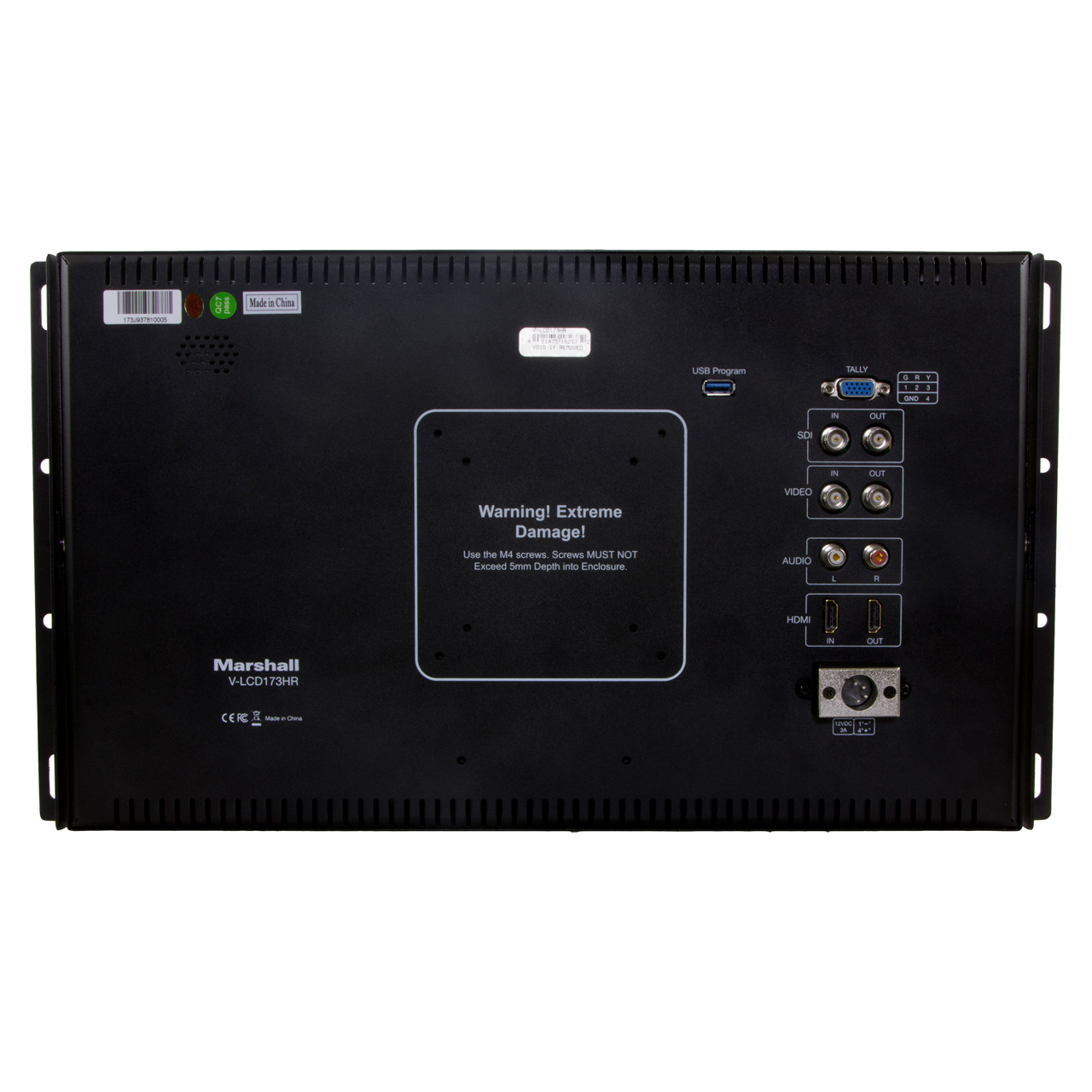

- Inputs:
  - 1x SDI BNC with Loop Out
  - 1x HDMI with Loop Out
  - 1x Composite BNC with Loop Out
  - 2x Audio L/R RCA Line Level
  - Tally HD-15-pin compatible with GPI open collector or contact closure to ground/earth
  - 1x USB 3.0 USB-A (Firmware updates)
  - 1x XLR-12V 4-pin
- Outputs: 3.5mm front panel stereo headphone jack

  Hardware
- Included Rack Ears: 2x (6RU height) for standard 19" rack mount
- Back Panel: Supports VESA 100mmx100mm and 75mmx75mm mounting systems
- Weight: 7.9lbs (3.6kg)
- Product Dimensions (DxLxW): 1.29" x 17.75" x 10.5" (3.28cm x 45cm x 26.7cm)

  Panel Information
- Native Resolution: 1920 x 1080 pixels
- Contrast Ratio: 700:1
- Luminance: 300 nits
- Display Colors: 16 million colors
- Viewing Angle: 178° H & V

  Supported Formats/Frame Rates
- Composite Input:
  - NTSC
  - PAL
- SD-SDI Input:
  - 480i 59.94Hz
  - 576i 50Hz
- HD-SDI:
  - 720p 25, 29.97, 30, 50, 59.94, 60Hz
  - 1080i 50, 59.94, 60Hz
  - 1080psf 23.98, 24.00Hz
  - 1080p 23.98, 24, 25, 29.97, 30Hz
- 3G-SDI Level A:
  - 1080p 50, 59.94, 60Hz
  - 10800i 50, 59, 60Hz
  - 1080psf 23, 24, 25, 29.97, 30Hz
  - 1080p 23.98, 24, 25, 29.97, 30Hz
- SD - HDMI:
  - 480i 59.94, 60Hz
  - 576i 50Hz
  - 480p 59.94, 60Hz
  - 576p 50Hz
- HD - HDMI:
  - 720p 25, 29.97, 30, 50, 59.94, 60Hz
  - 1080i 50, 59.94, 60Hz
  - 1080psf 23.98, 24Hz
  - 1080p 23.98, 24, 25, 29.97, 30Hz
Item Includes:
- 1x V-LCD173HR 17.3" LCD Monitor
- 1x DC Adapter
- 1x TALLY Connector
Warranty:
- 1 Year Warranty
GTIN:
0801813182378

V-LCD173HR - Recommended Accessories

Connectronics ULTRA High Speed 8K HDMI 2.1 AM/AM Cable - 6 Foot
HDMI-21-06FT
Our Price: $7.49
Laird 4855R-B-B 12G-SDI/4K Mini-RG59 Belden 4855R UHD Single Link BNC Cable - 10 Foot - Black
4855R-B-B-BK-010
Our Price: $34.49
Connectronics Premium Stereo RCA Audio Cable 6ft
TN-2R2R-6
Our Price: $29.49
Middle Atlantic RK Series 12RU Rack - Black Laminate
RK-12
Our Price: $284.40
Sony Pro MDR-7506 Foldable Large Diaphragm Headphones
MDR-7506
Our Price: $114.99
Laird HIPWR-X4-MF Heavy Duty 4-Pin XLR-M To 4-Pin XLR-F 16AWG High Power Cable - 10 Foot
HIPWR-X4-MF-10
Our Price: $33.49
Core CUBE-200 AC to DC 200W Industrial Power Supply All Aluminum 2 x 4-Pin XLR Male Outputs - Fanless/Silent
CSW-CUBE-200
Our Price: $319.00
CAIG Products CCS-503 Screen Cleaning Kit
CCS-503
Our Price: $16.95
Tripp Lite RS-1215-RA Rackmount Power Strip with 12 Right-Angle Outlets
RS-1215-RA
Our Price: $109.99
Morley MHUMX Hum Exterminator
EB-HUMX
Our Price: $89.00
Fostex RM-3 1RU Rack-Mount Stereo Monitor System with AES/EBU Input
FOS-RM3
Our Price: $849.99
Peerless-AV SF630 Flat Wallmount For 10-24in Screens VESA 75/100 Black
PER-SF630
Our Price: $35.00

V-LCD173HR - Reviews

V-LCD173HR - Attachments

MAR-V-LCD173HR User Manual
MAR-V-LCD173HR Spec Sheet
