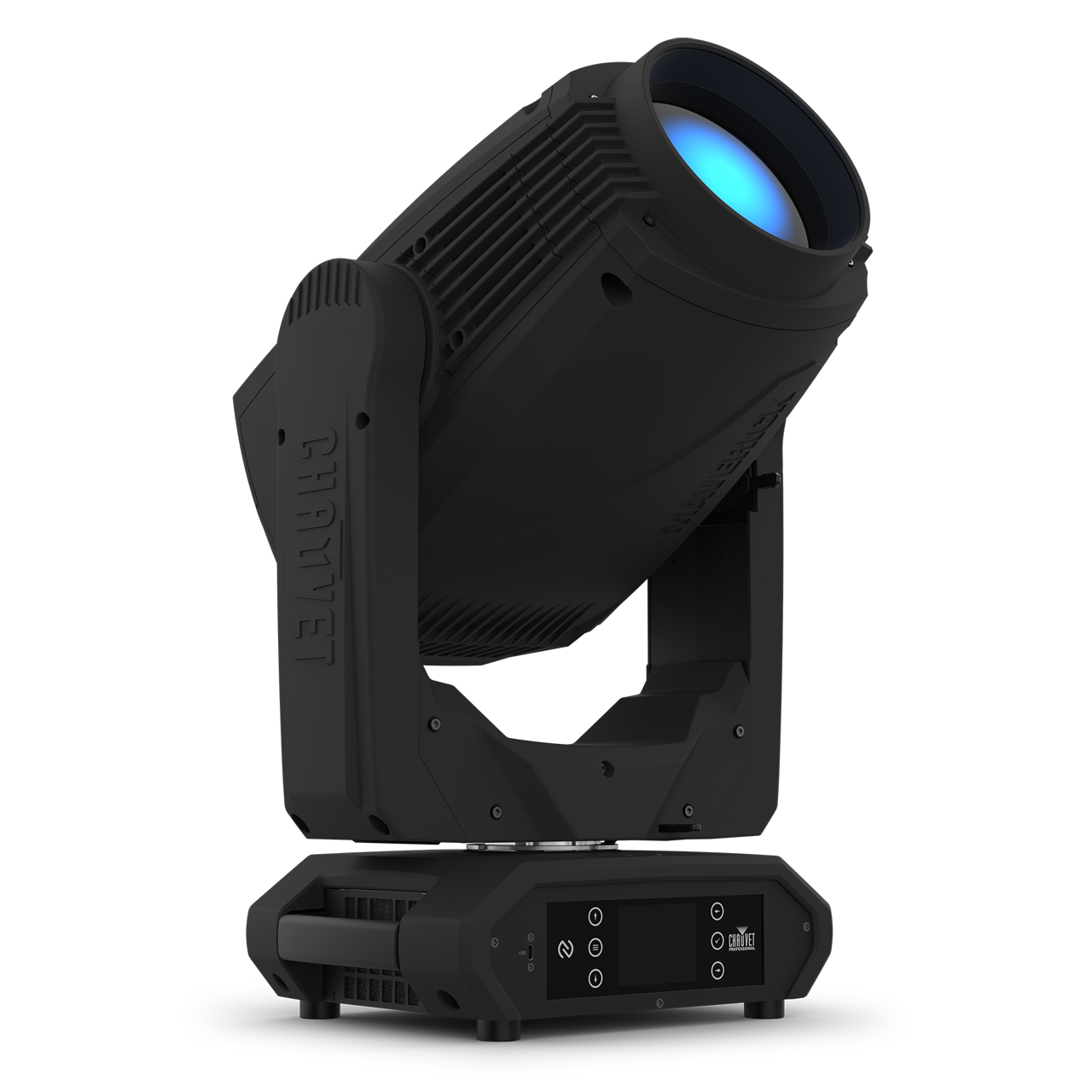

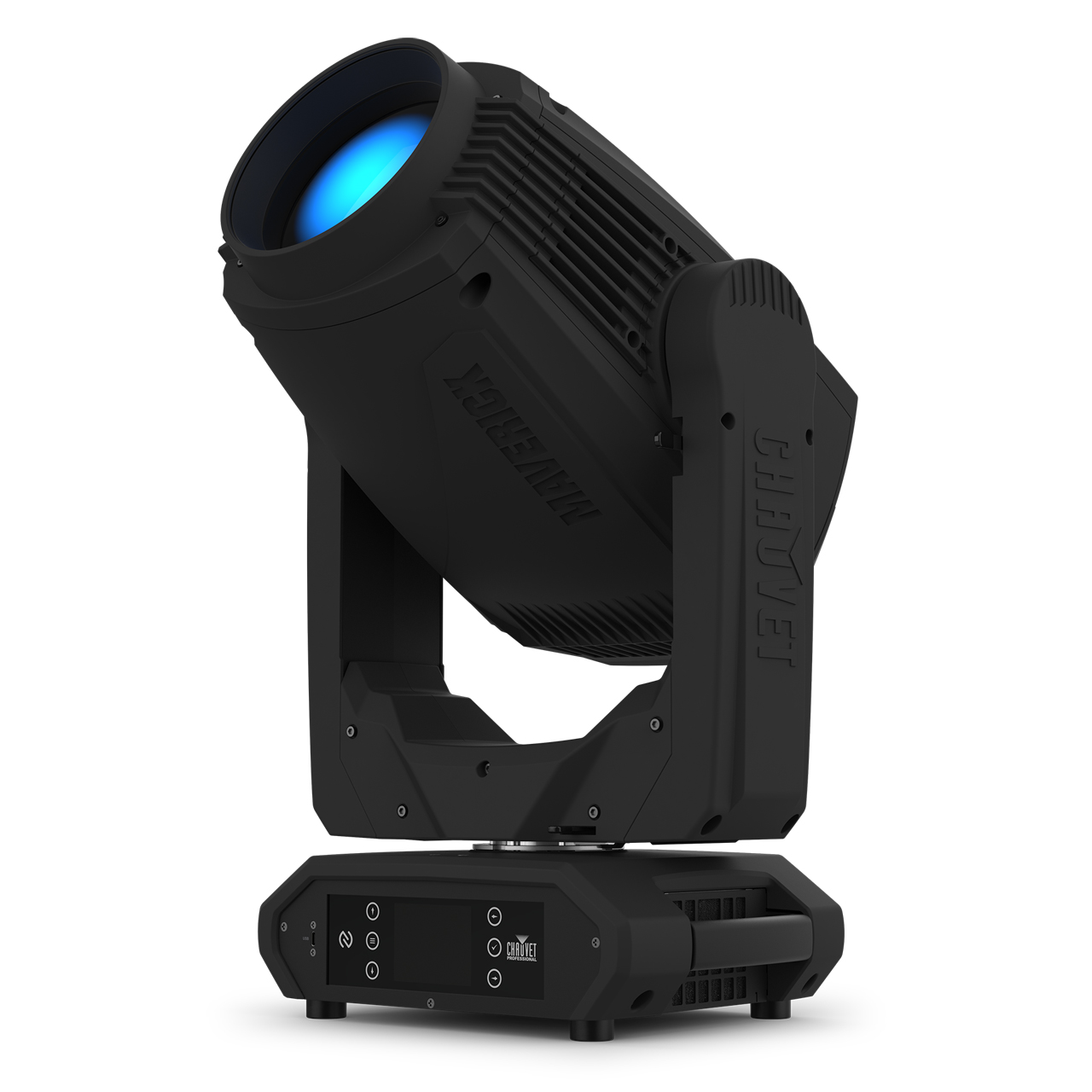

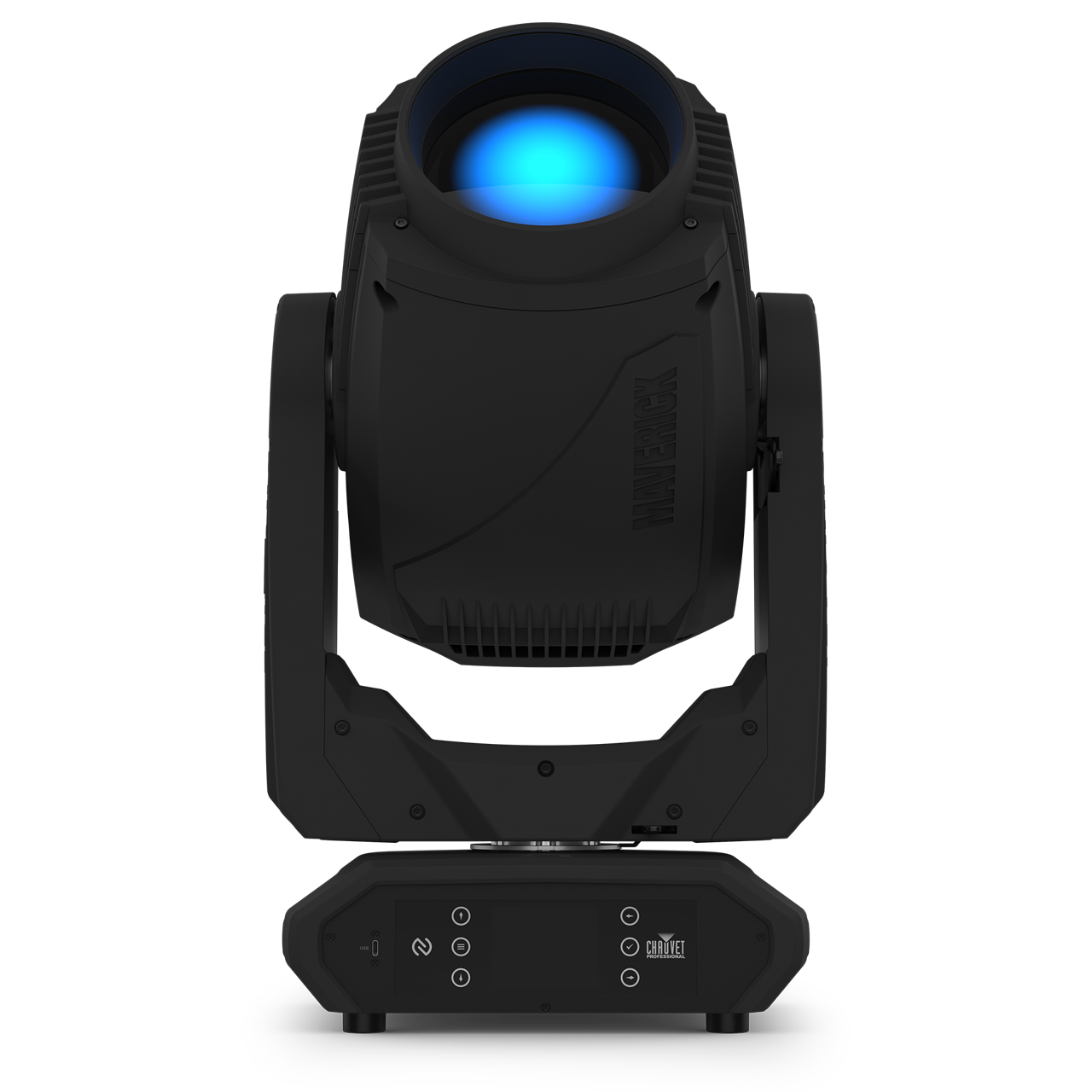

Chauvet Maverick Force X Profile Compact & Lightweight Cool-White 520-Watt Yoke LED Moving Profile Fixture

MAVERICKFORCEXPROFILE - Overview

Perfect for a wide range of short and long-throw applications in touring, theatre, and broadcast where a versatile, feature-rich fixture is essential!

• Features:

  • Compact LED Profile Fixture - A fully featured, compact, and lightweight 520W LED yoke profile fixture.
  • Variable CMY Color Mixing - Create a wide pallet of colors using the integrated CMY color mixing system and a separate color wheel.
  • Dual Gobo Wheels - Expand creative options with two gobo wheels, one featuring rotating gobos and one with static gobos.
  • Smooth 16-Bit Dimming - Achieve exceptionally smooth control of fades with 16-bit dimming of the master dimmer.
  • High-Speed PWM - A 65,000 PWM ensures flicker-free operation for use with the fastest frame cameras while maintaining fantastic dimming.
  • Flexible Control Options - Offers full flexibility of control with support for DMX, WDMX, sACN, and Art-Net.
  • RDM Enabled - Allows for remote addressing and troubleshooting for simplified fixture management.
  • Wide Zoom Range - Accommodate variable beam sizes with an expansive 3.5° to 57.3° zoom range.
  • Advanced Beam Control - Shape and modify the beam using the built-in iris, 5-facet prism, and frost effects.
  • Rotatable Framing System - Utilize a 4-blade framing shutter system with dual-axis movement, full wipe, and 120-degree module rotation.
  • Professional Power Input - Features a secure, True-1 compatible power input for reliable connections.
  • Easy Shop Setup - Three setup menu presets and a preset sync function allow for easy cross-loading to multiple fixtures.
  • USB Software Updates - Keep the fixture's software current using the convenient onboard USB slot for uploads.
  • Battery Backup Display - Access the menu without main power thanks to the battery-backed display that auto-rotates depending on fixture orientation.
  • Failsafe Ethernet Connectivity - Allows data to pass through to the next fixture even if the unit's power is lost.
  • NFC Configuration - Quickly and easily set up the fixture in the shop or field using Near Field Communication.


• Specifications:

  Optical
  • Light Source: 1 LEDs (CW) 520 W, (4.2A), 6966 K, 50,000 hours life expectancy.
  • Color Temperature (at full): 6966 K
  • Front lens diameters: 145 mm
  • CRI: 72.2
  • CQS: 70.2
  • TLCI: 51
  • CRI with CRI filter: 91.9
  • CQS with CRI filter: 90
  • TLCI with CRI filter: 78
  • CTB filter color temperature: 8200K
  • Beam Angle: 3.4° to 52.2°
  • Field Angle: 3.7° to 55.3°
  • Cutoff Angle: 3.8° to 57.3°
  • Zoom Range: 3.5° to 57.3°
  • Lumens - Output: 18,963
  • Illuminance (3.4°): 104,429 lux @ 5 m
  • Illuminance (57.3°): 1,219 lux @ 5 m
  • Selectable PWM: 600Hz, 1500Hz, 2000Hz 65000Hz

    Dynamic Effects
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: Colors: 7 (Red, Orange, Magenta, CTO 4300k, CTO 3200K, CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
  • Colors: CMY wheels
  • Color Macros: CMY macros
  • Gobos (1): 7 + open (1 metal + 6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 9 + open (9 metal), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 23.9 mm (outside), 14 mm (image), 1.1 mm (max. thickness)
  • Framing Shutters: Yes
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 5 Facets, motorized, rotating
  • Strobe Rate: 0 to 25 Hz
  • Move-in-Black: Yes
  • Dim Curves: 5

    Construction/Physical
  • Dimensions: 14.21 x 9.40 x 25.43 in (361 x 239 x 646 mm)
  • Weight: 50 lbs (23.1 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Steel

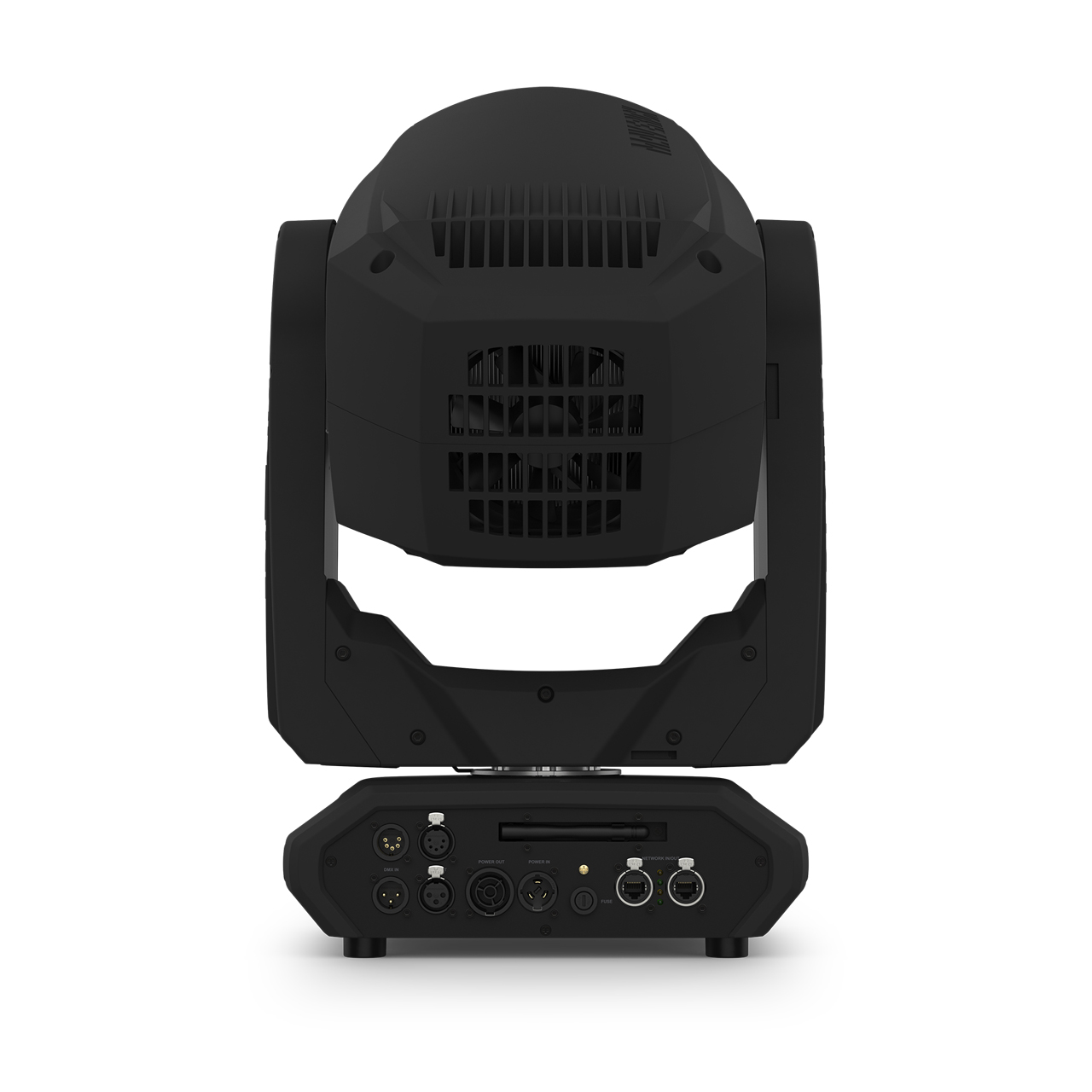

    Connections
  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin IP65 XLR, Seetronic etherCON
  • Cable Length (power): 5 ft (1.5 m)

    Control
  • Control Protocol: DMX, Art-Net, sACN, CRMX, NFC
  • DMX Channels: 31 or 47
  • Art-Net Channels: 31 or 47
  • Modes/Personalities: 2 personalities (31, 47)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 4 units @ 208 V;4 units @ 230 V
  • Power and Current:
    - 595 W, 5.98 A @ 120 V, 60 Hz
    - 576 W, 2.82 A @ 208 V, 60 Hz
    - 580 W, 2.58 A @ 230 V, 50 Hz

    Battery
  • Battery type: Lithium Ion (display screen backup)
  • Rechargeable: Yes
  • Battery Charge Time: 5 hours
  • Battery Life: 1 hours
  • Battery Power: 3.7V, 500 mAh

    Certifications/Qualifications
  • Certifications: CE, MET, FCC, FCC, UKCA
  • IP Rating: IP20, dry location
  • Noise Levels:
    - Noise Level (Idle): 34.4 dB(A) @ 1 m
    - Noise Level (Auto): 36.6 dB(A) @ 1 m
    - Noise Level (Full): 39.1 dB(A) @ 1 m
    - Noise Level (Eco): 35.0 dB(A) @ 1 m
    - Noise Level (TV25): 35.0 dB(A) @ 1 m
    - Noise Level (TV35): 35.0 dB(A) @ 1 m
    - Noise Level (max): 38.8 dB(A) @ 1 m
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)


• Item Includes:

  • 1x Maverick Force X Profile
  • 1x Seetronic Powerkon power cord
  • 1x Omega brackets with mounting hardware


• GTIN:

  0781462230197
