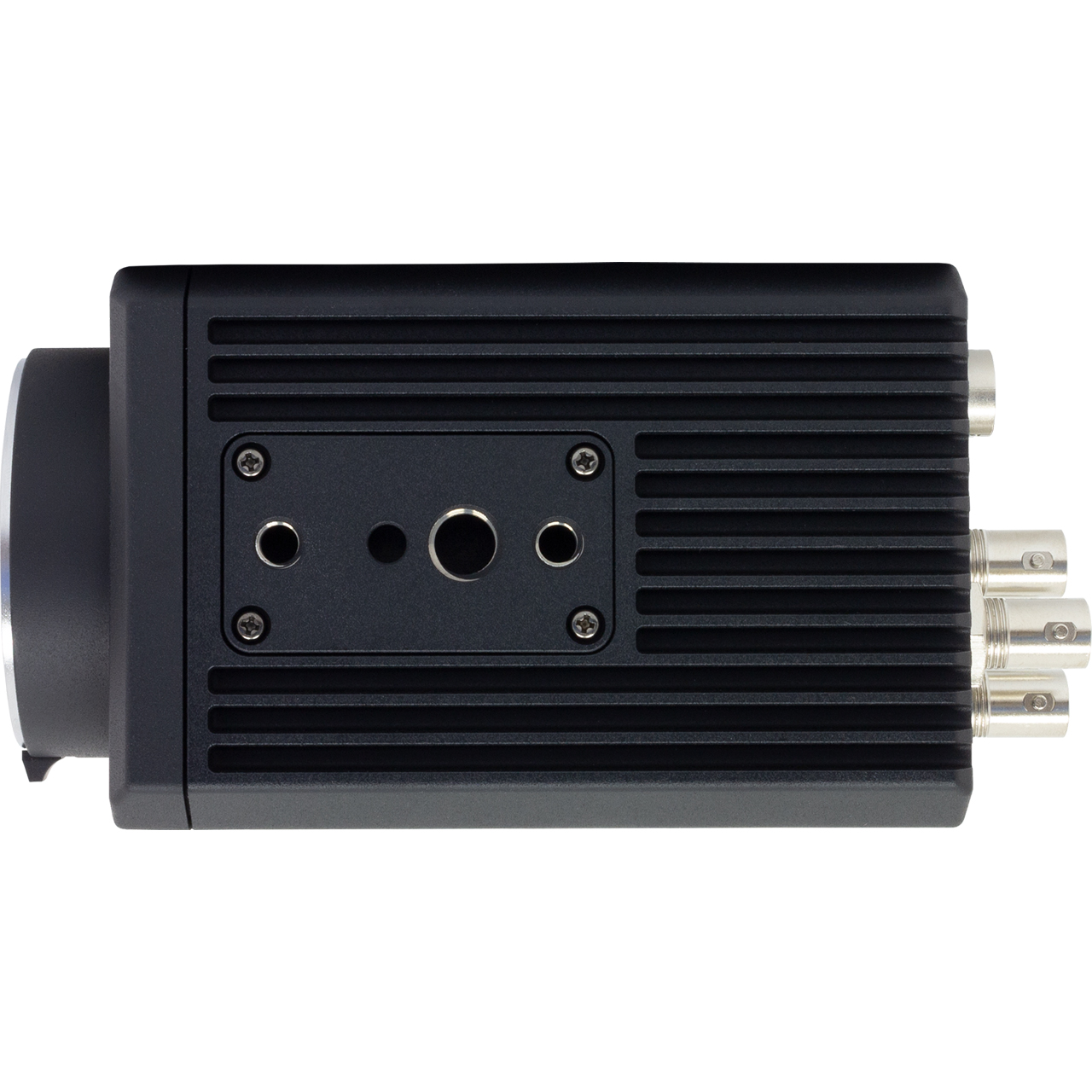

QDCAM ME-BXC-CM100 High-Speed Box Camera Head for Sports - Micro Four Thirds System Lens Mount

ITEM #: ME-BXC-CM100 MFG #: ME-BXC-CM100

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
QDCAM
Free Shipping with $49 Minimum Order

List Price:

$7,000.00

Our Price:

$6,649.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

ME-BXC-CM100 - Overview

The QDCAM ME-BXC-CM100 is a high-speed 4x FHD and UHD box camera, supporting both FHD 240/200fps and UHD 60/50fps video formats. Highly recommended for sports coverage, it allows for UHD high resolution production or high speed shooting with a single camera.

The ME-BXC-CM100 is equipped with a global shutter CMOS image sensor to avoid the rolling shutter distortion of quick moving objects.

High-Speed shooting: 1920x1080/239.8p, 200p: Continuous 4X high-speed video for smooth slow-motion replay. Quad link of SDI output.

Please Note: Lens and AC adapter are sold separately.

Applications:
• Slow-Motion Replay
• Multi-Angle View
• Image Analysis for Sports Judgement System
• Wide Angle & Closeup Shot for Sports Broadcast
• Video Capture Tool for Sports Coaching

  • Features:

    • Continuous 4X high-speed video
    • Quad-link SDI
    • 4K cinema/UHD video
    • Optical transmission option using SMTPE opt-camera cable
    • Micro four thirds lens mount
    • Remote control of iris and focus available
    • Global shutter CMOS sensor


  • Specifications:

    • Image Pickup Device: 1/1.1" 8.8 million-pixel CMOS image sensor with Global shutter
    • Method: Single image sensor with Bayer color configuration
    • Lens Mount: Micro four thirds system

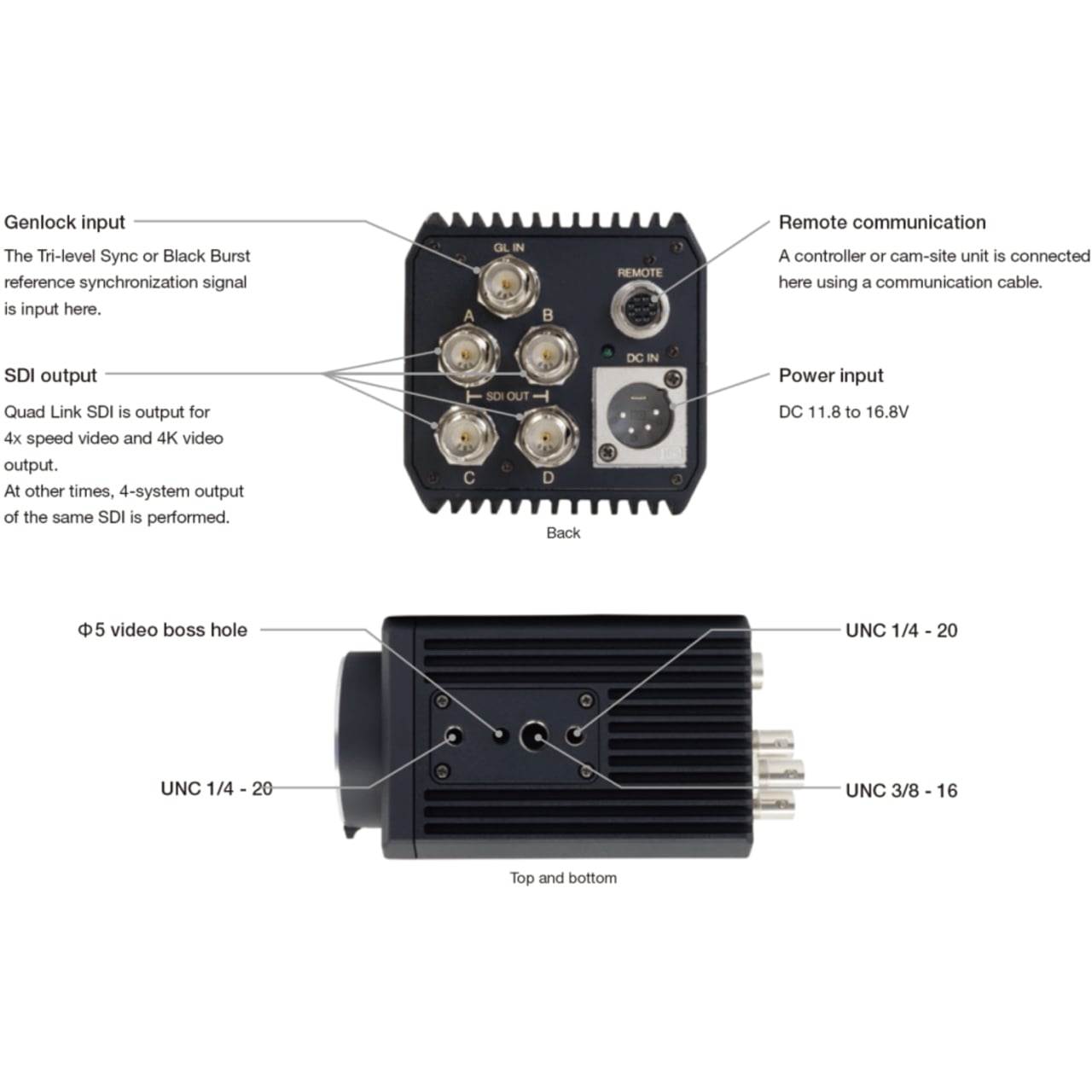

    • Output Video Format: 4096x2160/24p, 23.98p (quad 1.5G-SDI)/3840x2160/60p, 59.94p, 50p (quad 3G-SDI)/3840x2160/24p, 23.98p (quad 1.5G-SDI)/1920x1080/240p, 239.8p, 200p (quad 3G-SDI) 1920x1080/60p, 59.94p, 50p (3G-SDI)/1920x1080/24p, 23.98p/(1.5G-SDI)/1920x1080/59.94i, 50i (1.5G-SDI)
    • Genlock Reference: Tri-level Sync or Black Burst
    • Operating Temperature: 23°F - 113°F (-5°C - 45°C)
    • Weight: 1.52lbs (690g)
    • Dimensions: 2.95" x 2.95" x 5.00" (75mm x 75mm x 127mm) (excluding protrusions)
    • Power Consumption: 10W (excluding lens/controller power)
    • Source Voltage: DC 13.8V (DC 11.8V to 16.8V)


  • Item Includes:

    • 1x QDCAM High Speed Box Camera - (Lens and AC adapter are sold separately)


  • GTIN:

    4562393843009
