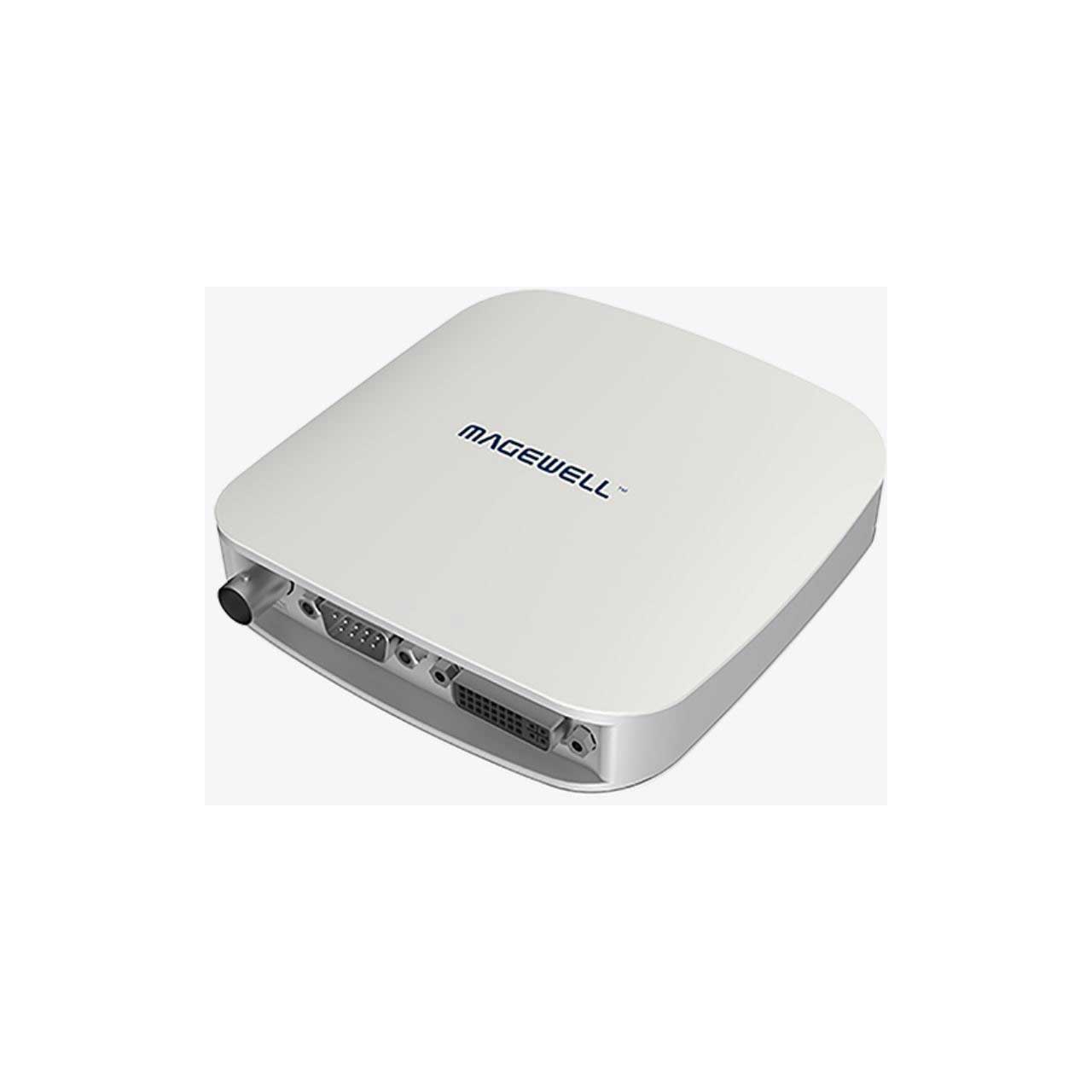

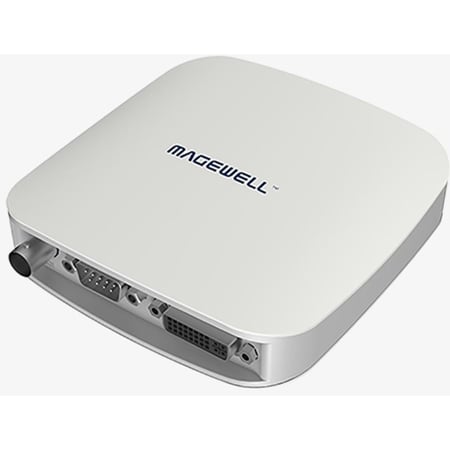

Magewell 32110 1-Channel USB3.0 HD Capture Box - HDMI / DVI / VGA / YPbPr / S-Video / CVBS / SDI

32110 - Overview

• Features:

  • Auto scan of video input sources when there is no signal input to the currently selected input source
  • Manual selection of video input source
  • Auto selection of linked (embedded) audio input source when the video input source changes
  • Manual selection of audio input source
  • Support for input video resolutions up to 2048x2160
  • SDI + embedded audio + analog audio
  • HDMI + embedded audio + analog audio
  • DVI + audio
  • VGA + audio
  • Component + audio
  • Composite + audio
  • S-video + audio
  • 12-bit ADC
  • Support for RGB & YCbCr (YUV) color formats
  • Support for 'Separated sync', 'Composite sync', 'Sync-on-green' (SOG), 'Sync-on-luminance' (SOY)
  • Support for DMT, CEA, CVT, GTF video timings
  • Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
  • 225MHz HDMI receiver
  • Adaptive HDMI equalizer support for cables lengths up to 30M
  • Support for customized EDID
  • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
  • Full colorimetry support
  • Support for 8/10/12-bit color depths
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling


• Specifications:

  • Recommended OS (tested)
  • Windows - Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
  • Linux - Ubuntu 12.04/14.04/16.04 (x86 & x64), Ubuntu 17.04/17.10/18.04 (x64), CentOS 6.5/7.2 (x86 & x64), Fedora 25/26 (x64), Red hat 6.5 (x86 & x64)
  • Mac - OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4, macOS 10.12/10.13.2/10.13.3/10.14.3/10.15

    Supported APIs
  • Windows
  • DirectShow
  • Wave API/DirectSound/WASAPI
  • Linux
  • V4L2
  • ALSA
  • macOS
  • AVCaptureSession
  • AudioUnit

    Compatible Software
  • Zoom
  • Skype
  • Mircosoft Teams
  • GoToMeeting
  • Gstreamer
  • VLC
  • OBS Studio
  • XSplit
  • QuickTime Player
  • Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software

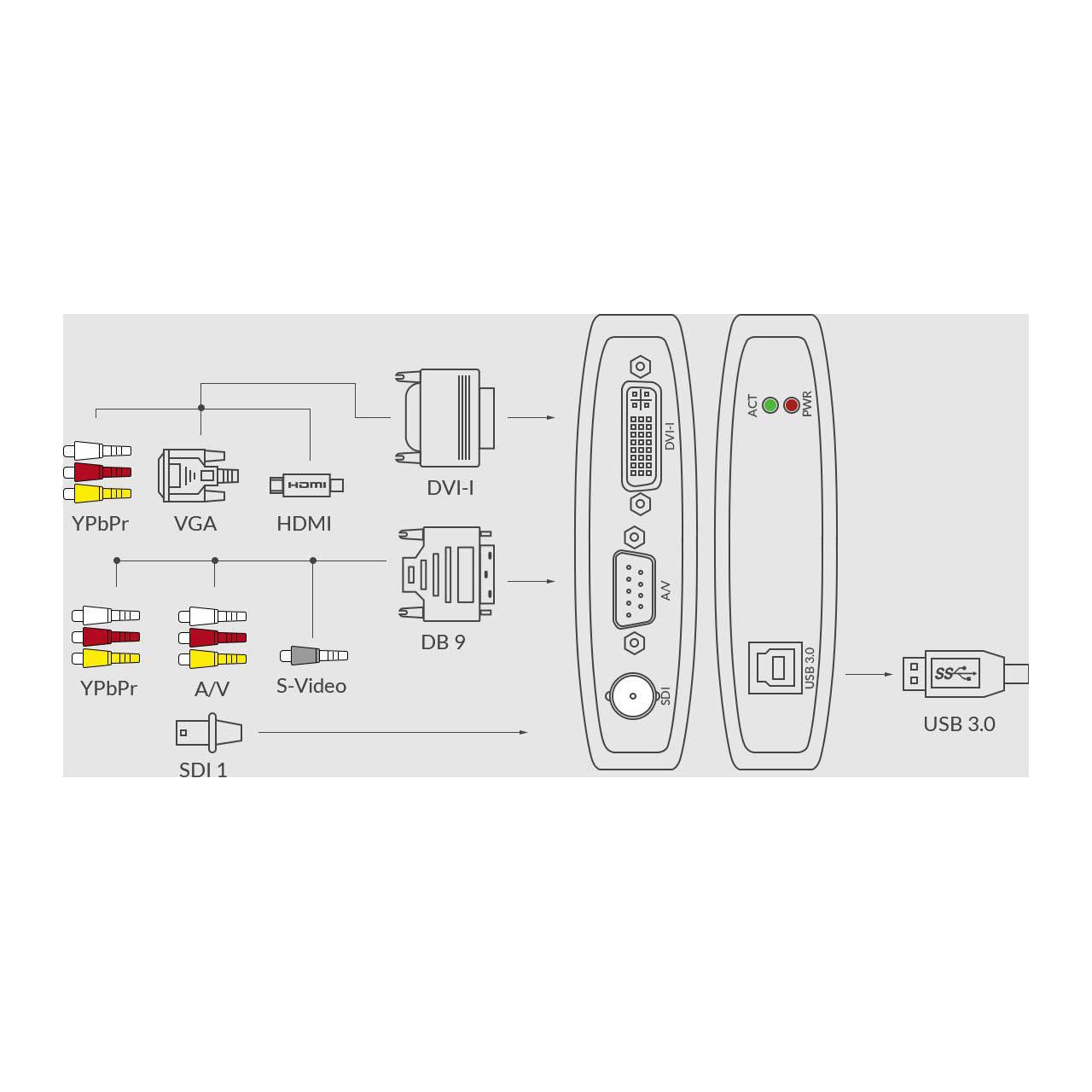

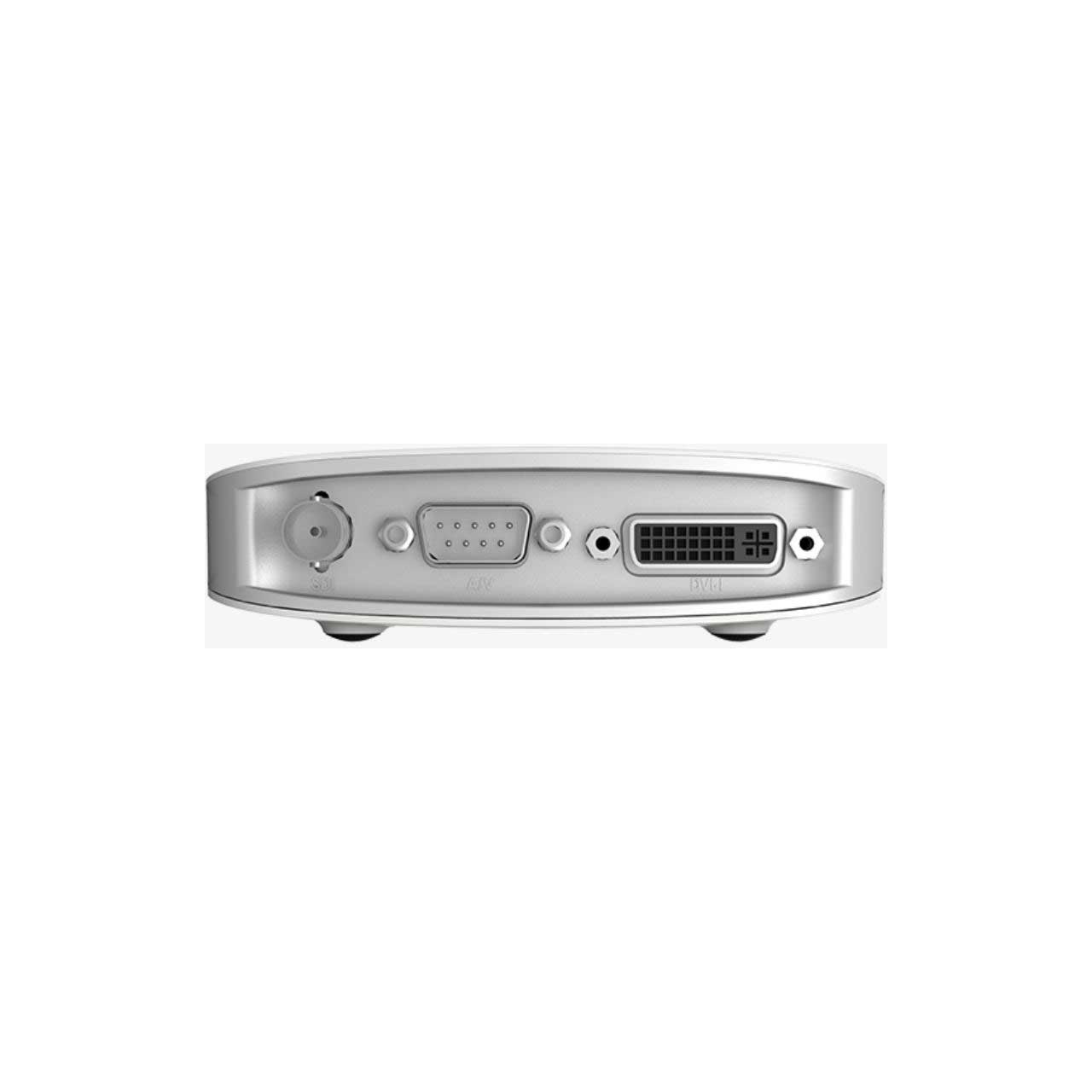

    Input Interfaces
  • DVI-I - DVI 1.0, HDMI 1.4a (via breakout cable), VGA (via DVI-to-VGA convertor), Component (via breakout cable)
  • DB9 - YC (S-Video), Composite video, Analog audio (L+R), Component video
  • BNC - SD/HD/3G SDI

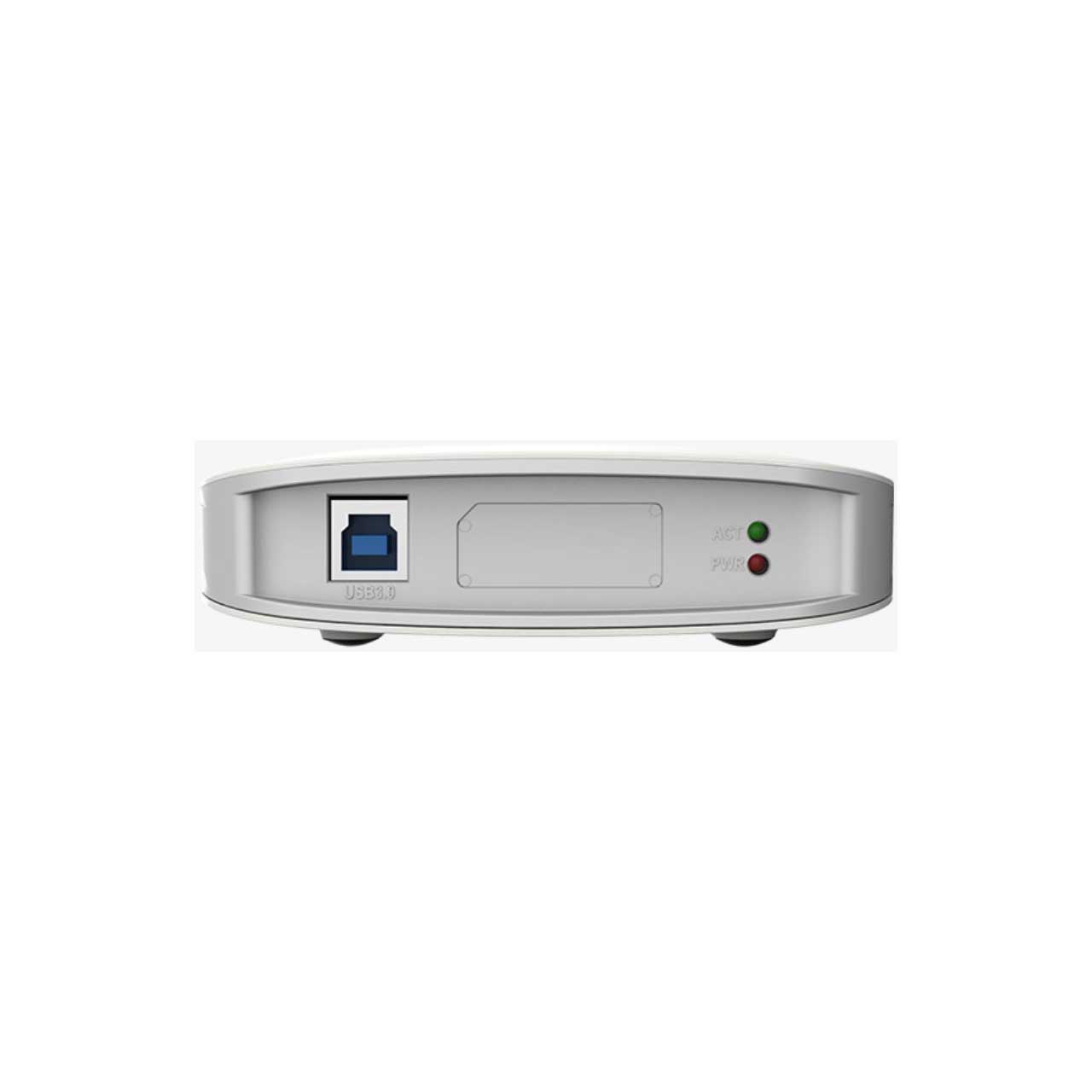

    Host Interface
  • USB 3.0 - compatible with USB 2.0, USB 3.1 Gen 1

    Input Features
  • Auto scan of video input sources when there is no signal input to the currently selected input source
  • Manual selection of video input source
  • Auto selection of linked (embedded) audio input source when the video input source changes
  • Manual selection of audio input source
  • Iinput video resolutions up to 2048x2160

    VGA & Component
  • 12-bit ADC
  • Support for RGB & YCbCr (YUV) color formats
  • Support for 'Separated sync', 'Composite sync', 'Sync-on-green' (SOG), 'Sync-on-luminance' (SOY)
  • Support for DMT, CEA, CVT, GTF video timings
  • Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
  • Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss - NOT recommended)
  • Auto detection of RGB & YCbCr color formats
  • Auto or manual sampling phase adjustment
  • Auto horizontal alignment

    HDMI
  • 225MHz HDMI receiver
  • Adaptive HDMI equalizer support for cables lengths up to 30M
  • Support for customized EDID
  • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
  • Full colorimetry support
  • Support for 8/10/12-bit color depths
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support for up to 2-channel IEC60958 audio streams
  • Support for extraction of audio formation information & channel status data
  • Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.

    SDI
  • Integrated cable equalizer extending the cable length as follows: up to 330m for SD-SDI signals, up to 190m for HD-SDI signals, up to 150m for 3G-SDI signals
  • Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards
  • Support for 2K (2048x1080) mode
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support for 10/12-bit color depth
  • Support for extraction of SMPTE 352 payload identifier
  • Support for up to 2 (mono) audio channels at 48KHz
  • Limited support for capture of the first link of dual link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60, YCbCr 4:4:4 10-bit: captured as 4:2:2, RGB 4:4:4: R/B sub-sampled

    YC & Composite
  • 12-bit ADC
  • Support for NTSC, PAL, SECAM standards
  • Auto detection of the standard of input signal

    Video Capture Format
  • Support for capture resolutions up to 2048x2160
  • Support for capture frame rates up to 120fps
  • Typical capture frame rates on the Intel USB3.0 controller are as follows: 1920x1080 YUY2 (up to 75fps), 1920x1080 RGB24 (up to 60fps)
  • Support for 4:2:2 8-bit capture format: YUY2, UYVY
  • Support for 4:4:4 8-bit capture format: RGB24, RGB32

    Form Factor
  • 116mm (L) x 116mm (W) x 32mm (H)

    Power Consumption
  • 5V max current: ~1 A
  • Max power consumption: ~5 W

    Working Environment
  • Operating temperature: 0 to 45 deg C
  • Storage temperature: -20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing


• Item Includes:

  • 1x USB 3.0 cable
  • 1x DVI to VGA connector
  • 1x DVI-I to HDMI + Component breakout
  • 1x DB9 to YC + Composite + Analog Audio + Component breakout


• GTIN:

  8143950200037
