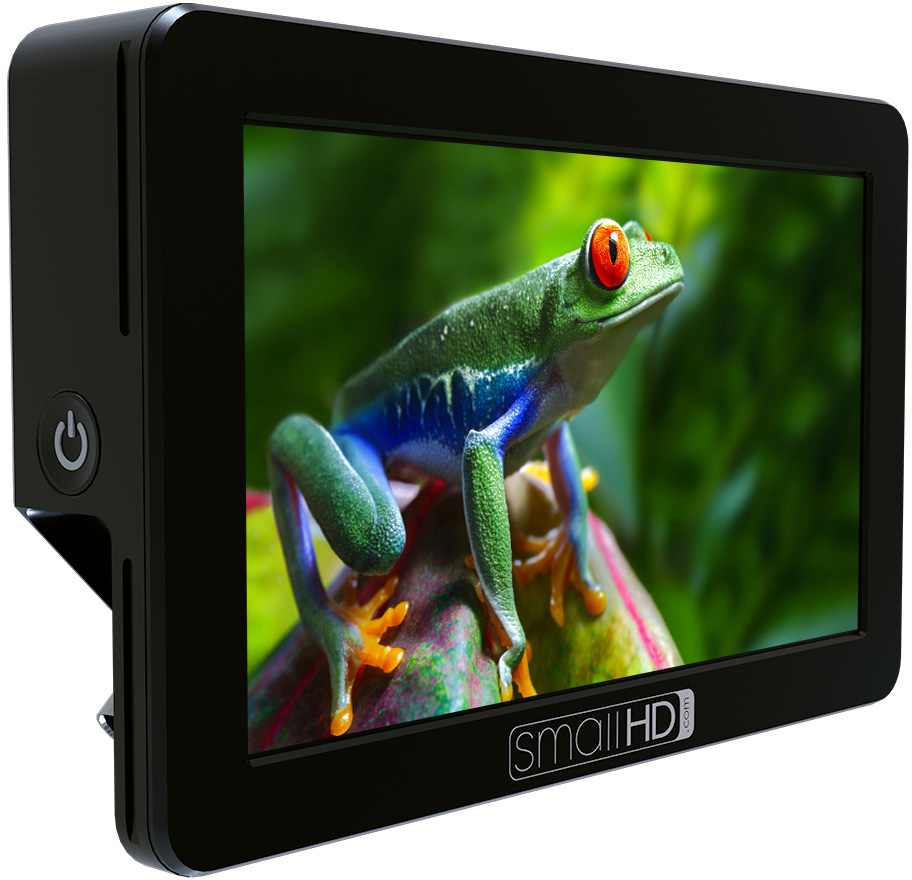

SmallHD MON-FOCUS-SDI-BASE FOCUS 5 5-inch Touchscreen On-Camera Monitor with SDI Input - Monitor Only
  • SmallHD MON-FOCUS-SDI-BASE FOCUS 5 5-inch Touchscreen On-Camera Monitor with SDI Input - Monitor Only
  • SmallHD MON-FOCUS-SDI-BASE FOCUS 5 5-inch Touchscreen On-Camera Monitor with SDI Input - Monitor Only
  • SmallHD MON-FOCUS-SDI-BASE FOCUS 5 5-inch Touchscreen On-Camera Monitor with SDI Input - Monitor Only
  • SmallHD MON-FOCUS-SDI-BASE FOCUS 5 5-inch Touchscreen On-Camera Monitor with SDI Input - Monitor Only
  • SmallHD MON-FOCUS-SDI-BASE FOCUS 5 5-inch Touchscreen On-Camera Monitor with SDI Input - Monitor Only

Questions? Ask a Markertek Expert:
800-522-2025 Email

SmallHD MON-FOCUS-SDI-BASE FOCUS 5 5-inch Touchscreen On-Camera Monitor with SDI Input - Monitor Only

Manufacturer: SmallHD LLC

Item #: MONFOCUSSDIBASE   •   MFG #: MON-FOCUS-SDI-BASE




Our Price:$499.00
Special Price:$448.55

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Big Production Value For Small Camera Setups

    The SmallHD MON-FOCUS-SDI-BASE FOCUS 5 LCD is a 5-inch professional grade touchscreen camera-top monitor that is sure to add instant production value for mirrorless and DSLR shooters. Its bright, dalylight-viewable display, professional software tools, and convenient mounting is invaluable for shooters looking to do more with less gear.

    With 800 nits of brightness, it's 4 times brighter that some on-board camera LCD screens. It has a resolution of 1280x720 and a pixel density of 294ppi, it's actually better than Apple's Retina standard! It features an SDI input that can accept 1080p signals and display them at 720p. You can also monitor audio that is drawn from the SDI source from this monitor via the 3.5mm output jack. This feature is especially useful if you're using a DSLR that doesn't have a headphone output.

    Thanks to an intuitive user interface called Swipe OS, interacting and managing the powerful tools that the FOCUS 5 has to offer has never been easier. Waveform, False Color, Focus Assist, 3D LUTs, and Pixel Zoom are just a few professional software tools at your fingertips with the SmallHD FOCUS 5.


    • Specifications

      • Display
      • Panel Type: IPS Touchscreen
      • Resolution: 1280x720
      • Pixel Density (PPI): 294
      • Aspect Ratio: 16:9
      • Active Area: 5
      • Brightness: 800 nits
      • Color Gamut: 70% NTSC
      • Color Depth: 10-bit processing
      • Viewing Angle: 160 Degrees
      • Backlight Type: White LED
      • Temperature Adaptive Color: No

        Input Signal Types/Formats
      • 3G-SDI: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
      • HD-SDI: RGB/YCC 4:2:2 and 4:4:4, 1080p60, 1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50
      • SD-SDI: YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
      • HDMI: Not Supported
      • Component: Not Supported
      • Composite: Not Supported
      • Audio: SDI

        Output Signal Types/Formats
      • 3G-SDI: Not Supported
      • HD-SDI: Not Supported
      • SD-SDI: Not Supported
      • HDMI: Not Supported
      • Component: Not Supported
      • Composite: Not Supported
      • Audio: Stereo Out (headphones)

        Connector Type
      • Audio: 1/8" Stereo mini-jack

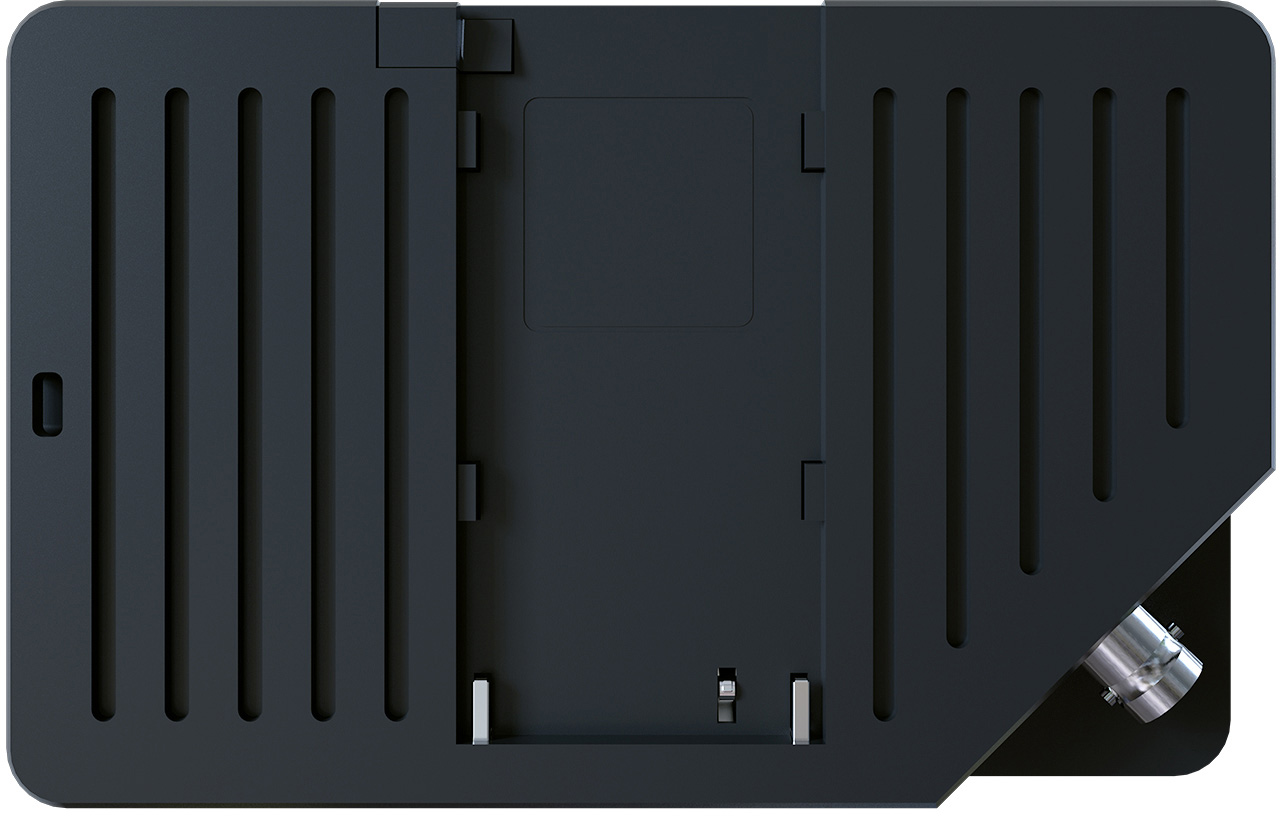

      • Power In: 1x Sony L-Style Battery slot
      • Power Out: Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor.
      • USB: 1x Micro-USB for future use

        Controls
      • Primary Control Interface: Capacitive Touchscreen
      • Record/Capture: Capture Tool

        Data I/O
      • Storage: SD Card for Image Capture / Overlay, LUT Loading, Firmware Upgrades
      • Wireless: Compatible with SmallHD BTR1 Wireless Remote

        Power
      • Connector Type: 1x Sony L-Style Battery slot, 1x barrel connector for powering camera
      • Voltage: 6.0 - 8.4V
      • Power Consumption: 5.04W
      • Recommended Power Supply: Battery Only Device
      • Overload Protection: Yes
      • Battery Chemistry: Li-ion
      • Output Voltage (VDC): Mirrors Input Voltage from battery
      • Battery Capacity (mAh): 2000mAh - 6300mAh
      • Battery Charging Time (hours): Monitor does not support the charging of batteries

        Environmental
      • Compliance: CE, FCC, IC
      • Operating Temperature: 32F to 158F
      • Screen Protection: Ships with UltraClear Screen Protector
      • Weight (Packaged) 3.2oz (90.72g)
      • Mount Points: (3) 1/4-20 thread points (top, bottom, & right side)

    • Item Includes

      • 1x FOCUS 5 SDI Monitor

    • GTIN:

      0811786030880
