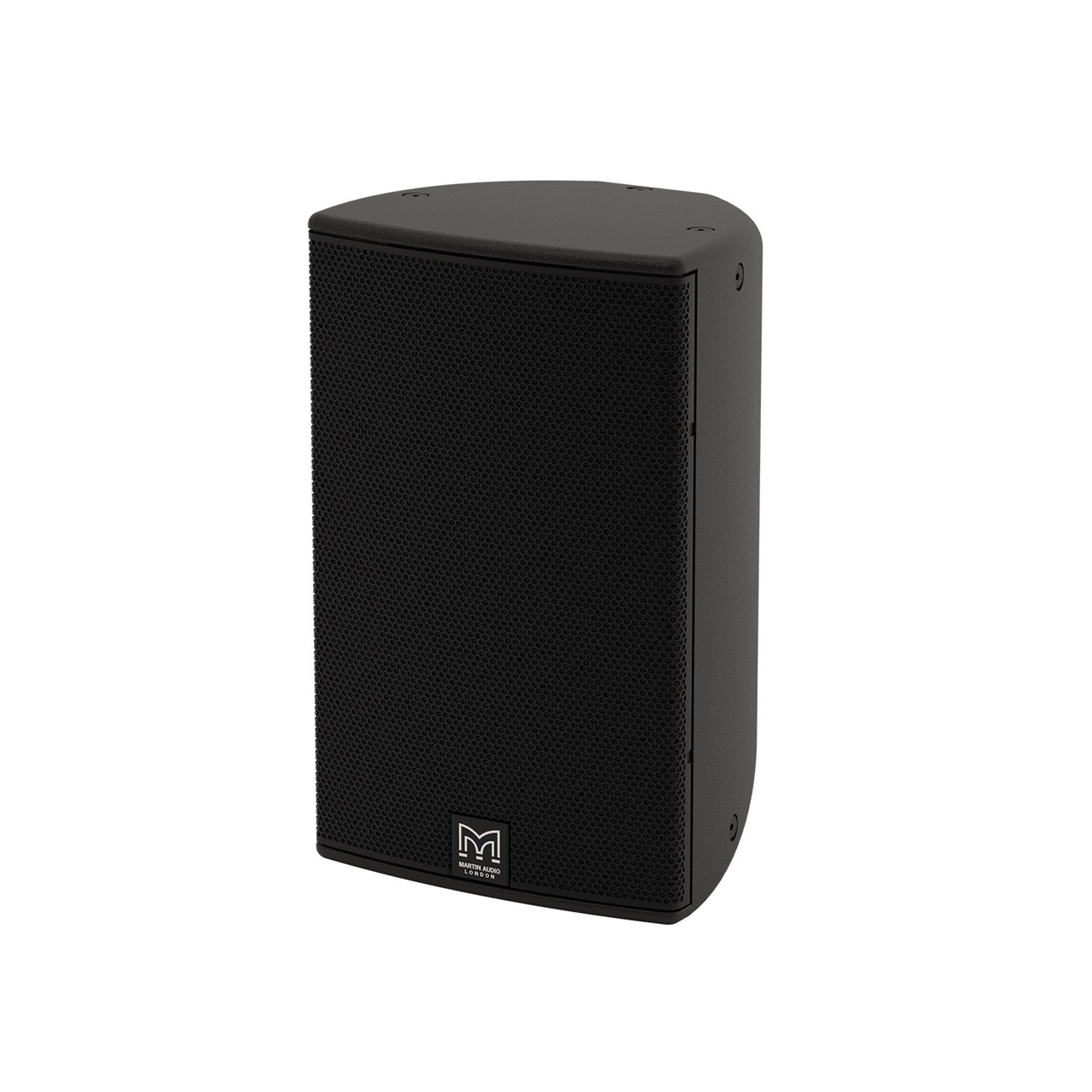

The Martin Audio CDD10B is a very compact two-way passive loudspeaker system designed by leading acoustic engineers. It is uniquely placed to meet the foreground requirements of music bars and clubs, as well as the varied architectural applications that require upfront sound levels from a very compact enclosure. Use with a SX118 or SX218 subwoofer will enable the CDD10 to operate as small dancefloor system that is remarkably powerful for its size.

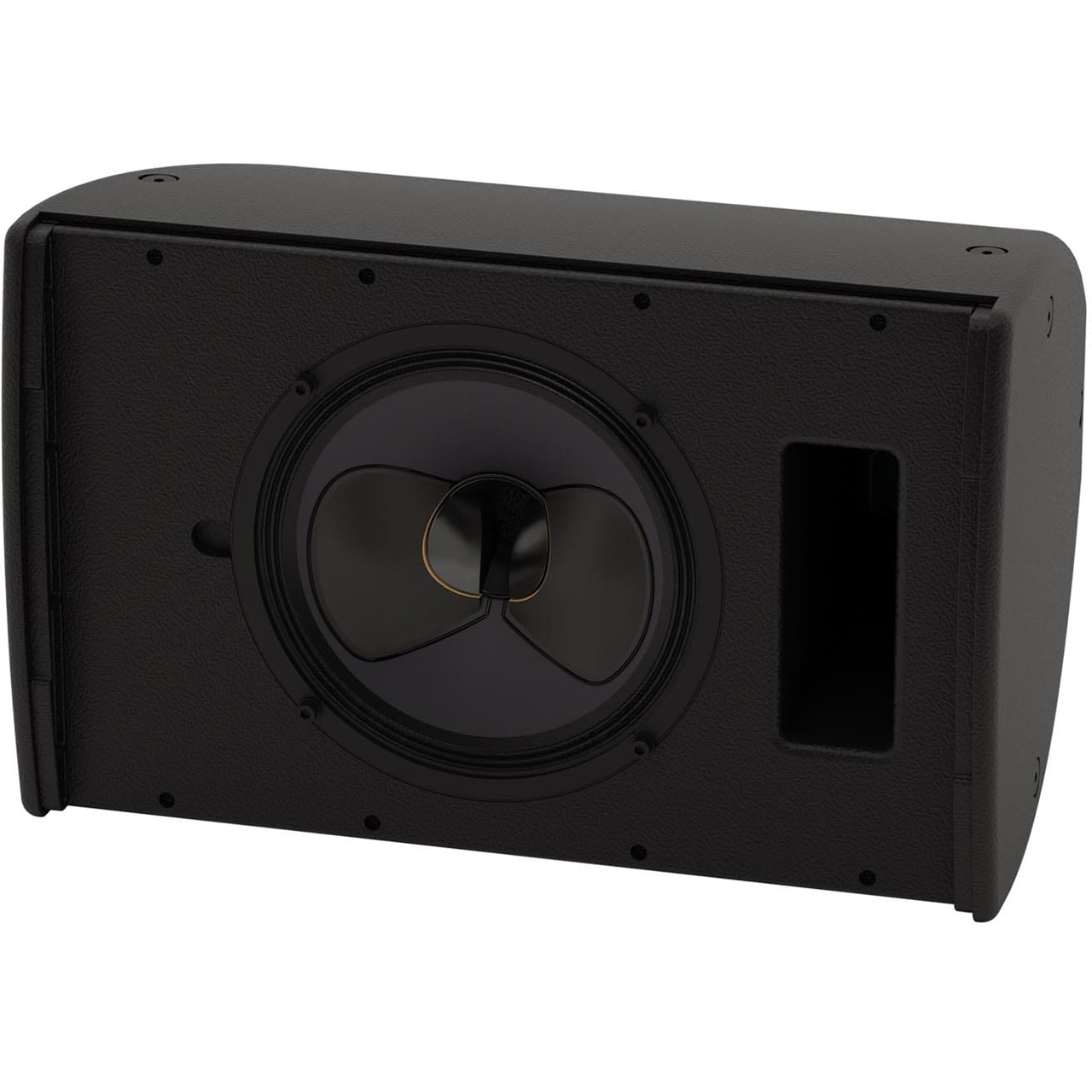

Featuring a 10" (250mm) LF drivers and a 1" (25mm) exit compression driver on an 80° x 50° rotatable horn, it is ideal for small to mid-size indoor venues requiring class-leading sound from a compact enclosure. The LF driver has a 2.5" (65mm) voice coil and powerful magnet system for the tightest bass response, while the HF compression driver utilises a 1.75" (44mm) polyimide diaphragm for extended high-frequency response without distortion.
The Coaxial Differential Dispersion technology employed in the CDD10 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns. It enables relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves 'point source' summation of the LF and HF sections - eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape - maintaining the dispersion pattern out to very high frequencies.
Applications
- Live music clubs and bars
- Nightclubs
- Bars and restaurants
- Museums and AV spaces
- Convention centres
- Hotels
- Retail outlets
- Leisure centres
- Houses of Worship
