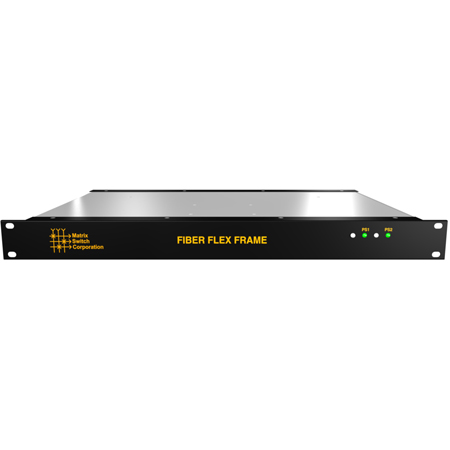

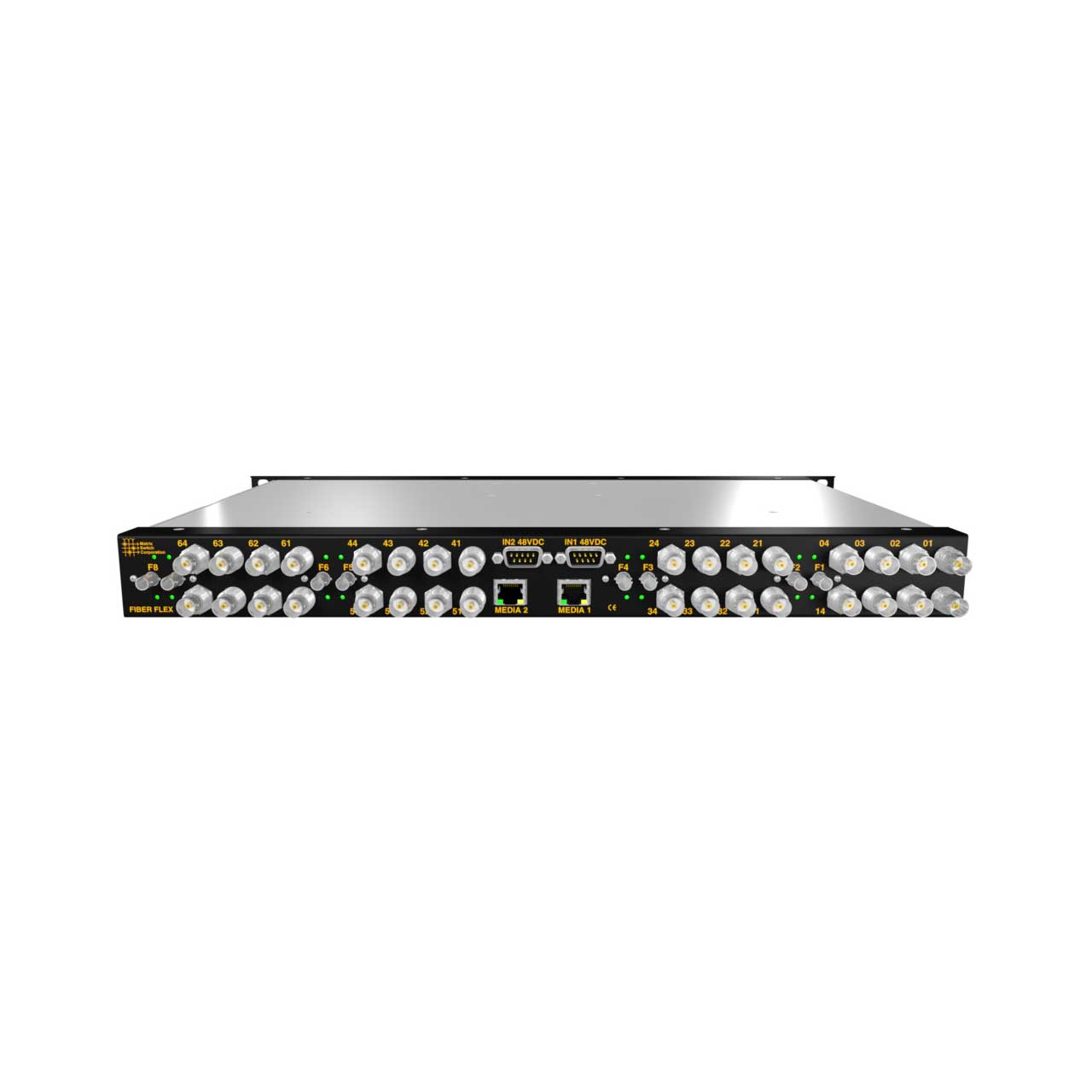

Matrix Switch MSC-FLEX-1RU Fiber Flex Frame with Power Supply - 1RU


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    MSC-FLEX-1RU - Overview

    The Matrix Switch MSC-FLEX-1RU Flex Frame can include two complete 12G 16 wavelength systems, plus Gigabit Ethernet or up to eight 48G links. It re-clocks standard UHD, HD and SDI rates of 12GBPS (11.88GBPS), 3G (2.97 Gbit/s), HD (1.485 Gbit/s), and SD (270 Mbit/s). The frame includes a redundant 48VDC 96VA external DC power supply.

    Fiber transmission is the perfect solution to send 3G and 12G SDI video signals when distances exceed practical coaxial/copper applications. Multiple SDI signals can flow over single fiber (and in both directions at the same time), while providing signal security from EMI or malicious interference, etc.

    The Matrix Switch Corporation Fiber Flex frame can be configured in thousands of different ways using their single and four channel conversion modules. Fiber Flex connects to other Fiber Flex frames and Matrix Switch modular routers with plug in fiber interface modules, in addition to their expanding family of Desktop Fiber Conversion boxes.

    For example, a single 1RU Fiber Flex Frame can support two complete sixteen path 12G SDI signals plus gigabit Ethernet over the same fiber. Or, eight 12G four channel to or from a 10Km fiber.

    Please Note: Matrix Switch Corporation's 1RU Fiber Flex Frame and modules are not sold as individual products, and must be configured as a complete system.

    • Features:

      • Re-clocks standard UHD, HD and SDI rates 12GBPS (11.88GBPS), 3G (2.97 GBit/s), HD (1.485 GBit/s), and SD (270 MBit/s)
      • Auto bypass of non-standard rates from 20 MBit/s to 12 GBit/s
      • Passes SDI embedded audio and ancillary data
      • Rugged 1RU All Steel Enclosure
      • Includes redundant 48VDC 96VA external DC power supply
      • Complies with all relevant FCC, U/L, CE, and RoHS requirements
      • Backed by a full 2 year manufacturer parts and labor warranty
      • Made in the USA
    • Specifications:

      • Inputs: 32
      • Outputs: 8
      • Enclosure Type: 1RU
      • Size: 19 x 1.75 x 15"
      • Weight: 12.0 lbs
      • Power: 48VDC 2A
      • Power Connector: D9
      • Power Usage: 80.0
      • Panel Type: Status
      • Operating Temp.: 0 - 158°F (0 - 70°C)
      • Storage Temp.: 14 - 130°F (-10 - 90°C)
      • MTBF: 50,000+ Hours
      • MTTR: < 48 Hours
    • Item Includes:

      • 1x Flex 1RU Fiber Flex Frame
      • 1x Redundant 48VDC 96VA Power Supply

        The Fiber Flex Frame uses the same Matrix Switch Corporation single and four channel conversion modules that are used in their family of desktop converters, which must be factory-configured when purchased. Call us to configure your Fiber Flex system today using any combination of these available modules (sold separately):

        MSC-FLEX-1 1RU Fiber Flex Frame with PS
      • MSC-FLEX-CWDM18 Desktop Flex Frame with PSs
      • MSC-FLEX-MEDIA-CONV Gigabit Ethernet CWDM Channels 1590nm / 1610nm Converter
      • MSC-FLEX-MICRO Desktop Flex Frame with Power Supply
      • MSC-FLEX-MINI Desktop Flex Frame with Power Supply
      • MSC-FLEXRX-BNC4-SFP4 3G Flex Module 4 BNC to 4 CWDM Converter Module
      • MSC-FLEXTX-SFP4-BNC4 3G Flex Module 4 CWDM Converter Module to 4 BNC
      • MSC-FLEXURX-BNC4-QSFP1 12G Flex Module - Quad BNC to Fiber - Includes QSFP Plug In
      • MSC-FLEXURX-BNC4-SFP4 12G Flex Module - 4 BNC to 4 CWDM Converter Module
      • MSC-FLEXUTX-QSFP1-BNC4 12G Flex Module Fiber to 4 Output BNC - Includes QSFP Plug In
      • MSC-FLEXUTX-SFP4-BNC4 12G Flex Module 4 BNC to 4 CWDM Converter Module
    • Warranty:

      • 2 Year
