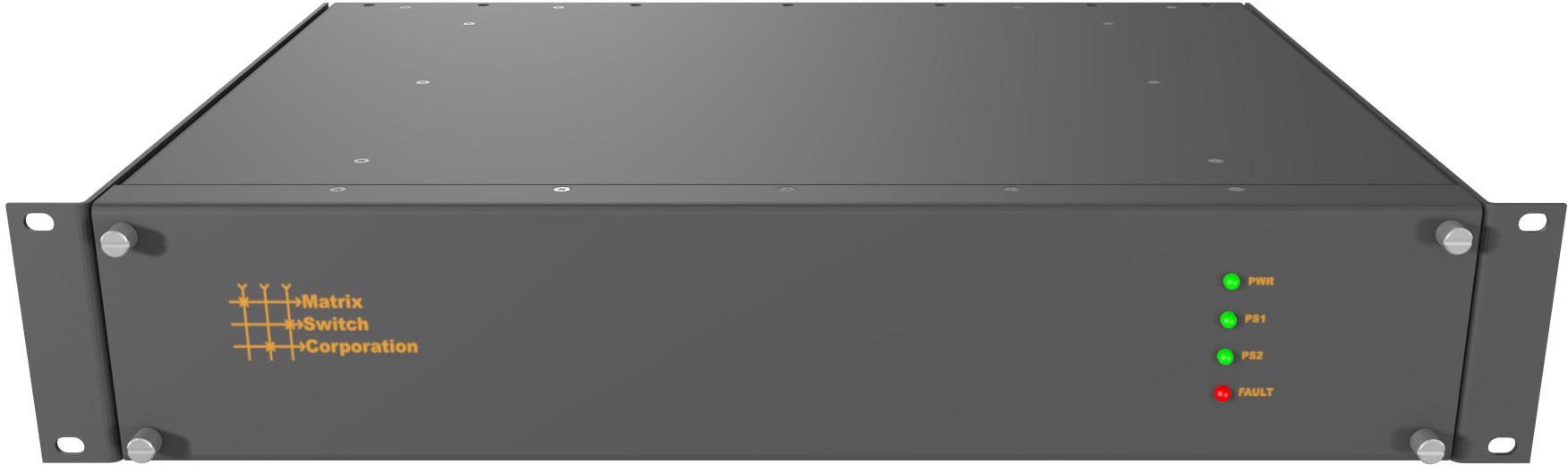

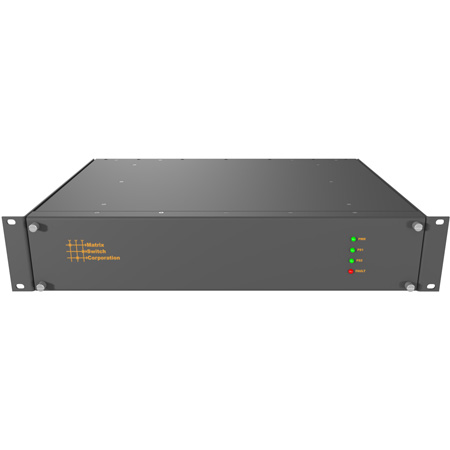

Matrix Switch MSC-VMF448X16 448 Input 16 Output Multi-frame Composite Analog Video Router
Questions? Ask a Markertek Expert:
800-522-2025 Email

Matrix Switch MSC-VMF448X16 448 Input 16 Output Multi-frame Composite Analog Video Router

Item #: MSC-VMF448X16   •   MFG #: MSC-VMF448X16


List Price:$52,200.00
Our Price:$45,936.00

free ship


Direct Ship from manufacturer, contact us for availability
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

    California Residents:
    Cancer and Reproductive Harm -

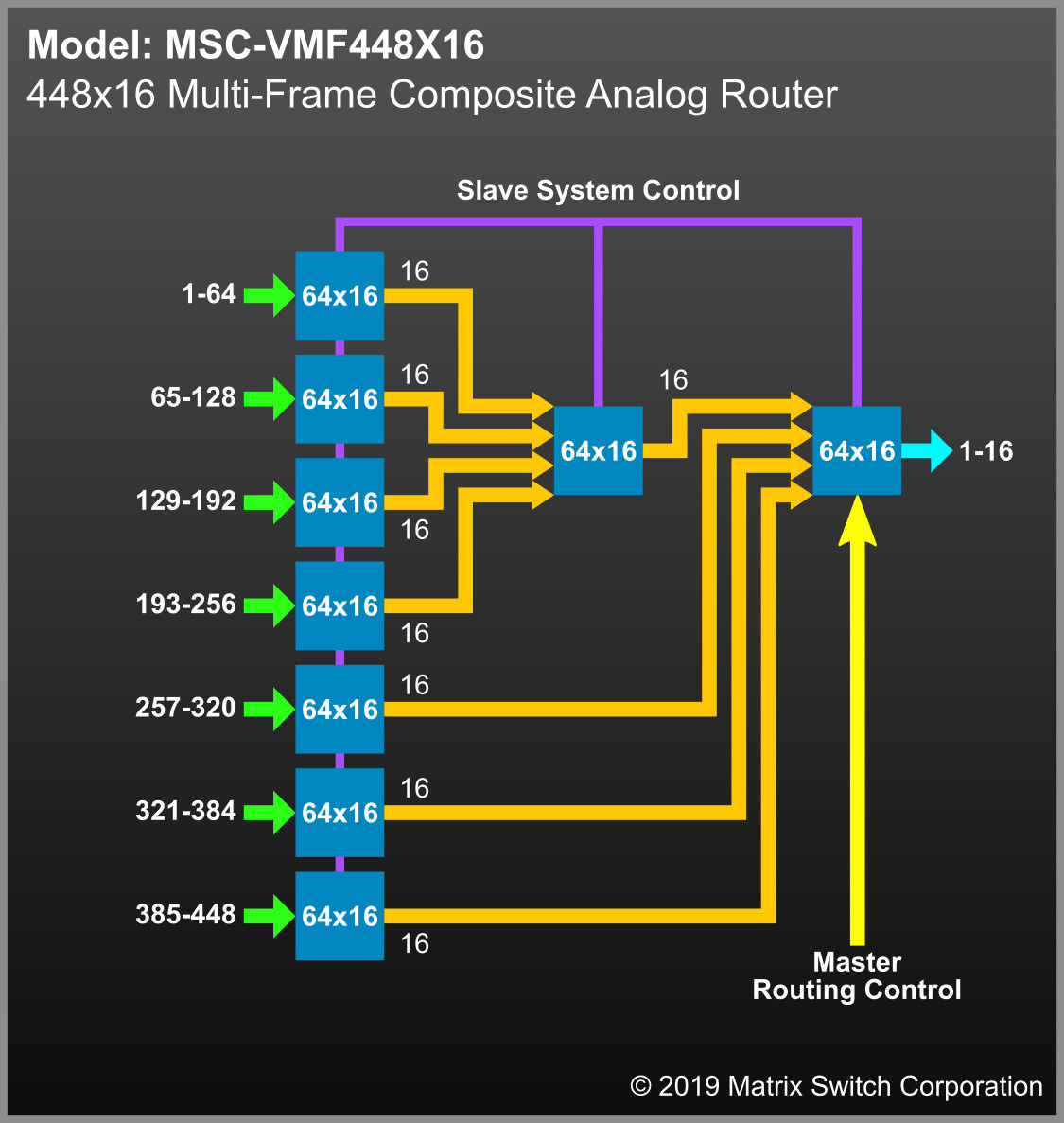

    Matrix Switch MSC-VMF448X16 multi-frame composite analog video router solutions combine multiple individual video routers to create a single larger routing system with increased input capability. These solutions consist of analog video interconnect cables which are included at no additional cost. The routing is controlled through a single master video router, which coordinates control of the other routers over a shared Ethernet network. As with our other video routers, routing control can utilize one of the many available control interfaces, including: built in web page interface, separate remote LCD control panels, and our easy to use Mascot protocol or some 3rd party protocols over TCP/IP, RS-232, or RS-485.

    The MSC-VMF448X16 analog video router solution offers 448 inputs and 16 outputs.

    Made in USA

    • Features

      • Additional audio level can be connected to DB25 connector with break away from video support
      • Inputs can be switched to multiple outputs without restriction
      • Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
      • Store and recall up to 10 preset salvos
      • Supports Matrix Switch Corporation Remote Panels
      • Ethernet port for control via built in web page interface or TCP/IP ports
      • Interactive web page interface (Interactive Demo)
      • Serial control via RS-232 port
      • RS-485 port for an additional high speed long distance capable control interface
      • Support for some common 3rd party protocols for added integration flexibility
      • Auxiliary port for external status and control signaling
      • Real Time Operating System (RTOS) with 32 bit ARM processor
      • System software updates from webpage interface
      • External DC power supply
      • Redundant power supply included
      • Complies with all relevant FCC, U/L, CE, and RoHS requirements
      • Backed by a full 2 year manufacturer parts and labor warranty
    • Specifications

      • General
      • Inputs: 448
      • Outputs: 16
      • Enclosure Type: 18RU
      • Size: 19" x 3.50" x 11"
      • Weight: 10.80 lbs
      • Power: 12 VDC 5A Adapters
      • Power Connector: D9 Male
      • Ethernet: 10/100 Base-T Auto MDIX
      • Made in: USA
      • MTBF: 50,000+ Hours
      • MTTR: < 48 Hours

        Composite Video
      • Connector Type: BNC
      • Input/Output Impedance: 75 Ohms
      • Nominal Input/Output Level: 1V P-P
      • Maximum Input/Output Level: +/- 2V P-P
      • Input Return Loss: < 40dB at 5MHz typical
      • Output Return Loss: < 35dB at 5MHz typical
      • Overall Gain Unity: +/-1% into a 75 ohm termination
      • Frequency Response: +/- 0.1dB to 5MHz +0 -3dB to 60MHz
      • Crosstalk: > 60dB at 5MHz all hostile
      • Differential Phase: < 0.2 degrees at 3.58MHz @ 4.43MHz
      • Differential Gain: < 0.2% at 3.58MHz @ 4.43MHz
      • S/N Ratio: > 75dB 0 to 10MHz

        Reference Sync
      • Connector Type: Analog BNC with pass-through
      • Format: Tri-Level Sync and NTSC/PAL Black Burst
    • Item Includes

      • 1xMatrix Switch MSC-VMF448X16 448 Input 16 Output Multi-frame Composite Analog Video Router
      • 1x Redundant power supply
    • Warranty

      • 2 year manufacturer parts and labor warranty
