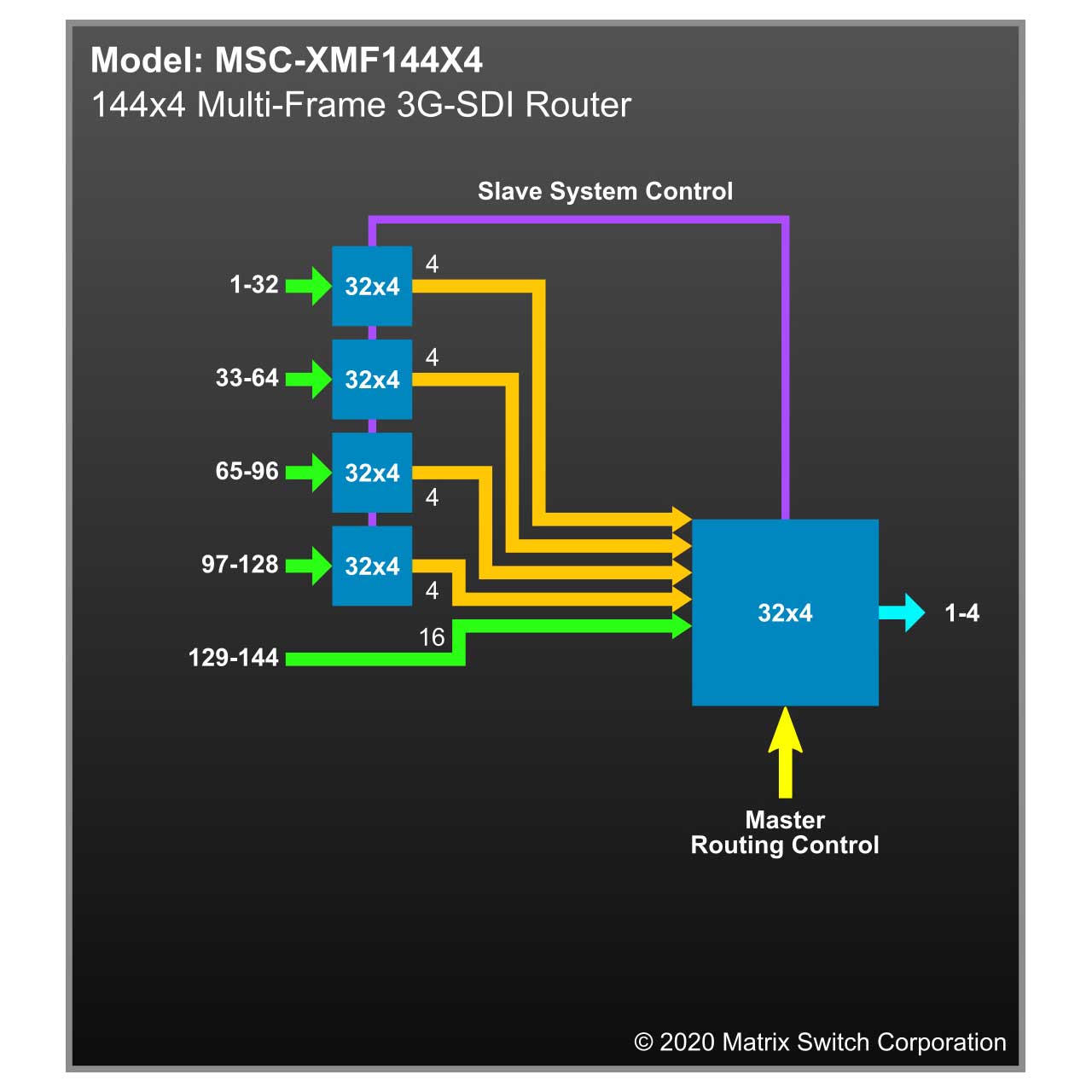

Matrix Switch MSC-XMF144X4 144 Input 4 Output Multi-frame 3G-SDI Router

MSC-XMF144X4 - Overview

• Features:

  • Re-clocks standard SDI rates 3G (2.97 Gbit/s), HD (1.485 Gbit/s), and SD (270 Mbit/s)
  • Auto bypass of non-standard SDI rates from 20 Mbit/s to 3 Gbit/s
  • Passes SDI embedded audio and ancillary data
  • Different SDI rates can be used on different inputs interchangeably and without restriction
  • Inputs can be switched to multiple outputs without restriction
  • Outputs can be individually muted
  • Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
  • Store and recall up to 10 preset salvos
  • Supports Matrix Switch Corporation Remote Panels
  • Ethernet port for control via built in web page interface or TCP/IP ports
  • Interactive web page interface
  • Serial control via RS-232 port
  • RS-485 port for an additional high speed long distance capable control interface
  • Support for some common 3rd party protocols for added integration flexibility
  • Real Time Operating System (RTOS) with 32 bit ARM processor
  • System software updates from webpage interface
  • External DC power supply
  • Redundant power supply included
  • Complies with all relevant FCC, U/L, CE, and RoHS requirements


• Specifications:

  • General
  • Inputs: 144
  • Outputs: 4
  • Enclosure Type: 5RU
  • Size: 19" x 1.75" x 3"
  • Weight: 20.0 lbs
  • Power: 7.5 VDC 2A Adapters (6-18 VDC)
  • Power Connector: 5.5mm OD 2.1mm ID twist locking coaxial
  • Ethernet: 10/100 Base-T Auto MDIX
  • Made in: USA
  • Operating Temp.: 0 - 70C
  • Storage Temp.: -10 - 90C
  • MTBF: 50,000+ Hours
  • MTTR: < 48 Hours

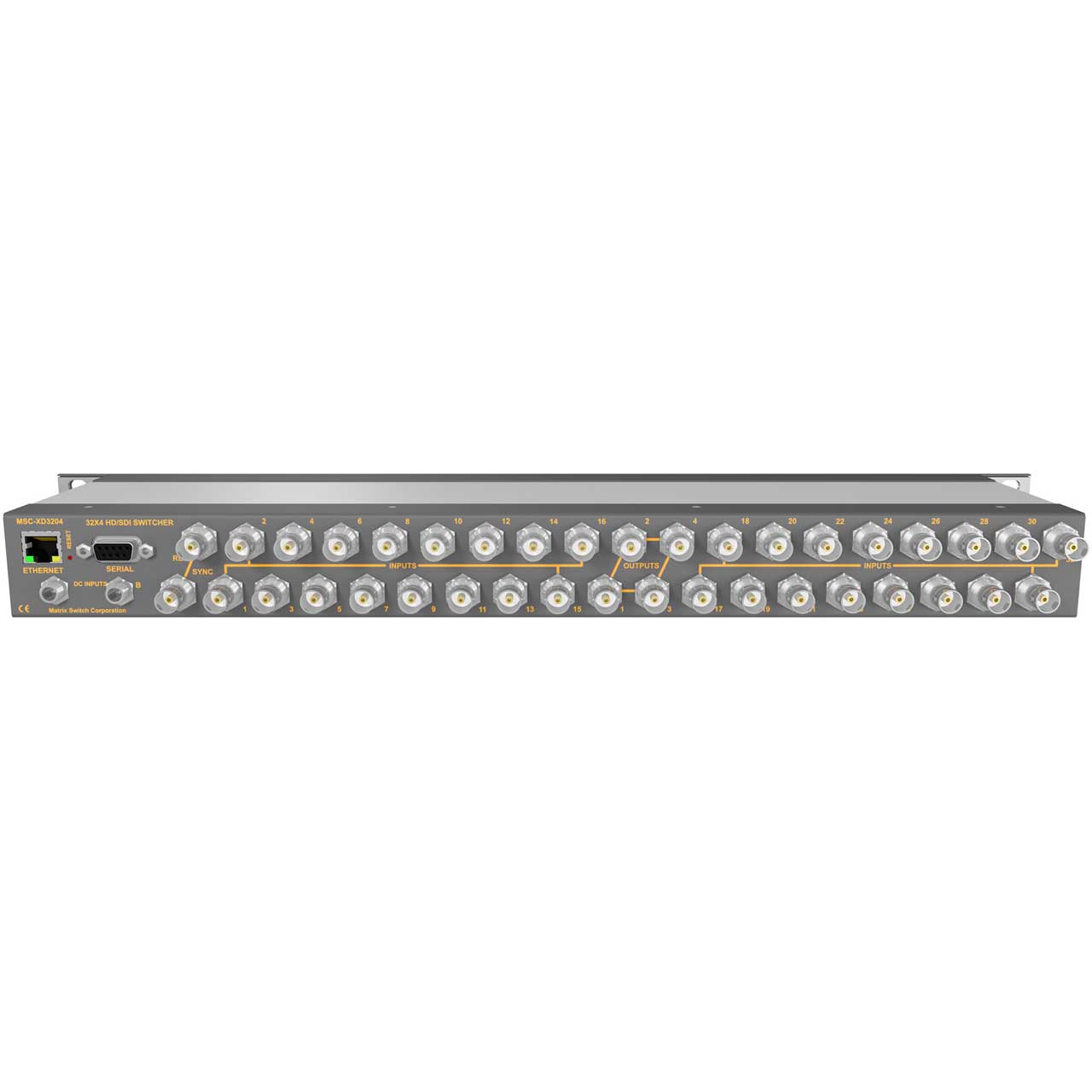

    SDI Inputs
  • Connector Type: BNC
  • Data Rates: 19 Mbit/s through 3.0 Gbit/s
  • Input Return Loss: > 15dB @ HD, > 12dB @ 3G
  • Input Impedance: 75 Ohms +/- 1%
  • Input Level: 800 mV P-P +/- 20%
  • Cable Equalization: 400m @ SD, 140m @ HD, 120m @ 3G (1694A coax)

    SDI Outputs
  • Connector Type: BNC
  • Data Rates: 19 Mbit/s through 3.0 Gbit/s
  • Re-clocking Data Rates: 2.97 Gbit/s, 1.485 Gbit/s, 270 Mbit/s
  • Output Return Loss: > 15dB @ HD, > 12dB @ 3G
  • Output Impedance: 75 Ohms +/- 1%
  • Output Level: 800 mV P-P +/- 5%
  • Output Jitter: < 0.2 UI

    SDI Standards
  • SD Formats: 625i25 PAL and 525i29.97 NTSC
  • HD Formats: 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60
  • 3G Formats: 1080p50, 1080p59.94, 1080p60
  • 2K Formats: 2048 x 1556p23.98/24/25
  • Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
  • Video Sampling: 4:2:2 and 4:4:4
  • Audio Sampling: 24 bit @ 48 KHz
  • Color Precision: 4:2:2 and 4:4:4 10 bit
  • Color Space: YUV or RGB
  • Metadata Support: Ancillary data as defined by SMPTE 352M

    Reference Sync
  • Connector Type: Analog BNC with pass-through
  • Format: Tri-Level Sync and NTSC/PAL Black Burst


• Item Includes:

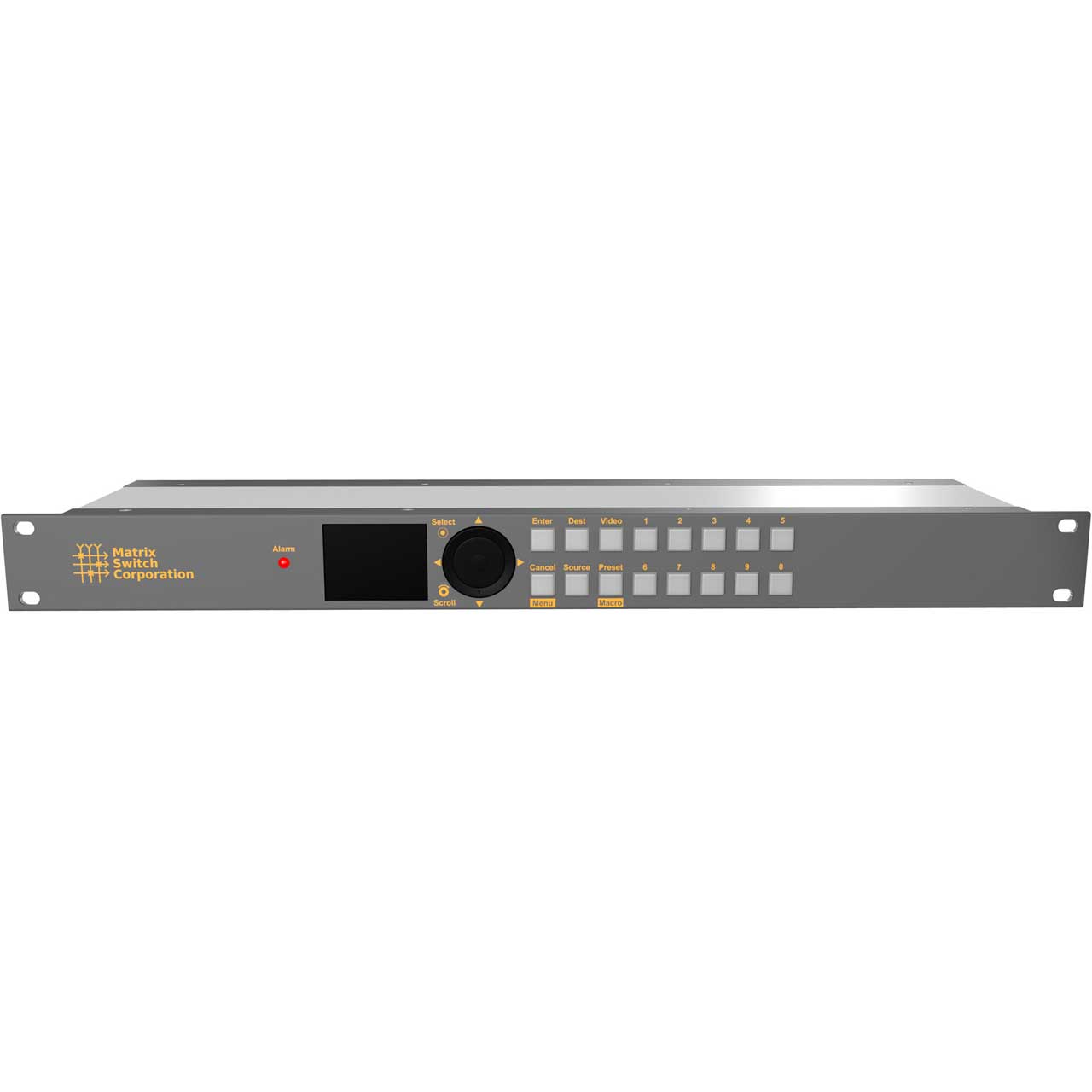

  • 1x 32 Input 4 Output 3G-SDI Video Router With LCD Button Panel

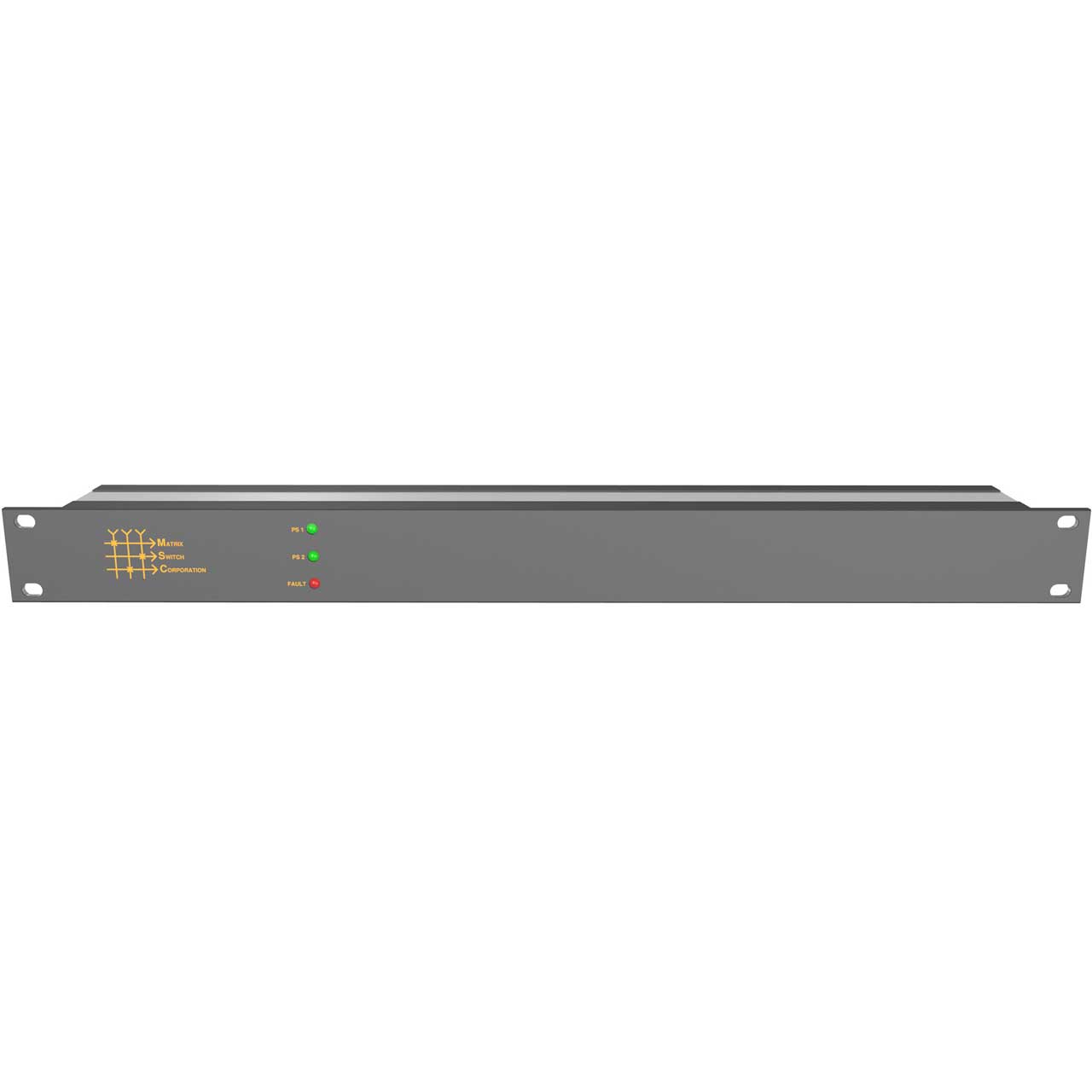

  • 4x 32 Input 4 Output 3G-SDI Video Router With Status Panel


• Warranty:

  • 2 year manufacturer parts and labor
