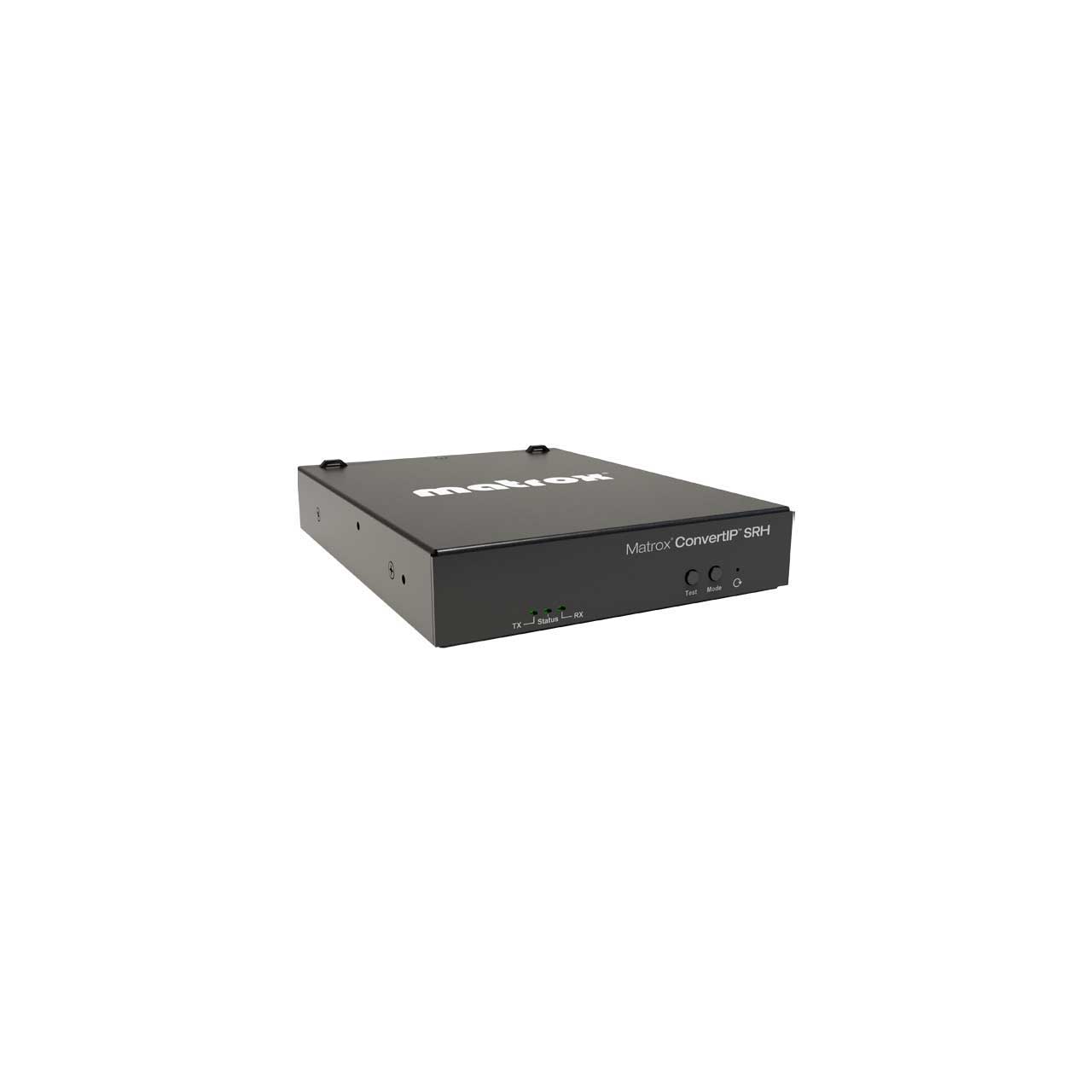

Matrox CONVERTIP SRH Single-Channel RJ45 HDMI-to-IP Converter

CIP-SRH - Overview

• Features:

  • HDMI I/O
  • 1G and 2.5G support over RJ45
  • Transmit or receive IP signals from a single device
  • Standardized Discovery and Routing - based on AMWA NMOS IS-04 and IS-05 specifications
  • Fanless design for quiet cooling
  • Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)
  • Compact form factor mounts easily to the back of a monitor
  • Web-based user interface for managing ConvertIP devices
  • Complimentary ConvertIP Manager Windows application for simple commission and deployment
  • IPMX ready
  • Colibri codec for visually lossless transmission of compressed of media over 1G network
  • Optional JPEG XS codec license for SMPTE ST 2110-22 support (up to 2 Gbps)
  • Glass-to-glass latencies of 1ms achievable


• Specifications:

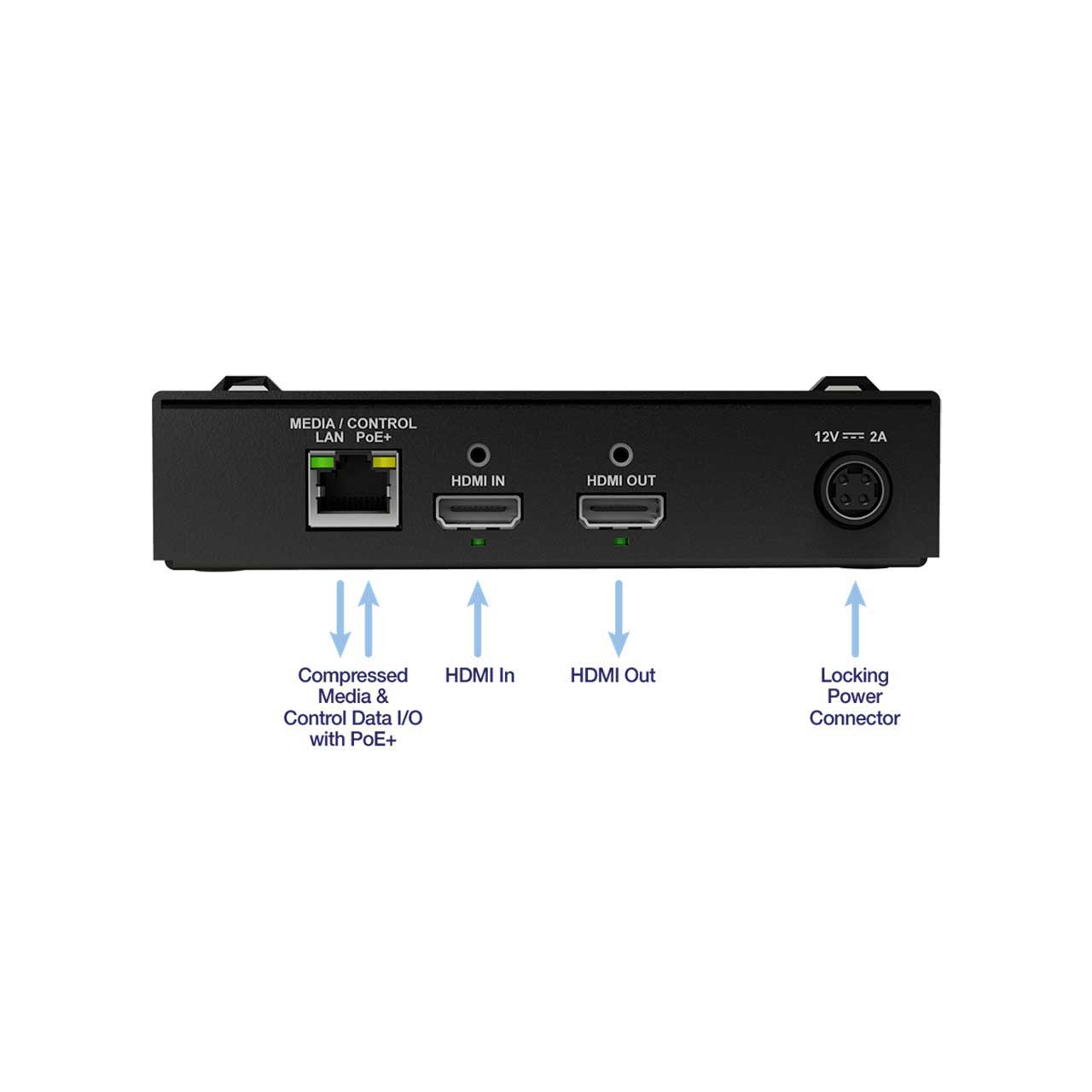

  • Connectivity
  • Video input: 1x HDMI
  • Video output: 1x HDMI
  • Video resolution: Most desktop resolutions up to 4Kp60
  • Audio input/output: Up to 8 channels of audio embedded in HDMI signal
  • Network connector: 1x RJ45 LAN port for Media and Control with PoE+ (1/2.5G)
  • RS-232: No
  • Control and management:
    - Matrox ConvertIP Command Center (web UI)
    - Matrox ConvertIP Manager (software application)

    Performance
  • Maximum video resolutions: 4096 x 2160 60p
  • Bit depth and color space:
    - YCbCr 4:2:0 10-bit1 and 8-bit1
    - YCbCr 4:2:2 10-bit
    - RBG 4:4:4 8-bit
    - SDR/HDR1

    Video and Audio Processing
  • Video scaling: High Quality multi-tap 10-bit Up/Down Scaler
  • Video deinterlacing: Yes
  • Color space conversion: Yes
  • HDCP support: Yes


  • Encoding Formats
  • Video Default compressed bitrates: 200 Mbps for HD content, 820 Mbps for 4K content
    - Colibri codec included 4:2:2 10-bit YUV and 4:4:4 8-bit RGB. 100 to 2000 Mbps
    - JPEG-XS codec upgrade required 4:2:2 10-bit YUV and 4:4:4 8-bit RGB. 100 to 2000 Mbps
  • Audio: Uncompressed PCM (~1 Mbps/ch)
  • Latency: Less than a 1/4 frame (<4 ms)

    Network
  • Network standard: RJ45 providing 1 GbE or 2.5 GbE Base-T Ethernet
  • IP addressing:
    - IPv4
    - IPv61
    - DHCP (default) and static IP
  • Supported protocols:
    - SMPTE ST 2110 (-10, -22, -30)
    - SMPTE 2059 (-1, -2)
    - IPMX ready
  • Redundancy: No
  • Command and control: HTTPS over TCP
  • Discovery, registration and control: NMOS discovery and control according to standards IS-04 v 1.2 and 1.3 and IS-05 1.0 and 1.1
  • PoE+: Yes (IEEE 802.3at Type 2)

    Physical
  • Product dimensions: 7.13 (D) x 5.5 (W) x 1.42 (H) inches (181 (D) x 138 (W) x 36 (H) mm)
  • Unit weight: 1.44 lbs / 655 g
  • Cooling: Fanless
  • Power:
    - Device: Input: 12 volts, max 18 Watts
    - PoE+
    - Optional PSU (sold separately)
    - Line Voltage: 100-240 V a.c., 0.5A
    - Frequency: 50-60 Hz
    - Input: IEC320-C14
    - Output: DIN4 locking power connector

    Hardware
  • Hardware included: ConvertIP SRH appliance
  • Optional hardware: ConductIP NMOS-based routing solution (Part #: CDCTIP-MRA)


• Warranty:

  • 3 Year Warranty
