Exceptional Remote Performance At Low Bitrate

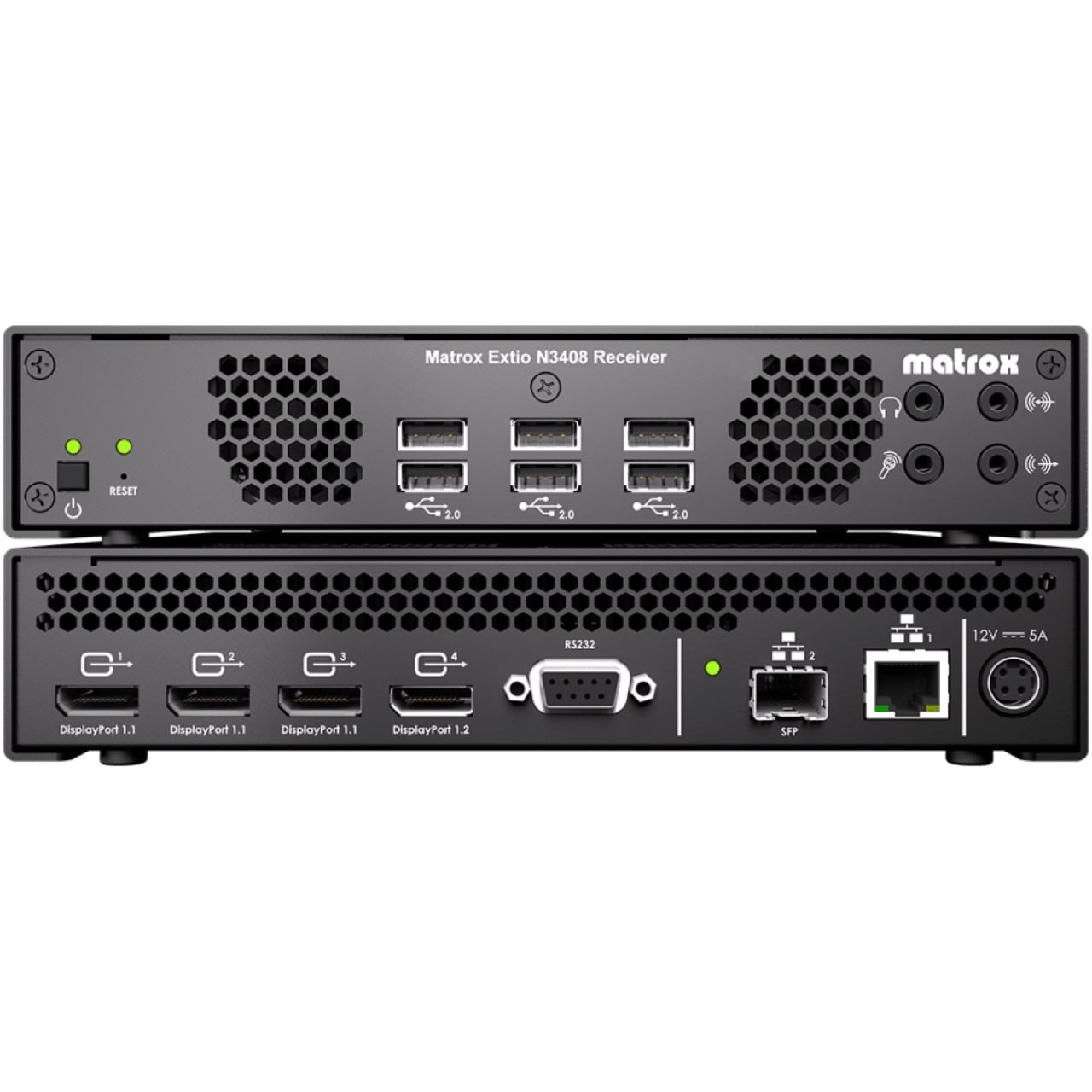

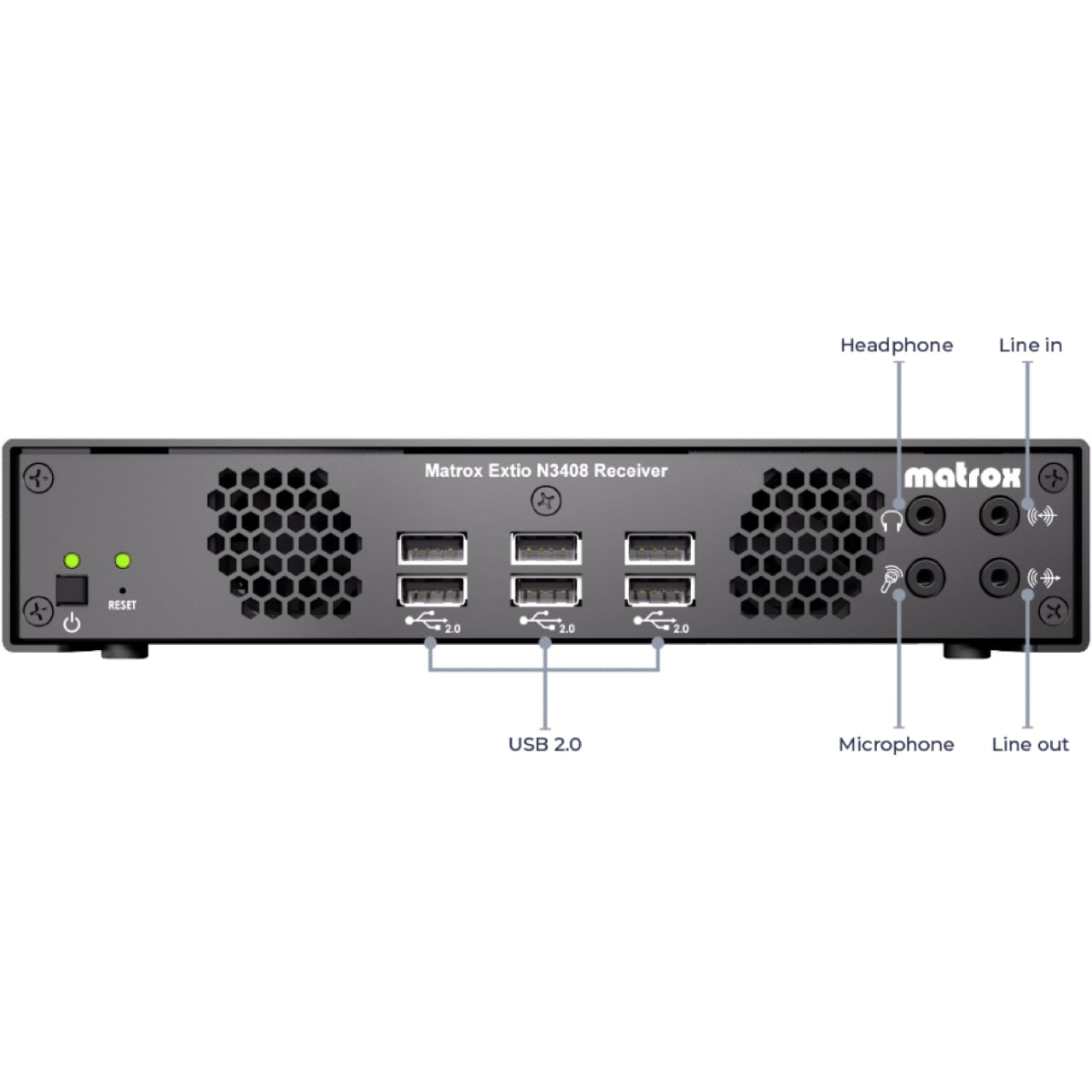

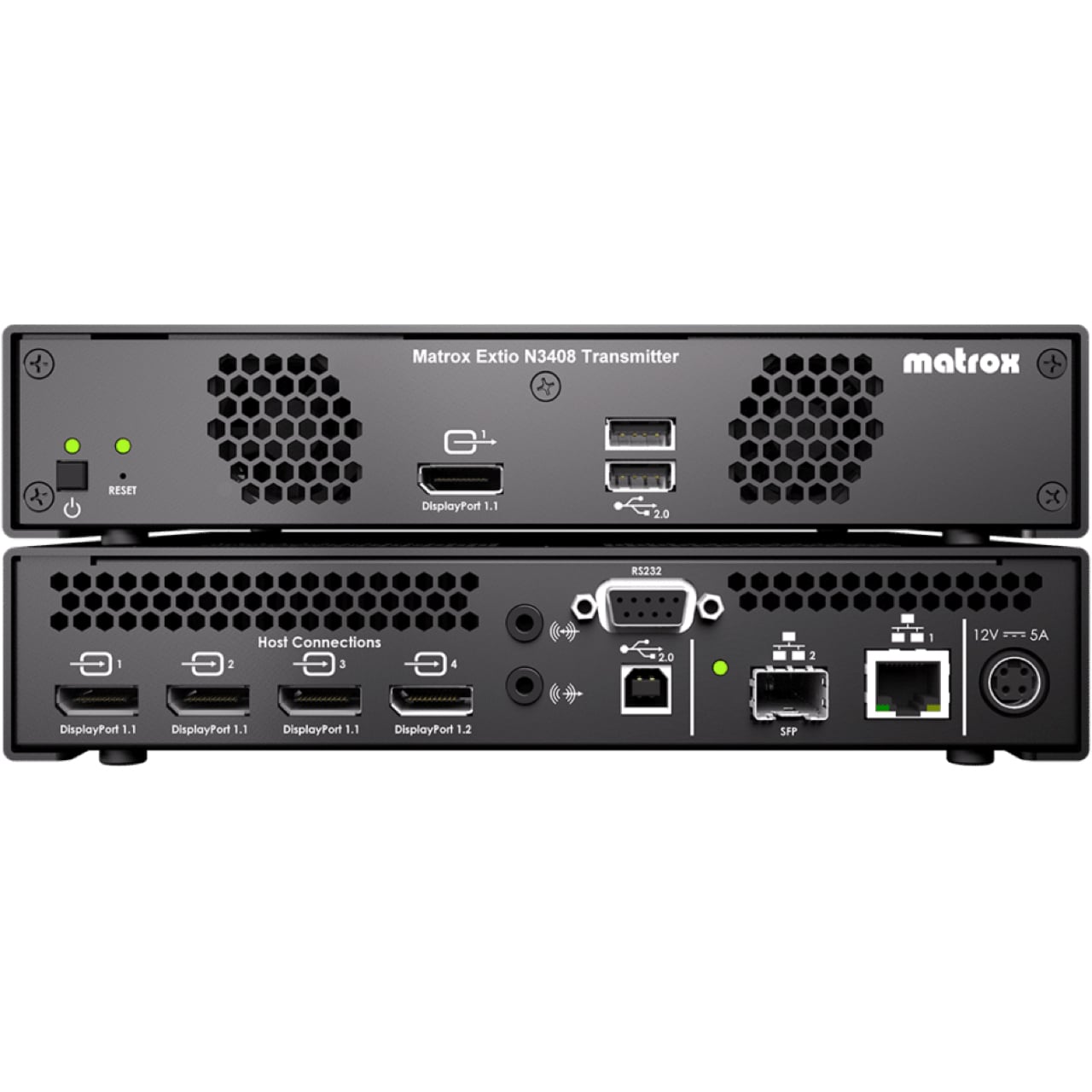

Matrox Extio N3408 can be configured as a point-to-point or networked KVM extender, delivering multiple video, keyboard, mouse, USB 2.0, and audio signals using a single fiber optic or copper cable. Ready compatibility with standard network switches significantly diminishes the total cost of ownership to deliver a scalable KVM matrix switching solution. Aggregated and seamless control of multiple systems from a remote display station with a single keyboard and mouse set leads to efficient operations and increased user productivity.

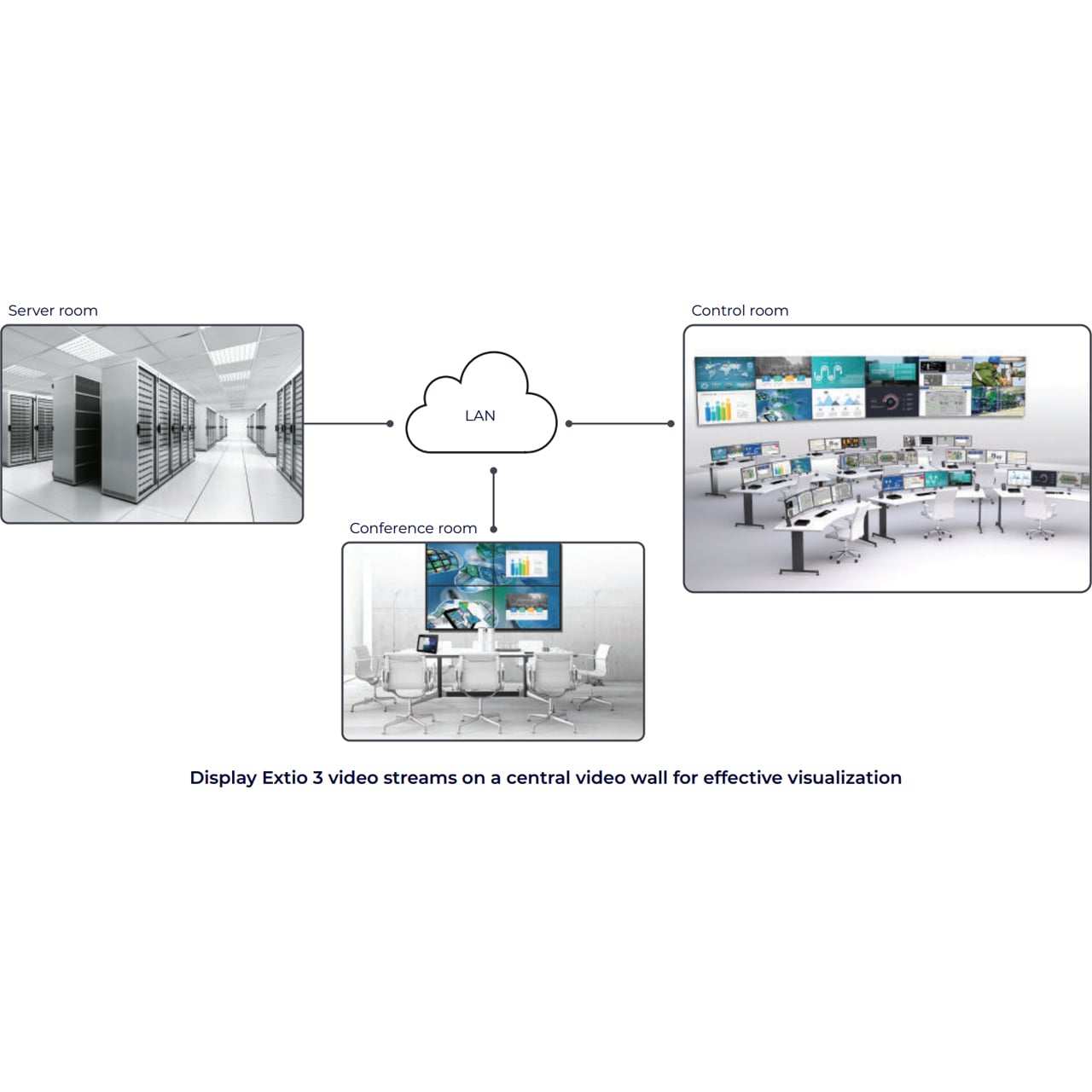

Matrox KVM extenders centralize hardware in a climate-controlled server room to increase security, protect systems against environmental hazards, and reduce system noise and heat emissions. The Matrox Extio 3 IP KVM extender grants seamless remote access to these secured systems, plus the added benefit of smart control over the IP network. This IP KVM extender is ideally suited for industrial automation and control, healthcare, transportation, military, defense, government, broadcasting, and post-production industries and applications.
Superior Performance

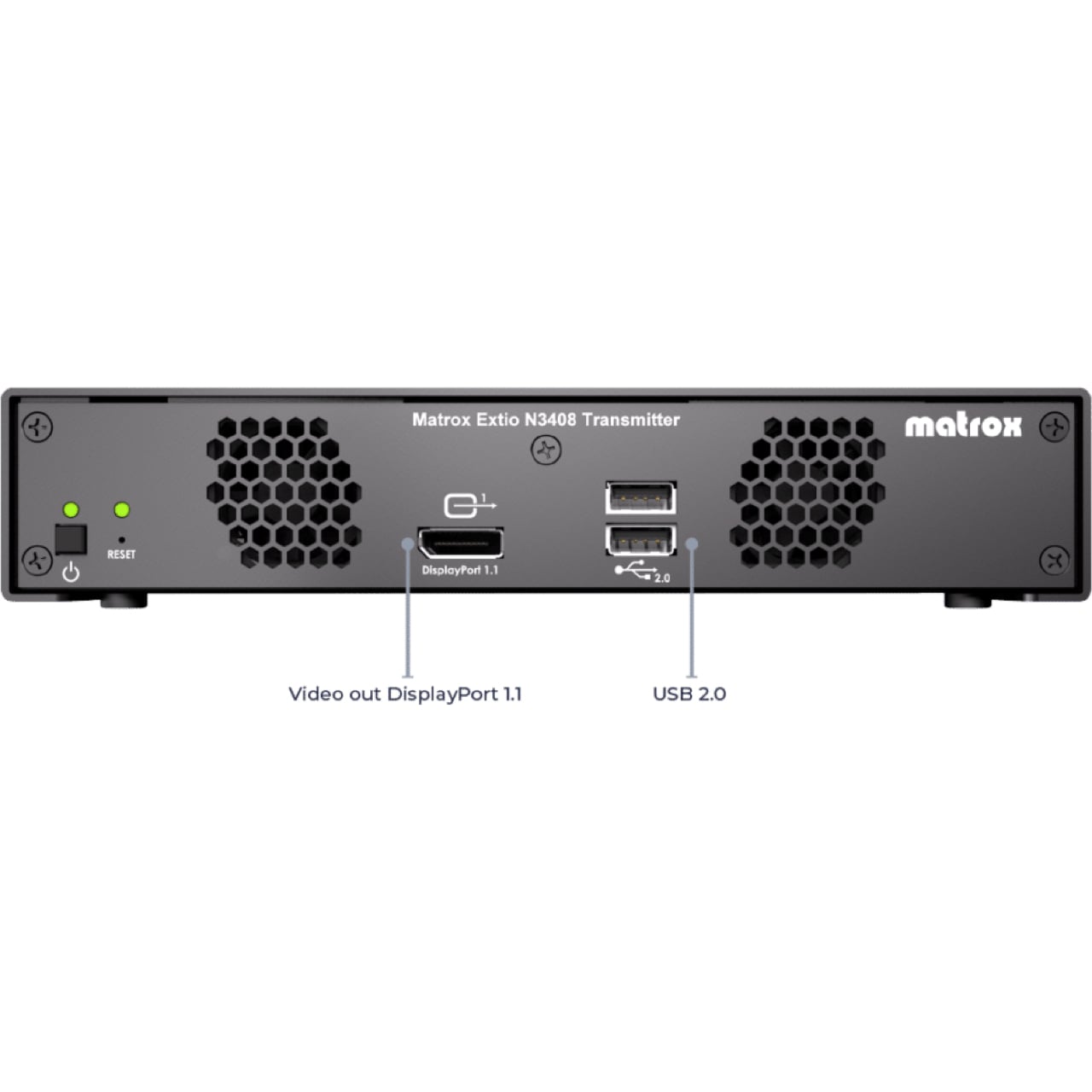

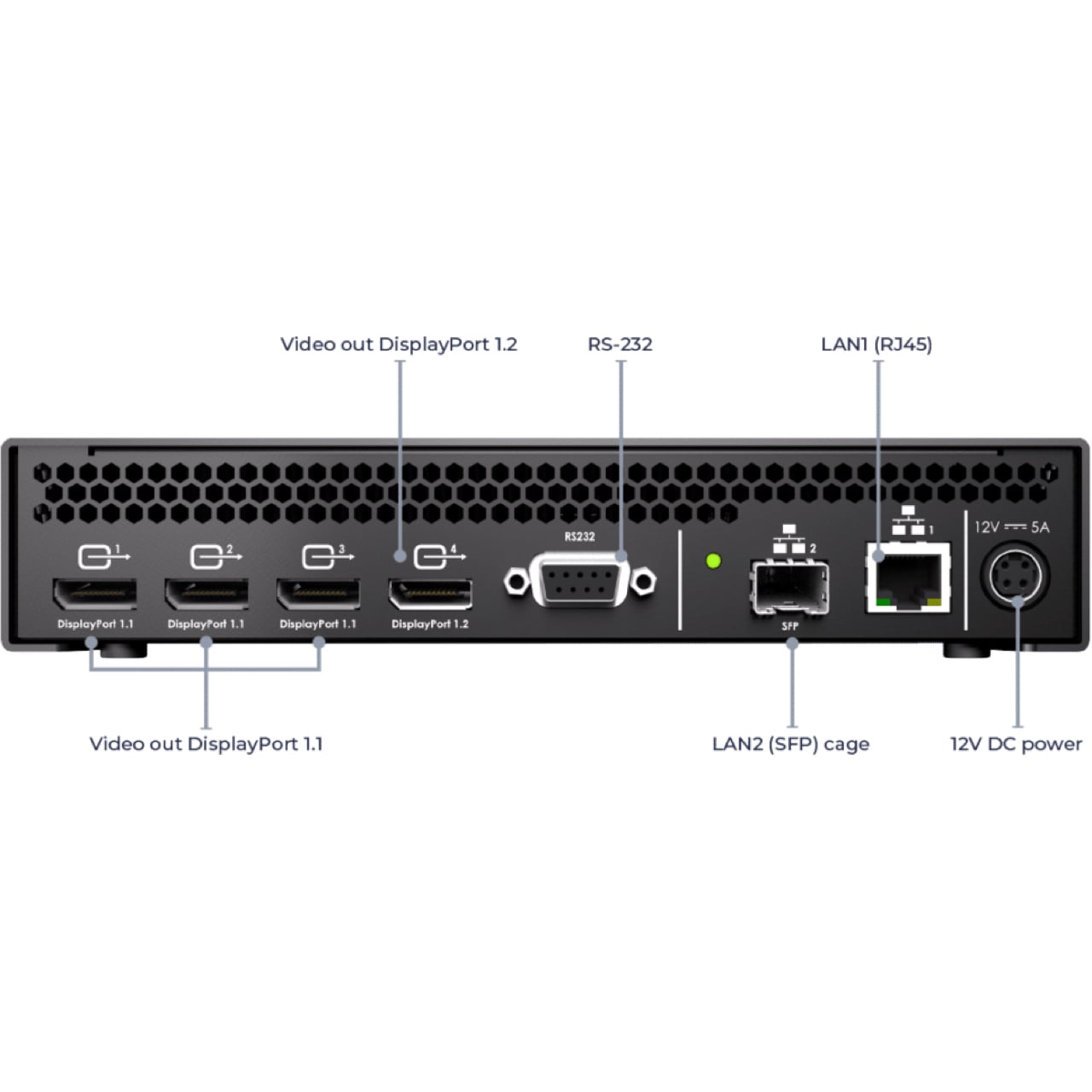

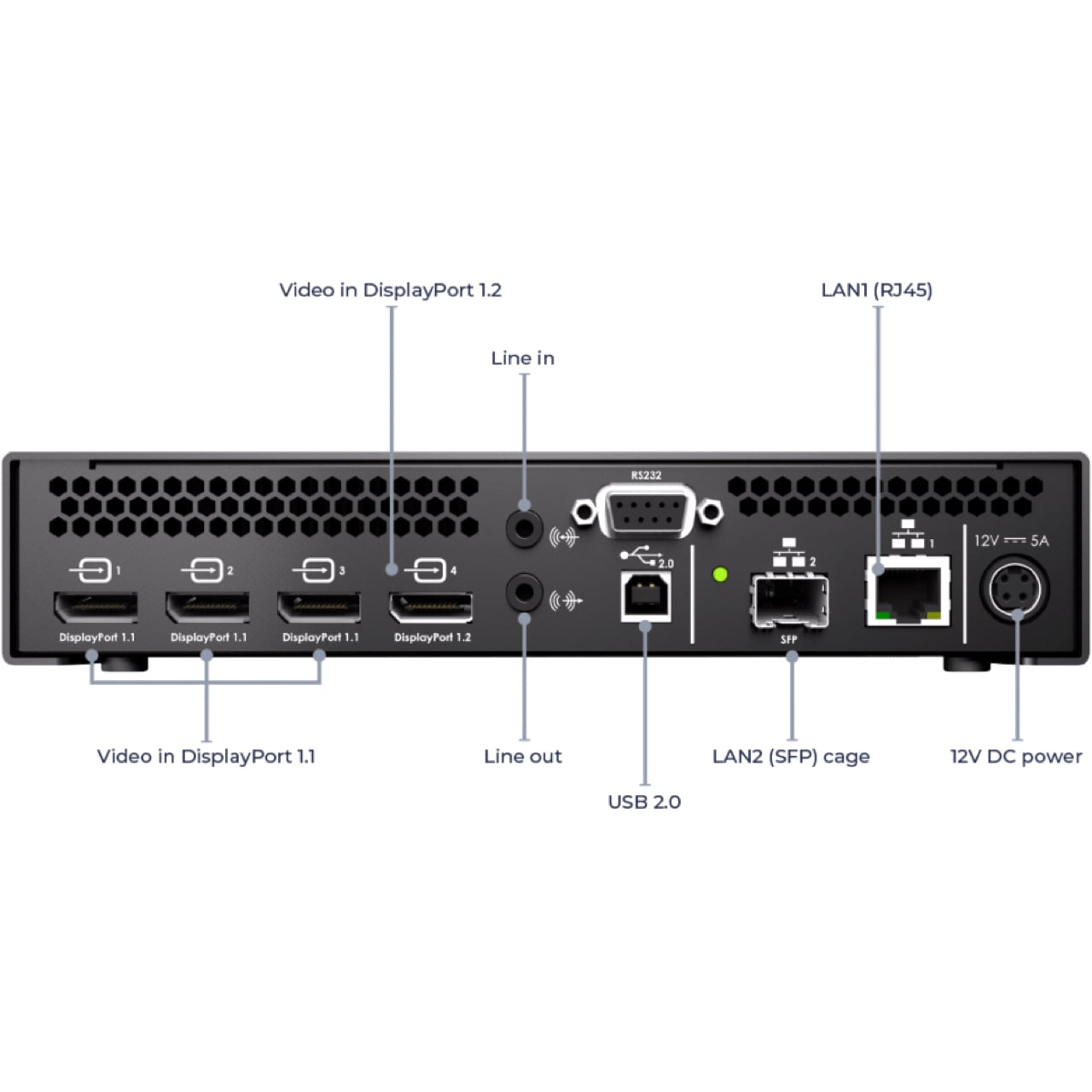

Extio N3408 is the world's first 4K60 4:4:4 IP KVM extender, providing support for ultra-high resolution applications (3840x2160 @60Hz) at unprecedented low bitrates. Featuring four DisplayPort™ connectors, Extio N3408 also extends multi-display desktops (for example 4x 1920x1080 @60Hz, 2x 3840x2160 @30Hz or 2x 2560x1600 @60Hz) with a single pair of transmitter and receiver devices. Extio 3's unique design delivers pristine image quality, smooth video playback, and excellent keyboard and mouse responsiveness at a distance.
Flexible Operation

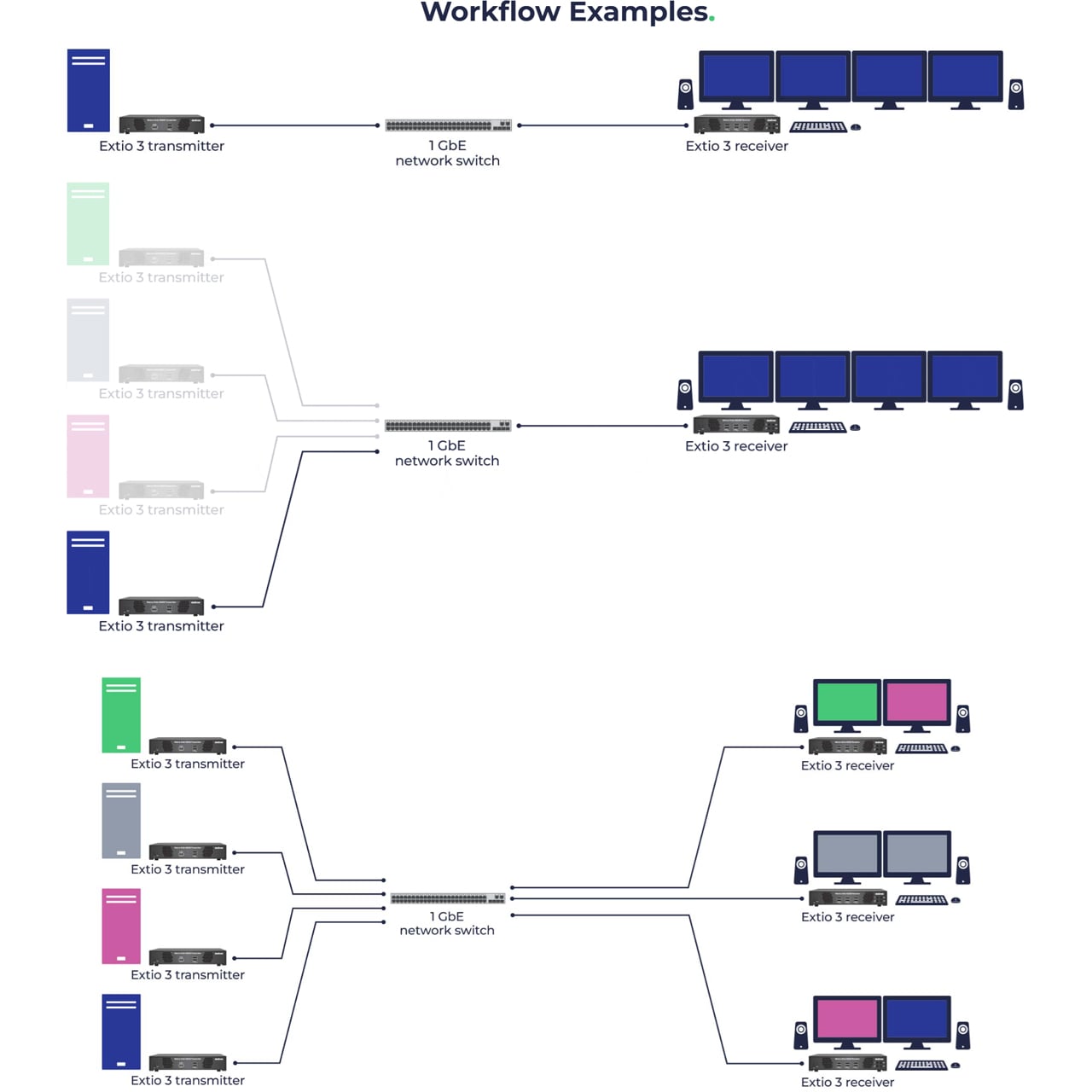

Matrox KVM extenders are designed to support evolving needs: whether deployed as point-to-point extenders or as IP KVM, these appliances offer the flexibility to adapt installations as demands change. Extio 3 extenders support one-to-one, many-to-one, one-to-many, or many-to-many configurations to drive connectivity needs. With the power to create flexible, scalable and secure KVM matrix-routing using standard network switches, the Extio 3 helps future proof investments; installations can be expanded with confidence and without costly upgrades.
Efficient Multi-System Control
With Aggregator Mode, you can view and operate multiple source computer systems from any Extio receiver unit located at a remote multi-display station, and control them with a single keyboard and mouse set. The 'Tile view' feature offers an even more efficient way to control multiple systems from a single remote workspace, by displaying up to four separate systems on one 4K monitor. By moving the mouse across a multi-screen desktop, control shifts seamlessly from one target source system to another.
Further Reach
Built on a highly optimized, ultra-low-bitrate encoding platform, Extio 3 enables KVM extension and switching applications over LAN, WAN, or Internet. The high-performance IP KVM extender allows users to readily access any system, located at home or in the workplace, for secure collaborative workflows between teams in different locations.
Ease of Integration
With Extio 3's industry-leading technology, users can leverage existing IT networking equipment and standard 1Gbit Ethernet infrastructure for seamless deployment and operations, extending up to four video signals using a single copper or fiber optic cable to reduce installation costs.
Smart Control
Extio Central Manager is an intuitive, easy-to-use software to remotely configure, manage, and monitor all Extio 3 units from a central location on the network. An on-screen display (OSD) on Extio 3 receiver appliances allow operators to conveniently preview all authorized computer desktops, readily identifiable via thumbnail previews, to instantly access and switch between multiple systems.
Applications:
• Industrial & power facilities
• Broadcast & TV control rooms
• Live events
