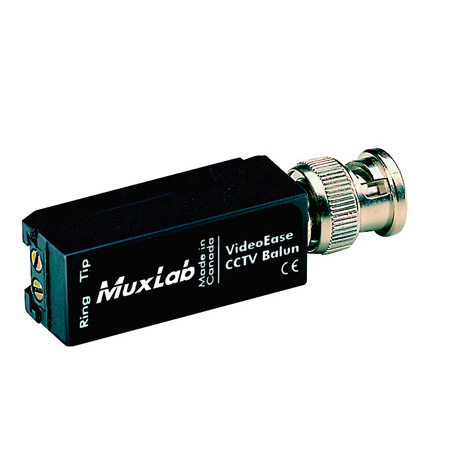

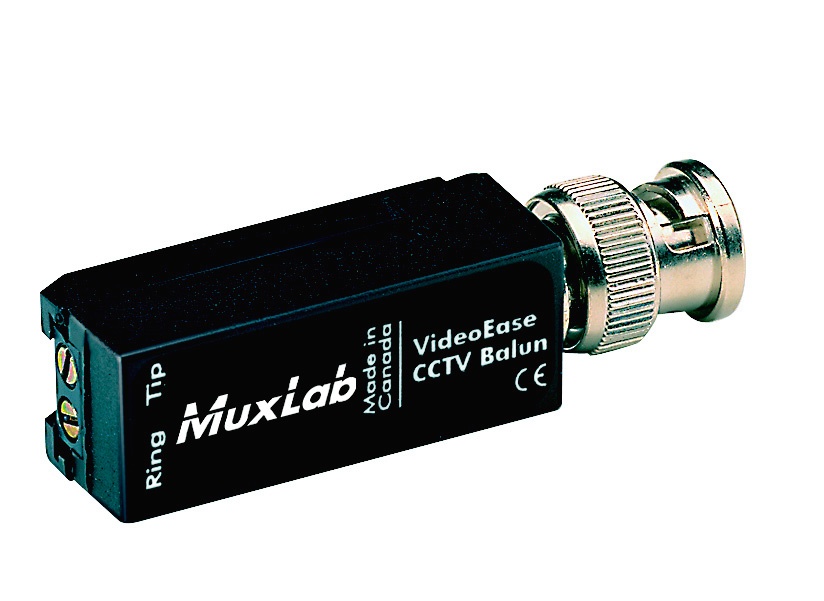

MuxLab 500009 VideoEase CCTV BNC to Screw Terminal Balun

ITEM #: MUX-500009 MFG #: 500009

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the MUX-500009

500009 - Overview

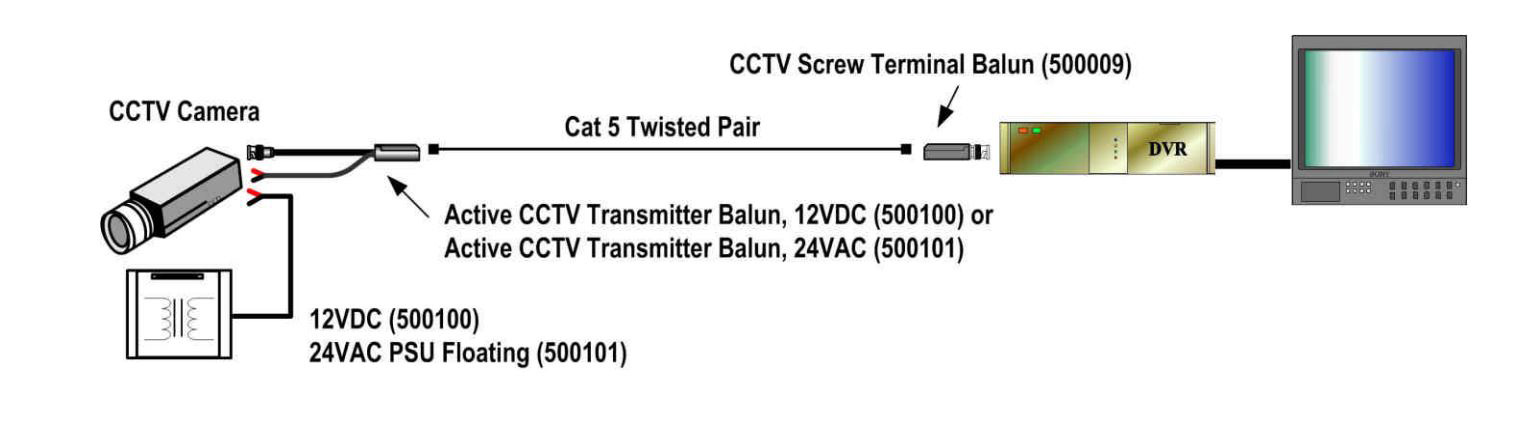

The VideoEase CCTV Screw Terminal Balun allows a single composite CCTV video signal to be transmitted via a single unshielded twisted pair (UTP) cable for more versatile security and surveillance cabling. Used in pairs, the CCTV Balun eliminates costly and bulky coax cable, allowing CCTV equipment to be connected via cost-effective twisted pair. The CCTV Balun may also be used in conjunction with MuxLab's CCTV-Audio/Video Hub(500200) for video distribution to multiple monitors.

  • Features:

    • Up to 2500 feet (760m) in B&W via Cat 5 twisted pair
    • Up to 2200 feet (670m) in color via Cat 5 twisted pair
    • Small enough to fit side-by-side on any video multiplexer
    • BNC coax to screw terminals
    • Polarity identification label
    • Cable strain relief
    • Weather resistant

  • Warranty:

    • 2 Year Warranty on all Active Products - lifetime Warranty on all Passive Products

  • GTIN:

    0627699000090
