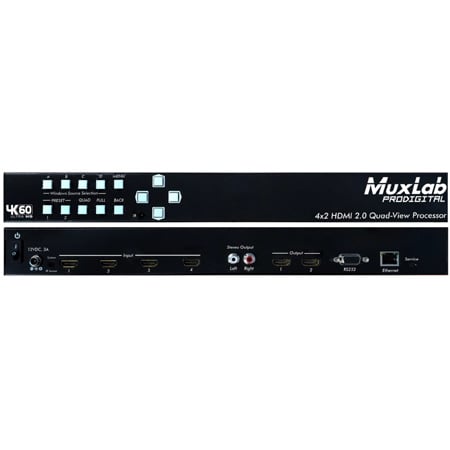

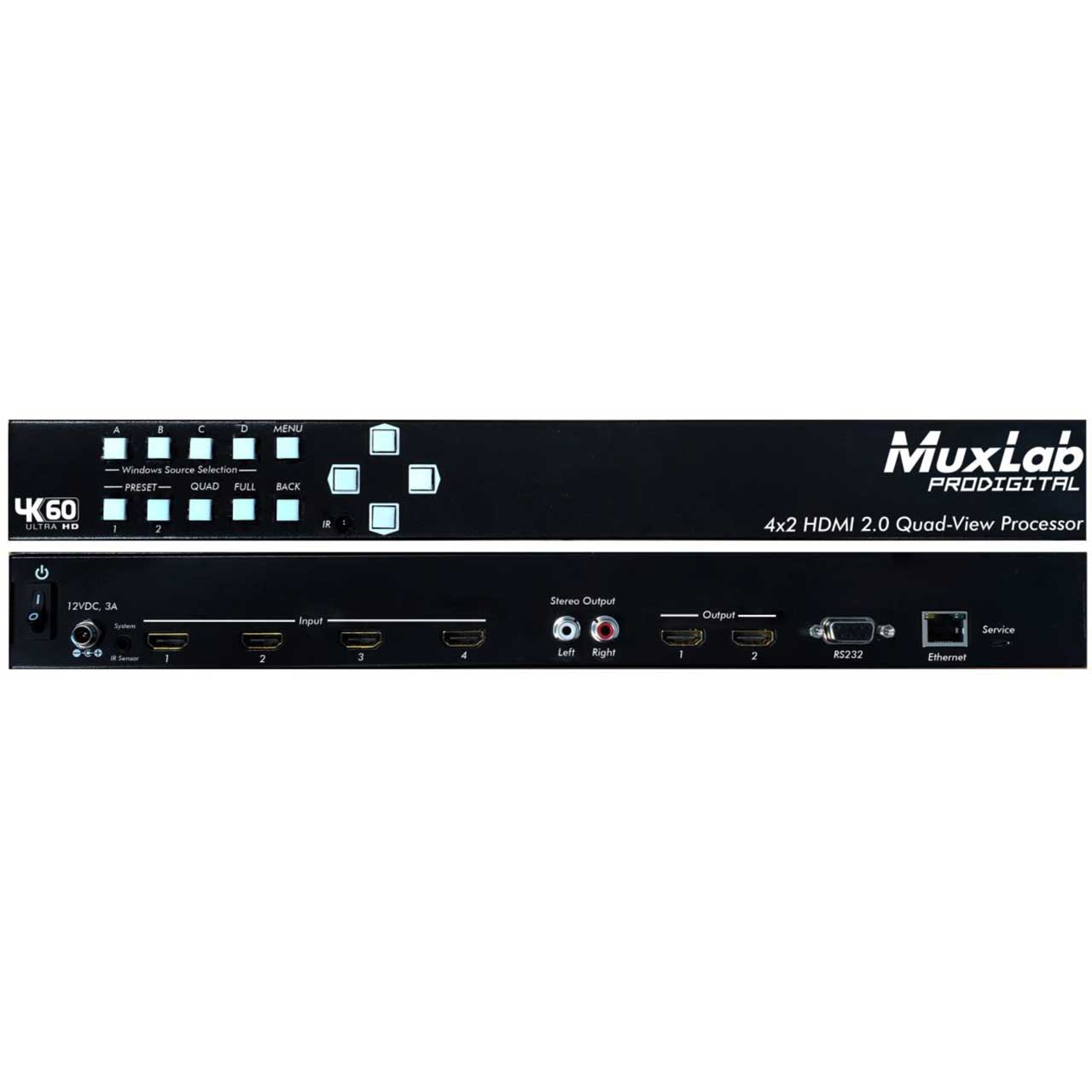

MuxLab 500446 4x2 HDMI 2.0 Quad-View Processor

ITEM #: MUX-500446-US MFG #: 500446-US

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,870.00

Our Price:

$2,296.00

Availability: In Stock
iAvailability Description Popup


    500446-US - Overview

    The MuxLab 500446-US 4x2 HDMI 2.0 Quad-View Processor allows up to four (4) HDMI 4K/60 sources to be simultaneously presented on one or two displays at 4K/60 as a multi-view arrangement. The user may select from one of five (5) default multi-view layout presets, or from eight (8) custom layout presets (resized and position as required with PIP support) in order to tailor their multi-view setup.

    The unit supports transitions including seamless, fade-in & fade-out, wipe, and dissolve when switching in full screen mode. Pass through of all audio formats is supported, including 2CH audio extraction via two RCA jacks. The user may provide a background and logo to be displayed.

    The unit may be managed locally via front panel push buttons or remotely via IR (IR Remote is included), RS232 and over an Ethernet network, and comes with rackmount brackets for a 19" rack, and a 12VDC @ 5A Power Supply.

    • Features:

      • 4 HDMI inputs and 2 HDMI outputs
      • Input resolution supports from 640x480 to 4096x2160@60Hz (4:4:4 8bits), interlaced or progressive
      • Output resolution supports up to 4096x2160@60Hz (4:4:4 8bits)
      • Adjustable size & position through software and Cloud
      • Supports PIP, PBP, POP, full screen & quad-view display
      • HDCP 1.4/2.2 compliant
      • Firmware upgradable to support new features and product enhancements
      • Supports titles, borders and colored backgrounds
      • Supports Background picture & logo update
      • Resize, position, zoom & pan and blend output video
      • Supports seamless, fade-in-&-out, wipe and dissolve switching in full screen mode
      • Perfect as a video converter and a live video switcher
      • Pure unaltered uncompressed 7.1ch digital HDMI
      • Software control through RS-232 and Ethernet
      • Supports IR remote, front panel buttons, WEB GUI and OSD control
      • Supports Cloud Control (Cloud support is through encrypted communication for security/privacy protection)

    • Specifications:

      • Environment: HDMI 2.0 (4K/60 4:4:4 8 bit)
      • Transmission: Transparent to the user
      • Frequency: Up to 594 MHz
      • Video Signal: HDMI 2.0 protocol and HDCP 1.4 & 2.2
      • Connectors:
        - 6x HDMI connectors for video (4x inputs and 2x outputs)
        - 2x RCA jacks for audio extraction
        - 1x RJ45S connector for Ethernet Management
        - 1x DB9 connector for RS232 Management
        - 1x 3.5mm jack for IR Management
        - 1x Micro USB connector for firmware updates
        - 1x 2.1mm Jack for power supply
      • Management: Locally via front panel push buttons, and remotely via IR, RS232 and Ethernet
      • IR Handheld Remote Control: Included for IR remote unit management (28 keys)
      • Audio Extraction: From 2CH Digital PCM, to 2CH Analog Audio
      • Power Supply: 12VDC,5A
      • Power Consumption: 22W (max)
      • Temperature:
        - Operating: 32°F - 104°F (0°C - 40°C)
        - Storage: -4°F - 140°F (-20°C - 60°C)
        - Humidity: up to 90% non-condensing
      • Enclosure: Metal enclosure
      • Unit Dimensions: 15.35" x 9.29" x 1.73" (390mm x 236mm x 44mm)
      • Shipping Weight: 7.8lbs (3.5kg)

    • Item Includes:

      • 1x 4x2 HDMI 2.0 Quad-View Processor
      • 1x 12VDC/3.33A power adapter
      • 1x Installation Guide
      • 1x IR Remote control
      • 1x IR Sensor
      • 1x Quick Reference sheet

    • Warranty:

      • 2 Years

    • Applications

      :

      • Digital Signage
      • Security & Surveillance systems
      • Education
      • Conference rooms
      • Presentation halls
      • Test lab environments

    • GTIN:

      0627699014462
