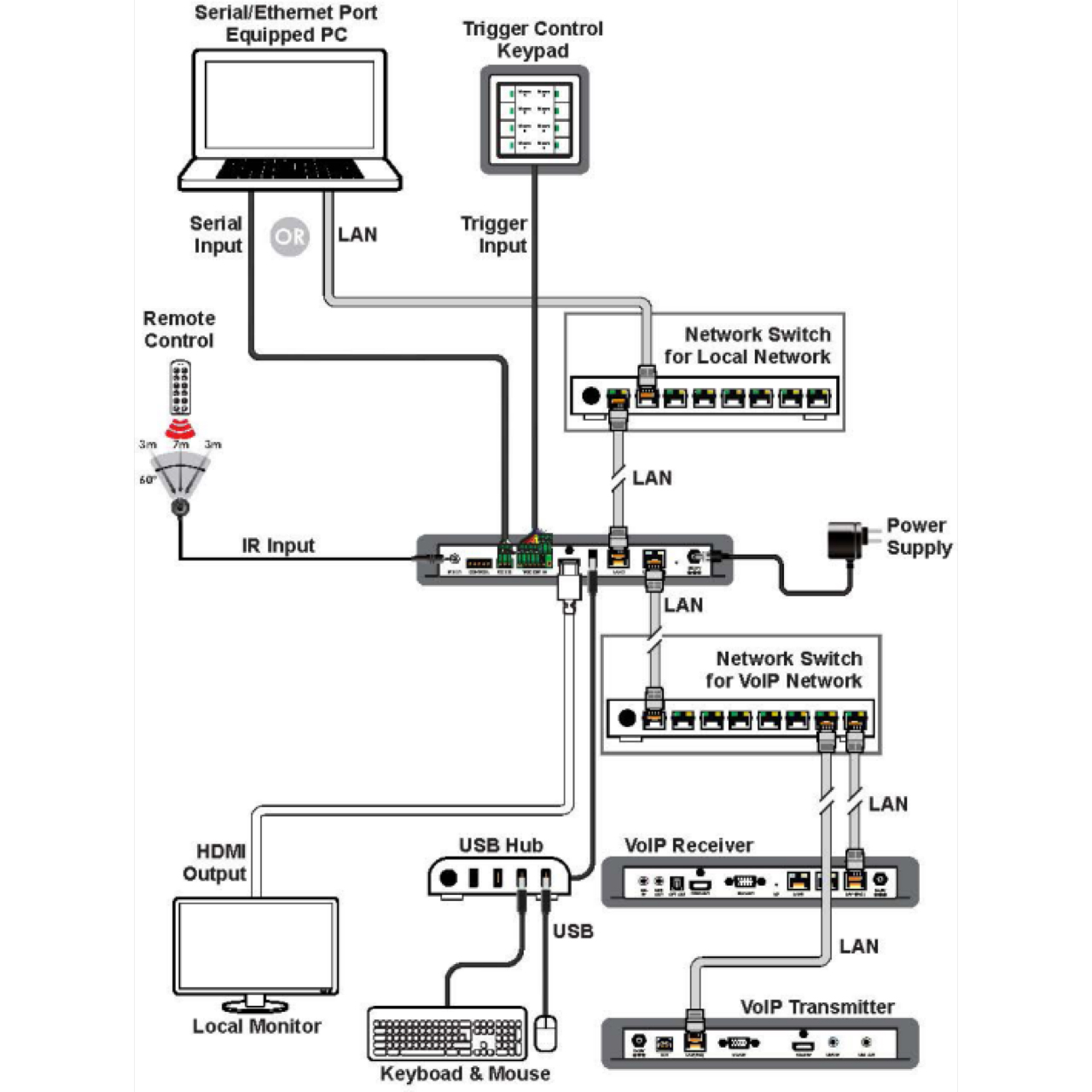

The VigilLink VLIP-CTRL-MST controller is a powerful and flexible solution for controlling multiple Video over IP (VoIP) extenders within the same network. The user only needs to install this unit on the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections for both unicast and multicast scenarios using the WebGUI. It is also possible to define and switch routes using customized groups or presets, allowing for easy control over multiple video zones. Without the use of this centralized unit, each Transmitter and Receiver in the system would need to be controlled and configured directly through their WebGUIs.

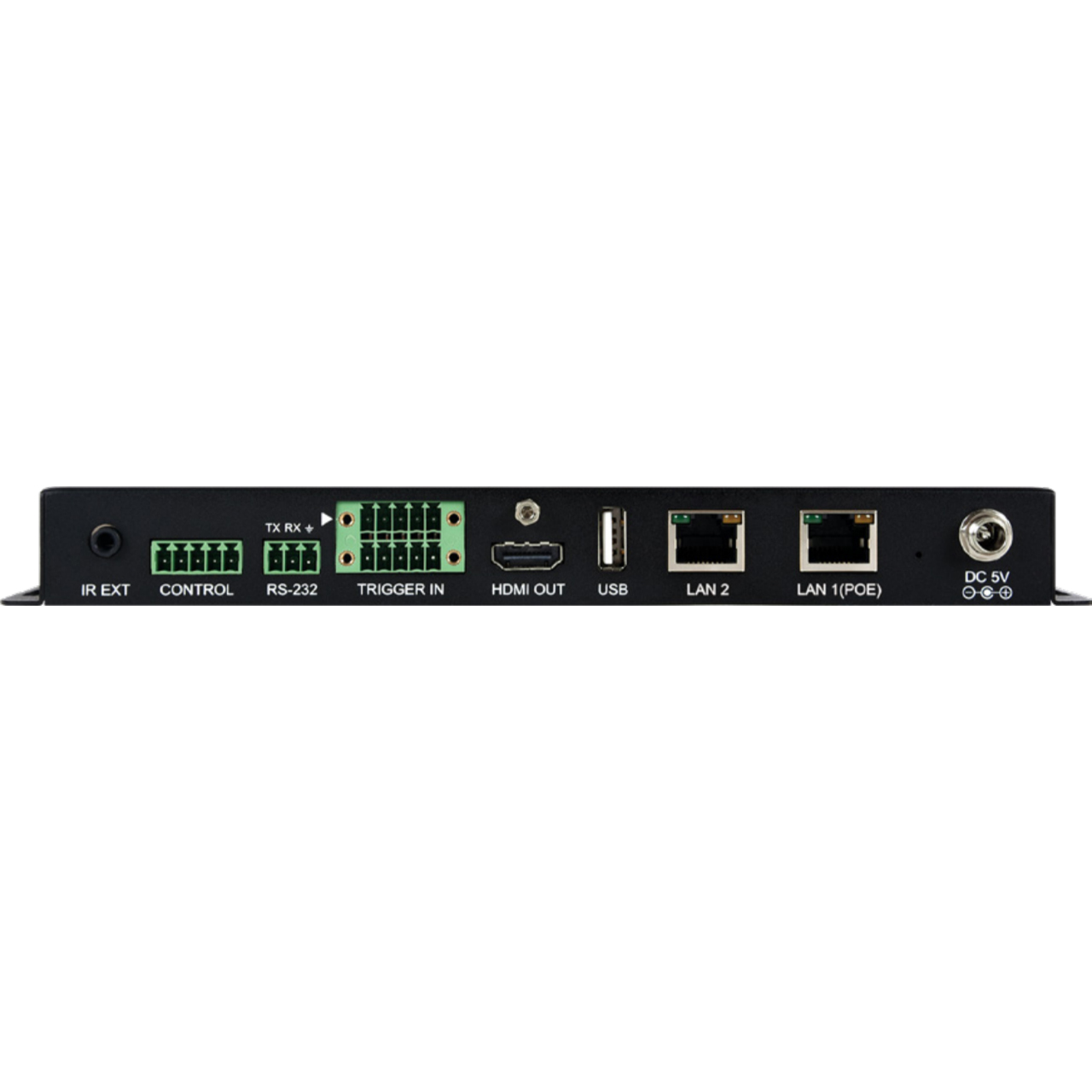

Additionally, this unit supports controlling the matrix and video wall modes of connected VoIP units. The settings of all connected Transmitter/Receiver units, including IP address, subnet mask, and extender status, are displayed within the Web GUI. The WebGUI is easily accessed via a web browser over a standard network connection or by directly connecting an HDMI display and USB keyboard & mouse to the unit. A trigger input interface is also provided to allow the easy addition of a remote control keypad or other trigger-supporting products, which can be installed within a podium or a table in a conference room or classroom. This interface can allow the user to activate stored presets with the simple press of a button. Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote, and triggers.
