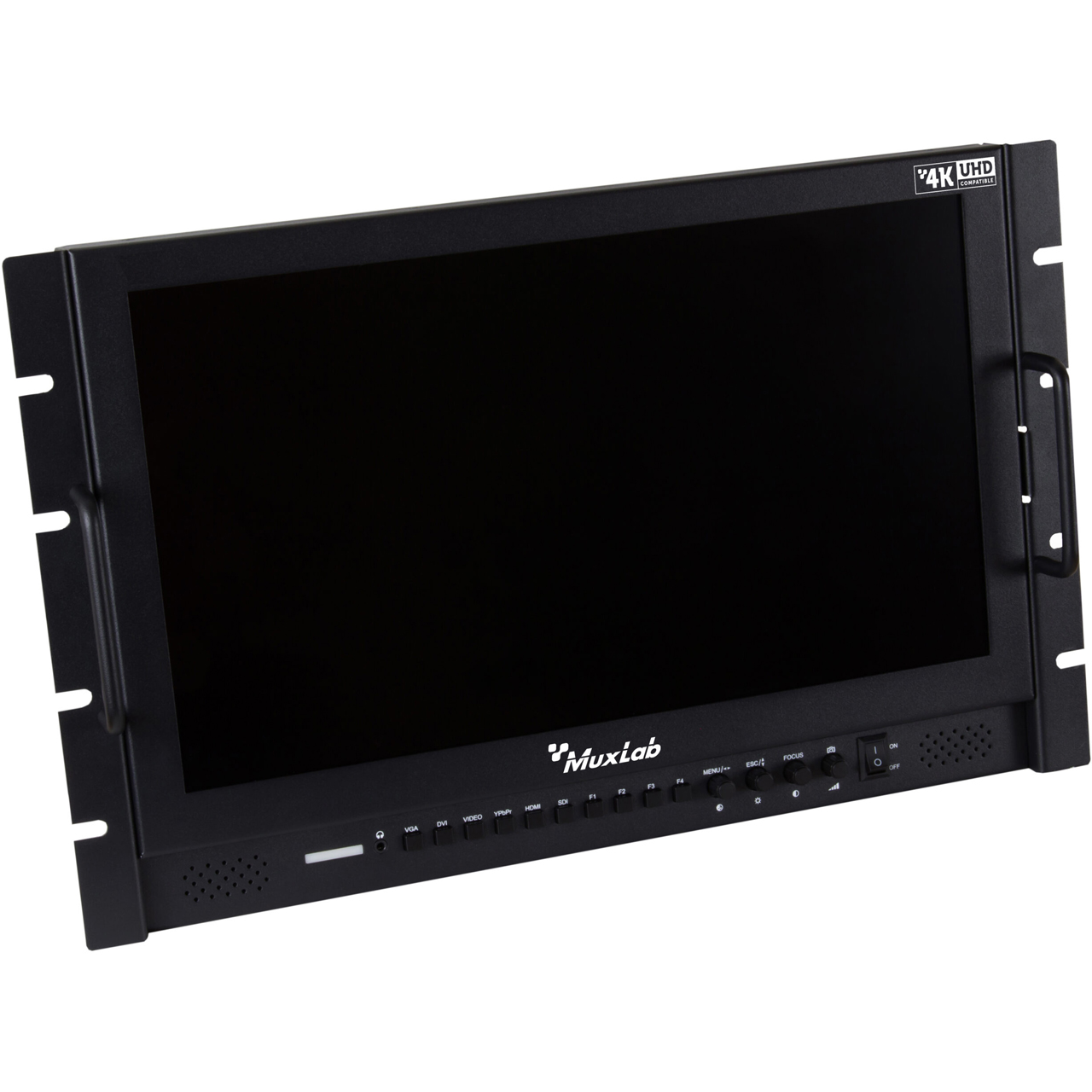

MuxLab 500842 7RU HDMI/3G-SDI 17.3 Inch 4K/30 Single IPS LCD Display - Supports DVI-I(VGA) and CVBS with Audio

500842 - Overview

• Features:

  • 17.3-inch LCD display
  • Supports HDMI (4K/30), 3G-SDI, DVI-I(VGA) and CVBS with Audio
  • Fits 19-inch rackmount @ 7 RU
  • Tri-color Tally light indicator
  • Supports Center Marker, Safe Frames,Check Field, Focus Assist,
  • Aspect Ratio, Image Flip, P2P & ImageFreeze
  • Stereo Earphone output, built-in speaker
  • Customizable buttons tailored to customer needs


• Specifications:

  • Screen Size: 17.3" IPS
  • Display Colors: 16.7M
  • Dot Pitch: 0.1989(H) x 0.1989(V) mm
  • Aspect Ratio: 16:9
  • Brightness: 300cd/m²
  • Contrast: 700:1
  • Backlight: LED
  • Response Time: Tr + Tf = 25ms
  • Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)

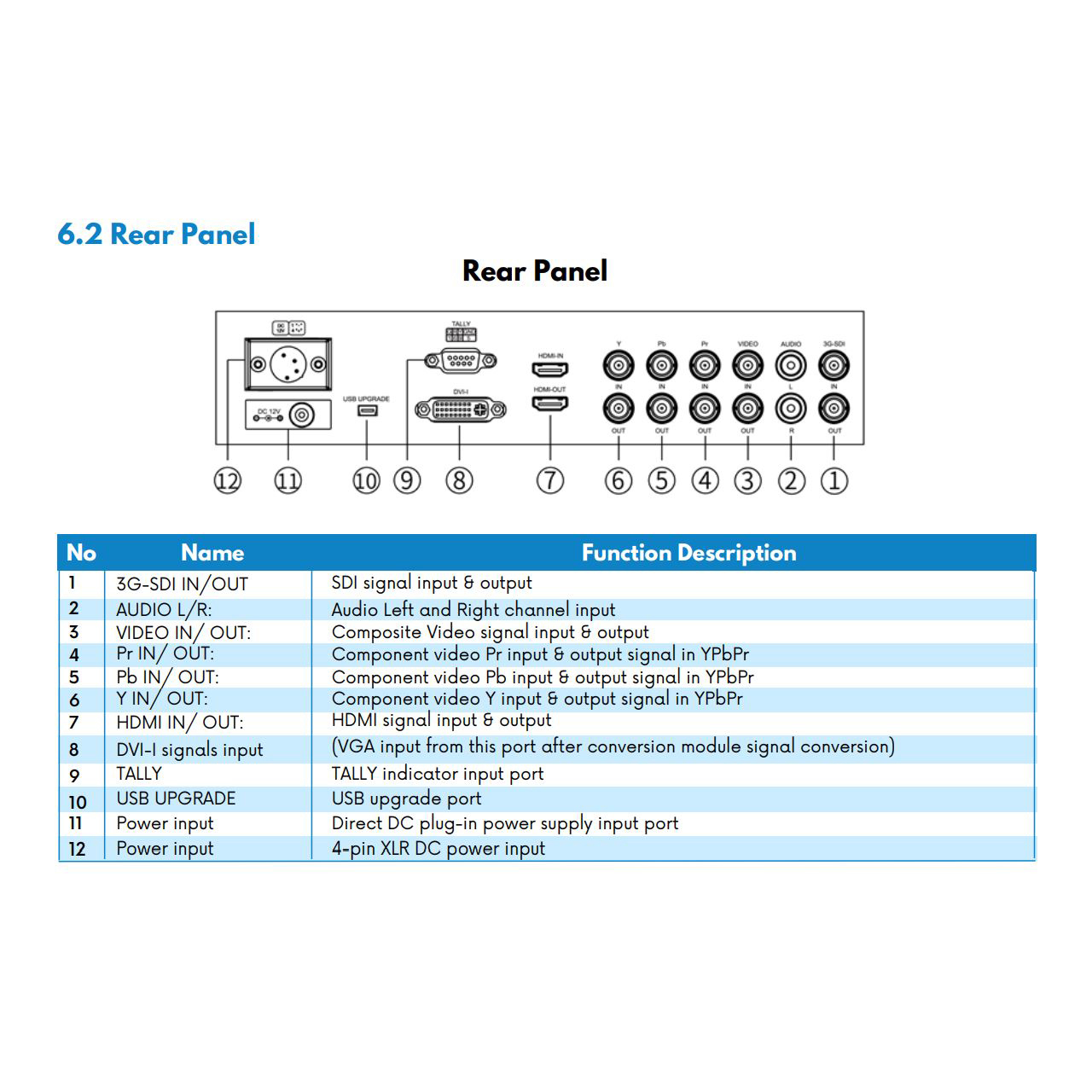

  • Inputs: 3G-SDI, HDMI, YPbPr, Video, Audio(L/R), DVI-I (VGA), Tally, USB Upgrade
  • Outputs: 3G-SDI, HDMI, YPbPr, Video
  • Audio: 3.5mm Stereo Headphone, Speaker

    SDI Support Format
  • 480i/576i
  • 720p (60/59.94/50/30/29/25/24/23.98)
  • 1080i (60/59.94/50)
  • 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

    HDMI Support Format
  • 480i/576i/480p/576p
  • 720p (60/59.94/50/30/29/25/24/23.98)
  • 1080i (60/59.94/50)
  • 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
  • 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz, 4096x2160 (24Hz)


  • Power Consumption: =26W
  • Input Voltage Range: 9.0 to 24 VDC
  • Power Source: 100/240VAC to 12VDC @ 3A power supply
  • Working Temperature: 0°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Dimensions: 481.6L X 297H X 35D mm
  • Weight: 3.40kg


• Item Includes:

  • 1x HDMI/3G-SDI Single Display 17.3", 4K/30
  • 1x 12VDC power adapter 36W
  • 1x Tally - DB9 adapter
  • 1x USB cable adapter
  • 1x User manual (available via download)


• Warranty:

  • 2 years
