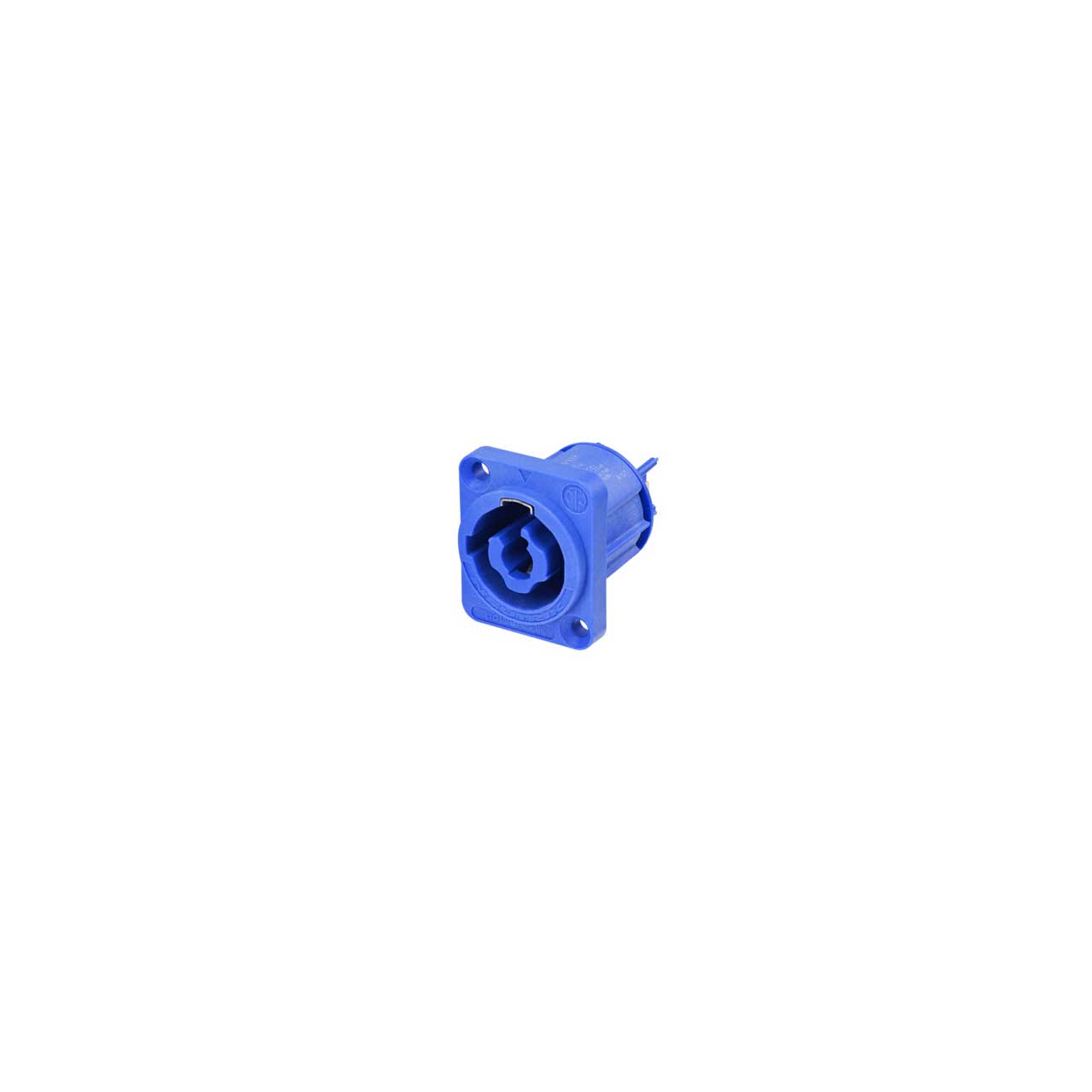

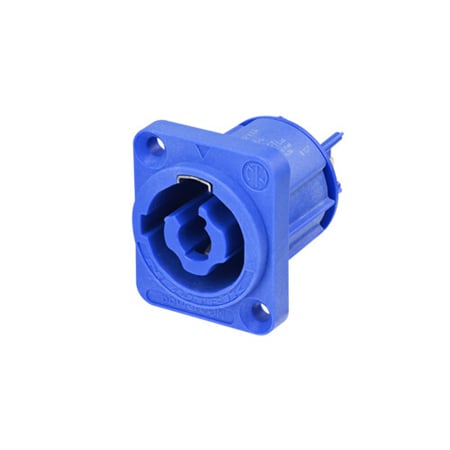

Neutrik NAC3MPXXA powerCON 20A 60320-1 Certified Receptable - Power In - Blue

NAC3MPXXA - Overview

• Features:

  • Lockable single phase connector
  • Drop-in replacement for NAC3MPA-1; mates to NAC3FCA cable connectors
  • Certified according to IEC 60320-1 & UL 60320-13 contacts for line, neutral and premating safety ground
  • Certified according to UL-1977, & CAN/CSA-C22.2 No. 182.3
  • Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermatingExtremely robust and reliableI
  • EC 62368-1 compliant
  • UL94 V-0 materials


• Specifications:

  • Electrical:
  • Contact resistance: = 2 mΩ
  • Dielectric strength: 4 kVdc / 2.8 kVac
  • Insulation resistance: > 10 GΩ (initial)
  • Number of electrical contacts: 2 + PE
  • Rating Europe: EN 60320-1: 16 A 250 V AC, EN 61984: 20 A 250 V AC
  • Rating USA: UL 60320-1:20 A 127 V AC, UL 1977: 20 A 250 V AC

    Mechanical:
  • Lifetime: > 5000 mating cycles
  • Wiresize: 2,5 mm²
  • Wiresize: 12 AWG

    Material:
  • Contact plating: Ag
  • Locking element: Stainless steel
  • Shell: Polyamide (PA 6.6)
  • Contacts: Copper Alloy

    Environmental:
  • Flammability: UL 94 V-0
  • Protection class: IP 20
  • Temperature range: -30 °C to +80 °C


• Item Includes:

  • 1x Neutrik NAC3MPXXA powerCON 20A 60320-1 Certified Receptable - Power In - Blue
