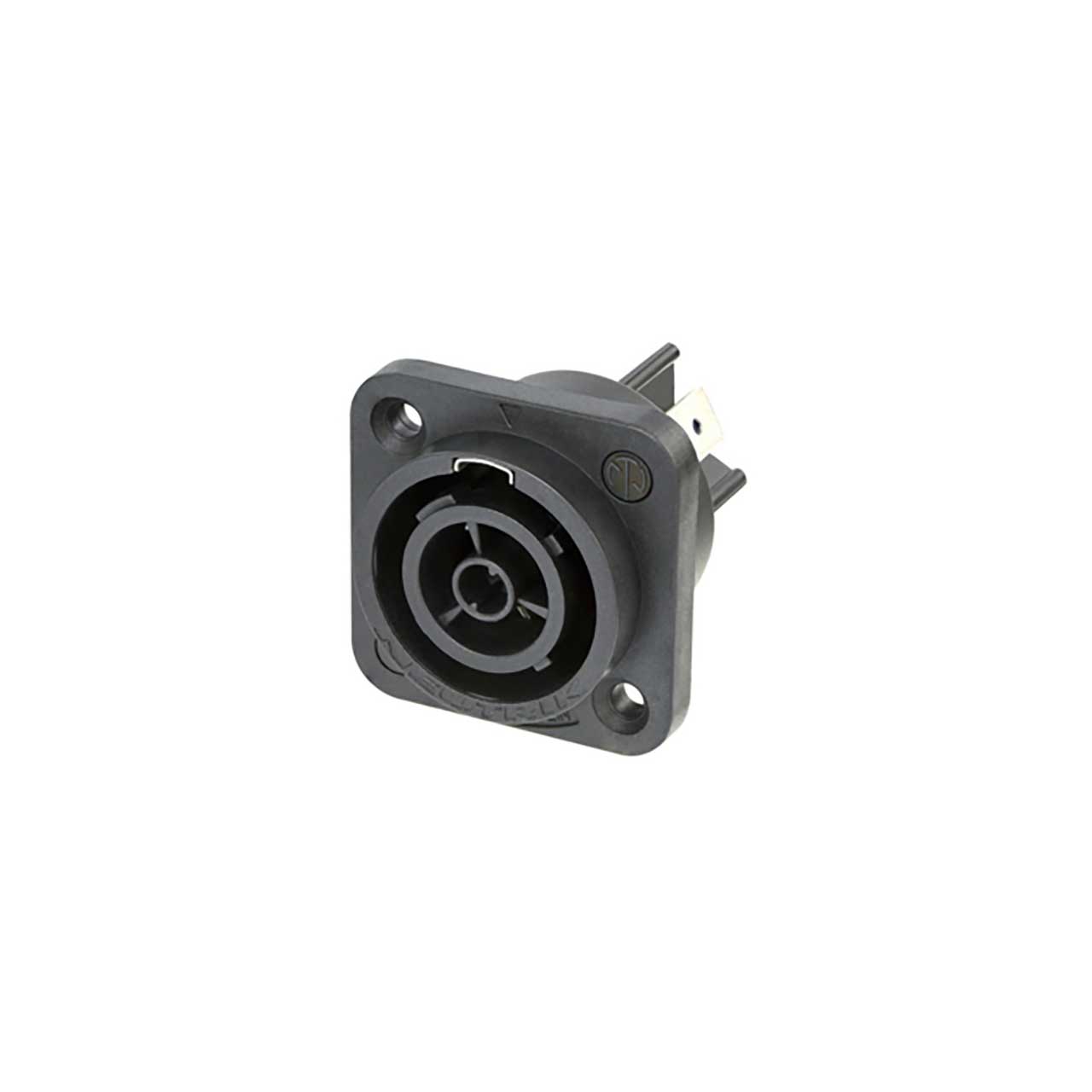

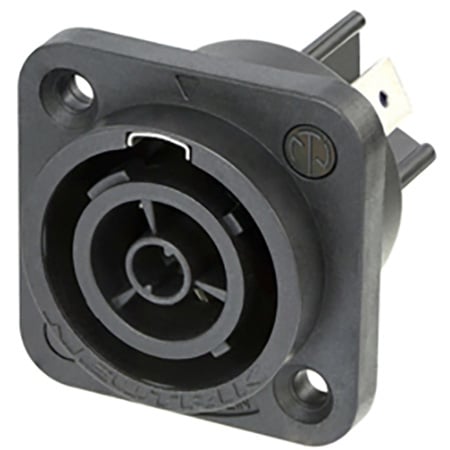

Neutrik NAC3FPX-TOP Receptacle - powerCON TRUE1 TOP - Female - 1/4 Inch Flat Tab Terminals - IP 65 and UV Rated

ITEM #: NAC3FPX-TOP MFG #: NAC3FPX-TOP

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$9.87

Our Price:

$8.46

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    NAC3FPX-TOP - Overview

    The Neutrik NAC3FPX-TOP powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

    • Features:

      • Heavy duty sealed power connector for harsh and demanding environment

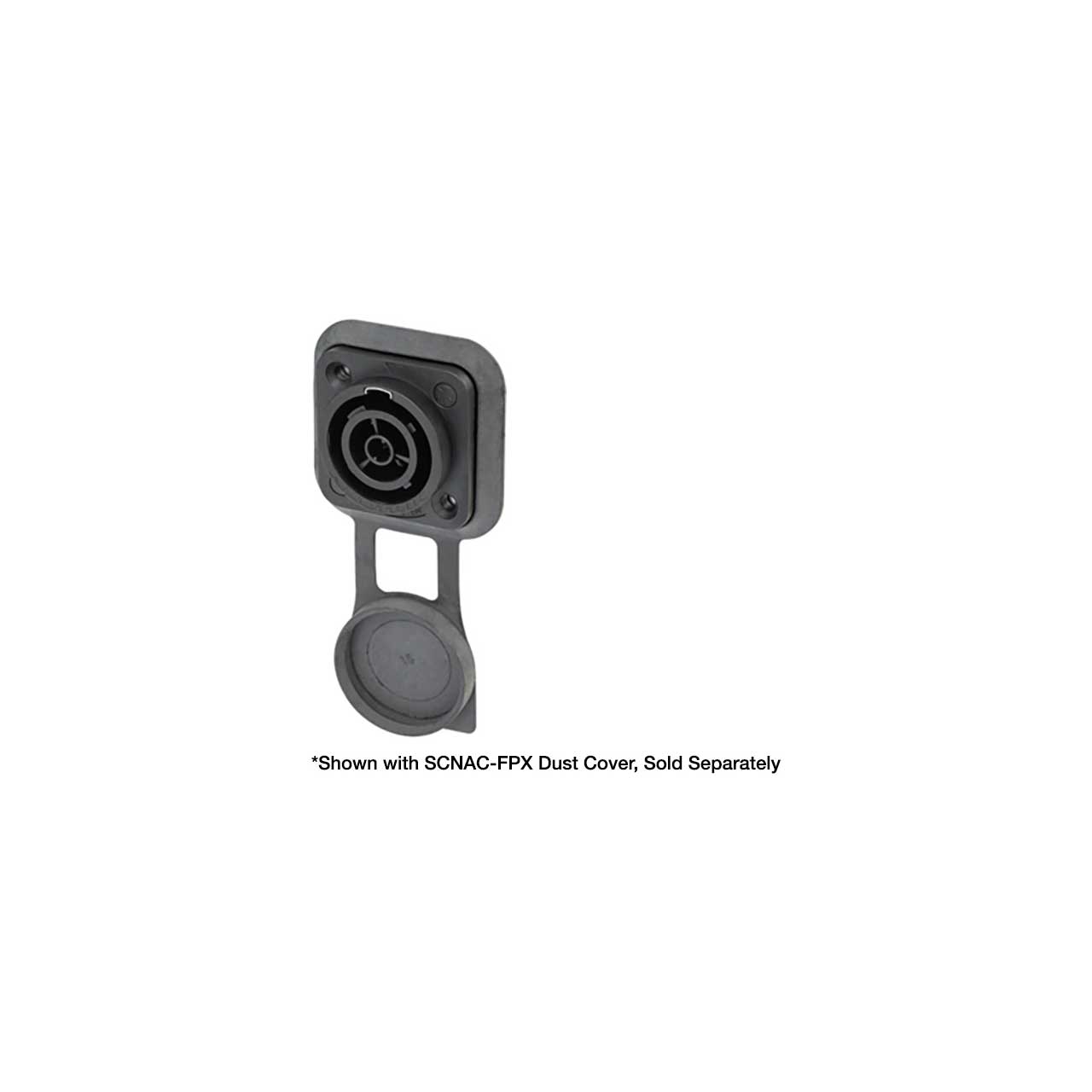

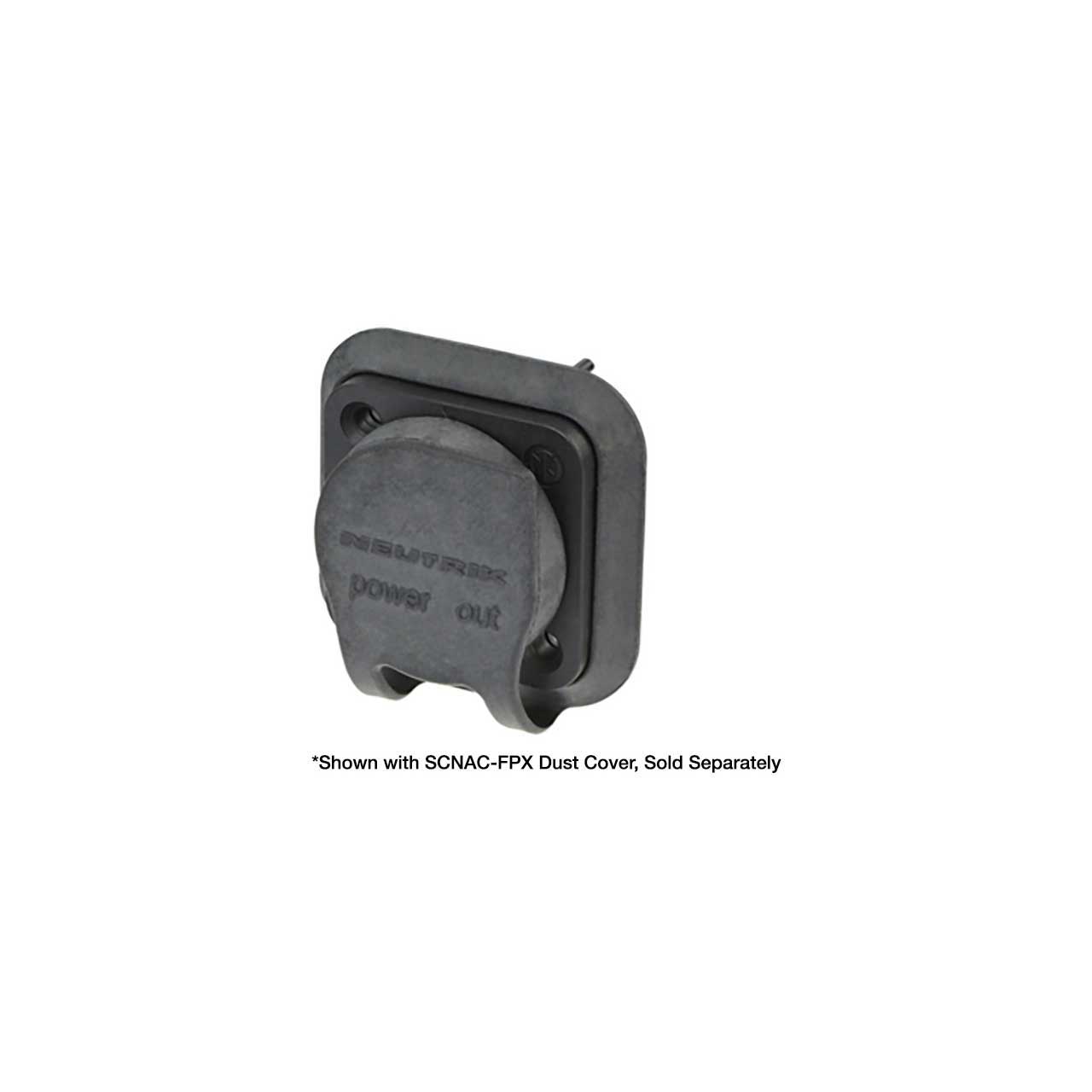

      • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the dust sealing cover SCNAC-03)
      • Uses high impact UV-resistant materials
      • True mains connector with breaking capacity (CBC)
      • Lockable 16 A single phase connector (USA: 20 A)
      • Easy and reliable twist lock system
      • Extremely robust and reliable Unique Neutrik cable retention
      • ENEC certified according to IEC 60320
      • UL498 certified

    • Specifications:

      • Contact Resistance: ≤ 3mΩ
      • Dielectric Strength: 4 kVdc/2.8 kVac
      • Insulation Resistance: > 0.1GΩ (after damp heat test)
      • Number of Electronic Contacts: 2 + PE
      • Rated Current per Contact: 16 A rms (USA: 20 A)
      • Rated Voltage: 250 V ac
      • Lifetime: > 5000 mating cycles
      • Wiresize: 2.5 mm²
      • Wiresize: 12 AWG
      • Contact Plating: 2µm Ag
      • Locking Element: Stainless steel
      • Shell: Polyamide (PA 6.6)
      • Contacts: Spring Copper (CuSn0.2)
      • Flammability: UL 94 V-0
      • Protection Class: IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-03)
      • Temperature Range: -22°F - 176°F (-30°C - 80°C)

    • GTIN:

      4049521403330
