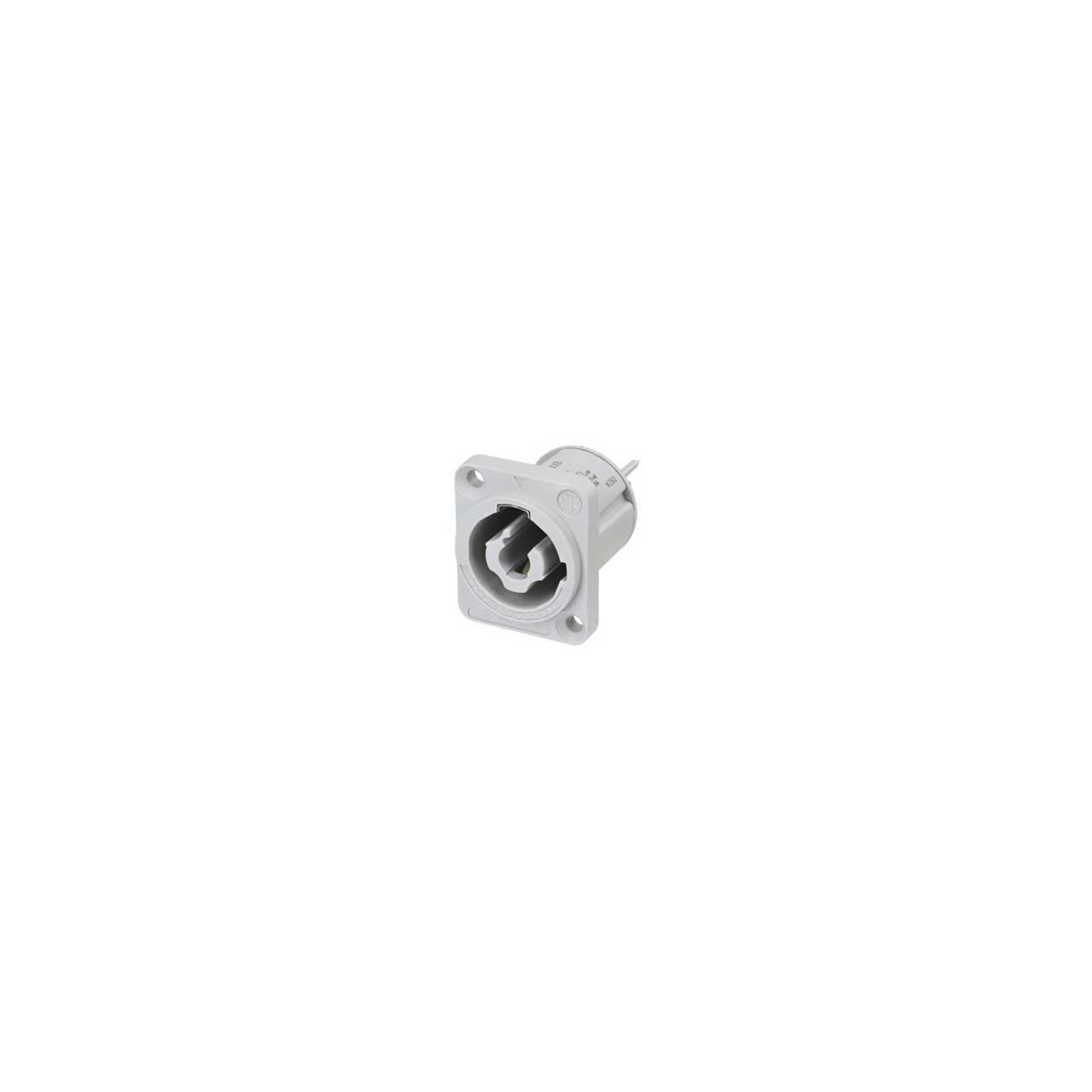

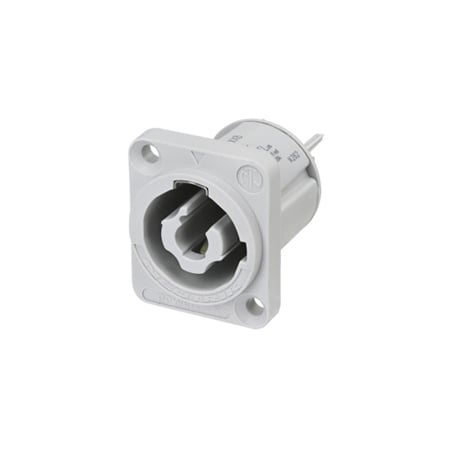

Neutrik NAC3MPXXB powerCON 20A 60320-1 Certified Male Receptable - Power Out - Gray

ITEM #: NAC3MPXXB MFG #: NAC3MPXXB

free ship

List Price:

$4.13

Our Price:

$3.54

Availability: In Stock
iAvailability Description Popup


    NAC3MPXXB - Overview

    The Neutrik NAC3MPXXB connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 60320-1. Appliance outlet connector, 3/16" flat tab terminals, grey.

    The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.

    The powerCON XX is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

    • Features:

      • Lockable single phase connector
      • Certified according to IEC 60320-1 & UL 60320-13 contacts for line, neutral and premating safety ground
      • Certified according to UL-1977 & CAN/CSA-C22.2 No. 182.3
      • Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
      • Extremely robust and reliable
      • IEC 62368-1 compliant
      • UL94 V-0 materials used

    • Specifications:

      • Electrical
      • Contact resistance: = 2 mΩ
      • Dielectric strength: 4 kVdc / 2.8 kVac
      • Insulation resistance: > 10 GΩ (initial)
      • Number of electrical contacts: 2 + PE
      • Rating Europe: EN 60320-1: 16 A 250 V AC, EN 61984: 20 A 250 V AC, Rating USA: UL 60320-1:20 A 127 V AC, UL 1977: 20 A 250 V AC

        Mechanical
      • Lifetime: > 5000 mating cycles
      • Wiresize: 2,5 mm²
      • Wiresize: 12 AWG

        Material
      • Contact plating: Ag
      • Locking element: Stainless steel
      • Shell: Polyamide (PA 6.6)
      • Contacts: Copper Alloy

        Environmental
      • Flammability: UL 94 V-0
      • Protection class: IP 20
      • Temperature range: -30 °C to +80 °C

    • Item Includes:

      • 1x Neutrik NAC3MPXXB powerCON 20A 60320-1 Certified Male Receptable - Power Out - Gray
