The Lineman's Test Set is a professional piece of equipment designed for telephone installers, repair technicians, and phone system maintenance personnel. This durable, line-powered device is full of features for testing existing and newly installed communications systems for proper functionality.

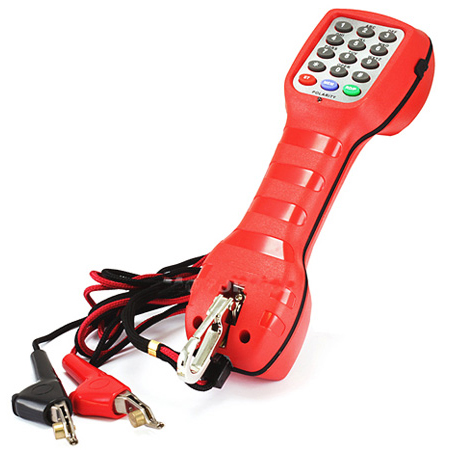

The bright red handset is both impact and water resistant. The rubber-covered keypad and large slide switches are designed for use with gloves, making this a convenient tool for line workers. The large, heavy-duty alligator clips support five different types of wire connections, including a bed-of-nails and an insulation piercing spike. The connecting cord is covered in cloth for durability and is equipped with a strain-relief connection at the RJ11X connector. A heavy-duty, spring-loaded belt clip allows the handset to be conveniently hung from a maintenance belt.
The tester has a three-position volume switch, which can provide up to 12 dB of volume gain. The ring mode can be set to send either DTMF tones or rotary dial pulses. A three-position mode switch allows the tester to be set to Monitor, Ring, or Talk modes:
The Monitor mode provides a high-impedance coupling to the telephone line, allowing it to be monitored without interfering with existing conversations, data transmissions, or signalling.
The Ring mode allows the tester to be on-hook with an electronic ringer connected to the telephone line. This provides a low-impedance coupling to the telephone line for monitoring of optional line identification tones.
The Talk mode allows the technician to seize the line or initiate signalling. From this mode a number can be dialed using the keypad. Hanging up the line is as simple as switching to the Ring or Monitor mode.
The handset includes an automatic last-number redial function, which is capable of repeating up to 31 digits. It also features a number memory storage capability, allowing the technician to store up to 10 different numbers of up to 15 digits each, including the insertion of 3-second pauses for use with trunk lines. A pre-installed CR2032 lithium battery maintains the stored number memory and can be easily replaced by removing two screws and opening the handset.
To assist in line testing, the kit includes a 5-inch, 4-wire RJ11 test lead with spade lugs on the ends of each wire. Additionally, a 2.5mm headphone jack allows the technician to utilize a microphone/headset unit instead of the handset speaker and mic. When not in use, the headphone jack is protected from moisture with a rubber cover.
PLEASE NOTE: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.
