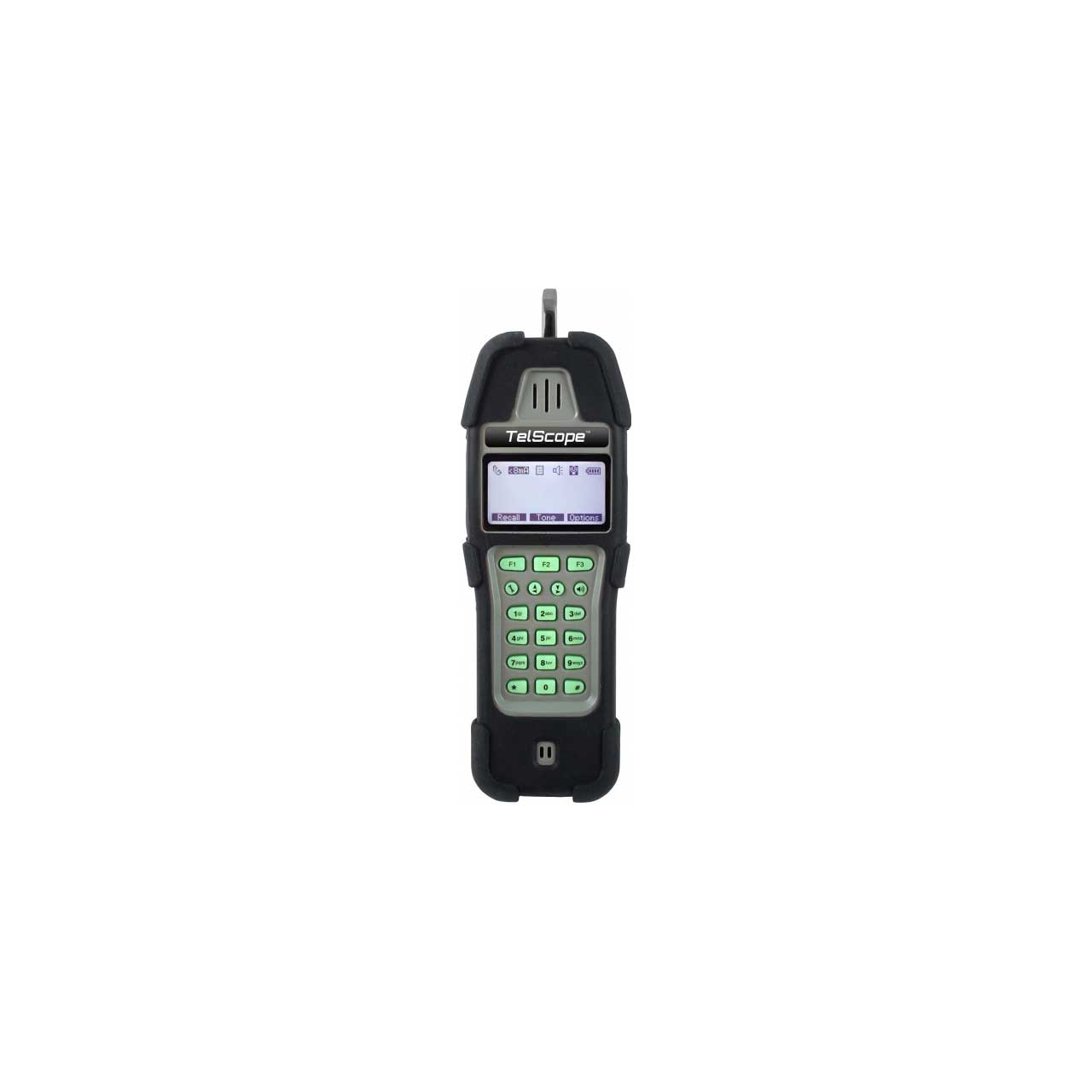

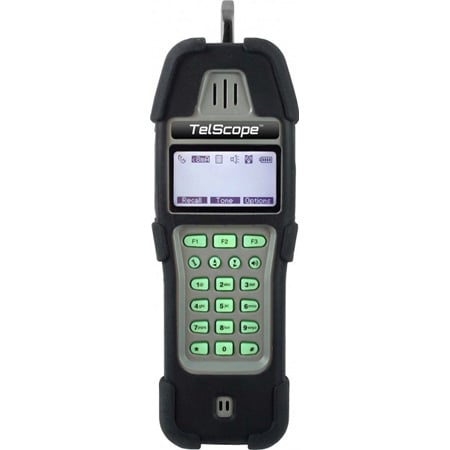

Platinum Tools TLA300-1 Tel Scope Telco Line Analyzer with Angled Bed of Nails / Piercing Clip Cord Set & RJ Plug

TLA300 - Overview

• Features:

  • Ergonomically designed body for most comfortable use
  • 60 inch Angeled Bed of Nails with piercing clip cord set
  • Listening speaker with fine volume adjustment
  • Adjustable earpiece volume, hearing aid compatible
  • Noise cancelling microphone
  • Microphone mute with toggle on/off locking feature
  • Soft key menu system simplifies user interface and customization
  • Optional cushion boot for extra protection in ultra harsh environments
  • Large LCD screen with On/Off option to conserve battery life
  • Rainproof and highly water/dust resistant case to IP54 Standard
  • Data line-in-use detection capability
  • High line voltage detection with next step options
  • Active monitor circuitry minimizes load on subscriber line
  • DTMF digit detection and display in monitor mode
  • Detects DSL and T1 lines
  • DigitView, DTMF decode sees defects on customer equipment while dialing out
  • PwrSave circuitry for Extra Long battery life

    Functions

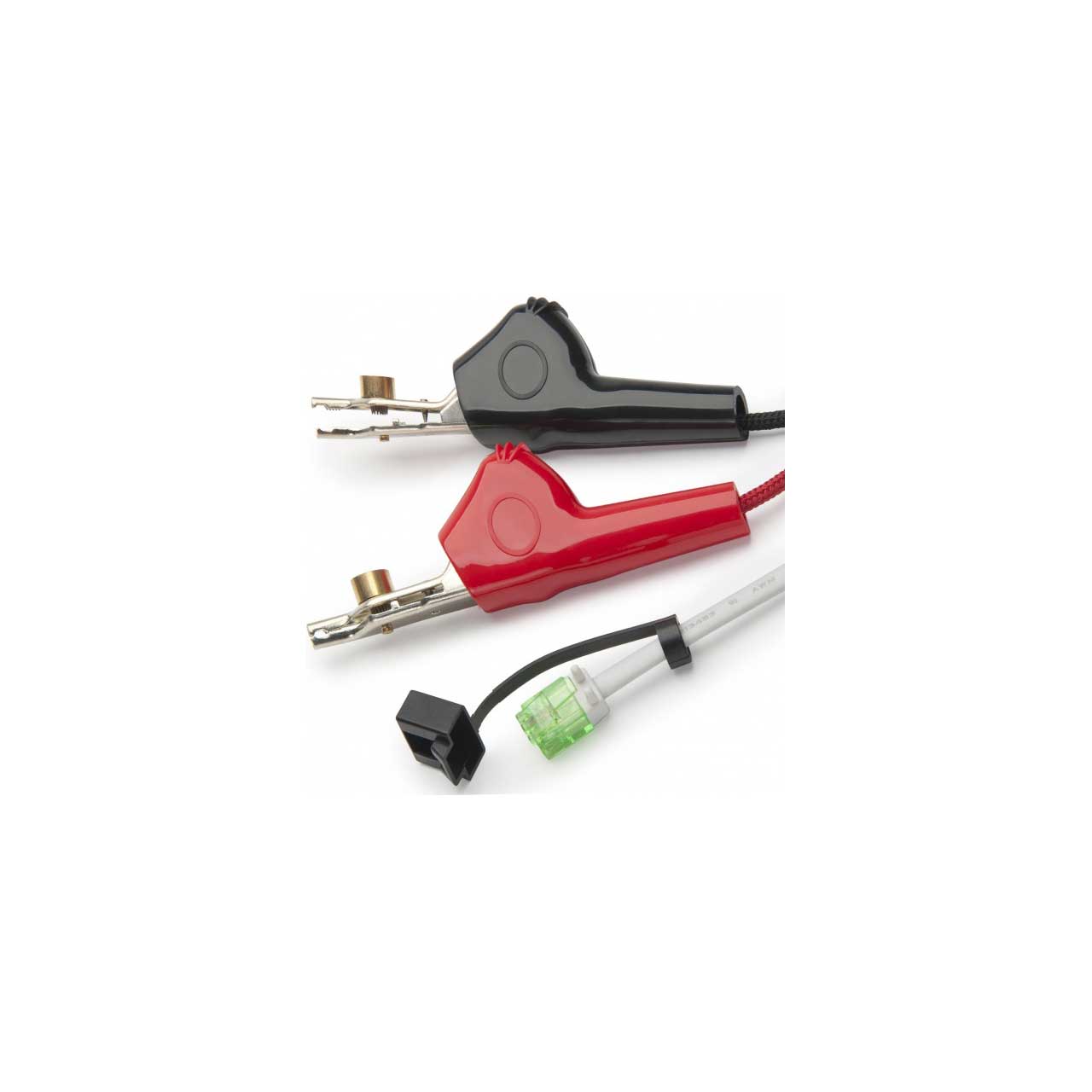

  • 60-in cord set with Alligator Clips, Angled Bed-of-Nails, Piercing Point and No-Fault RJ12 8P8C connector
  • Speaker with fine volume adjustment
  • Noise cancelling microphone
  • Microphone mute with toggle on/off locking feature
  • Soft key menu system
  • Metal spring-loaded belt clip
  • Cushion boot for extra protection
  • Off-hook current and polarity
  • On-hook voltage and polarity
  • On-hook and call waiting Caller ID info
  • Amplified Line Monitor for volume levels comparable to
  • 8 number Stored memory with Alpha/Numeric tags
  • Fuel Gauge Battery condition
  • Continuous Polarity Indication
  • Caller ID/Call Waiting and Caller ID error detection
  • Tone and Pulse dialing
  • Configurable Auto Off in all modes
  • Detects and identifies DSL and T1 lines
  • Last number dialed, redialed or received
  • Multilingual (English, French, Spanish)
  • Backlight 0-100% adjustable with on/off option


• Specifications:

  • Product Dimensions: 8.25 x 2.5 x 2.0 inches without belt clip and cord set
  • Product Weight: 559.7 grams
  • Interface: Attached cord set
  • Languages: English, Spanish and French
  • Ringer Equivalence: In BELL mode: 0.0 (no ringer load)

    Tone Dialing
  • DTMF output (into 600 Ohms):
  • Tone-frequency error: ±1.5%;
  • Tone Level:
  • High group: -6 ±2 dBm;
  • Low group: -8 ±2 dBm;
  • High group vs. Low group Difference (twist): 2 ±1 dBm

    Measurement
  • Voltage: 0 to 200 VDC ±5%;
  • Current: 10 to 110 mA ±5%;
  • NOTE: Do not attach test set to electric-power lines

    User Controls
  • (1) Left-side-mounted TALK/BELL/MON push button switches for operating modes;
  • (1) Right-side-mounted microphone mute pushbutton;
  • (4) Front-mounted pushbuttons for various options;
  • (1) Standard front-mounted 12-key phone keypad

    Flash Duration: 600 ±50 ms
  • Pause Duration Tone: 3 seconds; Pulse 3.4 seconds
  • Memory: 8 programmable locations, 32 digits with 12 character tag, stored in nonvolatile memory. Last number redial plus list of last 10 numbers dialed.
  • Return Loss Minimum: 14 dB at 600 Ohms
  • Line-Current Range: 10 to 110 mA
  • Apparent Line Resistance: 275 Ohms at 20 mA
  • Monitor Mode: Impedance DC - 1MΩ typical, AC - 390 KΩ at 1 KHz typical
  • Display: Transflective 128 by 64 pixel graphical liquid crystal display (LCD) with LED backlight
  • Power: 4 x AAA alkaline batteries (Included)
  • Battery Life: Operation - 7 hours min. 150 hours max. Standby - 2 years


• Item Includes:

  • 1x Platinum Tools TLA300-1 Tel Scope Telco Line Analyzer with Angled Bed of Nails / Piercing Clip Cord Set & RJ Plug.
  • 3 AAA Alkaline Batteries.


• Warranty:

  • 1 Year


• GTIN:

  0849610008002
