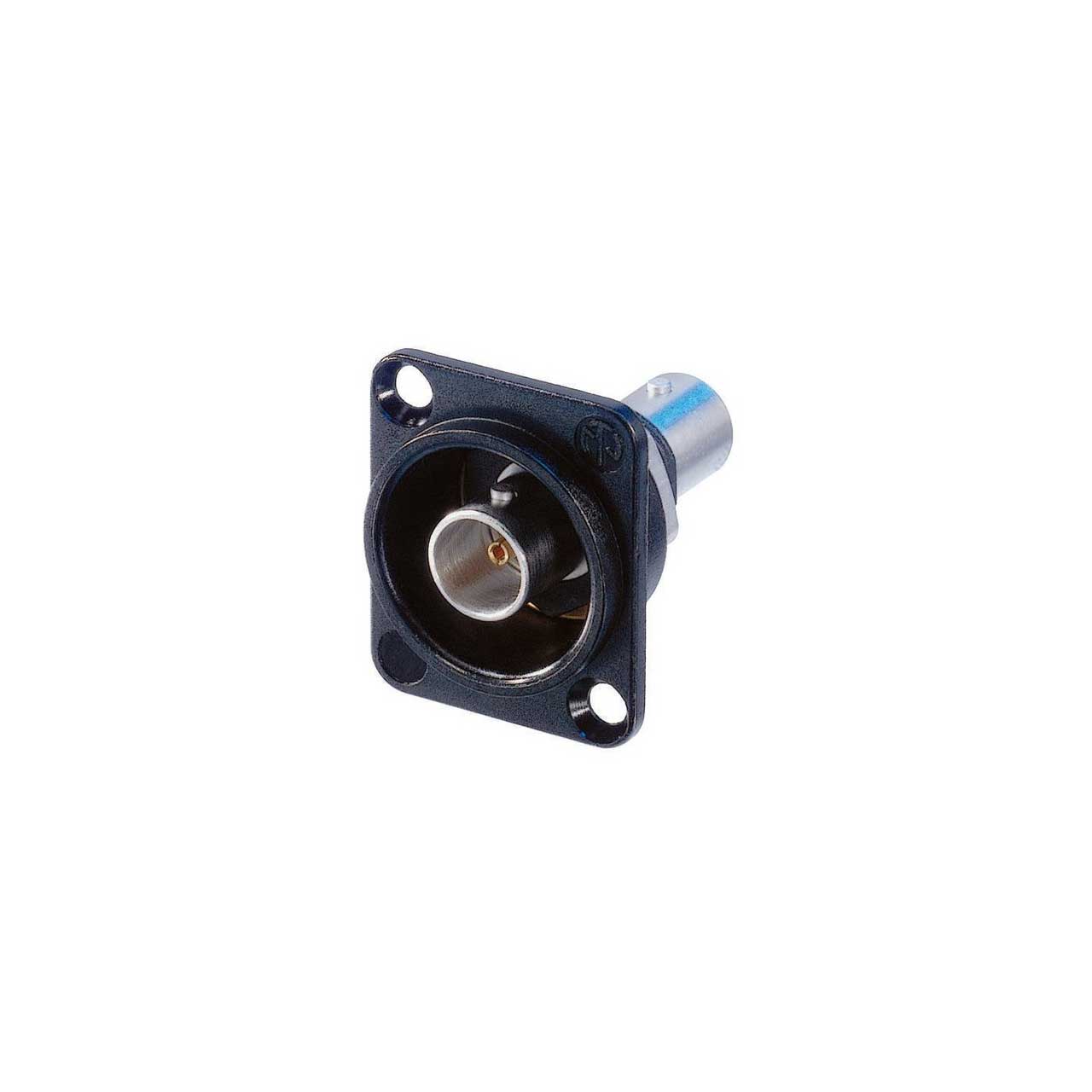

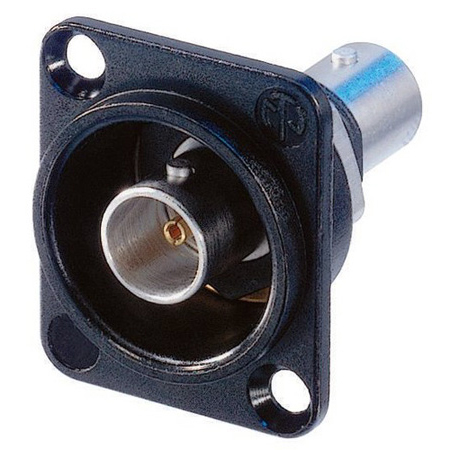

Neutrik NBB75DFIB D-Mount BNC to BNC - Isolated Barrel - Black

ITEM #: NBB75DFIB MFG #: NBB75DFIB

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$12.12

Our Price:

$10.39

Availability: In Stock
iAvailability Description Popup


    NBB75DFIB - Overview

    Isolated BNC chassis connector, feedthrough in black D-shape housing

    Neutrik NBB75DFIB BNC chassis connector offers a true 75 Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).

    • Features:

      • Gold plated cage type center contactTrue 75 Ω design meets the stringent HD requirementsIsolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)Standard D-shape housing - provides flush mounting and protection from demage
      • Closed contact design - extremely robust
      • Gold plated cage type clip - best possible shielding and lowest contact resistance

    • Specifications:

      • Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
      • Contact Resistance: = 3 mΩ (inner)
      • Contact Resistance: = 2 mΩ (outer)
      • Dielectric Strength: 1,5 kVdc
      • Impedance: 75 Ω
      • Insulation Resistance: > 5 GΩ
      • Rated Voltage: <50 V
      • VSWR: =1.03/>37 dB up to 1 GHz, =1.05/>32 dB up to 2 GHz, =1.08/>28 dB up to 3 Ghz
      • Insertion Force: < 25 N
      • Lifetime: > 1000 mating cycles
      • Locking Device: Bayonett
      • Mounting Direction: Front mounting
      • Chassis Shape: D
      • Contacts: Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
      • Insert: PTFE
      • Shell: Polyacetal (POM) (Insulation Sheell)
      • Shell Plating: Optalloy
      • D-Shape Housing: Zinc diecast (ZnAl4Cu1) gal black chrome plating
      • Temperature Range: -30 °C to +85 °C
