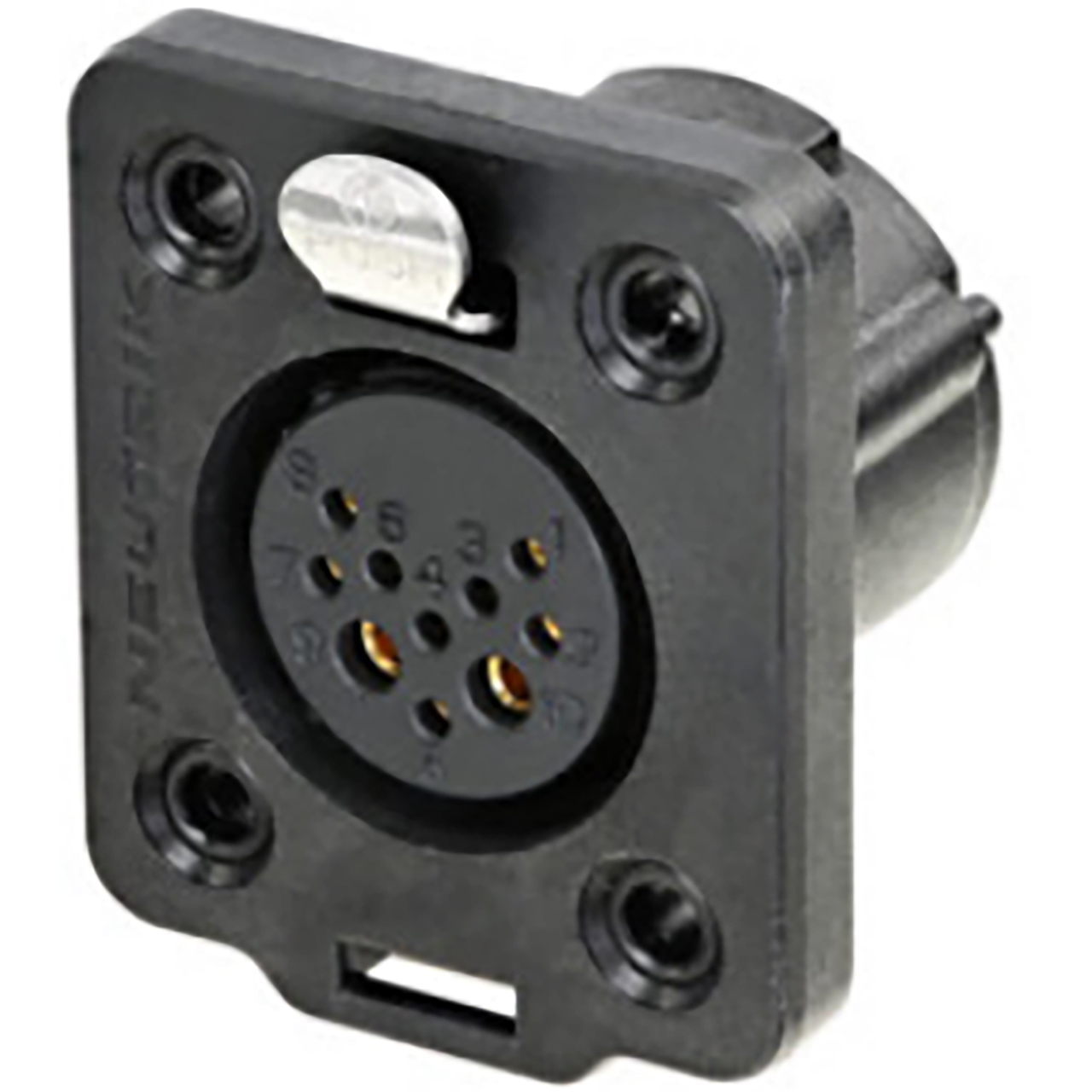

NEUTRIK NC10FDX-TOP Receptacle TOP Series 10-Pin Female Chassis Connector - Solder - Black/Gold - IP65/UV Rated - 50/Pk

NC10FDX-TOP - Overview

For Use With Belden 2190A Cable!

• Features:

  • Heavy-duty sealed XLR connector range for harsh and demanding environment
  • IP65 rated and TOP approved in consideration to UL50E by mating with related cable or chassis connector of the XLR TOP range
  • High impact UV-resistant materials
  • D-size housing provides installation compatibility with industry standard D mounting dimensions.
  • Receptacle with duplex ground contact for excellent signal integrity
  • Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
  • Superior ruggedness compared to RJ45 type connectors
  • IEC 61984 certified


• Specifications:

  • Connection Type: XLR
  • Gender: Female

    Electrical
  • Contact Resistance: ° 3mΩ
  • Dielectric Strength: 1kV DC
  • Insulation Resistance: > 10GΩ (initial)
  • Number of Electronical Contacts: 8 + 2
  • Rated Current per Contact: 16A (power pins), 3A (data pins)
  • Rated Voltage: 50V
  • Cable Shield - Shell Connection: Choosable
  • Transmission Performance: CAT 5e

    Mechanical
  • Insertion Force: ° 20N
  • Withdrawal Force: ° 20N
  • Lifetime: > 1000 mating cycles
  • Wiring: Solder contacts
  • Wiring Size: <2.5mm²/<1mm² (8 x 24 AWG + 2 x 16AWG)
  • Locking Device: Latch lock
  • Mounting Direction: Front mounting
  • Chassis Shape: D

    Material
  • Contact Plating: Au over Ni
  • Contacts: Brass
  • Insert: Polyamide
  • Locking Element: Stainless steel
  • Gasket: TPE
  • Shell: Polyamide

    Environmental
  • Flammability Acc. to UL94: V-0
  • Standard Compliance: IEC 61076-2-103
  • Protection Class According to IEC 60529: IP 65
  • Solderability Acc. to: IEC 60068-2-20
  • Temperature Range: -22°F - 176°F (-30°C - 80°C)


• Item Includes:

  • 1x NEUTRIK NC10FDX-TOP Receptacle TOP Series 10-Pin Female Chassis Connector - Solder - Black/Gold - IP65/UV Rated - 50/Pk
