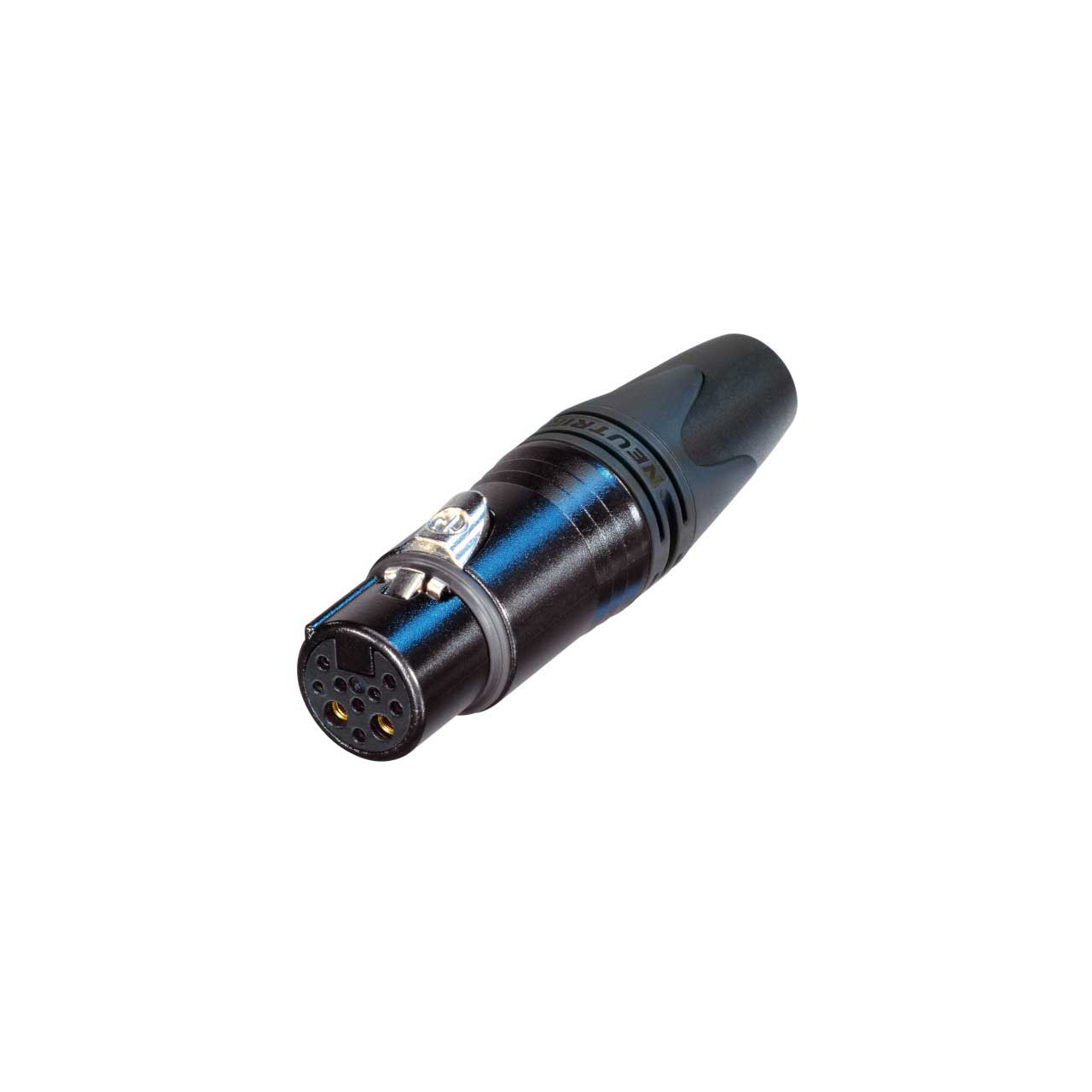

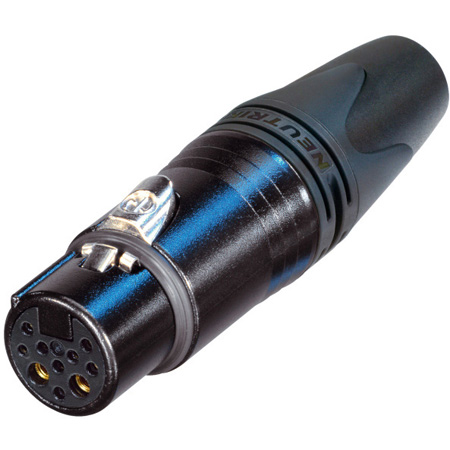

NEUTRIK NC10FXX-14-B XX Series 10-Pin Cable End - Female - Black/Gold

NC10FXX-14-B - Overview

• Features:

  • Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
  • Superior ruggedness compared to RJ45 type connectors
  • All metal housing offers best overall RF protection and electromagnetic shielding


• Specifications:

  • Electrical
  • Contact Resistance: ≤3 mω
  • Dielectric Strength: 1 kVdc
  • Insulation Resistance: > 10 Gω , 0.1 (after damp heat test)
  • Number of Electronical Contacts: 8 + 2
  • Rated Current per Contact: 16 A (power pins), 3 A (data pins)
  • Cable Shield - shell connection: choosable
  • Transmission Performance: CAT 5e

    Mechanical
  • Cable O.D.: 8.0 - 10.0 mm
  • Insertion Force: ≤ 20 N
  • Withdrawal Force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: 2.5 mm²/AWG 14 (power pins)
  • Wiresize: 1 mm² / AWG 18 (data pins)

    Material
  • Bushing: PA / PU
  • Contact Plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking Element: Zinc diecast (ZnAl4Cu1)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Black chromium
  • Strain Relief: POM

    Environmental
  • Flammability: UL 94 HB
  • Protection Class: IP40
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -22°F - 176°F (-30°C - 80°C)
  • Manufacturing Standard: IEC 61076-2-103
