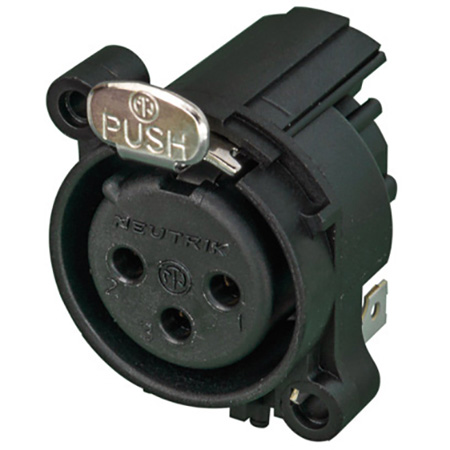

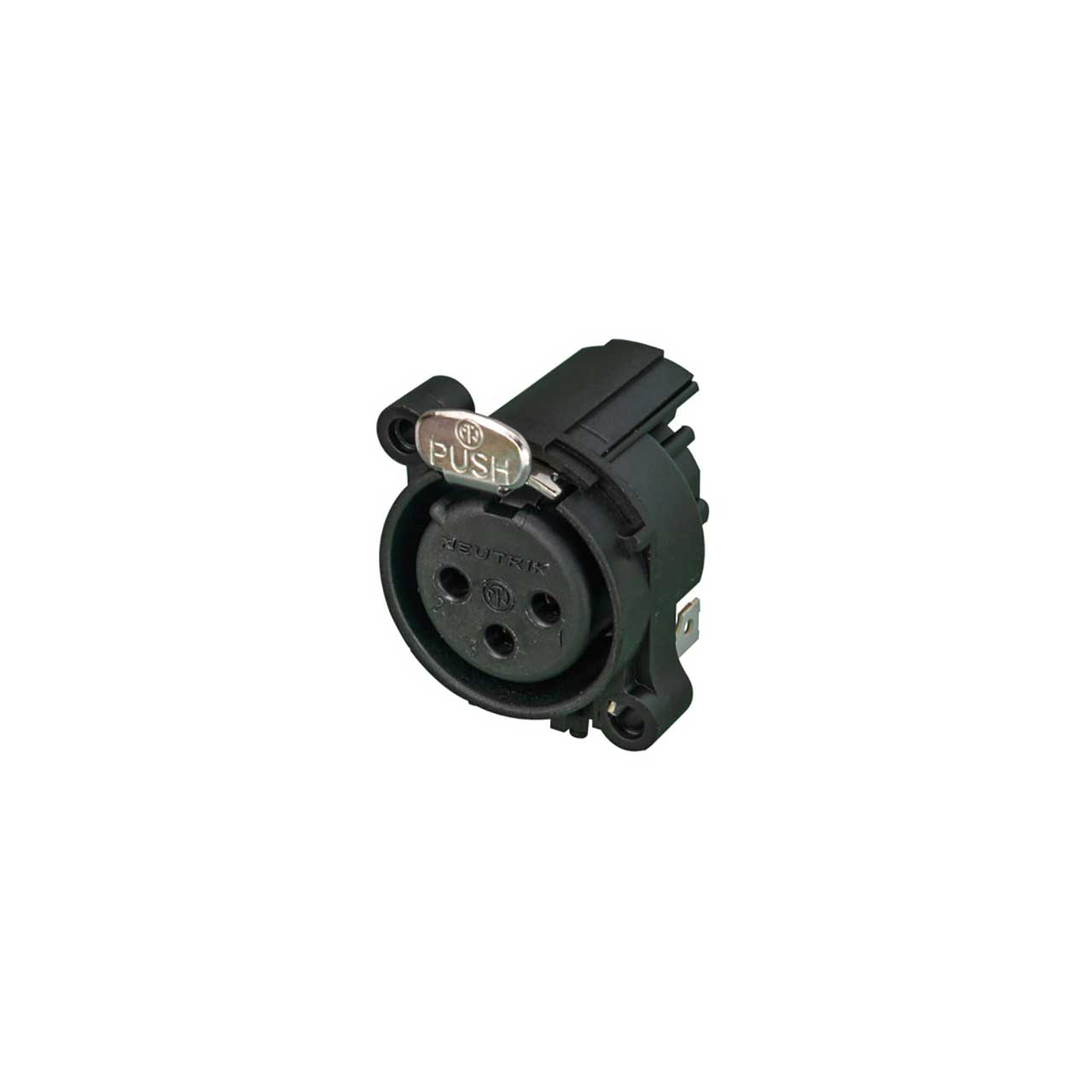

NEUTRIK NC3FAAH2 3 Pole Female XLR Receptacle - Horizontal PCB Mount

NC3FAAH2 - Overview

• Features:

  • Most cost-effective series
  • "Tulip" type contact design with high contact pressure for highest durability
  • Selective gold plated contact and PCB termination area for best conductivity and solderability


• Specifications:

  • Connection Type: XLR
  • Gender: female


  • Electrical
  • Capacitance between contacts: < 4 pF
  • Contact resistance: < 6 mΩ (inner)
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 6 A
  • Rated voltage: < 50 V
  • Grounding Options: Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1


  • Mechanical
  • Insertion force: < 20 N
  • Withdrawal force: < 20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: Horizontal PCB mount
  • Locking device: Latch lock
  • Mounting direction: rear
  • Chassis shape: A
  • Mounting: A-Screw


  • Material
  • Contacts: Bronze (CuSn6)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Steel Ck67
  • Flange: Black Plastic


  • Environmental
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
