The `State of the Art` NEUTRIK receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23mm between centers). New designed tulip type contacts with hard gold plating and polished contact areas. UL recognized component.

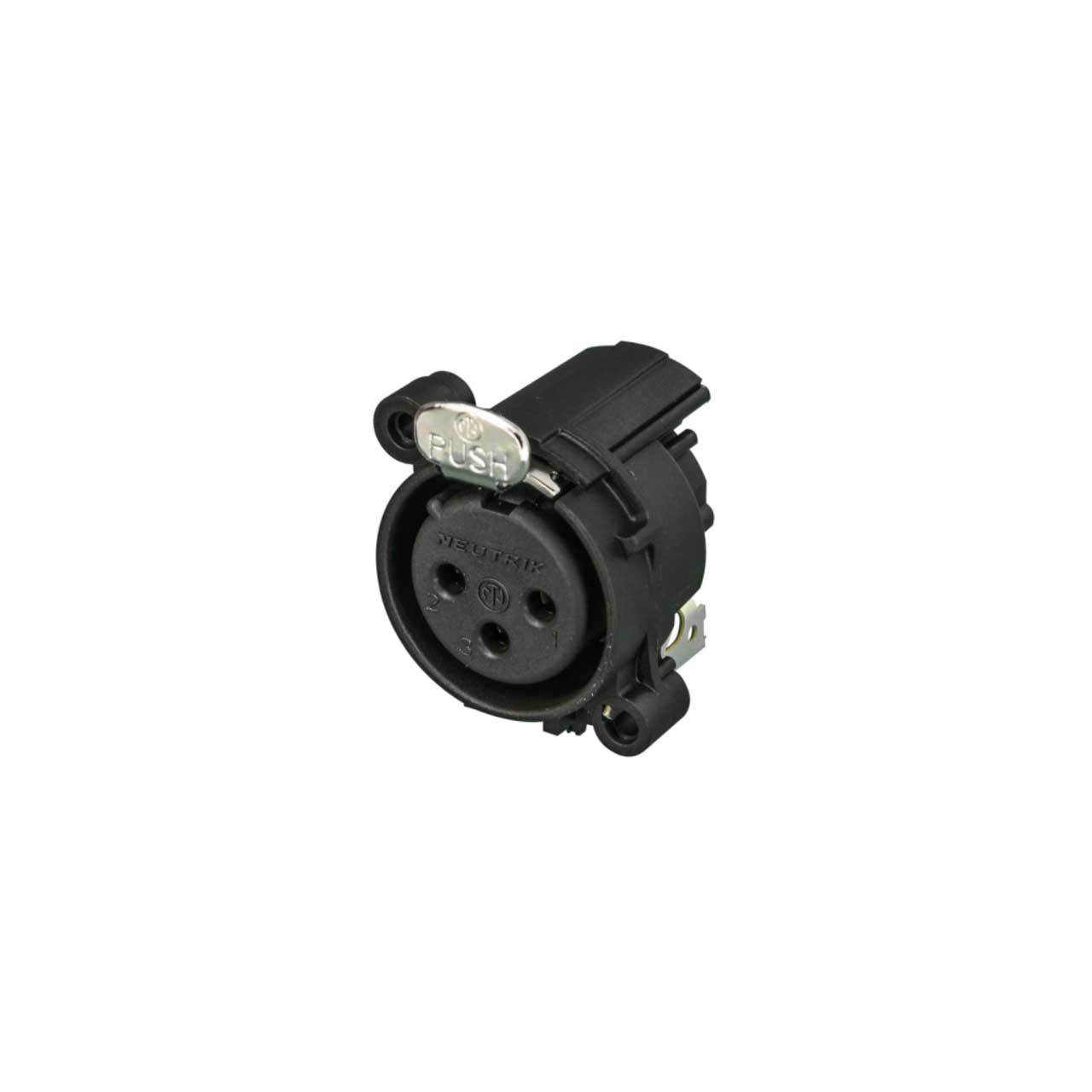

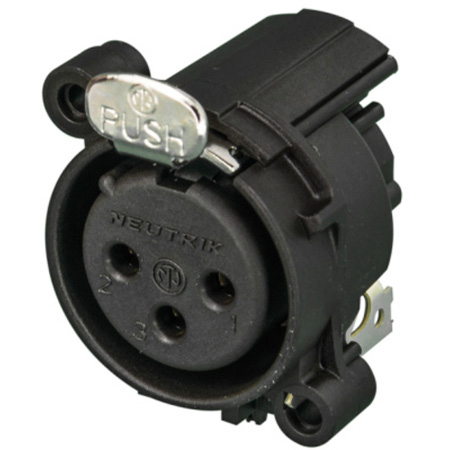

NC3FAH1 -- 3 pole female XLR receptacle, grounding: mating connector shell to pin1 and front panel, horizontal PCB mount
NC3FAH2 -- 3 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount
NC3FAV2-0 -- 3 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount, Retention spring instead of latch
NC3FAY -- 3 pole female XLR receptacle, grounding: without ground/shell contact, IDC-termination for AWG 24 and AWG 26 wires
NC3MAH -- 3 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount
NC3MAY -- 3 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, IDC-termination for AWG 24 and AWG 26 wires
