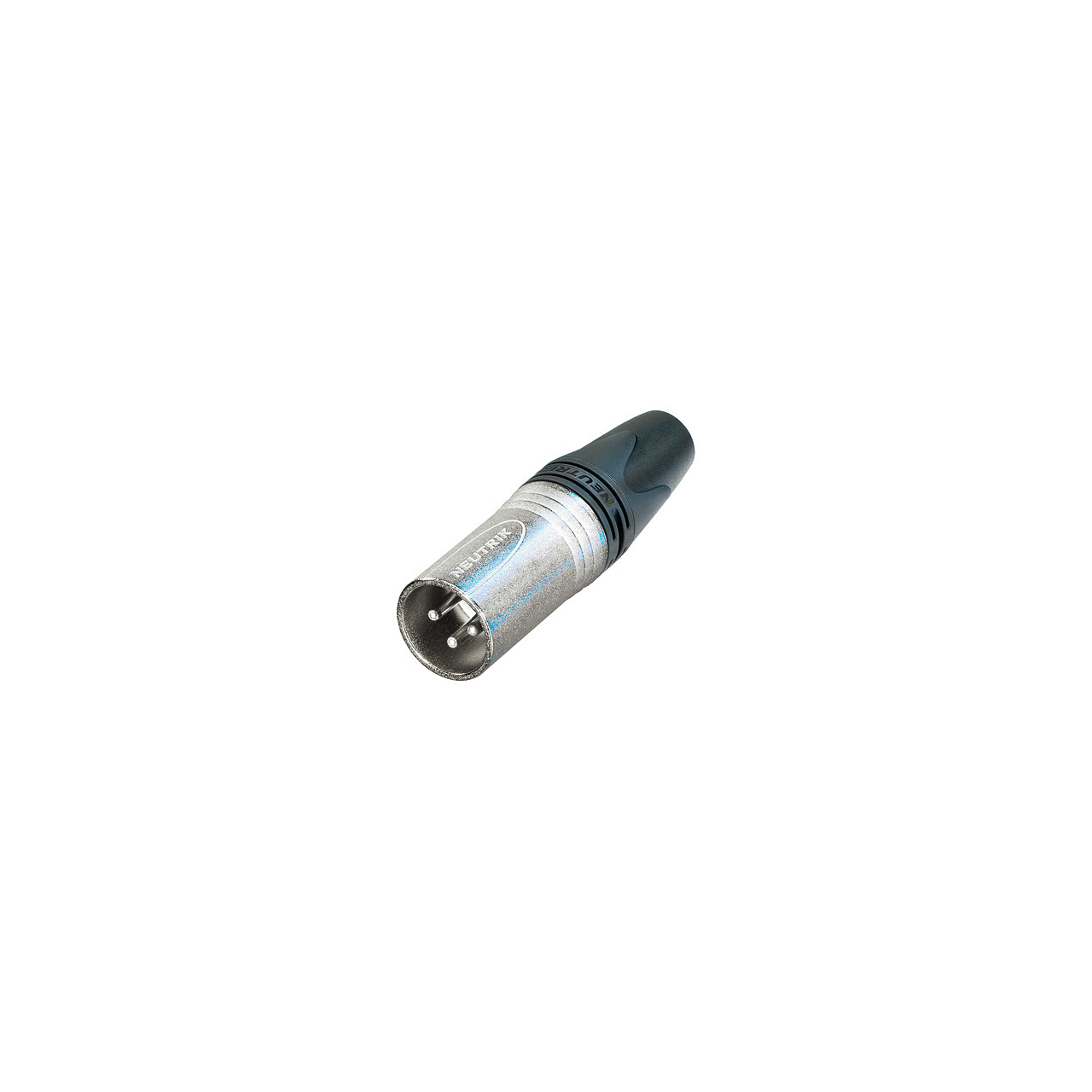

NEUTRIK NC3MXX-14-D 3 Pin Male XLR Cable Connector - Nickel Housing/Silver Contacts - 100 Pack

NC3MXX-14-D - Overview

• Features:

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable


• Specifications:

  • Electrical
  • Capacitance between contacts: ≤ 4 pF
  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 1.5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 16 A
  • Rated voltage: < 50 V

    Mechanical
  • Cable O.D.: 8 mm - 10 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 2.5 mm²
  • Wiresize: max. 14 AWG

    Environmental
  • Flammability: UL 94 V-0
  • Standard compliance: IEC 61076-2-103
  • Temperature range: -22 °F to 176 °F (-30 °C to +80 °C)


• Warranty:

  • 2 Year Warranty
