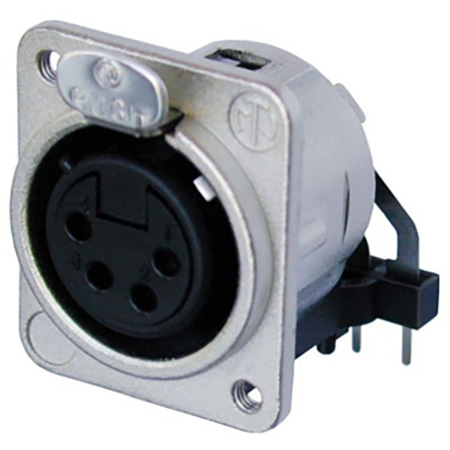

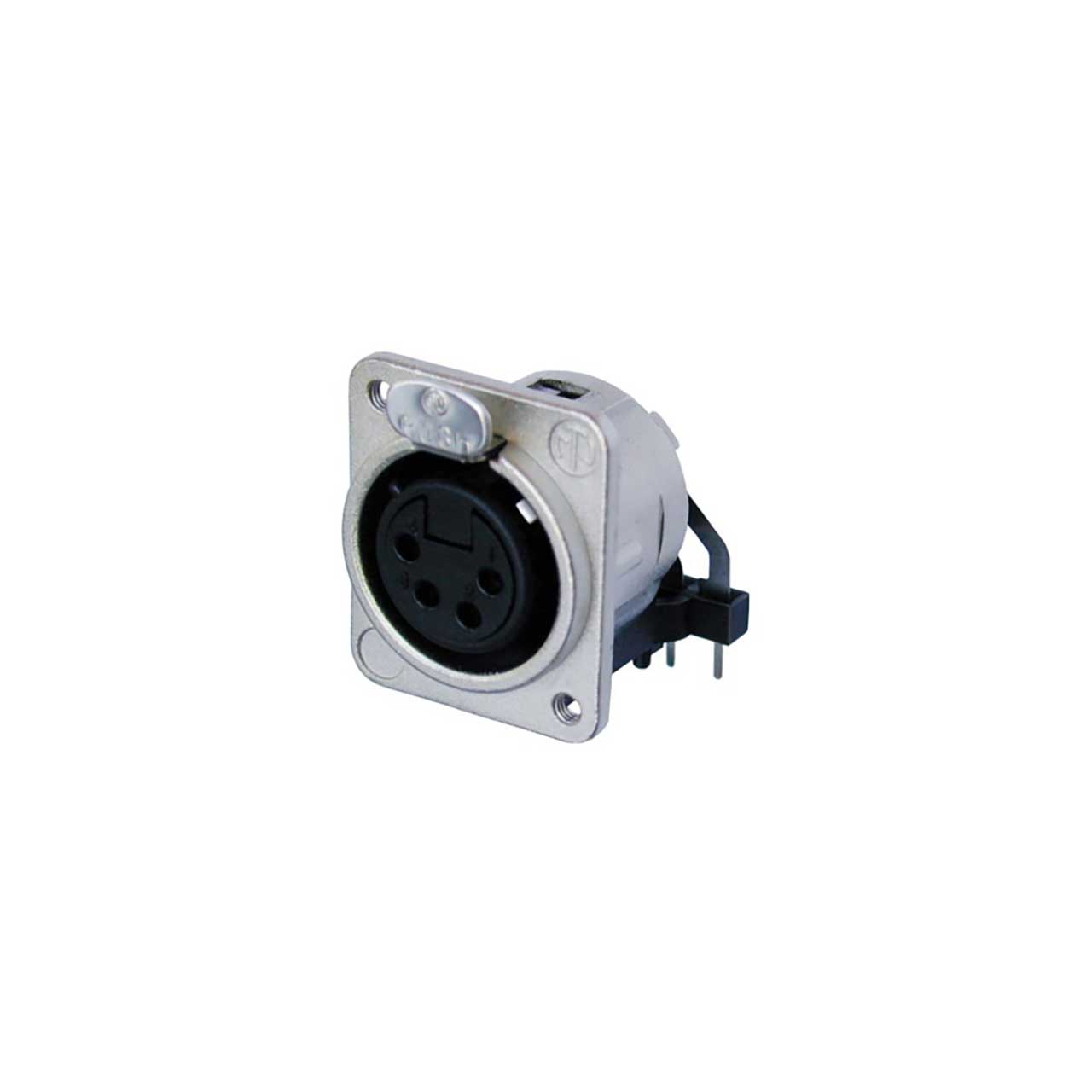

NEUTRIK NC4FDM3-H 4-Pin XLR Female Horizontal PCB M3 Mount Connector - Black/Silver

NC4FDM3-H-BAG - Overview

• Features:

  • Robust "D" metal shell
  • PCB mount termination
  • Standardized D sized 24 mm panel cutout


• Specifications:

  • Connection Type: XLR
  • Gender: female
  • Capacitance between contacts: greater/less than 7 pF
  • Contact resistance: greater/less than 5 mOhm
  • Dielectric strength: 1,5 kVdc
  • Rated current per contact: 10 A Rated voltage < 50 V Insertion force 20 N Withdrawal force 20 N Lifetime > 1000 mating cycles
  • Mount: Horizontal PCB mount
  • Locking device: Latch lock
  • Mounting direction: Rear
  • Mounting Chassis: shape D
  • Mounting holes: M3 threads
  • Contact plating: 2 µm Ag over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black chromium
  • Approvals: UL Flammability UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
