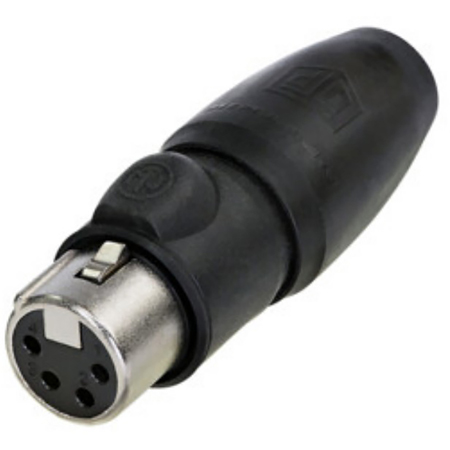

4 pole female cable connector, TRUE OUTDOOR PROTECTION (TOP), gold contacts.
The X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. Outdoor protected by mating with related cable connector of the XLR TOP range (IP65). Gold contacts are standard.
-
- Heavy-duty sealed XLR connector range for harsh and demanding environment
- Outdoor protection according to IP65
- Uses high impact UV resistant materials
- IEC 61984 certified
-
- Connection Type: XLR
- Gender: Female
- Contact Resistance: = 3mΩ
- Dielectric Strength: 1.5kVdc
- Insulation Resistance: >10GΩ (initial)
- Rated Current per Contact: 10A
- Rated Voltage: 50V
- Cable O.D.: 5.0mm - 8.0mm
- Insertion Force: = 20N
- Withdrawal Force: = 20N
- Lifetime: >1000 mating cycles
- Wiresize: <2.5mm², 16 AWG
- Wiring: Solder contacts
- Locking Device: Latch lock
- Bushing: UV-resistant rubber
- Contact Plating: Gold (Au) over Nickel (Ni)
- Contacts: Brass
- Insert: Polyamide
- Locking Element: St3K32 (latch)/Ck 67 (spring)
- Shell: Zinc diecast
- Shell Plating: Nickel
- Strain Relief: Polyacetal
- Sealing Jacket: UV-resistant rubber
- Flammability acc. to UL94: V-0 (insert)
- Standard Compliance: IEC 61076-2-103
- Protection class acc. IEC 60529: IP65 (mated)
- Solderability: IEC 60068-2-20
- Temperature Range: -22°F - 176°F (-30°C - 80°C)
