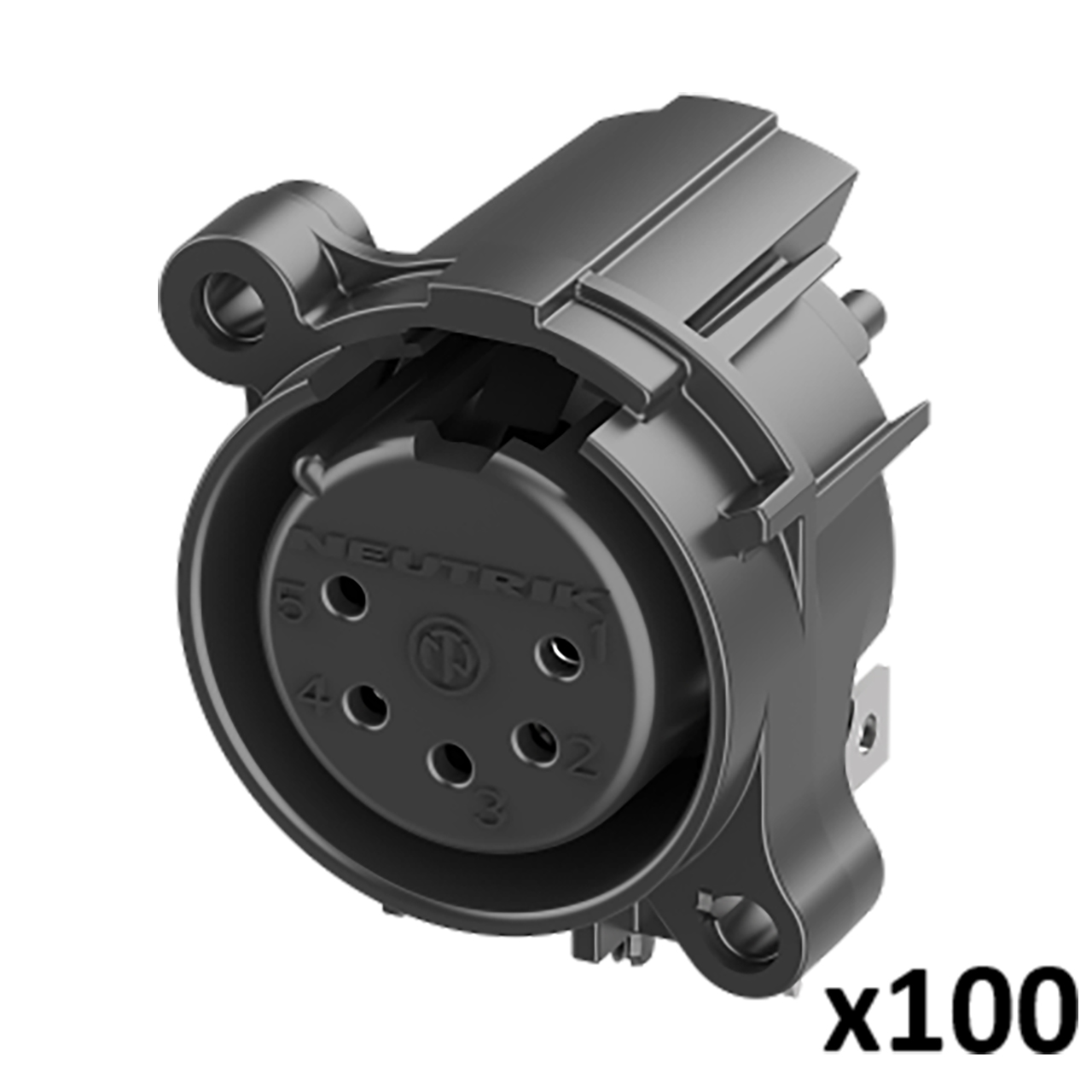

NEUTRIK NC5FAH1-0 5-Pin XLR PCBH Female Chassis Mount with Latch Locking - 100pk

NC5FAH1-0 - Overview

• Features:

  • Smallest XLR receptacles
  • highest packing density
  • New enhanced contact system
  • Flame retardant (V0, halogen free)


• Specifications:

  Electrical
  • Capacity Between Contacts: ≤7pF
  • Contact Resistance: ≤12mΩ
  • Dielectric Strength: 1.5kVdc
  • Insulation Resistance: >10GΩ (initial)
  • Rated cCurrent per Contact: 3A
  • Rated Voltage Acc. to UL1977: 50VAC
  • Grounding Options: Seperate ground contact connected to mating connector shell and front panel, no connection to Pin 1

    Mechanical
  • Insertion Force: ≤20 N
  • Withdrawal Force: ≤20 N
  • Lifetime: Min. 1000 mating cycles
  • Locking Device: Retention Spring
  • Wiring: Horizontal PCB mount
  • Chassis Shape: A
  • Mounting Direction: Rear mounting
  • Mounting: A-Screw

    Material
  • Contact: Bronze (CuSn6)
  • Contact Plating: Partial Gold/Ni/Tin
  • Insert: PA66
  • Locking Element: Steel Ck67
  • Locking Element Plating: Nickel

    Environmental
  • Flammability: UL 94 V0
  • Standard Compliance: IEC 61076-2-103
  • Solderability: Complies with IEC 60068-2-20


• Item Includes:

  • 100x NC5FAH1-0 5-Pin XLR PCBH Female Chassis Mount with Latch Locking


• Warranty:

  • 1 Year Limited Warranty
