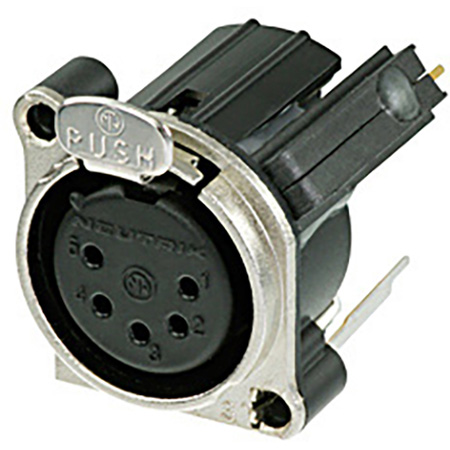

Neutrik NC5FBV-SW 5 Pole Female XLR Receptacle

ITEM #: NC5FBV-SW MFG #: NC5FBV-SW

free ship

List Price:

$10.63

Our Price:

$9.11

Availability: In Stock
iAvailability Description Popup


    NC5FBV-SW - Overview

    The BA Series is the more economical version of the B Series with circumferential metal flange featuring EMC and RF shielding and mechanical robustness.

    5 pole female XLR receptacle, switching contacts, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount

    The switching contacts are activated by the mating connector offering the possibility to indicate, monitor and control the mated connection. The switch provides a normal open and normal closed contact.

    • Features:

      • More economical version of B Series, same size and featuring highest packing density
      • Metal mounting flange featuring continuous circumferential ground contact to chassis for best EMC and RF protection
      • Fork type female contact
      • Fitted with changeover switch
      • Normally open, normally closed (NO - NC) contact
      • Switch activated by inserting the cable connector


    NC5FBV-SW - Required Accessories

      NC5FBV-SW - Recommended Accessories
