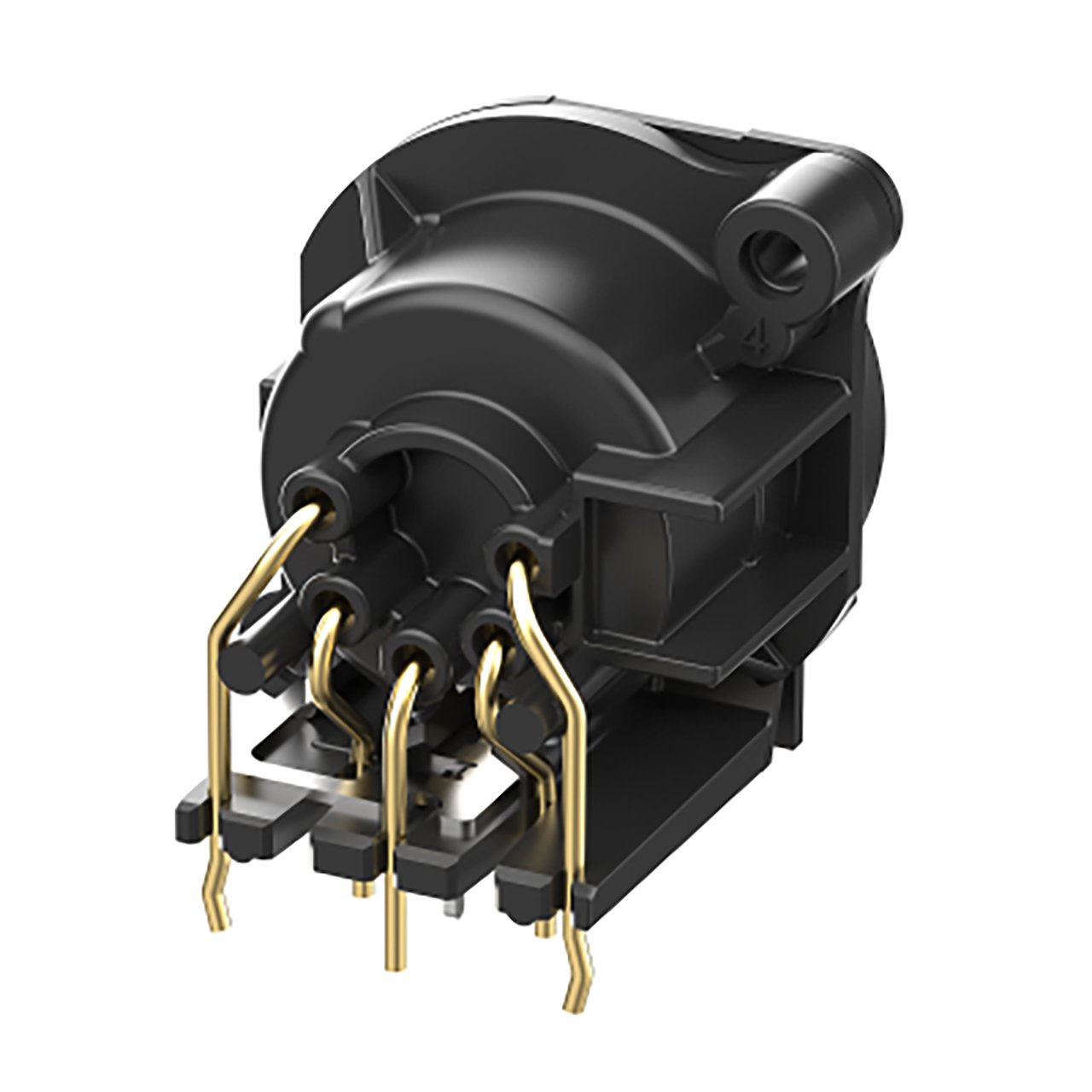

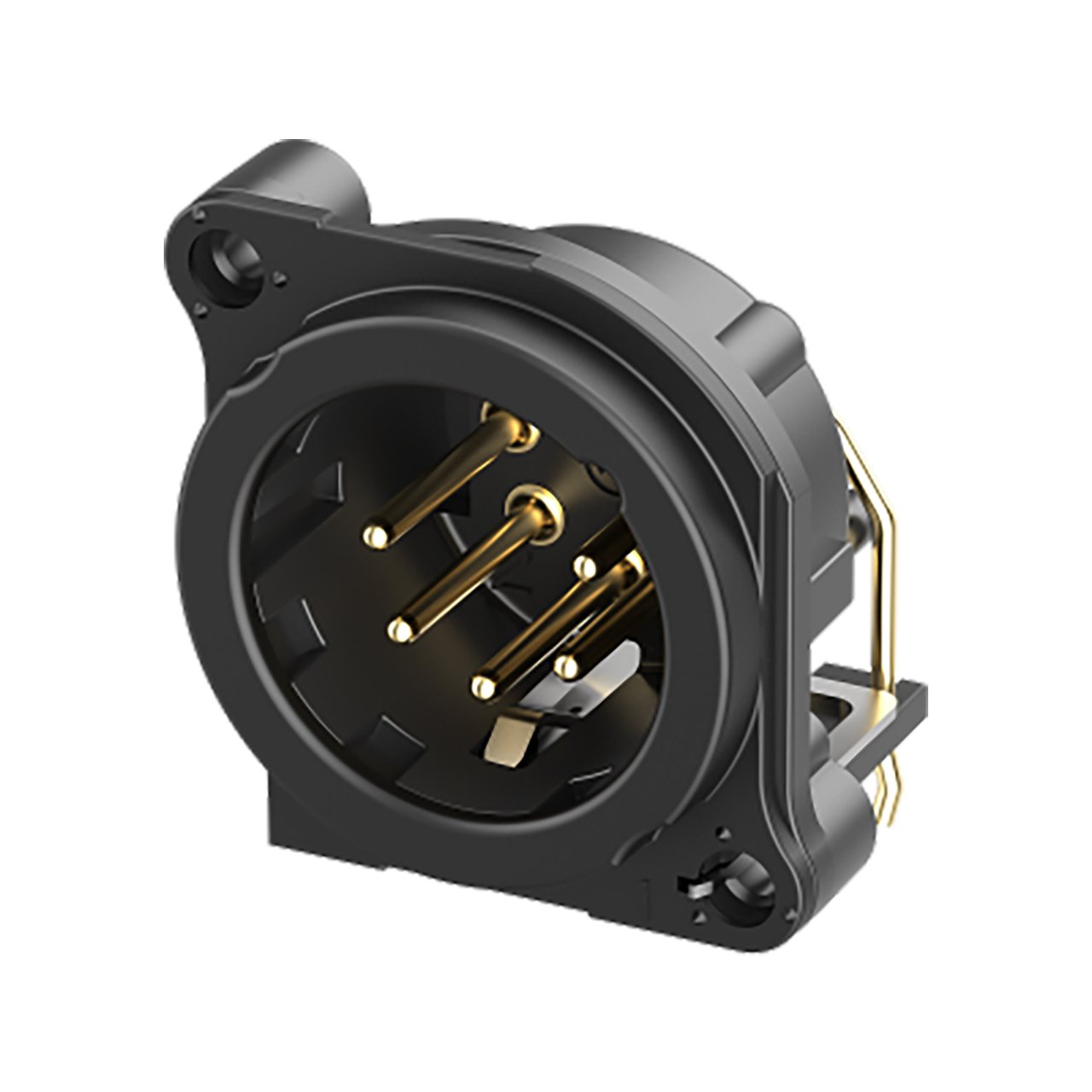

NEUTRIK NC5MBH1-B 5-Pin Male XLR Connector with Horizontal PCB Mount - Black - 100pk

NC5MBH1-B - Overview

• Features:

  • Smallest XLR Receptacles
  • Highest packing density
  • New enhanced contact system
  • Metal mounting flange featuring continuous circumferntial ground contact to chassis for
  • Best EMC and RF protection
  • Flame retardant (V0, halogen free)


• Specifications:

  Electrical
  • Capacity Between Contacts: ≤7pF
  • Contact Resistance: ≤12mΩ
  • Dielectric Strength: 1.5kVdc
  • Insulation Resistance: >10GΩ (initial)
  • Rated Current per Contact: 3A
  • Rated Voltage Acc. to UL1977: 50VAC
  • Grounding Options: Seperate ground contact connected to mating connector shell and front panel, no connection to Pin 1

    Mechanical
  • Insertion Force: ≤20 N
  • Withdrawal Force: ≤20 N
  • Lifetime: Min. 1000 mating cycles
  • Wiring: Horizontal PCB mount
  • Chassis Shape: B
  • Mounting Direction: Rear mounting
  • Mounting: A-Screw

    Material
  • Housing: PA66
  • Contact: Bronze (CuSn6)
  • Contact Plating: AU
  • Ring Planting: Black KTL

    Environmental
  • Flammability: UL 94 V0
  • Standard Compliance: IEC 61076-2-103
  • Solderability: Complies with IEC 60068-2-20


• Item Includes:

  • 100x 5-Pin Male XLR Connector with Horizontal PCB Mount - Black


• Warranty:

  • 1 Year Limited Warranty
