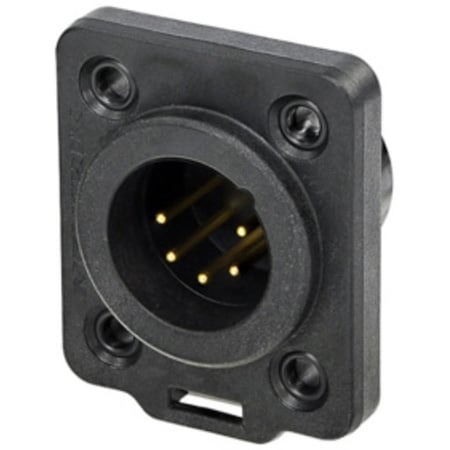

NEUTRIK NC5MDX-TOP Receptacle TOP Series 5-pin Male Chassis Connector - Solder - Nickel/Gold - IP65 and UV Rated

NC5MDX-TOP - Overview

• Features:

  • Heavy-duty sealed XLR connector range
  • 3 and 5 pin chassis and cable connector
  • Outdoor protection acc. IP65 and UL50E
  • Maintain sealing when in use and when disconnected
  • Uses high impact UV resistant materials per UL
  • Gold plated contacts
  • Optional dust protection cap


• Specifications:

  • Connection Type: XLR
  • Gender: Male

    Electrical
  • Capacitance Between Contacts: ≤4 pF
  • Contact Resistance: ≤5 mΩ
  • Dielectric Strength: 1,5 kVdc
  • Insulation Resistance: > 10 GΩ (initial)
  • Rated Current Per Contact: 7,5 A
  • Rated Voltage: < 50 V

    Mechanical
  • Insertion Force: ≤220 N
  • Withdrawal Force: ≤20 N
  • Lifetime: > 1000 mating cycles
  • Wiring: Solder contacts
  • Locking Device: Latch lock
  • Mounting Direction: Front mounting
  • Chassis Shape: D

    Material
  • Contact Plating: 0.2 æm Au over 2 æm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking Element: Steel Ck67
  • Gasket: TPE
  • Shell: Polyamide (PA 6.6 30 % GR)

    Environmental
  • Flammability: UL94 V-0
  • Standard Compliance: IEC 61076-2-103
  • Protection Class: IP65, UL50E
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
