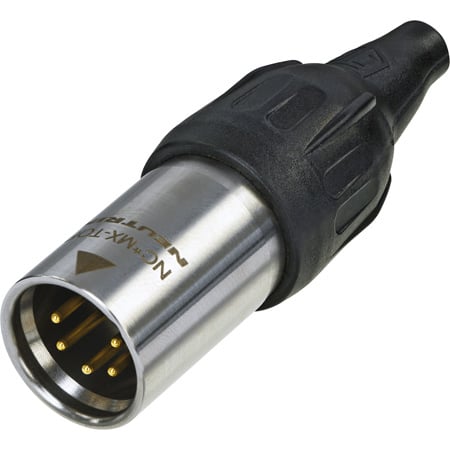

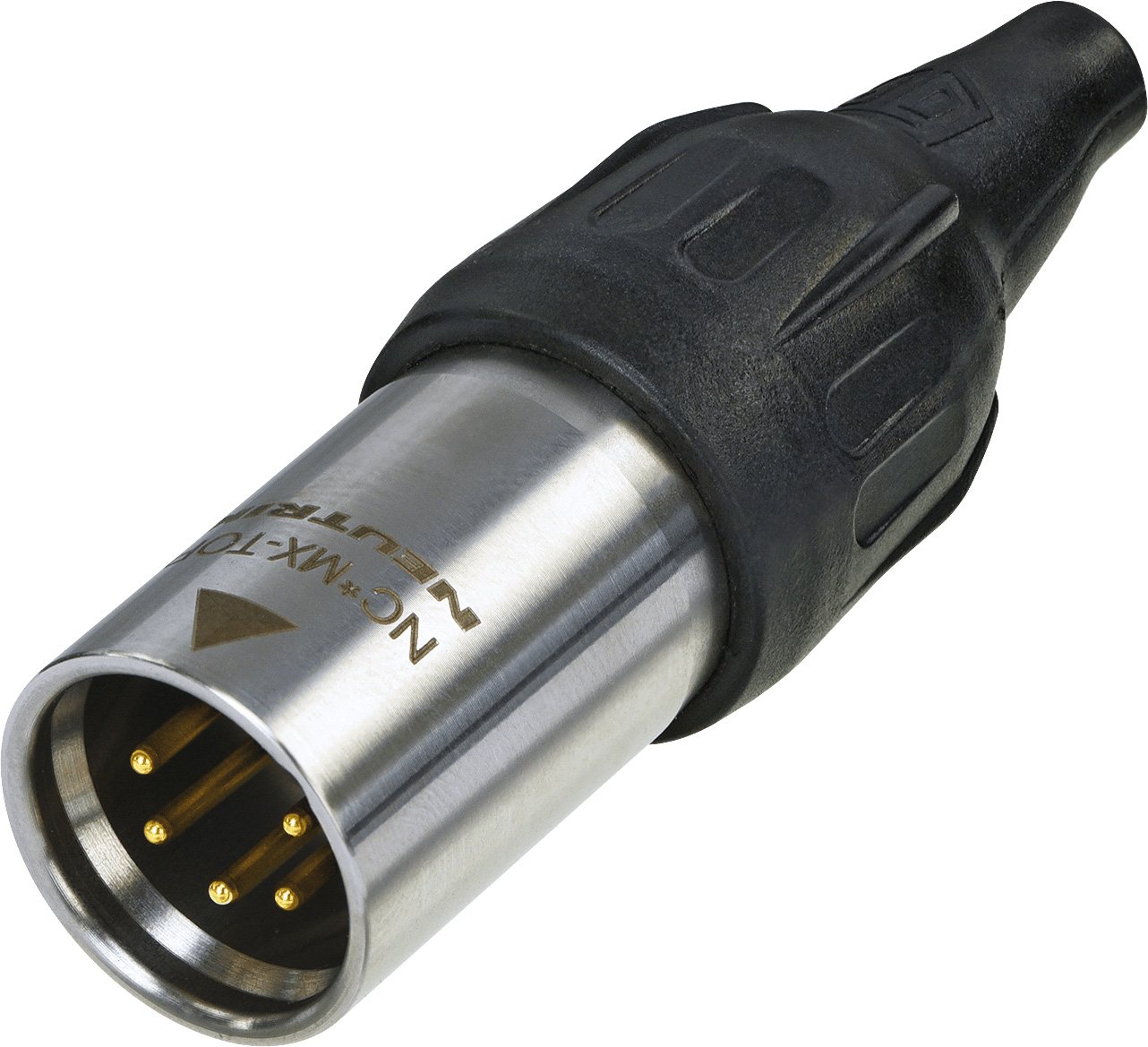

Neutrik NC5MX-TOP (True Outdoor Protected) 5 Pole Male Cable Connector - 50 Pack

NC5MX-TOP-50PK - Overview

• Features:

  • Heavy-duty sealed XLR connector range for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • Outdoor protection according to IP65 and UL50E (in combination with a TOP range counterpart)


• Specifications:

  • Connection Type: XLR
  • Gender: male
  • Capacitance between contacts: = 4 pF
  • Contact resistance: = 3 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 10 GΩ (initial)
  • Rated current per contact: 16 A
  • Rated voltage: < 50 V
  • Cable O.D.: 5.0 - 8.0 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.5 mm
  • Wiresize: max. 16 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock
  • Bushing: UV-resistant rubber
  • Contact plating: 0.2 µm Au hard alloy over 2 æm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Stainless steel
  • Shell: Stainless steel
  • Strain relief: Polyacetal (POM)
  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP65, UL50E (mated)
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
