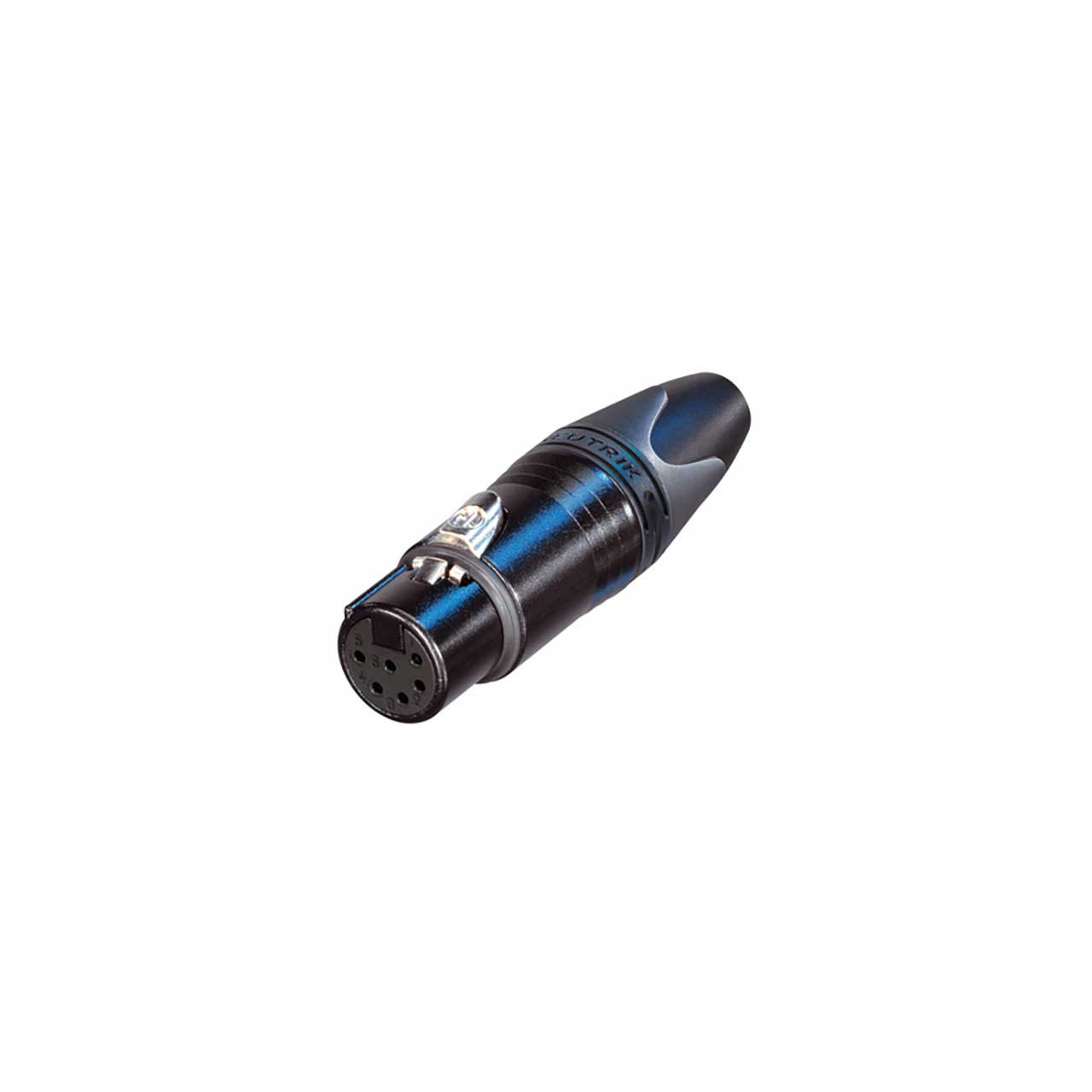

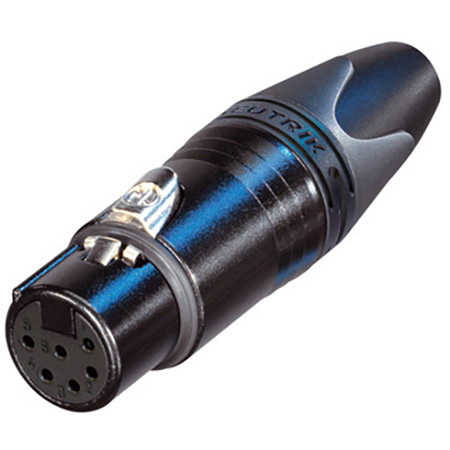

Neutrik NC6FXX-BAG 6 Pole Female XLR Cable Connector with Black Metal Housing and Silver Contacts

ITEM #: NC6FXX-BAG MFG #: NC6FXX-BAG

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$9.27

Our Price:

$7.94

Availability: In Stock
iAvailability Description Popup


    NC6FXX-BAG - Overview

    6 pole female cable connector with black metal housing and silver contacts.

    The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

    Please Note: Due to regulatory restrictions, Neutrik black chrome plating is no longer available. The new KTL black coating is fully isolating to meet RoHS and REACH requirements.

    If you require conductivity, please choose nickel-plated versions.

    • Features:

      • Unique cage design of female contact for low contact resistance and high integrity
      • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
      • Female connector with improved solid metal latch which is larger and easier to handle
      • Additional ground spring contacts for better shell ground continuity
      • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
      • Boot with polyurethane gland gives high protection to cable bending stresses
      • Colored rings and boots available for coding or identification
      • Sleek and ergonomic design - valuable and handy
      • Rugged zinc diecast shell, longlasting and dependable
      • Internal thread on shell is well protected against any damage
      • Branded with unique hologram - guarantees genuine and authentic Neutrik product

    • Specifications:

      • Electrical
      • Capacitance Between Contacts: ≤ 7 pF
      • Contact Resistance: ≤ 3 mΩ
      • Dielectric Strength: 1,5 kVdc
      • Insulation Resistance: > 10 GΩ (initial)
      • Rated Current per Contact: 7,5 A
      • Rated Voltage: < 50 V

      • Mechanical
      • Cable O.D.: 3.5 - 8.0 mm
      • Insertion Force: ≤ 20 N
      • Withdrawal Force: ≤ 20 N
      • Lifetime: > 1000 mating cycles
      • Wiresize: max. 1.0 mm²
      • Wiresize: max. 18 AWG
      • Wiring: Solder contacts
      • Locking Device: Latch lock

      • Material
      • Boot: Polyurethan
      • Contact Plating: 2 µm Ag over 2 µm Ni
      • Contacts: Brass (CuZn39Pb3)
      • Insert: Polyamide (PA 6.6 30 % GR)
      • Locking Element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
      • Shell: Zinc diecast (ZnAl4Cu1)
      • Shell Plating: Black chromium
      • Strain Relief: Polyacetal (POM)

      • Environmental
      • Flammability: UL 94 HB
      • Standard Compliance: IEC 61076-2-103
      • Protection Class: IP 40
      • Solderability: Complies with IEC 68-2-20
      • Temperature Range: -22°F - 176°F (-30°C - 80°C)

    • GTIN:

      7613187000072
