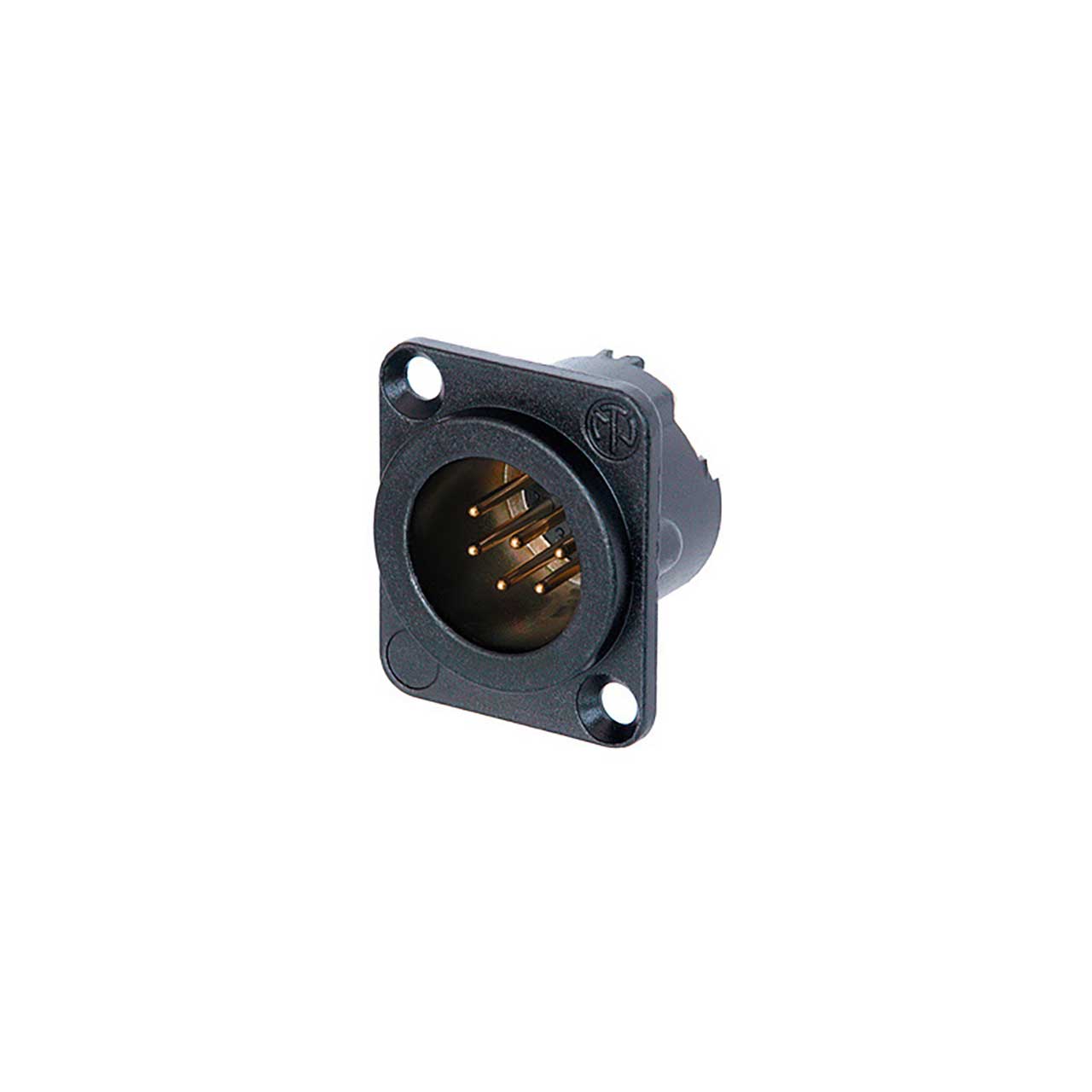

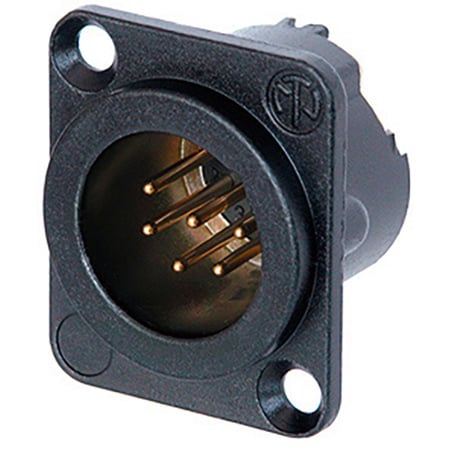

Neutrik NC6MD-LX-BAG 6-Pin XLR Male Panel/Chassis Mount Connector - Duplex Ground - Black/Silver

ITEM #: NC6MD-LX-BAG MFG #: NC6MD-LX-BAG

Primary Image
Neutrik Americas
Free Shipping with $49 Minimum Order

List Price:

$13.00

Our Price:

$11.14

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    NC6MD-LX-BAG - Overview

    6 pole male receptacle, solder cups, black metal housing, silver contacts

    The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.

    Features & Benefits:
    All metal housing offers best overall RF protection and electromagnetic shielding
    Duplex ground contact for excellent contact integrity between chassis and cable connector
    Male connector's retention bar replaces plastic design with all metal version improving pull-out force
    Larger solder contacts for easier termination
    Optional connection to easily join pin1 to chassis ground
    D-style housing provides installation compatibility with industry standard D mounting dimensions

    • Specifications:

      • Capacitance between contacts: = 7 pF.
      • Contact resistance: = 5 mO.
      • Dielectric strength: 1,5 kVdc.
      • Insulation resistance: > 10 GO (initial).
      • Rated current per contact: 7,5 A.
      • Rated voltage: < 50 V.
      • Insertion force: = 20 N.
      • Withdrawal force: = 20 N.
      • Lifetime: > 1000 mating cycles.
      • Wiresize: max. 1.0 mm² .
      • Wiresize: max. 18 AWG.
      • Wiring: Solder contacts.
      • Locking device: Latch lock.
      • Chassis shape: D.
      • Contact plating: 0.2 æm Au hard alloy over 2 æm Ni.
      • Contacts: Brass (CuZn35Pb2).
      • Insert: Polyamide (PA 6.6 30 % GR).
      • Locking element: Steel Ck67.
      • Shell: Zinc diecast (ZnAl4Cu1).
      • Shell plating: Black chromium
      • Flammability: UL 94 HB.
      • Standard compliance: IEC 61076-2-103.
      • Protection class: IP 40.
      • Solderability: Complies with IEC 68-2-20.
      • Temperature range: -30 °C to +80 °C .
