NEUTRIK NE8MXR1-B-TOP-D etherCON CAT5/CAT6A TOP RJ45 Carrier Cable Connector with Retractable Shell - Black - 100 Pack

ITEM #: NE8MXR1-B-TOP-D MFG #: NE8MXR1-B-TOP-D

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
NEUTRIK Group
Free Shipping with $49 Minimum Order

List Price:

$800.00

Our Price:

$716.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
Report Lower PriceLarge Quantity Quote

NE8MXR1-B-TOP-D - Overview

Includes a CAT6A RJ45 plug and a wire manager!

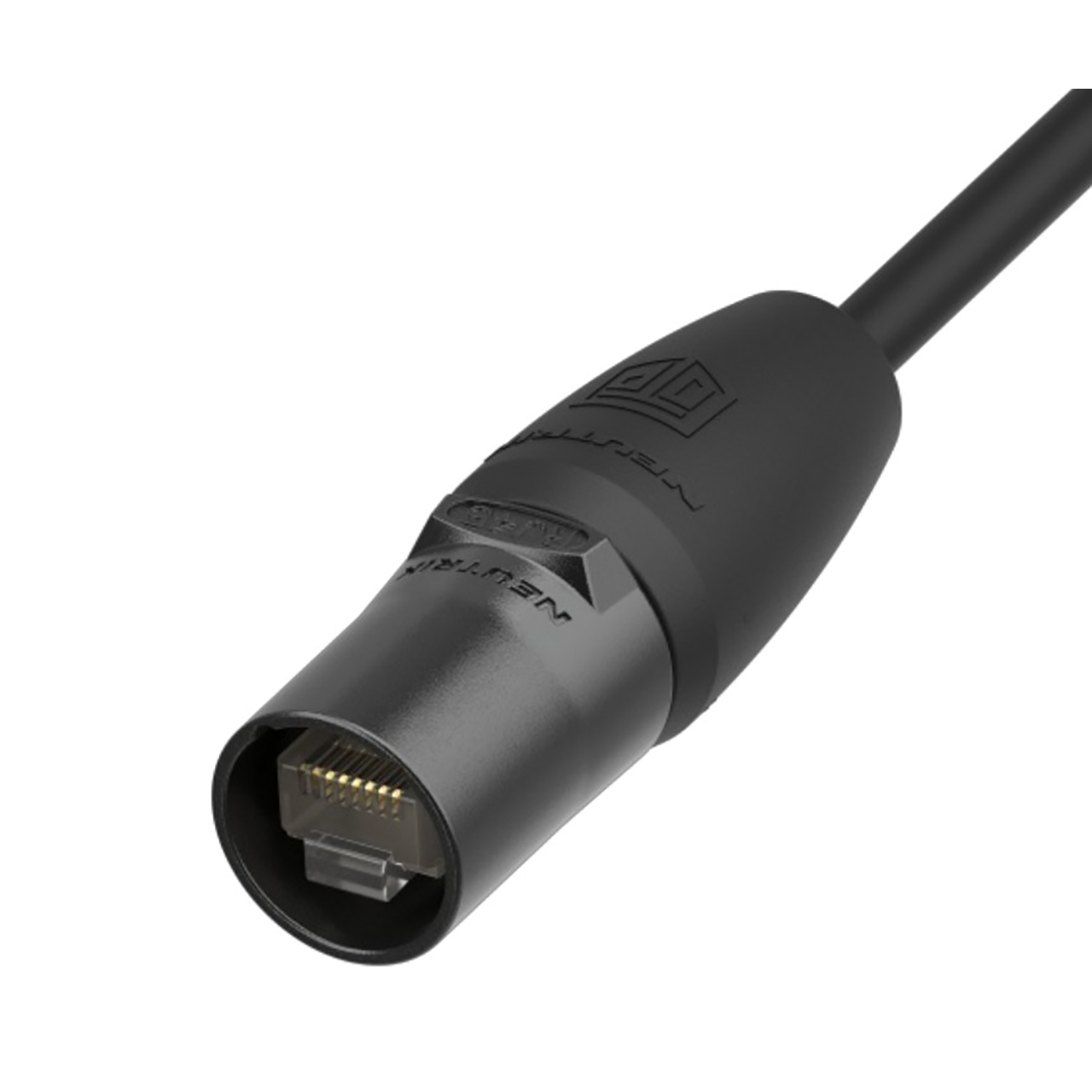

Introducing the latest innovation in ethernet connectivity, expanding the NEUTRIK etherCON TOP portfolio. Designed to withstand the harshest outdoor conditions, this connector combines durability with versatility, ensuring reliable performance in any environment and application.

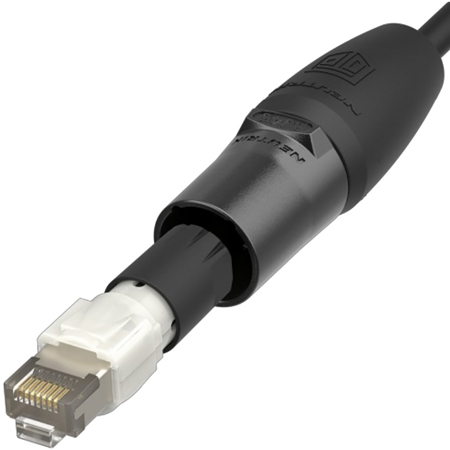

With this unique design, the TOP (TRUE OUTDOOR PROTECTION) connector allows for the shell to be fully retracted for the first time, providing compatibility with standard RJ45 receptacles. This feature allows flexible and universal usage in various applications, removing the risk of lost shells.

ATTENTION: Does not intermate with the CAT6 receptacle NE8FDY-C6 and NE8FDY-C6-B.

Please Note: Cable connectors include a CAT6A RJ45 plug and a wire manager. It is designed for the use with non-preassembled cables only. RJ45 cable assembly must be provided by the end user.

  • Features:

    • Retractable carrier shell allows compatibility with common RJ45 without the risk of losing the shell.
    • Rugged diecast shell and unique chuck type strain relief for harsh environments
    • IP65 ingress protection class with closed sealing cap (SCMX-TOP) or in mated condition with NEUTRIK etherCON TOP receptacles
    • UV resistant F2 certified materials (with UL yellow card)
    • Corrosion resistant plating and materials
    • Flame resistant V0 rated connector
    • Halogen free materials to protect humans and the environment - no toxic or corrosive gases are released
    • Designed to prevent breakage of the fragile components of standard RJ45 connectors
    • CAT6A RJ45 plug and a wire manager is included with this product.
    • Allows assembly of non-preassembled conventional RJ45 cables


  • Specifications:

    • Product Family: etherCON
    • Connection Type: RJ45 carrier cable connector
    • Gender: Male
    • Boot: Thermoplastic elastomer (TPE)
    • Shell: Zinc diecast(ZnAl4Cu1)
    • Strain Relief: Polyketon (PK)
    • Sleeve: Polyamid (PA6, GF15%)
    • Protection Class: IP65 (mated), IP65 (closed sealing cap)
    • Temperature Range: -22°F - 176°F (-30°C - 80°C)
    • Compatible Crimping Tools: Hirose HT603/TM21P-88P, Hanlong HT-236 with HT-236Q1A
    • Cable O.D.: 5.5mm - 8.0mm
    • Wiresize:
      - Solid: AWG26/1 - AWG 27/1
      - Stranded: AWG24/7 - AWG 27/7
    • Insertion Force: = 30 N
    • Withdrawal Force: = 30 N
    • Lifetime: min. 1000 mating cycles, min.100 retracting cycles
