    NEOLIVE R2 - Overview

    Easy to operate!

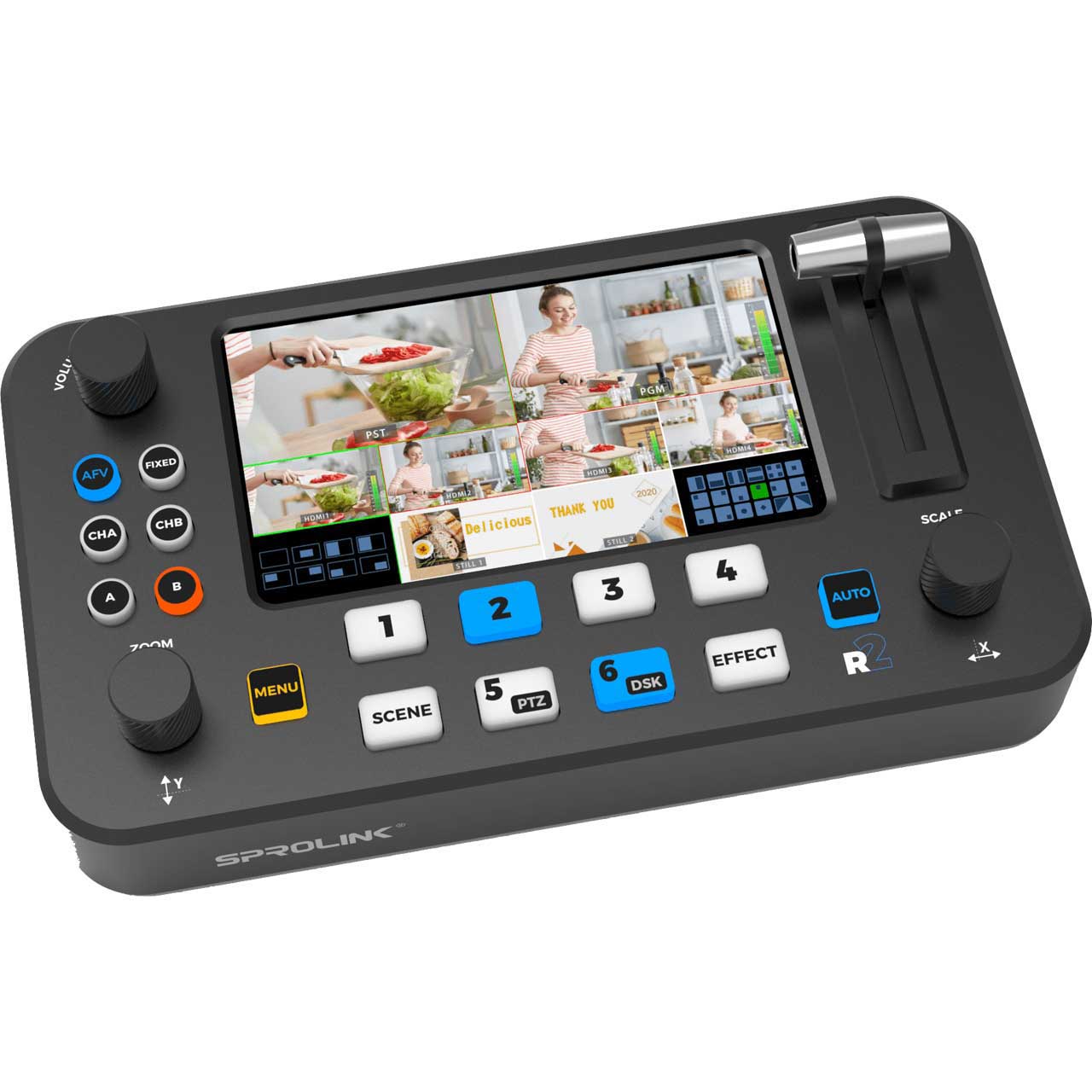

    A dedicated and pro video mixer, the Sprolink NeoLIVE R2 is designed offer simple live 4 camera switching and streaming while offering a 5.5-inch LCD monitor for 10 windows & multiview. Users can quickly select the input source, add or delete a layer, move layers horizontally or vertically, Scale and ZOOM. Other features include audio settings like mix, AFV follow, audio lock and Save and Load. Great PTZ control, Chroma Key, and Transition effects, and other menu settings round things out. The big button design provides a user-friendly experience allowing you to easily and successfully finish the tasks at hand.

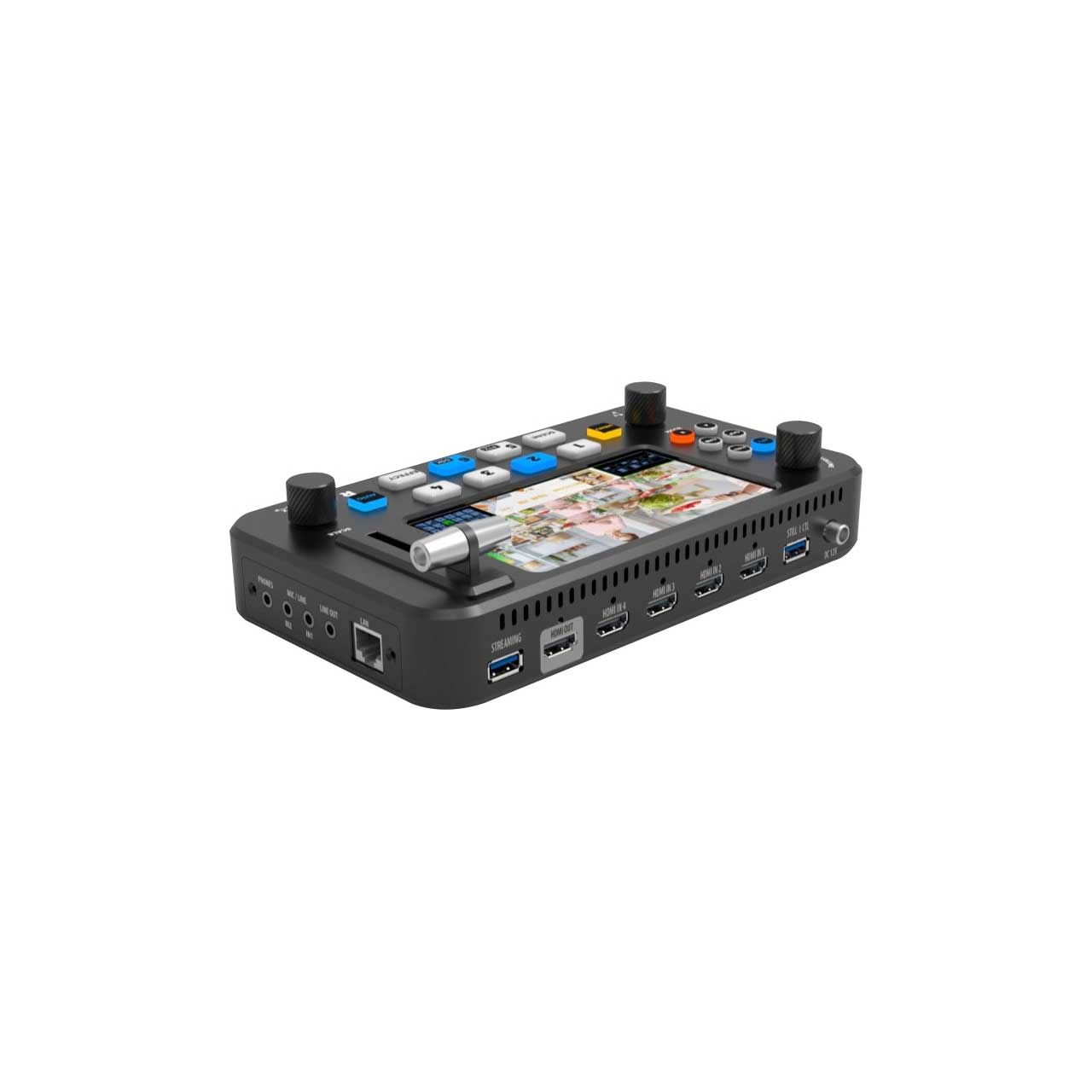

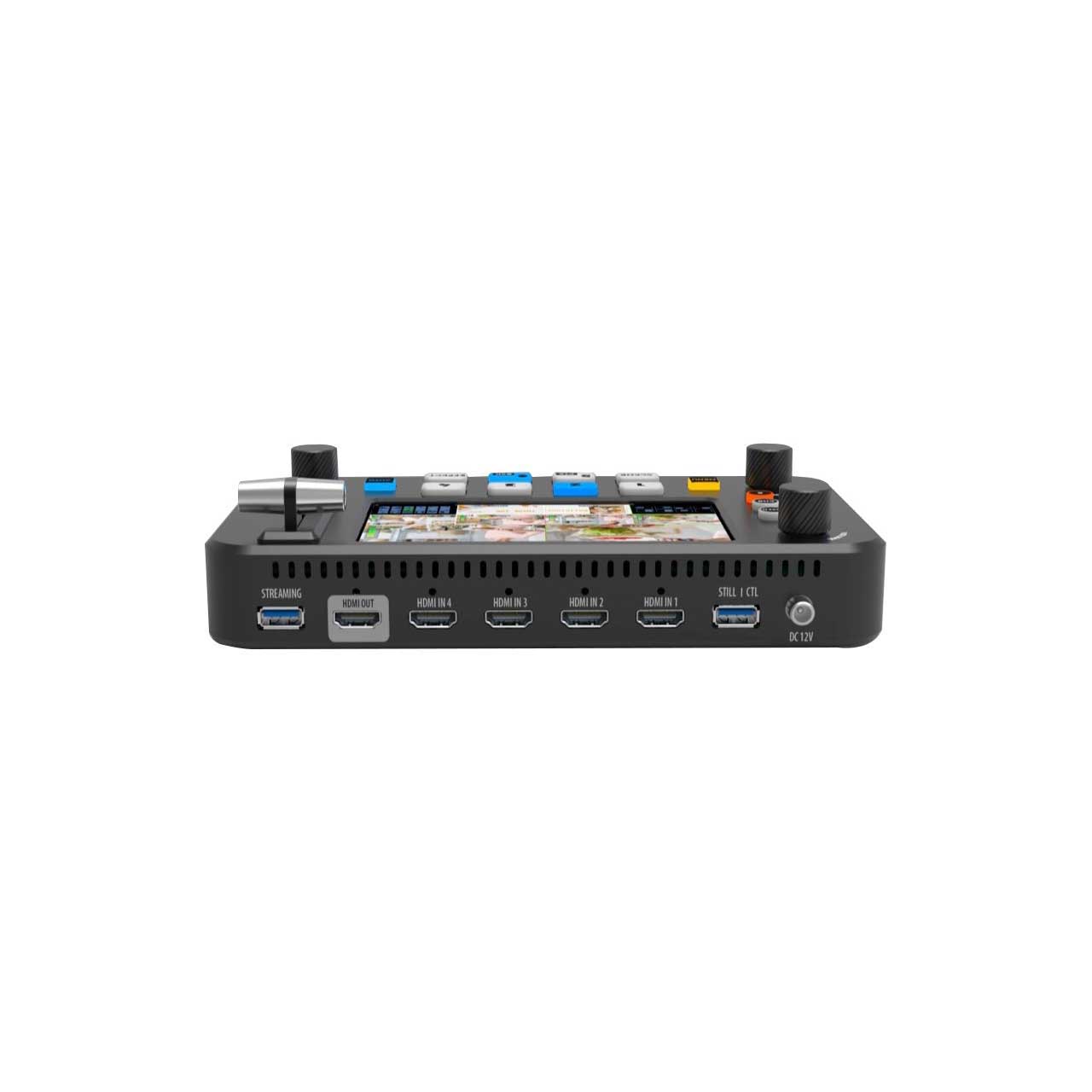

    NeoLIVE R2 supports 4 HDMI inputs and 1 HDMI output, as well as a USB3.0 out for live streaming and USB STILL CTL for upgrade and picture insertion. On the side of the device there is audio input and output, and a LAN port for remote control.

    The First Mixer in the World Equipped with a 5.5-inch LCD Monitor
    NeoLIVE R2 can preview all the signals on the 5.5-inch monitor at the same time with the multi-view feature. 4 small windows are for previewing the 4 camera signals in real time.

    The left bottom window shows the timing, right bottom one shows the PIP switching effect, and the two windows in the middle can add and edit pictures via STILL/CTL port.

    HDMI output and USB3.0 Port
    NeoLIVE R2 also features a USB3.0 output, which can help the PC recognize the camera to realize smooth live streaming via third party live streaming software, to avoid the compatibility problems.Both the HDMI and USB 3.0 port can be set to the HDMI1/2/3/4/PST/PGM/PVW channel to meet the variety of live streaming and live show use.

    Use Professional Microphone
    NeoLIVE R2 supports 2 independent 3.5 stereo audio inputs to connect to the desktop microphone, clipper microphone, or the music player. You can also mix and monitor all the HDMI embedded audio with the 2 microphone inputs.

    PIP and Broadcast Level Transition Effect
    NeoLIVE R2 support PIP and different transition effects and real time position settings including FADE, WIPE, DIP, DVE to create a fantastic show. In addition NeoLIVE R2 also has a Preview function so you can preset and preview all the signals before switching to the program.

    Realize a Live Virtual Broadcast Studio
    The NeoLIVE R2 Chroma Key function can help you to create a vivid, virtual live broadcast studio, with the powerful DSP algorithm and Chroma Key. No need to move the camera.

    • Features:

      • Dedicated design with two level reflux heat dissipation
      • Fully FPGA structure to realize audio video editing in real time
      • 6x audio control systems supporting flexible and powerful MIX audio & AFV following setting
      • Support 4 HDMI inputs and 2 static pictures to realize any three windows switching
      • Powerful and fast picture input and spot
      • Support centrally remote control for 4 PTZ cameras
      • Powerful DSP arithmetic ability to create a live virtual studio with DSK (Chroma KEY)
    • Specifications:

      • Connectors:
      • Video Input: 4x HDMI 1.3 - A, 1x USB 2.0 TYPE A
      • Video Output: 1x HDMI A 1.3 - A, 1x USB 3.0 Type A
      • Audio In: 2x 3.5mm stereo Jack
      • Audio Out: 1 LINE OUT - 1x 3.5mm stereo Jack, 1x Headphone, 1x 3.5mm stereo Jack
      • Communication: 1x RJ45 (LAN)
      • Inputs Resolutions: HDMI SMPTE VESA
      • Output Resolutions: HDMI SMPTE [email protected]/60

      • Video Sampling: YUV 4:4:4
      • Latency: <3 Frame
      • Audio Latency: 0-500ms (0-30/25 frame)

      • Input Voltage: 12V/2A
      • Constant Power: 20W

        Dimensions & Weight:
      • Device Dimension: 8.66" x 4.96" x 1.97" (220mm x 126mm x 50mm)
      • Shipping Dimension: 10.62" x 7.48" X 5.11" (270mm x 190mm x 130mm)
      • Weight: 1.10lbs (0.5kg)
    • Warranty:

      • 1 Year Warranty
