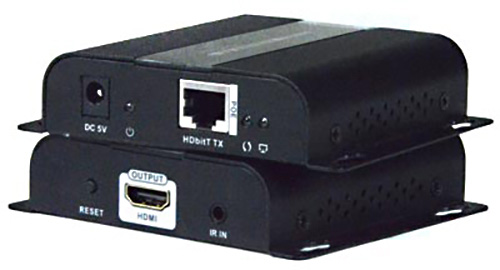

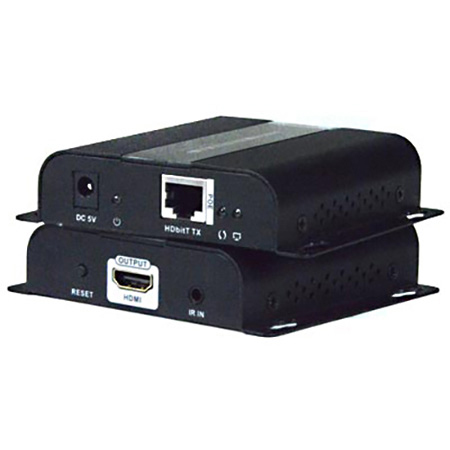

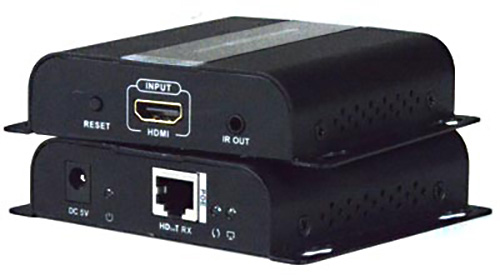

NTI ST-IPHD-POELC Low-Cost HDMI Over Gigabit IP Extender with IR and Power over Ethernet (PoE)
  • NTI ST-IPHD-POELC Low-Cost HDMI Over Gigabit IP Extender with IR and Power over Ethernet (PoE)
  • NTI ST-IPHD-POELC Low-Cost HDMI Over Gigabit IP Extender with IR and Power over Ethernet (PoE)

Questions? Ask a Markertek Expert:
800-522-2025 Email

NTI ST-IPHD-POELC Low-Cost HDMI Over Gigabit IP Extender with IR and Power over Ethernet (PoE)

Item #: NETT-STIPHDPOELC   •   MFG #: ST-IPHD-POELC




Our Price:$260.00

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The NTI ST-IPHD-POELCXTENDEX® Low-Cost HDMI Over Gigabit IP Extender multicasts digital video and audio signals to one or more receivers up to 393 feet away over a 1000Base-T Gigabit Network connected with CAT5e/6/7 cable.

    Each Low-Cost HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx cable or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.


    • Features

      • Supports HDTV resolutions up to 1080p.
      • Ideal solution for digital signage applications.
      • Power over Ethernet (PoE) - power supply not required at the local or remote unit.
      • Broadcast real-time HDMI video and audio signals to multiple display locations with a managed or unmanaged (also known as non-managed) network switch.
      • Support for multiple transmitters requires a managed network switch with VLAN support. Standard LAN switches can only support one transmitter.
      • ransmits an HDMI signal over one CAT5e/6/7 cable.
      • Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control.
      • Plug-and-Play installation allows receivers to find the transmitter automatically on the same subnet. (Network configuration may be required for managed network switch.)
      • Web interface for firmware updates.
      • Easily expandable. Add remote units as you add monitors.
      • Supports a maximum of 253 receivers.

    • Specifications

      • Local Unit
      • One female HDMI-A port for source connection.
      • One female 1000Mbps RJ45 port for sending high definition video/audio signals and DDC signal.
      • One female 3.5mm port for IR transmitter (included).
      • IR frequency range: 20 to 60 Khz.
      • Class 3 PoE compatible (10 watts maximum).
      • Supported input resolutions: [email protected], [email protected], [email protected], [email protected], [email protected]/60Hz, [email protected]/60Hz, [email protected]/60Hz.
      • Codec: H.264
      • Encoding delay: 22 mS at 30fps latency

        Remote Unit
      • One female HDMI-A port for HDTV display.
      • One female 1000Mbps RJ45 port for receiving high definition video/audio signals.
      • One female 3.5mm port for IR receiver (included).
      • IR frequency range: 20 to 60 Khz.
      • Class 3 PoE compatible (10 watts maximum).
      • Supported output resolutions: [email protected], [email protected], [email protected], [email protected], [email protected]/60Hz, [email protected]/60Hz, [email protected]/60Hz.
      • Supports embedded digital audio through HDMI compatible TVs or audio receivers.

        Power
      • Power over Ethernet: With a switch that supports Power over Ethernet, a power supply is not required at the local or remote unit.
      • Local and remote unit:
      • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (not included).
      • Country-specific AC adapter sold separately (PWR-SPLY-IPHDPOELC).
      • Output: 5VDC, 3.0A.
      • Power Consumption:
      • Local: 3.5W
      • Remote: 3.0W.

        Max Distance
      • 393 feet (120 meters) over Cat5e/6/7 cable.

        Cables
      • Use HD-xx-MM cable to connect an HDMI source or display up to 50 feet away (not included).
      • Use DVI-HD-xx-MM cable to connect a DVI source or display (not included).
      • Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

        Environmental
      • Operating temperature: 32 to 140°F (0 to 60°C).

        Dimensions
      • W x D x H (in): 4.13 x 3.72 x 0.94 (105 x 95 x 24 mm)

        Regulatory Approvals
      • CE, FCC, RoHS

        Warranty
      • Two years

    • Warranty

      • 2 Year
