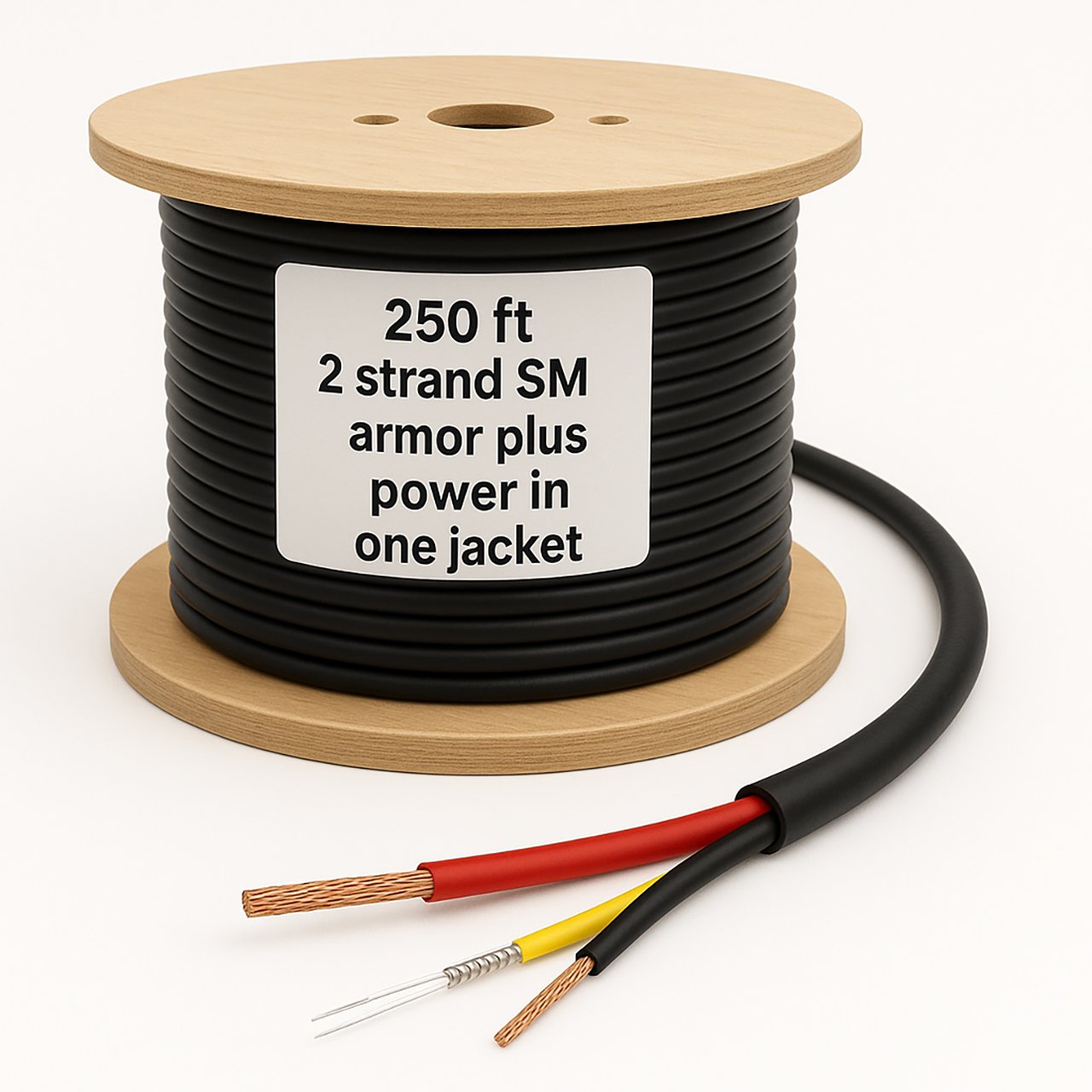

nanoFIBER 2 Strand Singlemode Plus 18AWG Hybrid Power & Fiber Integrated OSP/Indoor Cable w/Steel Armor - 250 Foot Reel

ITEM #: NF-H2A2182P-0250 MFG #: NFH2-A2-182-OSP-250

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$799.99

Our Price:

$579.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


NFH2-A2-182-OSP-250 - Overview

The nanoFIBER 2 Strand Singlemode Plus 18AWG Hybrid Power & Fiber Integrated OSP/Indoor Cable is the ultimate hybrid solution for delivering both power and data in one ruggedized armored package. Designed for harsh outdoor and OSP environments, this cable integrates high-performance singlemode fiber and 18AWG copper conductors within a single, armored sheath-eliminating the need for multiple cable runs or conduit systems.

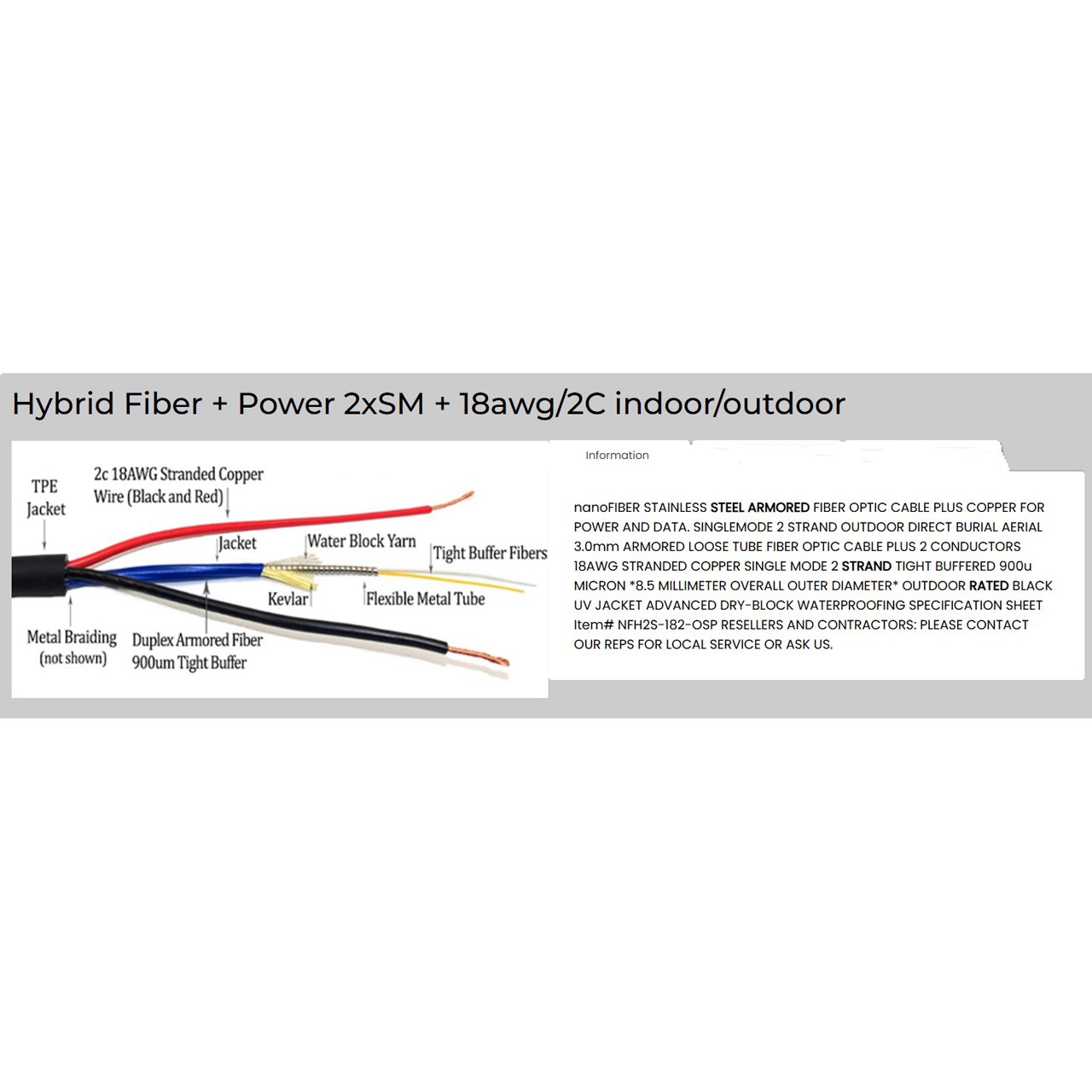

The internal fiber is housed in a spiral stainless steel tube, providing outstanding crush resistance and rodent protection, while water-blocking tape and Kevlar strength members ensure long-term reliability in moisture-prone and high-tension installations.

This cable is ideal for powering edge devices such as broadcast & IP cameras, wireless access points, remote sensors, and small enclosures that require both connectivity and DC power.

For installers, this means fewer labor hours, faster deployment, and no hassle transitioning between power and data cables-everything is pre-bundled for simplicity.

Users benefit from lower material costs, streamlined project design, and a rugged composite cable that's built to withstand outdoor abuse without sacrificing performance. Whether trenching, mounting in conduit, or deploying overhead, this armored P2P cable ensures maximum uptime, durability, and installation speed-all in one hybrid line.

  • Features:

    • 250 foot reel
    • Singlemode
    • 2 Strand
    • 18 AWG Copper Conductor
    • Power & Fiber Under One Jacket
    • Stainless Steel Armor
    • Tight Buffer
    • Bend Insensitive G657A2
    • Water Blocking
    • Fiber Sub Unit LSZH
    • Outer Jacket TPE Black
    • Smallest outer diameter armored cable
    • Outer Diameter 10.0mm
    • 500% Increase in Pathway Capacity
    • Reduces in Cable Congestion

  • Specifications:

    • Length: 250ft (76.2m)
    • Fiber Count: 2 Fibers
    • Fiber Type: G657.A2 Bend-Insensitive Singlemode
    • Material: TPE
    • Armor Type: Passivated Metallic Cladding (Rodent/Crush Resistant) Stainless Steel Coil
    • Strength Member: Kevlar
    • Diameter: 3.0 ±0.2mm
    • Construction: Tight Buffered 900µm
    • Jacket Color: High-visibility Yellow
    • Operating Temperature: -4°F - 140°F (-20°C - 60°C)
    • Minimum Bend Radius: 10x cable diameter (installation), 20x (operation)
    • Water Blocking: Yes, water-blocking yarn
    • Subjacket: LSZH Yellow

      Copper Power Core
    • Conductor Type: 18 AWG
    • Strand Count: 1 strands of 0.16mm wires
    • Outer Jacket: Black OSP-Grade with Water Blocking Tape

  • Item Includes:

    • 1x 250 Foot 2 Strand Singlemode Plus 18AWG Hybrid Power & Fiber Integrated OSP/Indoor Cable

  • Warranty:

    • 25 Year Warranty
