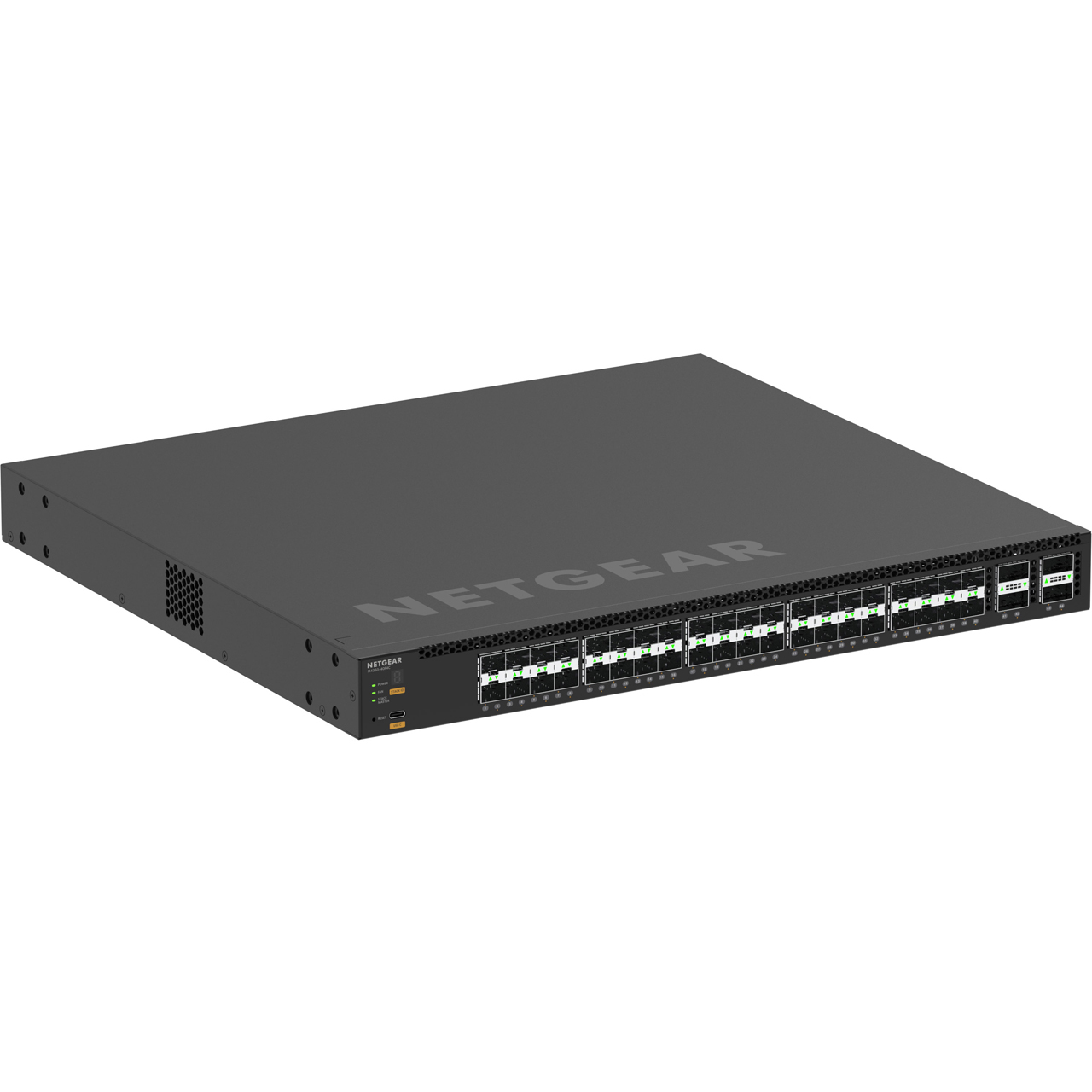

Netgear AV Line M4350-40X4C Managed Ethernet Switch with 40x 10GBASE-X SFP+ Ports & 4x 100GBASE-X QSFP28 Uplinks - TAA

ITEM #: NG-XSM4344FC-TAA MFG #: XSM4344FC-TAANES

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$13,758.60

Our Price:

$9,499.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


XSM4344FC-TAANES - Overview

Engineered and Certified for AV over IP!

The Netgear M4350-TAA brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary Netgear AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols

Power And Throughput
Designed for critical AV over IP installations of up to thousands of endpoints, the Netgear AV M4350-40X4C brings all the simplicity of the M4250 and packs in more Enterprise-class hardware, a redundant power supply and larger fabric with100G uplinks. The revolutionary Netgear AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols!

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
Netgear IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

Fast, Easy Configuration for AV Pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.

Maximize Performance with Pro Wifi Access Points
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

  • Features:

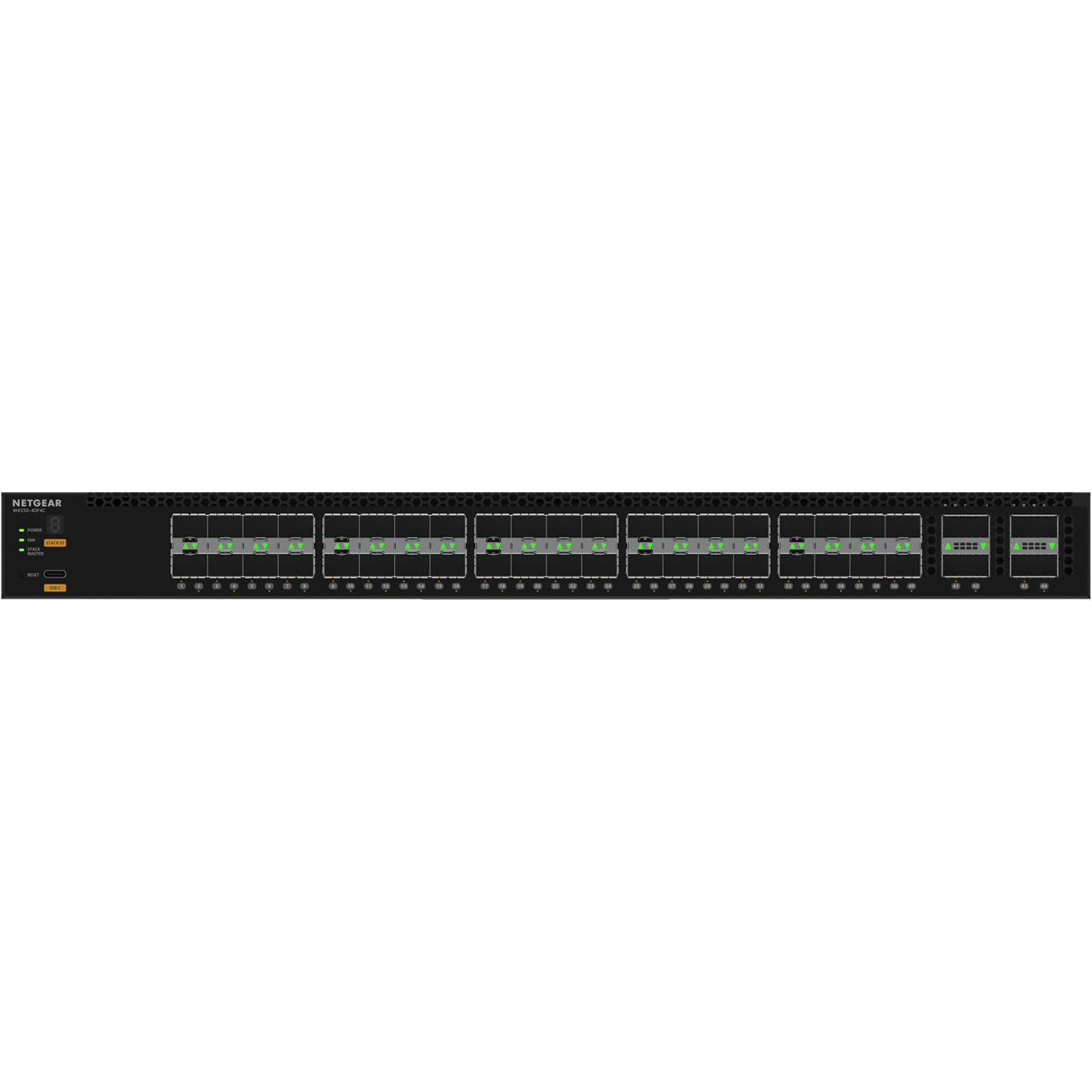

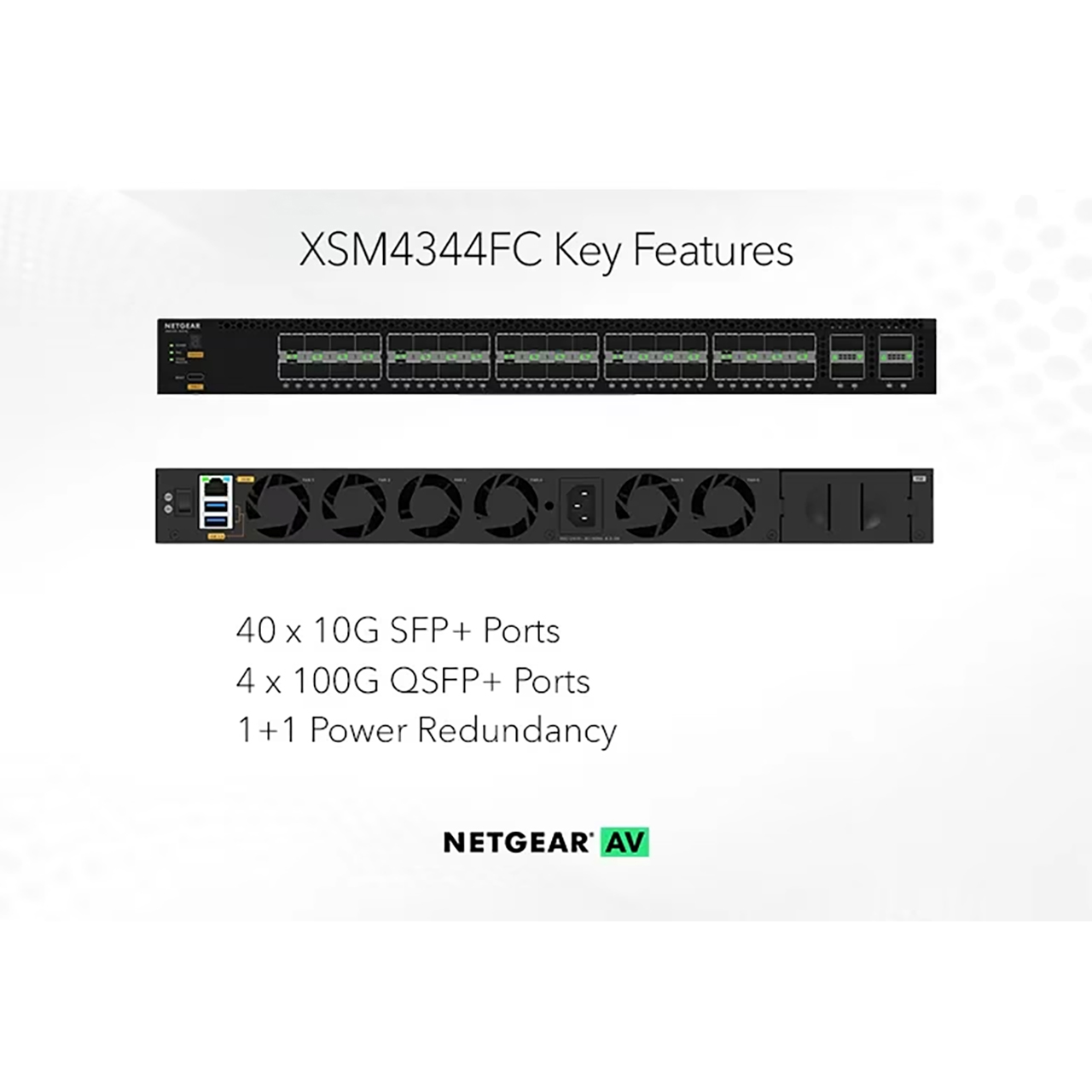

    • 40x 10GBASE-X SFP+ ports with 4x 100GBASE-X QSFP28 uplinks
    • 420W internal power supply

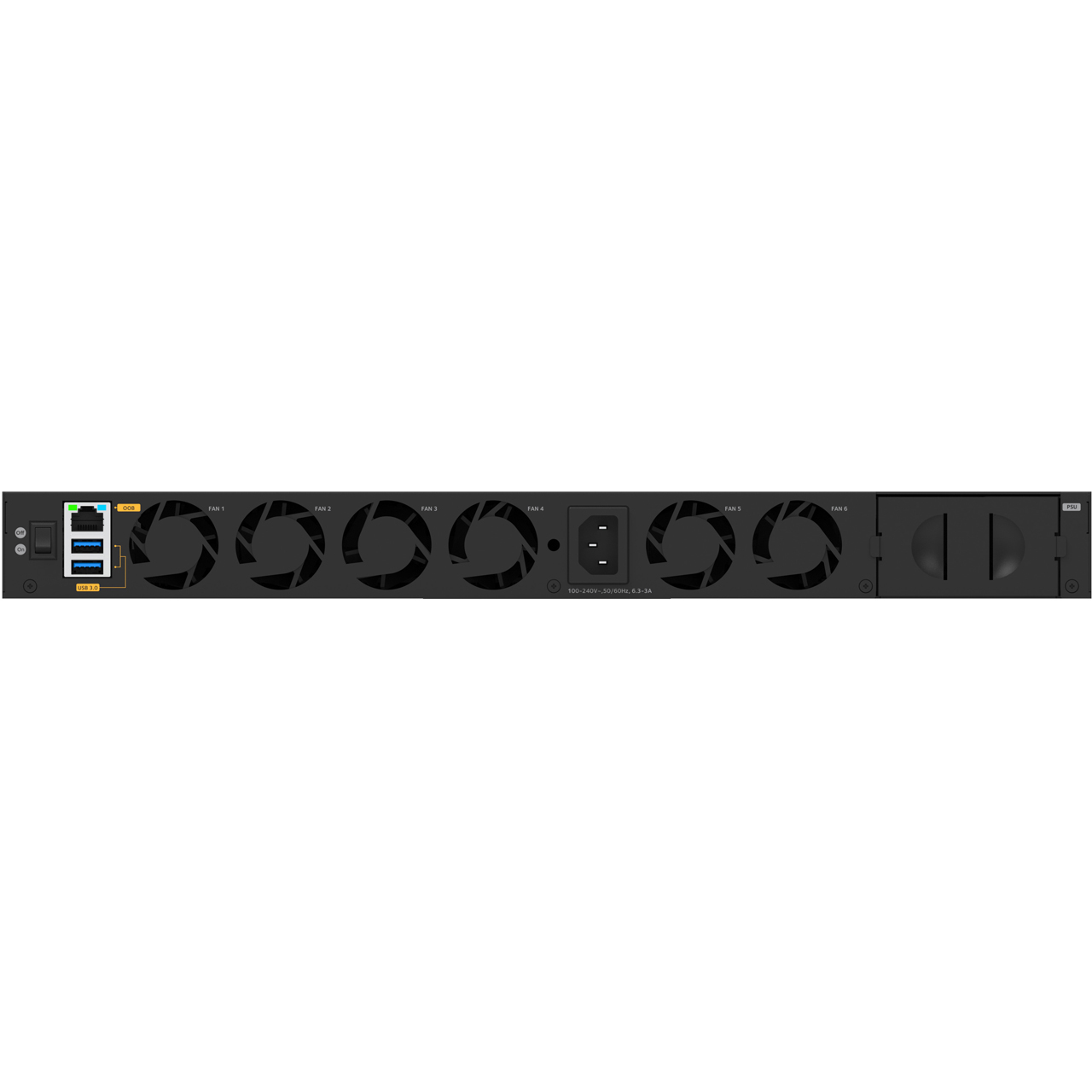

    • 1x slot for modular power supply (1+1 redundancy)
    • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
    • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
    • Layer 3 feature set includes static, policy-based, and dynamic routing
    • Netgear IGMP Plus™, Netgear AV OS, and Engage Controller speed up AV installations
    • SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications
    • Multi-color LED on each physical port reflecting the profile color in the Netgear AV OS™ and Engage Controller

  • Specifications:

    • Primary Port Speed: 10 Gigabit
    • Number of Ports: 44
      - 40x 10G SFP+
      - 4x 100G QSFP28
    • IGMP Support: Enhanced (Netgear IGMP Plus™)
    • Jumbo Frame Support: Yes, up to 12kb
    • AVB Support: Yes, included
    • Acoustics: Quiet Mode 34.2dB @ 77°F (25°C)
    • Power Consumption:
      - Max: 213.6W/728.21Btu/hr
      - Standby without Any Port Connection: 65W/221.12Btu/hr
    • PSU Compatible Models:
      - APS600Wv3
      - APS1200Wv2
      - APS2000Wv2
    • Dimensions: 15.75" x 17.32" x 1.7" (440mm x 400mm x 43.2mm)
    • Weight: 16.26lbs (7.38kg)

  • Item Includes:

    • 1x M4350-40F4C-TAA (XSM4344FC)
    • 1x Power cord
    • 1x Console USB Type-C cable
    • 1x Rack-mounting standard bracket set
    • 1x Set of longer brackets for recessed mounting
    • 4x Rubber footpads for tabletop installation
    • 1x Installation guide

  • Warranty:

    • Limited Lifetime Warranty with Registration
